TVS Diodes
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Unidirectional Channels | Bidirectional Channels | Voltage - Reverse Standoff (Typ) | Voltage - Breakdown (Min) | Voltage - Clamping (Max) @ Ipp | Current - Peak Pulse (10/1000µs) | Power - Peak Pulse | Power Line Protection | Applications | Capacitance @ Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
.jpg)
|
CPDQ3V3-HFTVS DIODE 3.3VWM 14.1VC 0402 |
113,247 | 0.32 |
|
Datasheet |
SOD-923 | - | Tape & Reel (TR) | Active | Zener | - | 1 | 3.3V | 5V | 14.1V | 11.2A (8/20µs) | 158W | No | General Purpose | 25pF @ 1MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 0402/SOD-923F |
|

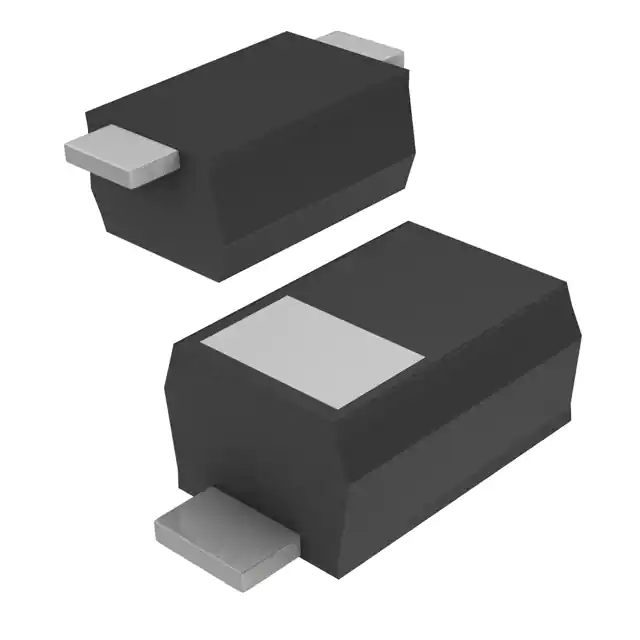

SMF5.0A-TPTVS DIODE 5VWM 9.2VC SOD123FL |
99,398 | 0.43 |
|
Datasheet |
SOD-123F | - | Tape & Reel (TR) | Active | Zener | 1 | - | 5V | 6.4V | 9.2V | 21.7A | 200W | No | General Purpose | - | -65°C ~ 175°C (TA) | - | - | Surface Mount | SOD-123FL |
|
SD36-01FTGTVS DIODE 36VWM 62VC SOD323 |
86,352 | 0.41 |
|
Datasheet |
SC-76, SOD-323 | SD, SPA® | Tape & Reel (TR) | Active | Zener | 1 | - | 36V (Max) | - | 62V | 5A (8/20µs) | 450W | No | General Purpose | 50pF @ 1MHz | -40°C ~ 125°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOD-323 |
|

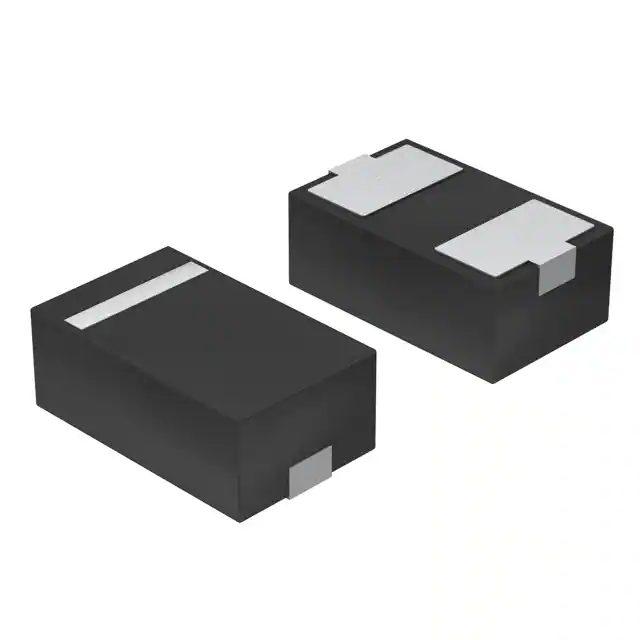

VCUT0714A-HD1-GS08TVS DIODE 7VWM 14VWM LLP1006-2L |
74,232 | 0.46 |
|
Datasheet |
SOD-882 | - | Tape & Reel (TR) | Active | Zener | - | 1 | 7V, 14V | 7.3V, 14.5V | 17V, 30V | 5A, 2A (8/20µs) | 54W, 63W | No | RS-485 | 8pF @ 1MHz | -40°C ~ 125°C (TJ) | - | - | Surface Mount | LLP1006-2L |
|
SMAJ5.0A-13-FTVS DIODE 5VWM 9.2VC SMA |
45,851 | 0.41 |
|
Datasheet |
DO-214AC, SMA | - | Tape & Reel (TR) | Active | Zener | 1 | - | 5V | 6.4V | 9.2V | 43.5A | 400W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SMA |
|
SD05T1GTVS DIODE 5VWM 9.8VC SOD323 |
35,181 | 0.40 |
|
Datasheet |
SC-76, SOD-323 | - | Tape & Reel (TR) | Active | Zener | 1 | - | 5V | 6.2V | 9.8V | 24A (8/20µs) | 350W | No | - | 350pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOD-323 |
|
|
SMF33A-TPTVS DIODE 33VWM 53.3VC SOD123FL |
15,295 | 0.43 |
|
Datasheet |
SOD-123F | - | Tape & Reel (TR) | Active | Zener | 1 | - | 33V | 36.7V | 53.3V | 3.8A | 200W | No | General Purpose | - | -65°C ~ 175°C (TA) | - | - | Surface Mount | SOD-123FL |
|
|
SMF16A-TPTVS DIODE 16VWM 26VC SOD123FL |
1,598 | 0.43 |
|
Datasheet |
SOD-123F | - | Tape & Reel (TR) | Active | Zener | 1 | - | 16V | 17.8V | 26V | 7.7A | 200W | No | General Purpose | - | -65°C ~ 175°C (TA) | - | - | Surface Mount | SOD-123FL |
|
ESD8472MUT5GTVS DIODE 5.3VWM 14VC 2X3DFN |
340,852 | 0.35 |
|
Datasheet |
0201 (0603 Metric) | - | Tape & Reel (TR) | Active | Zener | - | 1 | 5.3V (Max) | 7V | 14V | 3A (8/20µs) | - | No | RF Antenna | 0.2pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 2-X3DFN (0.6x0.3) (0201) |
|
|
SMBJ36CA-13-FTVS DIODE 36VWM 58.1VC SMB |
295,491 | 0.39 |
|
Datasheet |
DO-214AA, SMB | SMBJ | Tape & Reel (TR) | Active | Zener | - | 1 | 36V | 40V | 58.1V | 10.3A | 600W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SMB |
|
DT1240-04LP-7TVS DIODE 5.5VWM 11VC U-DFN2510 |
243,432 | 0.48 |
|
Datasheet |
10-UFDFN | - | Tape & Reel (TR) | Active | Steering (Rail to Rail) | 4 | - | 5.5V (Max) | 6V | 11V | 5.5A (8/20µs) | 60W | Yes | Ethernet, HDMI | - | -55°C ~ 85°C (TA) | - | - | Surface Mount | U-DFN2510-10 |
|
|
SMBJ5.0CA-13-FTVS DIODE 5VWM 9.2VC SMB |
197,869 | 0.39 |
|
Datasheet |
DO-214AA, SMB | SMBJ | Tape & Reel (TR) | Active | Zener | - | 1 | 5V | 6.4V | 9.2V | 65.2A | 600W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SMB |
|
ACPDQC5V0R-HFTVS DIODE 5VWM 12V 0402C/SOD923F |
146,113 | 0.45 |
|
Datasheet |
0402 (1006 Metric) | - | Tape & Reel (TR) | Active | Zener | - | 1 | 5V (Max) | 5.6V | 12V | 11A (8/20µs) | - | No | - | 24pF @ 1MHz | -40°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | 0402C/SOD-923F |
|
|
ACPDQC3V3T-HFTVS DIODE 3.3VWM 9.8VC 0402C |
145,316 | 0.45 |
|
Datasheet |
0402 (1006 Metric) | - | Tape & Reel (TR) | Active | Zener | - | 1 | 3.3V (Max) | 3.6V | 9.8V | 16A (8/20µs) | - | No | - | 20pF @ 1MHz | - | Automotive | AEC-Q101 | Surface Mount | 0402C/SOD-923F |
|
ESD351DPYRTVS DIODE 3.6VWM 6.5VC 2X1SON |
110,073 | 0.38 |
|
Datasheet |
0402 (1006 Metric) | - | Tape & Reel (TR) | Active | Zener | 1 | - | 3.6V | 4.5V | 6.5V | 16A | 36W | No | General Purpose | 1.8pF @ 1MHz | -40°C ~ 125°C | - | - | Surface Mount | 2-X1SON (1x.60) |
|
ESD9X3.3ST5GTVS DIODE 3.3VWM 10.4VC SOD923 |
85,000 | 0.30 |
|
Datasheet |
SOD-923 | - | Tape & Reel (TR) | Active | Zener | 1 | - | 3.3V (Max) | 5V | 10.4V | 9.8A (8/20µs) | 102W | No | General Purpose | 80pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOD-923 |
|
TESD5V0V4UCX6 RFGTVS DIODE 5VWM 15VC SOT26 |
37,115 | 0.48 |
|
Datasheet |
SOT-23-6 | - | Tape & Reel (TR) | Active | Zener | 4 | - | 5V (Max) | 6V | 15V | 5A (8/20µs) | 75W | Yes | General Purpose | 0.6pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-26 |
|
SMAJ15ATVS DIODE 15VWM 24.4VC DO214AC |
30,982 | 0.24 |
|
Datasheet |
DO-214AC, SMA | SMAJ | Tape & Reel (TR) | Active | Zener | 1 | - | 15V | 16.7V | 24.4V | 16.4A | 400W | No | General Purpose | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AC (SMA) |
|
ESD103B102ELSE6327XTSA1TVS DIODE 15VWM 48VC TSLP-2-20 |
21,826 | 0.44 |
|
Datasheet |
0201 (0603 Metric) | - | Tape & Reel (TR) | Active | Zener | - | 1 | 15V (Max) | 21V (Typ) | 48V (Typ) | 16A (100ns) | - | No | RF Antenna | 0.13pF @ 1MHz | -55°C ~ 125°C (TJ) | - | - | Surface Mount | PG-TSSLP-2-4 |
|
D5V0P4URL6SO-7TVS DIODE 3.3VWM 6VC SOT26 |
14,645 | 0.37 |
|
- |
SOT-23-6 | - | Tape & Reel (TR) | Active | Steering (Rail to Rail) | 4 | - | 3.3V (Max) | 4.5V | 6V (Typ) | 5A (8/20µs) | 180W | Yes | HDMI | 2.4pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-26 |
