TVS Diodes
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Unidirectional Channels | Bidirectional Channels | Voltage - Reverse Standoff (Typ) | Voltage - Breakdown (Min) | Voltage - Clamping (Max) @ Ipp | Current - Peak Pulse (10/1000µs) | Power - Peak Pulse | Power Line Protection | Applications | Capacitance @ Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SZPACDN004SRTVS DIODE 5.5VWM SOT143 |
8,328 | 1.00 |
|
Datasheet |
TO-253-4, TO-253AA | - | Tape & Reel (TR) | Obsolete | Steering (Rail to Rail) | 2 | - | 5.5V (Max) | - | - | - | - | No | - | - | -40°C ~ 85°C (TA) | Automotive | AEC-Q101 | Surface Mount | SOT-143 |
|
SZSD05T1GTVS DIODE 5VWM 9.8VC SOD323 |
4,428 | 0.00 |
|
Datasheet |
SC-76, SOD-323 | - | Tape & Reel (TR) | Obsolete | Zener | 1 | - | 5V | 6.2V | 9.8V | 24A (8/20µs) | 350W | No | - | 350pF @ 1MHz | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOD-323 |
|
SZSL24T1GTVS DIODE 24VWM 55VC SOT23-3 |
3,158 | 0.00 |
|
Datasheet |
TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Obsolete | Zener | 1 | - | 24V | 26.7V | 55V | 5A (8/20µs) | 300W | No | - | 3.5pF @ 1MHz | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOT-23-3 (TO-236) |
|
SZUESD5.0DT5GTVS DIODE 5VWM SOT723 |
8,504 | 0.00 |
|
Datasheet |
SOT-723 | uESD | Tape & Reel (TR) | Obsolete | Zener | 2 | - | 5V (Max) | 6.2V | - | - | - | No | - | 38pF @ 1MHz | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOT-723 |
|
SMBF5.0A-TRTVS DIODE 5VWM 13.4VC SMBFLAT |
7,049 | 0.00 |
|
Datasheet |
DO-221AA, SMB Flat Leads | SMBJ, TRANSIL™ | Tape & Reel (TR) | Active | Zener | - | - | 5V | 6.4V | 13.4V | 298A (8/20µs) | 600W | - | - | - | - | - | - | Surface Mount | SMBflat |
|
|
JANTXV1N6138TVS DIODE 5.2VWM 11.03VC C AXIAL |
7,733 | 0.00 |
|
Datasheet |
Axial | - | Bulk | Active | Zener | - | 1 | 5.2V | 6.14V | 11.03V | 135.66A | 1500W (1.5kW) | No | General Purpose | - | -55°C ~ 175°C (TJ) | Military | MIL-PRF-19500/516 | Through Hole | C, Axial |
|
P4SMA130CAHE3/61TVS DIODE 111VWM 179VC DO214AC |
7,517 | 0.00 |
|
Datasheet |
DO-214AC, SMA | P4SMA, TransZorb® | Tape & Reel (TR) | Discontinued at Digi-Key | Zener | - | 1 | 111V | 124V | 179V | 1.7A | 300W | No | - | - | -65°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AC (SMA) |
|
P6KE33A-E3/73TVS DIODE 28.2VWM 45.7VC DO204AC |
4,386 | 0.23 |
|
Datasheet |
DO-204AC, DO-15, Axial | TransZorb® | Tape & Reel (TR) | Active | Zener | 1 | - | 28.2V | 31.4V | 45.7V | 13.1A | 600W | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Through Hole | DO-204AC (DO-15) |
;;2.jpg)
|
P6SMB110AHE3/52TVS DIODE 94VWM 152VC DO214AA |
5,382 | 0.00 |
|
Datasheet |
DO-214AA, SMB | P6SMB, TransZorb® | Tube | Discontinued at Digi-Key | Zener | 1 | - | 94V | 105V | 152V | 3.9A | 600W | No | - | - | -65°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AA (SMBJ) |
|
|
P6SMB110AHE3/5BTVS DIODE 94VWM 152VC DO214AA |
3,753 | 0.00 |
|
Datasheet |
DO-214AA, SMB | P6SMB, TransZorb® | Tube | Discontinued at Digi-Key | Zener | 1 | - | 94V | 105V | 152V | 3.9A | 600W | No | - | - | -65°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AA (SMBJ) |
|
1SMC5.0A BKTVS DIODE 5VWM 9.2VC SMC |
8,618 | 0.00 |
|
Datasheet |
DO-214AB, SMC | - | Bulk | Active | Zener | 1 | - | 5V | 6.4V | 9.2V | 163A | 1500W (1.5kW) | No | General Purpose | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | SMC |
|
P6SMB6.8CA BKTVS DIODE 5.8VWM 10.5VC SMB |
5,830 | 0.00 |
|
Datasheet |
DO-214AA, SMB | - | Bulk | Active | Zener | - | 1 | 5.8V | 6.45V | 10.5V | 57A | 600W | No | General Purpose | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | SMB |
|
|
P6SMB6.8CA TR13TVS DIODE 5.8VWM 10.5VC SMB |
9,299 | 0.00 |
|
Datasheet |
DO-214AA, SMB | - | Tape & Reel (TR) | Active | Zener | - | 1 | 5.8V | 6.45V | 10.5V | 57A | 600W | No | General Purpose | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | SMB |
|
SRV08-4.TCTTVS DIODE 5VWM 17.5VC SOT23-6 |
3,004 | 0.49 |
|
Datasheet |
SOT-23-6 | RailClamp®, SR | Tape & Reel (TR) | Obsolete | Steering (Rail to Rail) | 4 | - | 5V (Max) | 6V | 17.5V | 5A (8/20µs) | 150W | Yes | General Purpose | 3pF @ 1MHz | -55°C ~ 125°C (TJ) | - | - | Surface Mount | SOT-23-6 |
|

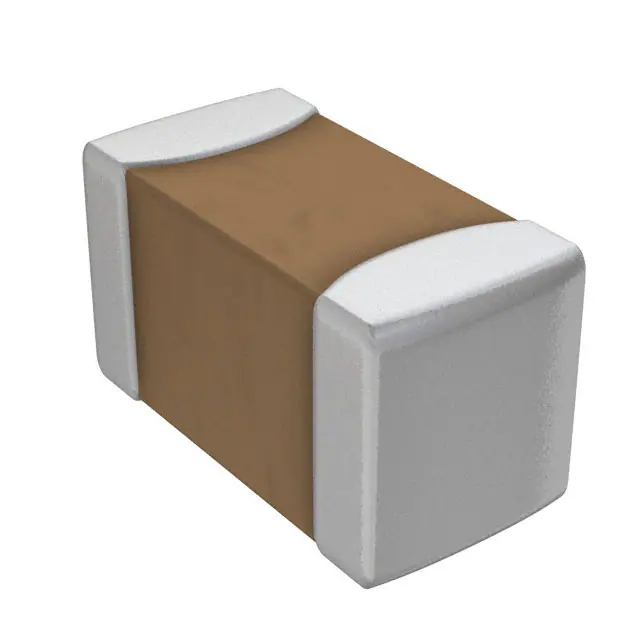

LXES15AAA1-133TVS DIODE 15VWM 1005 |
9,126 | 0.00 |
|
Datasheet |
0402 (1005 Metric) | LXESxxA | Tape & Reel (TR) | Obsolete | Zener | - | 1 | 15V | - | - | - | - | No | General Purpose | 0.05pF @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 1005 |
|
|
LXES15AAA1-153TVS DIODE 4VWM 1005 |
2,617 | 0.00 |
|
Datasheet |
0402 (1005 Metric) | LXESxxA | Tape & Reel (TR) | Obsolete | Zener | - | 1 | 4V | - | - | - | - | No | General Purpose | 0.05pF @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 1005 |
|
PTVS12VZ1USKNYLTVS DIODE 12VWM 32VC DSN1608-2 |
7,705 | 0.00 |
|
Datasheet |
0603 (1608 Metric) | - | Tape & Reel (TR) | Obsolete | Zener | 1 | - | 12V (Max) | 13.3V | 32V | 65A (8/20µs) | 2100W (2.1kW) | No | General Purpose | 430pF @ 1MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | DSN1608-2 |
Schottky.jpg)
|

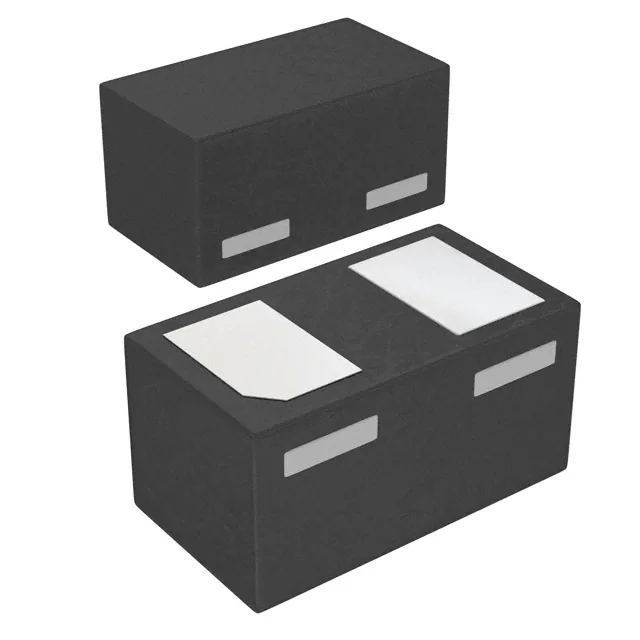

ESDBL5V0AE2-TPTVS DIODE 5VWM 10VC 0201-B |
4,678 | 0.00 |
|
Datasheet |
0201 (0603 Metric) | - | Tape & Reel (TR) | Obsolete | Zener | - | 1 | 5V (Max) | 5.8V | 10V | 5A (8/20µs) | 50W | No | General Purpose | 10pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 0201-B |
|

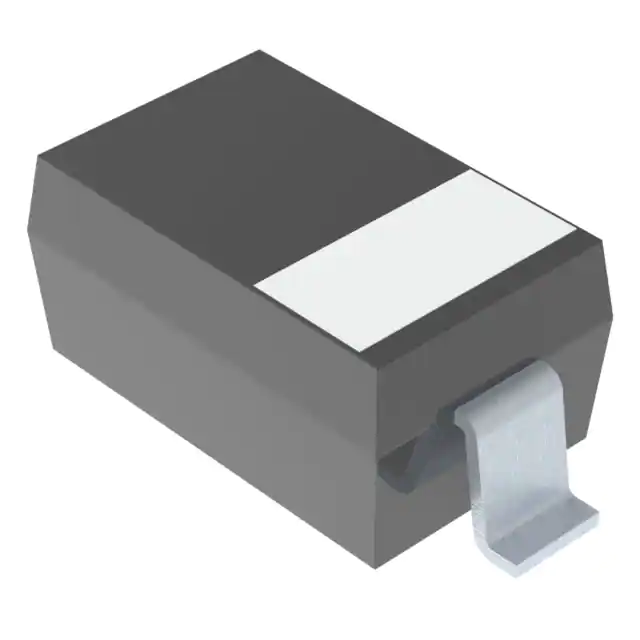

ESDH12VD1-TPTVS DIODE 12VWM 35VC SOD123 |
6,276 | 0.00 |
|
Datasheet |
SOD-123 | - | Tape & Reel (TR) | Obsolete | Zener | 1 | - | 12V (Max) | 13V | 35V | 120A (8/20µs) | 4200W (4.2kW) | No | General Purpose | 620pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOD-123 |
|
ESDLC5V0PB8-TPTVS DIODE 5VWM 20VC DFN3810-9 |
7,344 | 0.00 |
|
Datasheet |
9-UDFN | - | Tape & Reel (TR) | Obsolete | Steering (Rail to Rail) | 8 | - | 5V (Max) | 6V | 20V | 5A (8/20µs) | 100W | Yes | General Purpose | 0.29pF @ 1MHz | -55°C ~ 125°C (TJ) | - | - | Surface Mount | DFN3810-9 |
