TVS Diodes
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Unidirectional Channels | Bidirectional Channels | Voltage - Reverse Standoff (Typ) | Voltage - Breakdown (Min) | Voltage - Clamping (Max) @ Ipp | Current - Peak Pulse (10/1000µs) | Power - Peak Pulse | Power Line Protection | Applications | Capacitance @ Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LS777722.6V 125A UNI-DIRECTIONAL TVS |
5,395 | 0.00 |
|
- |
- | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
H09D52V5UESD PROTECTION DIODE |
1,459 | 0.00 |
|
Datasheet |
SC-79, SOD-523 | - | Tape & Reel (TR) | Active | Zener | 1 | - | 2.5V (Max) | 4V | 12V | 9A | 100W | No | CAN, Telecom | 145pF @ 1MHz | -55°C ~ 125°C (TJ) | - | - | Surface Mount | SOD-523 |
|
|
H6A5D55V0UESD PROTECTION DIODE |
2,532 | 0.00 |
|
Datasheet |
SC-79, SOD-523 | - | Tape & Reel (TR) | Active | Zener | 1 | - | 5V (Max) | 6.2V | 15V | 6.5A | 100W | No | CAN, Telecom | 80pF @ 1MHz | -55°C ~ 125°C (TJ) | - | - | Surface Mount | SOD-523 |
|
SMBJ45CATVS DIODE 45VWM 72.7VC |
1,793 | 0.37 |
|
Datasheet |
DO-214AA (SMB) | SMBJ | Strip | Active | Zener | - | 1 | 45V | 50V | 72.7V | 8.25A | 600W | - | General Purpose | - | -55°C ~ 150°C | - | - | Surface Mount | - |
|
H06D324VBLESD PROTECTION DIODE |
2,379 | 0.00 |
|
Datasheet |
SC-76, SOD-323 | - | Tape & Reel (TR) | Active | Zener | - | 1 | 24V (Max) | 26.7V | 56V | 6A | 350W | No | Ethernet, USB | 0.8pF @ 1MHz | -55°C ~ 125°C (TJ) | - | - | Surface Mount | SOD-323 |
|
SMBJ10ATVS DIODE 10VWM 17VC |
3,624 | 0.47 |
|
Datasheet |
DO-214AA (SMB) | SMBJ | Strip | Active | Zener | 1 | - | 10V | 11.1V | 17V | 35.29A | 600W | - | General Purpose | - | -55°C ~ 150°C | - | - | Surface Mount | - |
|
1.5KE36CTVS, 29.1V, 1500W Bi |
7,935 | 1.58 |
|
Datasheet |
Axial | - | Tape & Reel (TR) | Obsolete | Zener | - | 1 | 29.1V | 32.4V | 52V | 30A | 1500W (1.5kW) | No | General Purpose | - | -50°C ~ 175°C (TJ) | - | - | Through Hole | Axial |
|

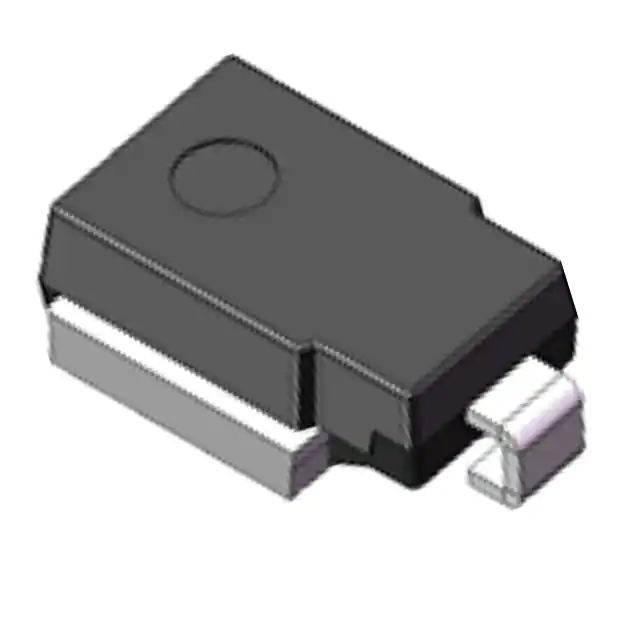

SM8S22CATVS 6600W 22VWM BiDir DO-218AB |
2,750 | 4.55 |
|
Datasheet |
DO-218AB | - | Tape & Reel (TR) | Active | Zener | - | 1 | 22V | 24.4V | 35.5V | 186A | 6600W (6.6kW) | No | - | - | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-218AB |
|
|
SMBJ36CATVS DIODE 36VWM 58.1VC |
2,802 | 0.37 |
|
Datasheet |
DO-214AA (SMB) | SMBJ | Strip | Active | Zener | - | 1 | 36V | 40V | 58.1V | 10.33A | 600W | - | General Purpose | - | -55°C ~ 150°C | - | - | Surface Mount | - |
|

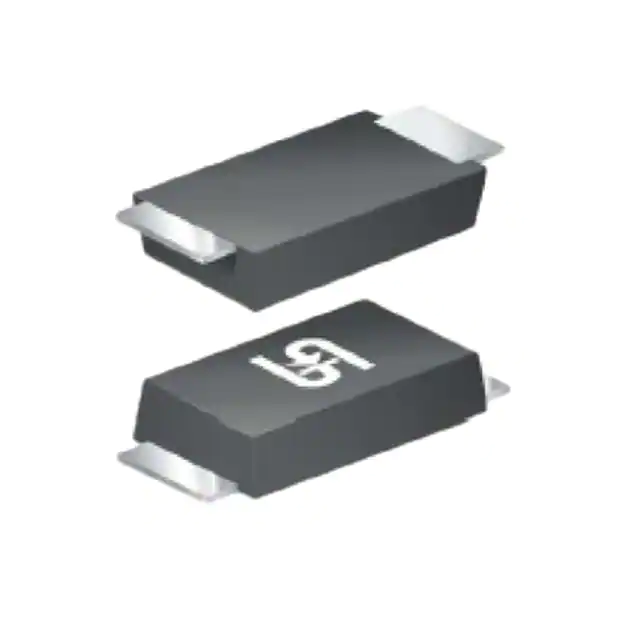

SMF15ATVS DIODE 15VWM 24.4VC |
4,204 | 0.09 |
|
Datasheet |
SOD-123FL | SMF | Strip | Active | Zener | 1 | - | 15V | 16.7V | 24.4V | 8.2A | 200W | - | General Purpose | - | -55°C ~ 150°C | - | - | Surface Mount | - |
|
30KP260ATVS DIODE UP 260VRWM 416.0VC |
2,617 | 5.74 |
|
Datasheet |
P600, Axial | 30KP | Bulk | Active | Zener | 1 | - | 260V | 290.4V | 416V | 72.8A | 30000W (30kW) | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Through Hole | P600 |
|
15KP260ATVS DIODE UP 260VRWM 416.7VC |
6,474 | 9.95 |
|
Datasheet |
P600, Axial | 15KP | Bulk | Active | Zener | 1 | - | 260V | 290.4V | 416.7V | 36.2A | 15000W (15kW) | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Through Hole | P600 |
|
|
RT100KP28CATVS DIODE BP 28VRWM 58.0VC |
6,519 | 22.50 |
|
Datasheet |
P600, Axial | RT100KP | Bulk | Active | Zener | - | 1 | 28V | 31.28V | 58V | 1715A (1.715kA) | 100000W (100kW) | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Through Hole | P600 |
|
|
15KPA40ATVS DIODE UP 40VRWM 65.8VC |
3,172 | 9.95 |
|
Datasheet |
P600, Axial | 15KPA | Bulk | Active | Zener | 1 | - | 40V | 44.7V | 65.8V | 229.5A | 15000W (15kW) | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Through Hole | P600 |
|
|
15KP200CATVS DIODE BP 200VRWM 319.1VC |
2,304 | 9.95 |
|
Datasheet |
P600, Axial | 15KP | Bulk | Active | Zener | - | 1 | 200V | 223.4V | 319.1V | 47.3A | 15000W (15kW) | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Through Hole | P600 |
|
MART100KP170CATVS DIODE BP 170VRWM 334.0VC |
8,003 | 28.50 |
|
Datasheet |
P600, Axial | MART100KP | Bulk | Active | Zener | - | 1 | 170V | 189.9V | 334V | 300A | 100000W (100kW) | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Through Hole | P600 |
|
|
MART100KP43CATVS DIODE BP 43VRWM 84.5VC |
7,107 | 28.50 |
|
Datasheet |
P600, Axial | MART100KP | Bulk | Active | Zener | - | 1 | 43V | 48V | 84.5V | 1184A (1.184kA) | 100000W (100kW) | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Through Hole | P600 |
|
|
15KP48CATVS DIODE BP 48VRWM 77.7VC |
9,524 | 9.95 |
|
Datasheet |
P600, Axial | 15KP | Bulk | Active | Zener | - | 1 | 48V | 53.6V | 77.7V | 194.3A | 15000W (15kW) | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Through Hole | P600 |
|
|
RT100KP90CATVS DIODE BP 90VRWM 178.0VC |
8,298 | 22.50 |
|
Datasheet |
P600, Axial | RT100KP | Bulk | Active | Zener | - | 1 | 90V | 100.5V | 178V | 563A | 100000W (100kW) | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Through Hole | P600 |
|
|
30KPA66ATVS DIODE UP 66VRWM 107.0VC |
2,921 | 18.50 |
|
Datasheet |
P600, Axial | 30KPA | Bulk | Active | Zener | 1 | - | 66V | 73.7V | 107V | 283.2A | 30000W (30kW) | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Through Hole | P600 |
