TVS Diodes
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Unidirectional Channels | Bidirectional Channels | Voltage - Reverse Standoff (Typ) | Voltage - Breakdown (Min) | Voltage - Clamping (Max) @ Ipp | Current - Peak Pulse (10/1000µs) | Power - Peak Pulse | Power Line Protection | Applications | Capacitance @ Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1SMF16BT1GTVS DIODE 16VWM 26VC SOD123FL |
6,227 | 0.15 |
|
- |
SOD-123F | - | Tape & Reel (TR) | Obsolete | Zener | 1 | - | 16V | 16.7V | 26V | 7A (8/20µs) | 1000W (1kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOD-123FL |
|
P4SMF58ATVS DIODE 58VWM 93.6VC SOD123FL |
1,841 | 0.30 |
|
Datasheet |
SOD-123F | P4SMF | Tape & Reel (TR) | Active | Zener | 1 | - | 58V | 64.4V | 93.6V | 4.3A | 400W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOD-123FL |
|
TGL200CF10TVS MELF 1000V 300W UNIDIR |
20,000 | 0.15 |
|
Datasheet |
DO-213AB, MELF | - | Tape & Reel (TR) | Active | Zener | - | 1 | 162V | 180V | 287V | 1A | 300W | No | General Purpose | - | -50°C ~ 150°C (TJ) | - | - | Surface Mount | DO-213AB (MELF) |
|
H04X645V0UESD PROTECTION DIODE |
201,444 | 0.00 |
|
Datasheet |
10-UFDFN | - | Tape & Reel (TR) | Active | Steering (Rail to Rail) | 4 | - | 5V (Max) | 6V | 15V | 4A (8/20µs) | 60W | No | DVI, HDMI, USB | 0.5pF @ 1MHz | -55°C ~ 125°C (TJ) | - | - | Surface Mount | DFN2510-10 |
|
SA13AGTVS DIODE 13VWM 21.5VC AXIAL |
9,563 | 0.14 |
|
Datasheet |
DO-204AC, DO-15, Axial | MiniMosorb™ | Bulk | Obsolete | Zener | 1 | - | 13V | 14.4V | 21.5V | 23.2A | 500W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Through Hole | Axial |
|
|
SA10AGTVS DIODE 10VWM 17VC AXIAL |
3,133 | 0.14 |
|
Datasheet |
DO-204AC, DO-15, Axial | MiniMosorb™ | Bulk | Obsolete | Zener | 1 | - | 10V | 11.1V | 17V | 29.4A | 500W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Through Hole | Axial |
|
SMAJ12CATVS DIODE 12VWM 19.9VC |
10,000 | 0.43 |
|
Datasheet |
DO-214AC (SMA) | SMAJ | Strip | Active | Zener | - | 1 | 12V | 13.3V | 19.9V | 20.1A | 400W | - | General Purpose | - | -55°C ~ 150°C | - | - | Surface Mount | - |
|
SMF6.0ATVS DIODE 6VWM 10.3VC |
3,000 | 0.46 |
|
Datasheet |
SOD-123FL | SMF | Strip | Active | Zener | 1 | - | 6V | 6.67V | 10.3V | 19.42A | 200W | - | General Purpose | - | -55°C ~ 150°C | - | - | Surface Mount | - |
|
P6SMB480ATVS SMB 408V 600W UNIDIR |
6,000 | 0.66 |
|
Datasheet |
DO-214AA, SMB | - | Tape & Reel (TR) | Active | Zener | 1 | - | 408V | 456V | 658V | 910mA | 600W | No | General Purpose | - | -50°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA (SMB) |
|
SD05TVS DIODE 5VWM 9.8VC SOD323 |
51,000 | 0.32 |
|
Datasheet |
SC-76, SOD-323 | - | Tape & Reel (TR) | Active | Zener | 1 | - | 5V (Max) | 6V | - | 1A (8/20µs) | 350W | Yes | General Purpose | 300pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOD-323 |
|
SMAJ40ATVS DIODE 40VWM 64.5VC SMA |
22,000 | 0.31 |
|
Datasheet |
DO-214AC, SMA | SMAJ | Tape & Reel (TR) | Active | Zener | 1 | - | 40V | 44.4V | 64.5V | 6.2A | 400W | No | General Purpose | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AC (SMA) |
|
|
SMAJ24ATVS DIODE 24VWM 38.9VC SMA |
20,000 | 0.37 |
|
Datasheet |
DO-214AC, SMA | SMAJ | Tape & Reel (TR) | Active | Zener | 1 | - | 24V | 26.7V | 38.9V | 10.3A | 400W | No | General Purpose | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AC (SMA) |
|
|
SMAJ48CATVS DIODE 48VWM 77.4VC SMA |
10,000 | 0.43 |
|
Datasheet |
DO-214AC, SMA | SMAJ | Tape & Reel (TR) | Active | Zener | - | 1 | 48V | 53.3V | 77.4V | 5.2A | 400W | No | General Purpose | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AC (SMA) |
|
|
SMAJ13ATVS DIODE 13VWM 21.5VC SMA |
6,000 | 0.17 |
|
Datasheet |
DO-214AC, SMA | SMAJ | Tape & Reel (TR) | Active | Zener | 1 | - | 13V | 14.4V | 21.5V | 18.6A | 400W | No | General Purpose | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AC (SMA) |
|
SMF48ATVS DIODE 48VWM 77.4VC |
3,000 | 0.17 |
|
Datasheet |
SOD-123FL | SMF | Strip | Active | Zener | 1 | - | 48V | 53.3V | 77.4V | 2.58A | 200W | - | General Purpose | - | -55°C ~ 150°C | - | - | Surface Mount | - |
|
ESD8106MUTAGTVS DIODE 3.3VWM 11.4VC 14UDFN |
8,978 | 0.15 |
|
Datasheet |
14-UFDFN | - | Tape & Reel (TR) | Obsolete | Zener | 6 | - | 3.3V (Max) | 4V | 11.4V (Typ) | 16A (100ns) | - | No | General Purpose | 0.3pF @ 1MHz | -55°C ~ 125°C (TJ) | - | - | Surface Mount | 14-UDFN (3.5x1.35) |
|

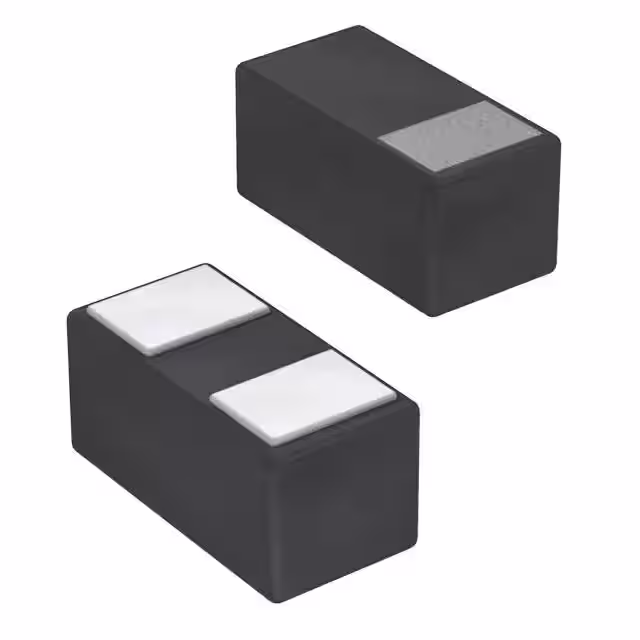

TVS5501V10MUT5GTVS DIODE 10VWM 20VC 2UDFN |
9,491 | 0.18 |
|
- |
2-UDFN | - | Tape & Reel (TR) | Obsolete | Zener | 1 | - | 10V (Max) | 12V | 20V | 60A (8/20µs) | - | No | General Purpose | 400pF @ 1MHz (Max) | -65°C ~ 150°C (TJ) | - | - | Surface Mount | 2-UDFN (1.6x1) |
|

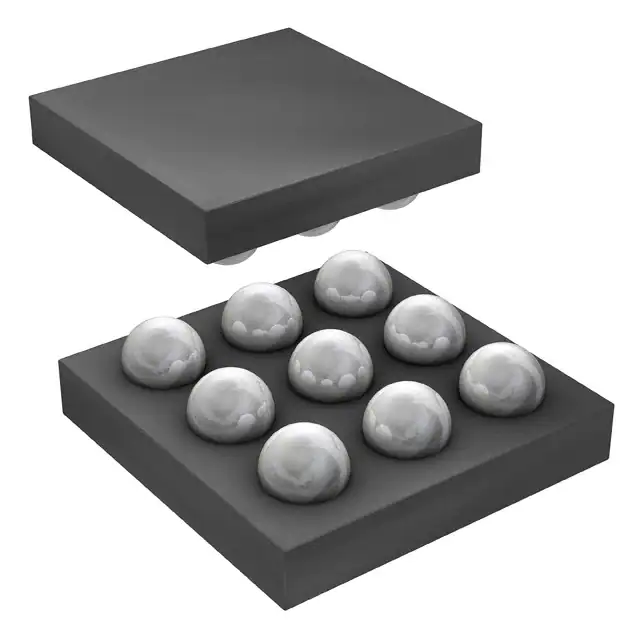

ESD5384NCTBGTVS DIODE 3VWM 9-WLCSP |
2,521 | 1.00 |
|
Datasheet |
9-UFBGA, WLCSP | - | Tape & Reel (TR) | Obsolete | Zener | 5 | - | 3V (Max) | 6V | - | - | - | No | HDMI | 10pF @ 1MHz | -30°C ~ 85°C (TA) | - | - | Surface Mount | 9-WLCSP (1.14x1.14) |
|
ESD5581N2T5GTVS DIODE 5VWM 12VC 2X2DFN |
96,287 | 0.31 |
|
Datasheet |
2-XDFN | - | Tape & Reel (TR) | Active | Zener | - | 1 | 5V (Max) | 5.2V | 12V | 6A (8/20µs) | - | No | General Purpose | 10pF @ 1MHz (Max) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 2-X2DFN (1x0.6) |
.jpg)
|
SD18TVS ARRAY 18V SOD-323 |
48,608 | 0.13 |
|
Datasheet |
SC-76, SOD-323 | SDxx | Tape & Reel (TR) | Active | Zener | 1 | - | 18V (Max) | 20V | 40V | 24A (8/20µs) | 350W | No | General Purpose | 120pF @ 1MHz (Max) | -55°C ~ 125°C (TJ) | - | - | Surface Mount | SOD-323 |
