TVS Diodes
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Unidirectional Channels | Bidirectional Channels | Voltage - Reverse Standoff (Typ) | Voltage - Breakdown (Min) | Voltage - Clamping (Max) @ Ipp | Current - Peak Pulse (10/1000µs) | Power - Peak Pulse | Power Line Protection | Applications | Capacitance @ Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SMAJ15CATVS DIODE 15VWM 24.4VC SMA |
4,806 | 0.11 |
|
Datasheet |
DO-214AC, SMA | - | Cut Tape (CT) | Active | Zener | - | 1 | 15V | 16.7V | 24.4V | 16.4A | 400W | No | General Purpose | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | SMA |
|
SMBJ5.0ATVS, UNI-DIR, 600W, 5V, DO-214AA |
4,637 | 0.43 |
|
Datasheet |
DO-214AA, SMB | SMBJx | Tape & Reel (TR) | Active | Zener | 1 | - | 5V | 6.4V | 9.2V | 65.2A | 600W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA (SMB) |
|
1N6287ARL4GTVS DIODE 40.2VWM 64.8VC AXIAL |
4,500 | 0.20 |
|
Datasheet |
DO-201AD, Axial | Mosorb™ | Bulk | Active | Zener | 1 | - | 40.2V | 44.7V | 64.8V | - | 1500W (1.5kW) | No | General Purpose | - | -65°C ~ 175°C (TJ) | - | - | Through Hole | Axial |
|
PE4220CS_R1_00001HI-SURGE ESD PROTECTION |
4,454 | 0.41 |
|
Datasheet |
SC-90, SOD-323F | - | Tape & Reel (TR) | Active | Zener | 1 | - | 20V (Max) | 20.5V | 35V | 8A (8/20µs) | - | No | General Purpose | 60pF @ 1MHz (Max) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOD-323 |
|
|
SMBJ20ATVS, UNI-DIR, 600W, 20V, DO-214A |
4,429 | 0.47 |
|
Datasheet |
DO-214AA, SMB | SMBJx | Cut Tape (CT) | Active | Zener | 1 | - | 20V | 22.2V | 32.4V | 18.5A | 600W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA (SMB) |
|
SMBJ170ATVS, UNI-DIR, 600W, 170V, DO-214 |
4,075 | 0.41 |
|
Datasheet |
DO-214AA, SMB | SMBJx | Tape & Reel (TR) | Active | Zener | 1 | - | 170V | 189V | 275V | 2.2A | 600W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA (SMB) |
|
|
PE4218CS_R1_00001HI-SURGE ESD PROTECTION |
3,965 | 0.41 |
|
Datasheet |
SC-90, SOD-323F | - | Tape & Reel (TR) | Active | Zener | 1 | - | 18V (Max) | 20V | 34V | 9A (8/20µs) | - | No | General Purpose | 90pF @ 1MHz (Max) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOD-323 |
|
SMBJ100CATVS, BI-DIR, 600W, 100V,DO-214AA |
3,950 | 0.18 |
|
Datasheet |
DO-214AA, SMB | SMBJx | Tape & Reel (TR) | Active | Zener | - | 1 | 100V | 111V | 162V | 3.7A | 600W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA (SMB) |
|
SMAJ45A-TPTVS DIODE 45VWM 72.7VC DO214AC |
3,900 | 0.42 |
|
Datasheet |
DO-214AC, SMA | - | Tape & Reel (TR) | Active | Zener | 1 | - | 45V | 50V | 72.7V | 5.5A | 400W | No | General Purpose | - | -55°C ~ 175°C (TA) | - | - | Surface Mount | DO-214AC (SMA) |
|
SMBJ28CATVS, BI-DIR, 600W, 28V, DO-214AA |
3,506 | 0.60 |
|
Datasheet |
DO-214AA, SMB | SMBJx | Tape & Reel (TR) | Active | Zener | - | 1 | 28V | 31.1V | 45.4V | 13.2A | 600W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA (SMB) |
|
SJD12A160L01TVS ESD, SOD-123S, 160V, 259V, R |
3,000 | 0.41 |
|
Datasheet |
DO-219AA | SJD12A(C)XXXL01 | Tape & Reel (TR) | Active | Zener | 1 | - | 160V | 178V | 259V | 800mA | 200W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOD-123S |
|
|
SMBJ36CATVS, BI-DIR, 600W, 36V, DO-214AA |
2,975 | 0.37 |
|
Datasheet |
DO-214AA, SMB | SMBJx | Cut Tape (CT) | Active | Zener | - | 1 | 36V | 40V | 58.1V | 10.3A | 600W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA (SMB) |
|
SMF12AT1TVS DIODE 12VWM 19.9VC SOD123FL |
5,578 | 0.20 |
|
Datasheet |
SOD-123F | - | Tape & Reel (TR) | Obsolete | Zener | 1 | - | 12V | 13.3V | 19.9V | 10.1A | 200W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOD-123FL |
|
S2324TVS DIODE 24VWM 44VC SOT23 |
2,775 | 0.36 |
|
Datasheet |
TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Active | Zener | - | 1 | 24V (Max) | 26.7V | 44V | 1A | 300W | No | USB | 80pF @ 1MHz | -55°C ~ 125°C (TJ) | - | - | Surface Mount | SOT-23-3 |
|

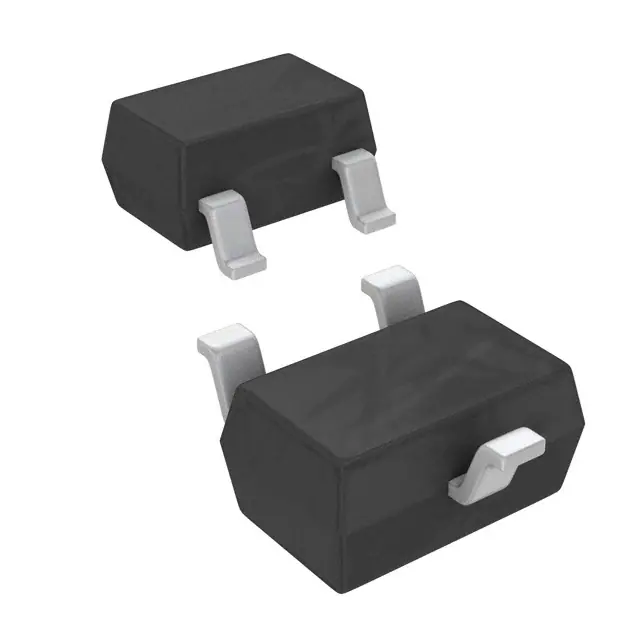

PEC2605C2C_R1_00001VERY LOW CAPACITANCE ESD PROTECT |
2,707 | 0.35 |
|
Datasheet |
SC-70, SOT-323 | - | Tape & Reel (TR) | Active | Zener | - | 2 | 5V (Max) | 5V | 12.5V | 3.5A (8/20µs) | - | No | General Purpose | 6pF @ 1MHz (Max) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-323 |
|
1.5KE30AGTVS DIODE 25.6VWM 41.4VC AXIAL |
2,661 | 0.20 |
|
Datasheet |
DO-201AD, Axial | Mosorb™ | Bulk | Active | Zener | 1 | - | 25.6V | 28.5V | 41.4V | 36A | 1500W (1.5kW) | No | General Purpose | - | -65°C ~ 175°C (TJ) | - | - | Through Hole | Axial |
|
|
SMBJ33ATVS, UNI-DIR, 600W, 33V, DO-214A |
2,511 | 0.26 |
|
Datasheet |
DO-214AA, SMB | SMBJx | Cut Tape (CT) | Active | Zener | 1 | - | 33V | 36.7V | 53.3V | 11.3A | 600W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA (SMB) |
|
|
S23C05TVS DIODE 5VWM 10.8VC SOT23 |
2,477 | 0.35 |
|
Datasheet |
TO-236-3, SC-59, SOT-23-3 | S23CXX | Tape & Reel (TR) | Active | Zener | - | 1 | 5V (Max) | 6V | 10.8V | 1A | 300W | No | General Purpose | 400pF @ 1MHz | -55°C ~ 125°C (TJ) | - | - | Surface Mount | SOT-23-3 |
|
|
1.5KE16ARL4GTVS DIODE 13.6VWM 22.5VC AXIAL |
1,990 | 0.20 |
|
Datasheet |
DO-201AD, Axial | Mosorb™ | Bulk | Active | Zener | 1 | - | 13.6V | 15.2V | 22.5V | 67A | 1500W (1.5kW) | No | General Purpose | - | -65°C ~ 175°C (TJ) | - | - | Through Hole | Axial |
;;2.jpg)
|
P6KE100CATVS DO15 85.5V 600W BIDIR DO-15 |
1,939 | 0.43 |
|
Datasheet |
DO-204AC, DO-15, Axial | P6KE | Cut Tape (CT) | Active | Zener | - | 1 | 85.5V | 95V | 137V | 4.5A | 600W | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Through Hole | DO-15 |
