TVS Diodes
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Unidirectional Channels | Bidirectional Channels | Voltage - Reverse Standoff (Typ) | Voltage - Breakdown (Min) | Voltage - Clamping (Max) @ Ipp | Current - Peak Pulse (10/1000µs) | Power - Peak Pulse | Power Line Protection | Applications | Capacitance @ Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
.jpg)
|
ESD3B5CMTVS DIODE 5VWM 9.8VC SOD323 |
3,000,000 | 0.13 |
|
Datasheet |
SC-76, SOD-323 | - | Tape & Reel (TR) | Active | Zener | - | 1 | 5V (Max) | 5.8V | - | 1A (8/20µs) | 400W | Yes | General Purpose | 40pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOD-323 |
|
|
SD18TVS DIODE 18VWM 29VC SOD323 |
3,000,000 | 0.13 |
|
Datasheet |
SC-76, SOD-323 | - | Tape & Reel (TR) | Active | Zener | 1 | - | 18V (Max) | 20V | - | 1A (8/20µs) | 350W | Yes | General Purpose | 100pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOD-323 |
|
SD24TVS DIODE 24VWM 43VC SOD323 |
3,000,000 | 0.32 |
|
Datasheet |
SC-76, SOD-323 | - | Tape & Reel (TR) | Active | Zener | 1 | - | 24V (Max) | 26.7V | - | 1A (8/20µs) | 350W | Yes | General Purpose | 80pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOD-323 |
|
ESD0301BLTVS DIODE 3.3VWM 12VC DFN1006 |
3,000,000 | 0.09 |
|
Datasheet |
DFN1006 | DFN1006 | Tape & Reel (TR) | Active | Zener | - | 1 | 3.3V (Max) | 4.2V | - | 1A (8/20µs) | 100W | Yes | General Purpose | 0.5pF @ 1MHz | -55°C ~ 125°C (TJ) | - | - | Surface Mount | DFN1006 |
|
|
SD12TVS DIODE 12VWM 19VC SOD323 |
3,000,000 | 0.32 |
|
Datasheet |
SC-76, SOD-323 | - | Tape & Reel (TR) | Active | Zener | 1 | - | 12V (Max) | 13.3V | - | 1A (8/20µs) | 350W | Yes | General Purpose | 130pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOD-323 |
|

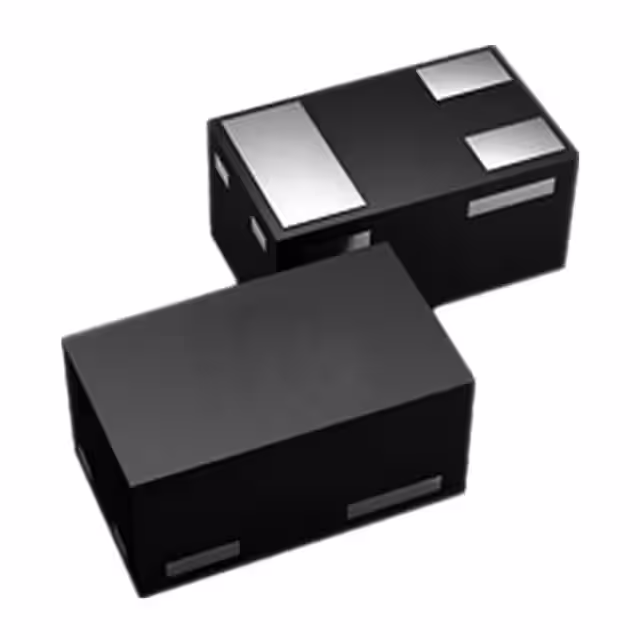

ESD0302LTVS DIODE 3.3VWM 10VC DFN1006-3L |
3,000,000 | 0.16 |
|
Datasheet |
DFN1006-3L | DFN1006- 3L | Tape & Reel (TR) | Active | Zener | 2 | - | 3.3V (Max) | 4.2V | - | 1A (8/20µs) | 56W | Yes | General Purpose | 0.6pF @ 1MHz | -55°C ~ 125°C (TJ) | - | - | Surface Mount | DFN1006-3L |
.jpg)
|
ESD5B5CUTVS DIODE 5VWM 10.5VC SOD523 |
3,000,000 | 0.11 |
|
Datasheet |
SOD-523 | - | Tape & Reel (TR) | Active | Zener | - | 1 | 5V (Max) | 5.6V | - | 1A (8/20µs) | 35W | Yes | General Purpose | 3.5pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOD-523 |
|
|
SD15TVS DIODE 15VWM 24VC SOD323 |
3,000,000 | 0.32 |
|
Datasheet |
SC-76, SOD-323 | - | Tape & Reel (TR) | Active | Zener | 1 | - | 15V (Max) | 16.7V | - | 1A (8/20µs) | 350W | Yes | General Purpose | 120pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOD-323 |
|
|
ESD0502LTVS DIODE 5VWM 10VC DFN1006-3L |
3,000,000 | 0.16 |
|
Datasheet |
DFN1006-3L | DFN1006- 3L | Tape & Reel (TR) | Active | Zener | 2 | - | 5V (Max) | 6V | - | 1A (8/20µs) | 60W | Yes | General Purpose | 0.6pF @ 1MHz | -55°C ~ 125°C (TJ) | - | - | Surface Mount | DFN1006-3L |
|
PTVS14VP1UTP,115TVS DIODE 14VWM 23.2VC CFP5 |
462,000 | 0.10 |
|
Datasheet |
SOD-128 | - | Bulk | Active | Zener | 1 | - | 14V | 15.6V | 23.2V | 25.9A | 600W | No | - | - | -55°C ~ 185°C (TA) | Automotive | AEC-Q101 | Surface Mount | SOD-128/CFP5 |
|
SMBJ12ATRANS VOLTAGE SUPPRESSOR DIODE, |
142,441 | 0.30 |
|
Datasheet |
DO-214AA, SMB | - | Bulk | Active | Zener | 1 | - | 12V | 13.3V | 19.9V | 30.15A | 600W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SMB |
|
SMBJ14CATRANS VOLTAGE SUPPRESSOR DIODE, |
126,000 | 0.47 |
|
Datasheet |
DO-214AA, SMB | SMBJ | Bulk | Active | Zener | - | 1 | 14V | 15.6V | 23.2V | 25.9A | 600W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA (SMB) |
|
NNCD5.1E-T1B-ANNCD5.1E-T1B-A - ELECTROSTATIC D |
102,000 | 0.11 |
|
- |
TO-236-3, SC-59, SOT-23-3 | - | Bulk | Obsolete | Zener | 1 | - | 1.5V (Max) | 4.84V | - | - | 100W | No | General Purpose | 160pF @ 1MHz | 150°C (TJ) | - | - | Surface Mount | SC-59 |
|
PTVS45VP1UTP,115TVS DIODE 45VWM 72.7VC CFP5 |
54,000 | 0.16 |
|
Datasheet |
SOD-128 | - | Bulk | Active | Zener | 1 | - | 45V | 50V | 72.7V | 8.3A | 600W | No | - | - | -55°C ~ 185°C (TA) | Automotive | AEC-Q101 | Surface Mount | SOD-128/CFP5 |
|
|
NNCD5.1F-T1B-ANNCD5.1F-T1B-A - ELECTROSTATIC D |
37,738 | 0.11 |
|
- |
TO-236-3, SC-59, SOT-23-3 | - | Bulk | Obsolete | Zener | 2 | - | 1.5V (Max) | 4.84V | - | - | 100W | No | General Purpose | 160pF @ 1MHz | 150°C (TJ) | - | - | Surface Mount | SC-59 |
|
|
NNCD6.2E-T1B-ANNCD6.2E-T1B-A - ELECTROSTATIC D |
33,000 | 0.12 |
|
- |
TO-236-3, SC-59, SOT-23-3 | - | Bulk | Obsolete | Zener | 2 | - | 3.3V | 3.1V | - | - | 100W | No | General Purpose | 220pF @ 1MHz | 150°C (TJ) | - | - | Surface Mount | 3-Mini Mold |
|
|
NNCD6.2MF-T1B-ATNNCD6.2MF-T1B-AT - LOW CAPACITAN |
20,704 | 0.12 |
|
- |
SC-70, SOT-323 | - | Bulk | Obsolete | Zener | 2 | - | 3V (Max) | 5.7V | - | - | 2W | No | General Purpose | 20pF @ 1MHz | 150°C (TJ) | - | - | Surface Mount | SC-70 |
|
|
PTVS8V5P1UTP,115TVS DIODE 8.5VWM 14.4VC CFP5 |
8,938 | 0.10 |
|
Datasheet |
SOD-128 | - | Bulk | Active | Zener | 1 | - | 8.5V | 9.44V | 14.4V | 41.7A | 600W | No | - | - | -55°C ~ 185°C (TA) | Automotive | AEC-Q101 | Surface Mount | SOD-128/CFP5 |
;;2.jpg)
|
P6KE10ATVS DIODE 8.5VWM 14.5VC DO15 |
8,000 | 0.45 |
|
Datasheet |
DO-204AC, DO-15, Axial | - | Bulk | Active | Zener | 1 | - | 8.5V | 9.5V | 14.5V | 43A | 600W | No | General Purpose | - | -50°C ~ 175°C (TJ) | - | - | Through Hole | DO-204AC (DO-15) |
|
|
PTVS11VP1UTP,115TVS DIODE 11VWM 18.2VC CFP5 |
6,000 | 0.10 |
|
Datasheet |
SOD-128 | - | Bulk | Active | Zener | 1 | - | 11V | 12.2V | 18.2V | 33A | 600W | No | - | - | -55°C ~ 185°C (TA) | Automotive | AEC-Q101 | Surface Mount | SOD-128/CFP5 |
