TVS Diodes
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Unidirectional Channels | Bidirectional Channels | Voltage - Reverse Standoff (Typ) | Voltage - Breakdown (Min) | Voltage - Clamping (Max) @ Ipp | Current - Peak Pulse (10/1000µs) | Power - Peak Pulse | Power Line Protection | Applications | Capacitance @ Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
15KPA30CATVS DIODE 30VWM 50.7VC P600 |
2,868 | 9.95 |
|
Datasheet |
P600, Axial | 15KPA | Cut Tape (CT) | Active | Zener | - | 1 | 30V | 33.51V | 50.7V | 297.8A | 15000W (15kW) | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Through Hole | P600 |
|
15KPA280A-BTVS DIODE 280VWM 454.5VC P600 |
100 | 10.50 |
|
Datasheet |
P600, Axial | 15KPA | Bulk | Active | Zener | 1 | - | 280V | 312.8V | 454.5V | 33.2A | 15000W (15kW) | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Through Hole | P600 |
|
|
15KPA51CA-BTVS DIODE 51VWM 82.9VC P600 |
1,836 | 10.50 |
|
Datasheet |
P600, Axial | 15KPA | Bulk | Active | Zener | - | 1 | 51V | 57V | 82.9V | 182.1A | 15000W (15kW) | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Through Hole | P600 |
|
JANTX1N6166ATVS DIODE 76VWM 137.6VC C AXIAL |
4,064 | 14.31 |
|
Datasheet |
G, Axial | - | Bulk | Active | Zener | - | 1 | 76V | 95V | 137.6V | 10.9A | 1500W (1.5kW) | No | General Purpose | - | -55°C ~ 175°C (TJ) | Military | MIL-PRF-19500/516 | Through Hole | C, Axial |
|
AK3-015C-YTVS DIODE 15VWM 28VC AXIAL |
4,137 | 16.21 |
|
Datasheet |
Axial, Right Angle Bend (24.15mm Center) | AK3-Y | Bulk | Active | Zener | - | 1 | 15V | 16V | 28V | 3000A (3kA) (8/20µs) | - | No | General Purpose | 9000pF @ 10kHz | -55°C ~ 125°C (TJ) | - | - | Through Hole | Axial |
|
AK3-015CTVS DIODE 15VWM 28VC AXIAL |
3,991 | 16.21 |
|
Datasheet |
Axial, Right Angle Bend (24.15mm Center) | AK3 | Tray | Active | Zener | - | 1 | 15V | 16V | 28V | 3000A (3kA) (8/20µs) | - | No | General Purpose | 9000pF @ 10kHz | -55°C ~ 125°C (TJ) | - | - | Through Hole | Axial |
|
1N5647ATVS DIODE 33.3VWM 53.9VC DO13 |
2,073 | 17.72 |
|
Datasheet |
DO-13 | - | Bulk | Active | Zener | 1 | - | 33.3V | 37.1V | 53.9V | 28A | 1500W (1.5kW) | No | General Purpose | - | -65°C ~ 175°C (TJ) | - | - | Through Hole | DO-13 |
|

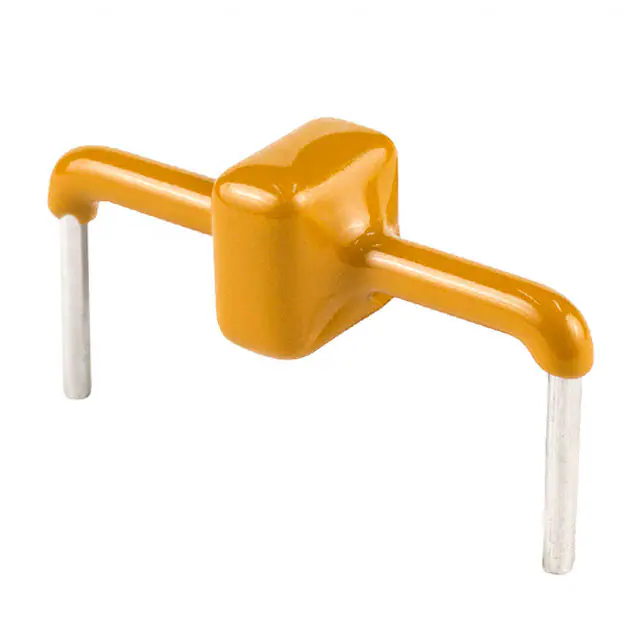

PTVS3-076C-THTVS DIODE 76VWM 140VC AXIAL |
1,872 | 21.68 |
|
Datasheet |
Axial, Right Angle Bend (24.15mm Center) | PTVS | Tray | Active | Zener | - | 1 | 76V (Max) | 85V | 140V | 3000A (3kA) (8/20µs) | - | No | General Purpose | 1700pF @ 10kHz | -55°C ~ 125°C (TJ) | - | - | Through Hole | Axial |
|
|
AK3-076C-YTVS DIODE 76VWM 140VC AXIAL |
2,308 | 21.28 |
|
Datasheet |
Axial, Right Angle Bend (24.15mm Center) | AK3-Y | Bulk | Active | Zener | - | 1 | 76V | 85V | 140V | 3000A (3kA) (8/20µs) | - | No | General Purpose | 6000pF @ 10kHz | -55°C ~ 125°C (TJ) | - | - | Through Hole | Axial |
|
1N5646ATVS DIODE 30.8VWM 49.9VC DO13 |
3,851 | 20.64 |
|
Datasheet |
DO-13 | - | Bulk | Active | Zener | 1 | - | 30.8V | 34.2V | 49.9V | 30A | 1500W (1.5kW) | No | General Purpose | - | -65°C ~ 175°C (TJ) | - | - | Through Hole | DO-13 |
|

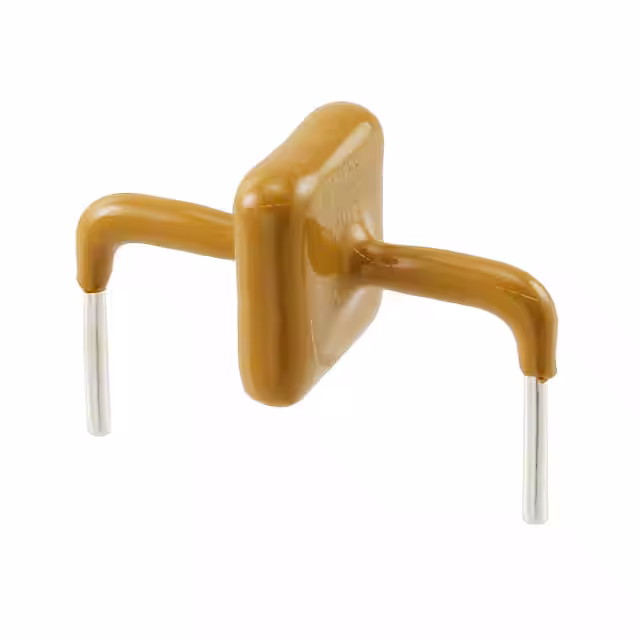

PTVS10-058C-THTVS DIODE 58VWM 110VC AXIAL |
3,288 | 22.12 |
|
Datasheet |
Axial, Right Angle Bend (24.15mm Center) | PTVS | Tray | Active | Zener | - | 1 | 58V (Max) | 64V | 110V | 10000A (10kA) (8/20µs) | - | No | General Purpose | 7500pF @ 10kHz | -55°C ~ 125°C (TJ) | - | - | Through Hole | Axial |
|
|
AK3-066CTVS DIODE 66VWM 120VC AXIAL |
4,686 | 23.41 |
|
Datasheet |
Axial, Right Angle Bend (24.15mm Center) | AK3 | Bulk | Active | Zener | - | 1 | 66V | 72V | 120V | 3000A (3kA) (8/20µs) | - | No | General Purpose | 6000pF @ 10kHz | -55°C ~ 125°C (TJ) | - | - | Through Hole | Axial |
|
AK6-076CTVS DIODE 76VWM 140VC AXIAL |
1,454 | 25.53 |
|
Datasheet |
Axial, Right Angle Bend (24.15mm Center) | AK6 | Tray | Active | Zener | - | 1 | 76V | 85V | 140V | 6000A (6kA) (8/20µs) | - | No | General Purpose | 6500pF @ 10kHz | -55°C ~ 125°C (TJ) | - | - | Through Hole | Axial |
|
|
1N6042ATVS DIODE 11VWM 18.2VC DO13 |
2,668 | 24.64 |
|
Datasheet |
DO-13 | - | Bulk | Active | Zener | - | 1 | 11V | 12.4V | 18.2V | 82A | 1500W (1.5kW) | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Through Hole | DO-13 |
|
AK10-076C-YTVS DIODE 76VWM 140VC AXIAL |
2,440 | 31.92 |
|
Datasheet |
Axial, Right Angle Bend (24.15mm Center) | AK10-Y | Bulk | Active | Zener | - | 1 | 76V | 85V | 140V | 10000A (10kA) (8/20µs) | - | No | General Purpose | 6500pF @ 10kHz | -55°C ~ 125°C (TJ) | - | - | Through Hole | Axial |
|
PTVS15-058C-SHTVS DIODE 58VWM 110VC SMD |
1,410 | 30.67 |
|
Datasheet |
2-SMD | PTVS | Bulk | Active | Zener | - | 1 | 58V (Max) | 64V | 110V | 15000A (15kA) (8/20µs) | - | No | General Purpose | 12000pF @ 10kHz | -55°C ~ 125°C (TJ) | - | - | Surface Mount | 2-SMD |
|

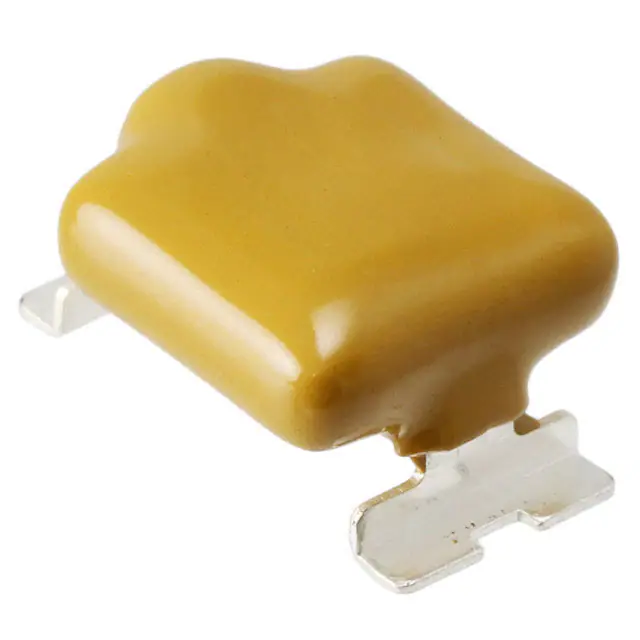

PTVS15-076C-SHTVS DIODE 76VWM 150VC 2SMD |
1,425 | 36.49 |
|
Datasheet |
2-SMD | PTVS | Bulk | Active | Zener | - | 1 | 76V (Max) | 85V | 150V | 15000A (15kA) (8/20µs) | - | No | General Purpose | 9000pF @ 10kHz | -55°C ~ 125°C (TJ) | - | - | Surface Mount | 2-SMD |
|
PTVS1-066C-THTVS DIODE 66VWM 86VC AXIAL |
2,158 | 39.08 |
|
Datasheet |
Axial, Right Angle Bend (24.15mm Center) | PTVS | Tray | Active | Zener | - | 1 | 66V (Max) | 71V | 86V (Typ) | 1000A (1kA) (8/20µs) | - | No | General Purpose | 744pF @ 10kHz | -55°C ~ 125°C (TJ) | - | - | Through Hole | Axial |
|
LTKAK10-058C-TPTVS DIODE 58VWM 110VC SMTO-218 |
1,055 | 37.84 |
|
Datasheet |
Nonstandard SMD | LTKAK10 | Tube | Active | Zener | - | 1 | 58V | 64V | 110V | 10000A (10kA) (8/20µs) | - | No | General Purpose | 8500pF @ 10kHz | -40°C ~ 125°C (TJ) | - | - | Surface Mount | SMTO-218 Tab |
|
AK1-430CTVS DIODE 430VWM 625VC AXIAL |
2,675 | 34.05 |
|
Datasheet |
Axial, Right Angle Bend (24.15mm Center) | AK1 | Bulk | Active | Zener | - | 1 | 430V | 440V | 625V | 1000A (1kA) (8/20µs) | - | No | General Purpose | 2000pF @ 10kHz | -55°C ~ 125°C (TJ) | - | - | Through Hole | Axial |
