Arrays, Signal Transformers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Number of Coils | Inductance - Connected In Parallel | Inductance - Connected In Series | Tolerance | Current Rating - Parallel | Current Rating - Series | Current Saturation - Parallel | Current Saturation - Series | DC Resistance (DCR) - Parallel | DC Resistance (DCR) - Series | Shielding | Ratings | Operating Temperature | Mounting Type | Size / Dimension | Height |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CTX15-1-RINDUCT ARRAY 2 COIL 14.4UH SMD |
1,100 | 5.85 |
|
Datasheet |
OCTA-PAC® | Nonstandard | Tape & Reel (TR) | Active | 2 | 14.4 µH | 57.6 µH | ±20% | 1.1 A | 550 mA | - | - | 80mOhm Max | 319mOhm Max | Unshielded | - | -40°C ~ 85°C | Surface Mount | 0.450" L x 0.450" W (11.43mm x 11.43mm) | 0.165" (4.19mm) |
|

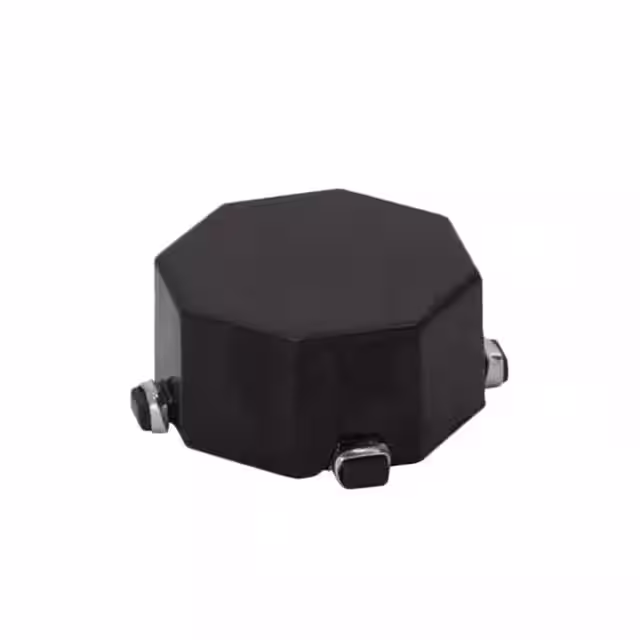

CTX100-4P-RINDUCT ARRAY 2 COIL 99.09UH SMD |
637 | 6.72 |
|
Datasheet |
Econo-Pac™ | Nonstandard | Tape & Reel (TR) | Active | 2 | 99.09 µH | 396.38 µH | ±20% | 720 mA | 360 mA | - | - | 565mOhm Max | 2.259Ohm Max | Unshielded | - | -40°C ~ 85°C | Surface Mount | 0.550" L x 0.550" W (13.97mm x 13.97mm) | 0.250" (6.35mm) |
|
|
CTX2-4A-RINDUCT ARRAY 2 COIL 2.18UH SMD |
2,312 | 5.99 |
|
Datasheet |
OCTA-PAC® PLUS | Nonstandard | Tape & Reel (TR) | Active | 2 | 2.18 µH | 8.7 µH | ±25% | 8.38 A | 4.19 A | 9 A | 4.5 A | 6.3mOhm Max | 25.1mOhm Max | Unshielded | - | -40°C ~ 85°C | Surface Mount | 0.550" L x 0.550" W (13.97mm x 13.97mm) | 0.250" (6.35mm) |
|
|
CTX300-1P-RINDUCT ARRAY 2 COIL 299.87UH SMD |
1,025 | 6.00 |
|
Datasheet |
Econo-Pac™ | Nonstandard | Tape & Reel (TR) | Active | 2 | 299.87 µH | 1.199 mH | ±20% | 320 mA | 160 mA | - | - | 1.525Ohm Max | 6.1Ohm Max | Unshielded | - | -40°C ~ 85°C | Surface Mount | 0.450" L x 0.450" W (11.43mm x 11.43mm) | 0.165" (4.19mm) |
|

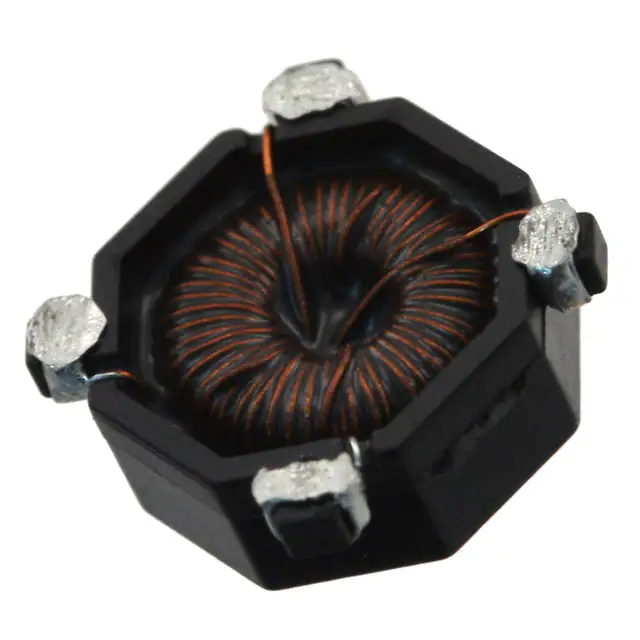

CTX20-1-RINDUCT ARRAY 2 COIL 19.6UH SMD |
1,678 | 5.69 |
|
Datasheet |
OCTA-PAC® | Nonstandard | Tape & Reel (TR) | Active | 2 | 19.6 µH | 78.4 µH | ±20% | 1 A | 500 mA | - | - | 146mOhm Max | 583mOhm Max | Unshielded | - | -40°C ~ 85°C | Surface Mount | 0.450" L x 0.450" W (11.43mm x 11.43mm) | 0.165" (4.19mm) |
|

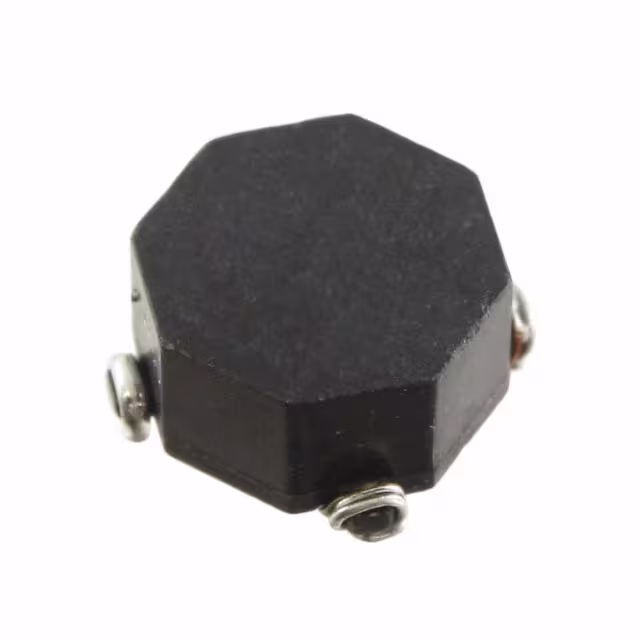

CTX5-4A-RINDUCT ARRAY 2 COIL 4.26UH SMD |
120 | 5.79 |
|
Datasheet |
OCTA-PAC® PLUS | Nonstandard | Tape & Reel (TR) | Active | 2 | 4.26 µH | 17.05 µH | ±25% | 7.21 A | 3.61 A | 6.43 A | 3.21 A | 8.5mOhm Max | 33.9mOhm Max | Unshielded | - | -40°C ~ 85°C | Surface Mount | 0.550" L x 0.550" W (13.97mm x 13.97mm) | 0.250" (6.35mm) |
|

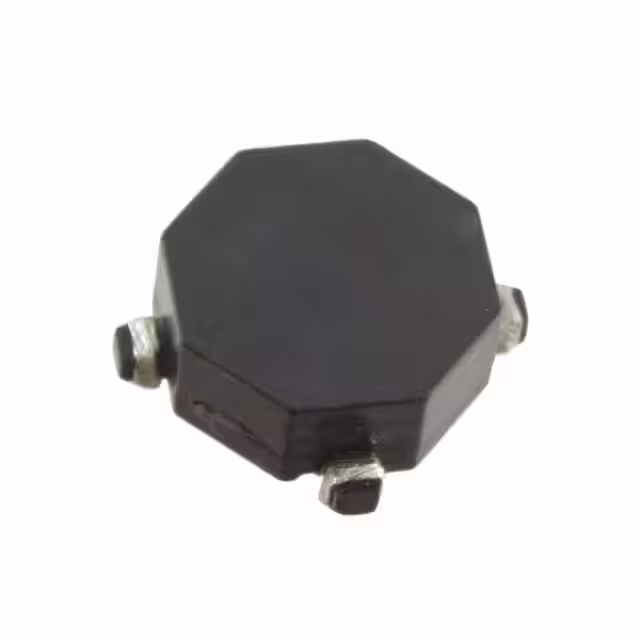

CTX150-1-RINDUCT ARRAY 2 COIL 148.23UH SMD |
2,277 | 5.61 |
|
Datasheet |
OCTA-PAC® | Nonstandard | Tape & Reel (TR) | Active | 2 | 148.23 µH | 592.9 µH | ±20% | 380 mA | 190 mA | - | - | 965mOhm Max | 3.861Ohm Max | Unshielded | - | -40°C ~ 85°C | Surface Mount | 0.450" L x 0.450" W (11.43mm x 11.43mm) | 0.165" (4.19mm) |
|
74485540350INDUCT ARRAY 2 COIL 3.5UH SMD |
474 | 6.97 |
|
Datasheet |
WE-CFWI | 4-SMD | Tape & Reel (TR) | Active | 2 | 3.5 µH | 14 µH | ±20% | 14 A | 7 A | 27 A | 13.5 A | 12mOhm Max | - | Shielded | - | -40°C ~ 150°C | Surface Mount | 0.610" L x 0.520" W (15.50mm x 13.20mm) | 0.413" (10.50mm) |
|
|
74485540290INDUCT ARRAY 2 COIL 2.9UH SMD |
244 | 6.97 |
|
Datasheet |
WE-CFWI | 4-SMD | Tape & Reel (TR) | Active | 2 | 2.9 µH | 11.6 µH | ±20% | 17 A | 8.5 A | 29 A | 14.5 A | 8.96mOhm Max | - | Shielded | - | -40°C ~ 150°C | Surface Mount | 0.610" L x 0.520" W (15.50mm x 13.20mm) | 0.413" (10.50mm) |
|
CTX50-1-RINDUCT ARRAY 2 COIL 50.63UH SMD |
865 | 5.24 |
|
Datasheet |
OCTA-PAC® | Nonstandard | Tape & Reel (TR) | Active | 2 | 50.63 µH | 202.5 µH | ±20% | 640 mA | 320 mA | - | - | 365mOhm Max | 1.461Ohm Max | Unshielded | - | -40°C ~ 85°C | Surface Mount | 0.450" L x 0.450" W (11.43mm x 11.43mm) | 0.165" (4.19mm) |
|
|
CTX300-2-RINDUCT ARRAY 2 COIL 300.8UH SMD |
720 | 7.22 |
|
Datasheet |
OCTA-PAC® | Nonstandard | Tape & Reel (TR) | Active | 2 | 300.8 µH | 1.2 mH | ±20% | 380 mA | 190 mA | - | - | 1.231Ohm Max | 4.929Ohm Max | Unshielded | - | -40°C ~ 85°C | Surface Mount | 0.450" L x 0.450" W (11.43mm x 11.43mm) | 0.235" (5.97mm) |
|

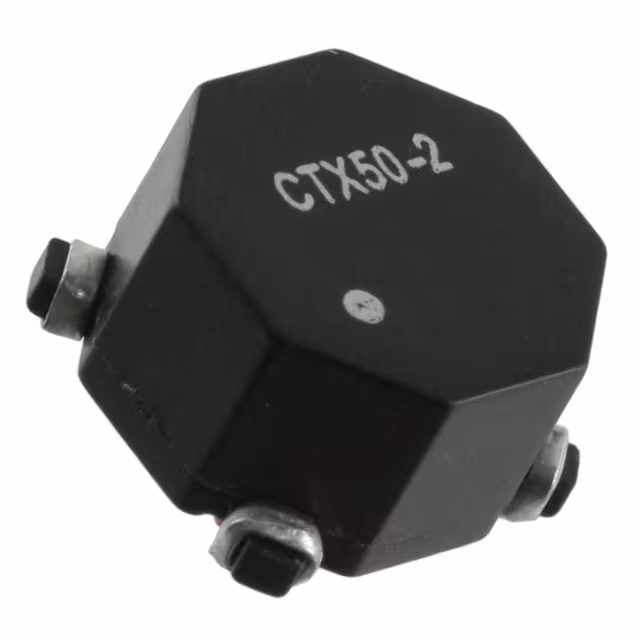

CTX50-2-RINDUCT ARRAY 2 COIL 51.18UH SMD |
460 | 7.22 |
|
Datasheet |
OCTA-PAC® | Nonstandard | Tape & Reel (TR) | Active | 2 | 51.18 µH | 204.73 µH | ±20% | 920 mA | 460 mA | - | - | 210mOhm Max | 839mOhm Max | Unshielded | - | -40°C ~ 85°C | Surface Mount | 0.450" L x 0.450" W (11.43mm x 11.43mm) | 0.235" (5.97mm) |
|
CTX20-2-RINDUCT ARRAY 2 COIL 20.73UH SMD |
1,188 | 6.17 |
|
Datasheet |
OCTA-PAC® | Nonstandard | Tape & Reel (TR) | Active | 2 | 20.73 µH | 82.91 µH | ±20% | 1.3 A | 650 mA | - | - | 107mOhm Max | 426mOhm Max | Unshielded | - | -40°C ~ 85°C | Surface Mount | 0.450" L x 0.450" W (11.43mm x 11.43mm) | 0.235" (5.97mm) |
|
CTX150-4A-RINDUCT ARRAY 2 COIL 153.5UH SMD |
600 | 5.42 |
|
Datasheet |
OCTA-PAC® PLUS | Nonstandard | Tape & Reel (TR) | Active | 2 | 153.5 µH | 613.9 µH | ±25% | 1.1 A | 550 mA | 1.07 A | 540 mA | 365mOhm Max | 1.462Ohm Max | Unshielded | - | -40°C ~ 85°C | Surface Mount | 0.550" L x 0.550" W (13.97mm x 13.97mm) | 0.250" (6.35mm) |
|
|
CTX200-1P-RINDUCT ARRAY 2 COIL 198.41UH SMD |
1,100 | 6.44 |
|
Datasheet |
Econo-Pac™ | Nonstandard | Tape & Reel (TR) | Active | 2 | 198.41 µH | 793.65 µH | ±20% | 360 mA | 180 mA | - | - | 1.208Ohm Max | 4.831Ohm Max | Unshielded | - | -40°C ~ 85°C | Surface Mount | 0.450" L x 0.450" W (11.43mm x 11.43mm) | 0.165" (4.19mm) |
|
|
CTX300-4P-RINDUCT ARRAY 2 COIL 298.93UH SMD |
600 | 7.67 |
|
Datasheet |
Econo-Pac™ | Nonstandard | Tape & Reel (TR) | Active | 2 | 298.93 µH | 1.2 mH | ±20% | 540 mA | 270 mA | - | - | 1.003Ohm Max | 4.011Ohm Max | Unshielded | - | -40°C ~ 85°C | Surface Mount | 0.550" L x 0.550" W (13.97mm x 13.97mm) | 0.250" (6.35mm) |
|

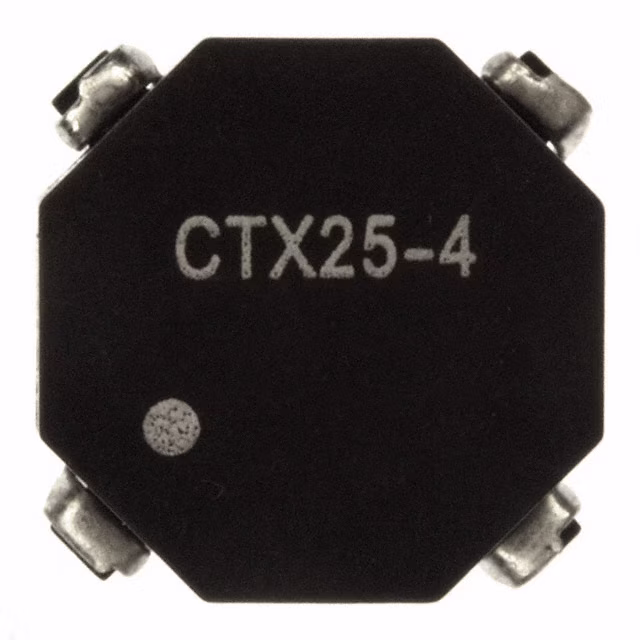

CTX25-4-RINDUCT ARRAY 2 COIL 25.92UH SMD |
693 | 7.30 |
|
Datasheet |
OCTA-PAC® | Nonstandard | Tape & Reel (TR) | Active | 2 | 25.92 µH | 103.68 µH | ±20% | 2 A | 1 A | - | - | 63mOhm Max | 253mOhm Max | Unshielded | - | -40°C ~ 85°C | Surface Mount | 0.550" L x 0.550" W (13.97mm x 13.97mm) | 0.250" (6.35mm) |
|
|
CTX15-4-RINDUCT ARRAY 2 COIL 14.16UH SMD |
1,266 | 7.19 |
|
Datasheet |
OCTA-PAC® | Nonstandard | Tape & Reel (TR) | Active | 2 | 14.16 µH | 56.64 µH | ±20% | 3 A | 1.5 A | - | - | 24mOhm Max | 96mOhm Max | Unshielded | - | -40°C ~ 85°C | Surface Mount | 0.550" L x 0.550" W (13.97mm x 13.97mm) | 0.250" (6.35mm) |
|
74485542820INDUCT ARRAY 2 COIL 8.2UH SMD |
142 | 12.45 |
|
Datasheet |
WE-CFWI | 4-SMD | Tape & Reel (TR) | Active | 2 | 8.2 µH | - | ±20% | 13 A | - | 24 A | - | 8.4mOhm | - | Shielded | - | -40°C ~ 150°C | Surface Mount | 0.827" L x 0.728" W (21.00mm x 18.50mm) | 0.531" (13.50mm) |
|
|
74485542680INDUCT ARRAY 2 COIL 6.8UH SMD |
113 | 12.45 |
|
Datasheet |
WE-CFWI | 4-SMD | Tape & Reel (TR) | Active | 2 | 6.8 µH | - | ±20% | 13.5 A | - | 26 A | - | 6.1mOhm | - | Shielded | - | -40°C ~ 150°C | Surface Mount | 0.827" L x 0.728" W (21.00mm x 18.50mm) | 0.531" (13.50mm) |
