Arrays, Signal Transformers

Mfr. Part #	Availability	Price	Quantity	Datasheet	Series	Package/Case	Packaging	Product Status	Number of Coils	Inductance - Connected In Parallel	Inductance - Connected In Series	Tolerance	Current Rating - Parallel	Current Rating - Series	Current Saturation - Parallel	Current Saturation - Series	DC Resistance (DCR) - Parallel	DC Resistance (DCR) - Series	Shielding	Ratings	Operating Temperature	Mounting Type	Size / Dimension	Height
CTX20-1A-R INDUCT ARRAY 2 COIL 20.73UH SMD Eaton - Electronics Division	4,476	0.00	RFQ	Datasheet	OCTA-PAC® PLUS	Nonstandard	Tape & Reel (TR)	Obsolete	2	20.73 µH	82.91 µH	±25%	1.71 A	860 mA	1.79 A	890 mA	127mOhm Max	507mOhm Max	Unshielded	-	-40°C ~ 85°C	Surface Mount	0.450" L x 0.450" W (11.43mm x 11.43mm)	0.165" (4.19mm)
CTX50-2A-R INDUCT ARRAY 2 COIL 49.38UH SMD Eaton - Electronics Division	3,959	0.00	RFQ	Datasheet	OCTA-PAC® PLUS	Nonstandard	Tape & Reel (TR)	Obsolete	2	49.38 µH	197.5 µH	±25%	1.28 A	640 mA	1.5 A	750 mA	240mOhm Max	961mOhm Max	Unshielded	-	-40°C ~ 85°C	Surface Mount	0.450" L x 0.450" W (11.43mm x 11.43mm)	0.235" (5.97mm)
GA3250-EEC COUPLED INDUCTOR 1.9UH SMD Coilcraft	776	3.11	RFQ	Datasheet	GA3250-EE	Nonstandard	Strip	Active	2	-	-	±20%	-	-	-	-	-	-	Shielded	-	-40°C ~ 85°C	Surface Mount	0.116" L x 0.116" W (2.95mm x 2.95mm)	0.039" (1.00mm)
CTX2-2-R INDUCT ARRAY 2 COIL 2.3UH SMD Eaton - Electronics Division	1,368	3.71	RFQ	Datasheet	OCTA-PAC®	Nonstandard	Tape & Reel (TR)	Active	2	2.3 µH	9.21 µH	±20%	4.5 A	2.25 A	-	-	10mOhm Max	38mOhm Max	Unshielded	-	-40°C ~ 85°C	Surface Mount	0.450" L x 0.450" W (11.43mm x 11.43mm)	0.235" (5.97mm)
PA3144AHL INDUCT ARRAY 4 COIL SMD Pulse Electronics	370	0.00	RFQ	Datasheet	PA314xAHL	8-SMD, No Lead	Tray	Active	4	-	200 nH	±15%	-	40 A	-	-	-	0.3mOhm Max	Shielded	-	-40°C ~ 130°C	Surface Mount	1.398" L x 0.413" W (35.50mm x 10.50mm)	0.315" (8.00mm)
PM620-12-RC INDUCT ARRAY 6 COIL 3.8UH SMD Bourns Inc.	1,964	4.99	RFQ	Datasheet	PM620	12-SMD, Gull Wing	Tape & Reel (TR)	Obsolete	6	3.8 µH	136.8 µH	±10%	9.24 A	1.54 A	12.12 A	2.02 A	11mOhm	390mOhm	Unshielded	-	-40°C ~ 105°C	Surface Mount	0.669" L x 0.843" W (17.00mm x 21.40mm)	0.331" (8.40mm)
P0178NL INDUCT ARRAY 2 COIL 15.7UH SMD Pulse Electronics	515	5.72	RFQ	Datasheet	Polecat	Nonstandard	Tube	Active	2	15.7 µH	62.8 µH	±10%	3.1 A	1.54 A	-	-	45.3mOhm Max	182mOhm Max	Unshielded	-	-40°C ~ 130°C	Surface Mount	0.500" L x 0.500" W (12.70mm x 12.70mm)	0.215" (5.46mm)
PA3145AHL INDUCT ARRAY 5 COIL SMD Pulse Electronics	476	5.83	RFQ	Datasheet	PA314xAHL	10-SMD, No Lead	Tray	Active	5	-	250 nH	±15%	-	40 A	-	-	-	0.3mOhm Max	Shielded	-	-40°C ~ 130°C	Surface Mount	1.752" L x 0.413" W (44.50mm x 10.50mm)	0.315" (8.00mm)
GLSW4M202 INDUCT ARRAY 2 COIL SMD Sprague-Goodman	448	7.37	RFQ	Datasheet	SURFCOIL® GLSW	Nonstandard, 5 Lead	Cut Tape (CT)	Obsolete	2	-	-	-	-	-	-	-	-	-	Unshielded	-	-40°C ~ 125°C	Surface Mount	0.177" L x 0.177" W (4.50mm x 4.50mm)	0.114" (2.90mm)
PA0766.421NLT PA0766.421NLT Pulse Electronics	250	1.28	RFQ	-	PA0766NL	Nonstandard	Bulk	Active	2	218 nH	870 nH	±20%	50 A	25 A	-	-	0.38mOhm Max	1.5mOhm Max	Unshielded	-	-40°C ~ 130°C	Surface Mount	0.551" L x 0.531" W (14.00mm x 13.50mm)	0.276" (7.00mm)
SDQ25-330-R INDUCT ARRAY 2 COIL 33.8UH SMD Eaton - Electronics Division	3,331	4.98	RFQ	Datasheet	SDQ	Nonstandard	Tape & Reel (TR)	Active	2	33.8 µH	135.2 µH	±20%	812 mA	406 mA	692 mA	346 mA	379.5mOhm	1.52Ohm	Shielded	-	-40°C ~ 125°C	Surface Mount	0.205" L x 0.205" W (5.20mm x 5.20mm)	0.098" (2.50mm)
SRF1260A-1R5Y INDUCT ARRAY 2 COIL 1.5UH SMD Bourns Inc.	4,560	1.57	RFQ	Datasheet	SRF1260A	Nonstandard	Tape & Reel (TR)	Active	2	1.5 µH	6 µH	±30%	13.8 A	6.89 A	18.3 A	9.15 A	7.3mOhm Max	30.2mOhm Max	Shielded	AEC-Q200	-40°C ~ 125°C	Surface Mount	0.492" L x 0.492" W (12.50mm x 12.50mm)	0.244" (6.20mm)

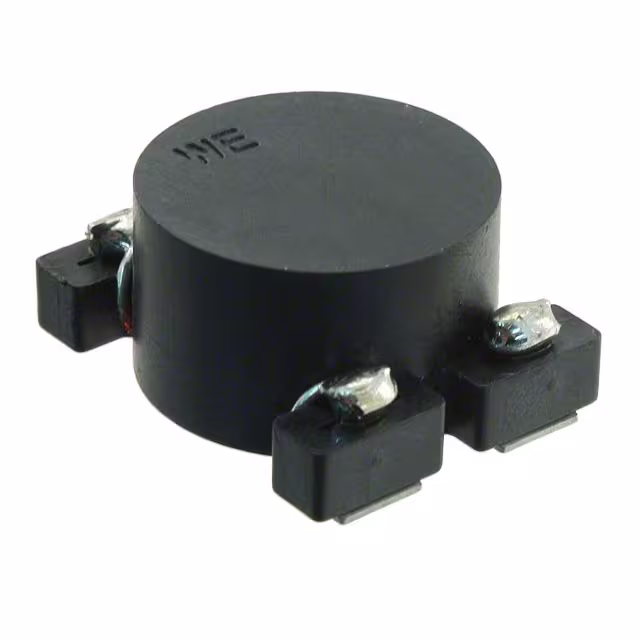

744851330 INDUCT ARRAY 2 COIL 3.3UH SMD Würth Elektronik	3,061	5.79	RFQ	Datasheet	WE-DCT	Nonstandard	Tape & Reel (TR)	Active	2	3.3 µH	13.2 µH	±10%	7.7 A	3.85 A	13.5 A	6.75 A	12mOhm Max	-	Shielded	-	-40°C ~ 125°C	Surface Mount	0.906" L x 0.728" W (23.00mm x 18.50mm)	0.453" (11.50mm)
CL-50-100 INDUCT ARRAY 2COIL 120UH CHA MNT Signal Transformer	3,553	158.38	RFQ	Datasheet	CL	Nonstandard	Box	Active	2	120 µH	500 µH	-	100 A	50 A	-	-	1.1mOhm	4.3mOhm	Unshielded	-	-	Chassis Mount	4.500" L x 3.752" W (114.30mm x 95.30mm)	3.752" (95.30mm)

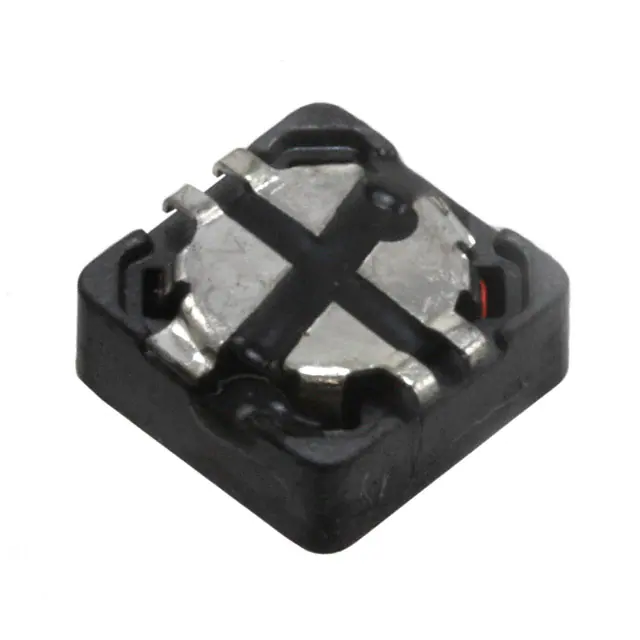

DRQ73-150-R INDUCT ARRAY 2 COIL 15.01UH SMD Eaton - Electronics Division	2,553	1.88	RFQ	Datasheet	DRQ	Nonstandard	Tape & Reel (TR)	Active	2	15.01 µH	60.04 µH	±20%	1.83 A	916 mA	2.05 A	1.03 A	84.4mOhm	339mOhm	Shielded	-	-40°C ~ 125°C	Surface Mount	0.299" L x 0.299" W (7.60mm x 7.60mm)	0.140" (3.55mm)
DRQ73-681-R INDUCT ARRAY 2 COIL 676.5UH SMD Eaton - Electronics Division	505	1.73	RFQ	Datasheet	DRQ	Nonstandard	Tape & Reel (TR)	Active	2	676.5 µH	2.706 mH	±20%	290 mA	143 mA	310 mA	150 mA	3.47Ohm	13.88Ohm	Shielded	-	-40°C ~ 125°C	Surface Mount	0.299" L x 0.299" W (7.60mm x 7.60mm)	0.140" (3.55mm)
SRF0703-8R2M INDUCT ARRAY 2 COIL 8.2UH SMD Bourns Inc.	731	1.07	RFQ	Datasheet	SRF0703	Nonstandard	Tape & Reel (TR)	Active	2	8.2 µH	32.8 µH	±20%	2.19 A	1.1 A	2.66 A	1.33 A	77.2mOhm Max	306mOhm Max	Shielded	-	-40°C ~ 125°C	Surface Mount	0.299" L x 0.299" W (7.60mm x 7.60mm)	0.142" (3.60mm)
SRF1260-1R5Y INDUCT ARRAY 2 COIL 1.5UH SMD Bourns Inc.	419	1.58	RFQ	Datasheet	SRF1260	Nonstandard	Tape & Reel (TR)	Active	2	1.5 µH	6 µH	±30%	13.8 A	6.89 A	18.3 A	9.15 A	7.3mOhm Max	30.2mOhm Max	Shielded	-	-40°C ~ 125°C	Surface Mount	0.492" L x 0.492" W (12.50mm x 12.50mm)	0.244" (6.20mm)
SRF1260A-330M INDUCT ARRAY 2 COIL 33UH SMD Bourns Inc.	435	1.57	RFQ	Datasheet	SRF1260A	Nonstandard	Tape & Reel (TR)	Active	2	33 µH	132 µH	±20%	3.28 A	1.64 A	3.84 A	1.92 A	61.8mOhm Max	256mOhm Max	Shielded	AEC-Q200	-40°C ~ 125°C	Surface Mount	0.492" L x 0.492" W (12.50mm x 12.50mm)	0.244" (6.20mm)
DRQ127-101-R INDUCT ARRAY 2 COIL 99.31UH SMD Eaton - Electronics Division	383	2.75	RFQ	Datasheet	DRQ	Nonstandard	Tape & Reel (TR)	Active	2	99.31 µH	397.2 µH	±20%	1.96 A	980 mA	3.64 A	1.82 A	163mOhm	653mOhm	Shielded	-	-40°C ~ 125°C	Surface Mount	0.492" L x 0.492" W (12.50mm x 12.50mm)	0.315" (8.00mm)

Total 1194 Record«Prev 1... 23 24 25 262728 29 30...60 Next»
