Arrays, Signal Transformers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Number of Coils | Inductance - Connected In Parallel | Inductance - Connected In Series | Tolerance | Current Rating - Parallel | Current Rating - Series | Current Saturation - Parallel | Current Saturation - Series | DC Resistance (DCR) - Parallel | DC Resistance (DCR) - Series | Shielding | Ratings | Operating Temperature | Mounting Type | Size / Dimension | Height |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

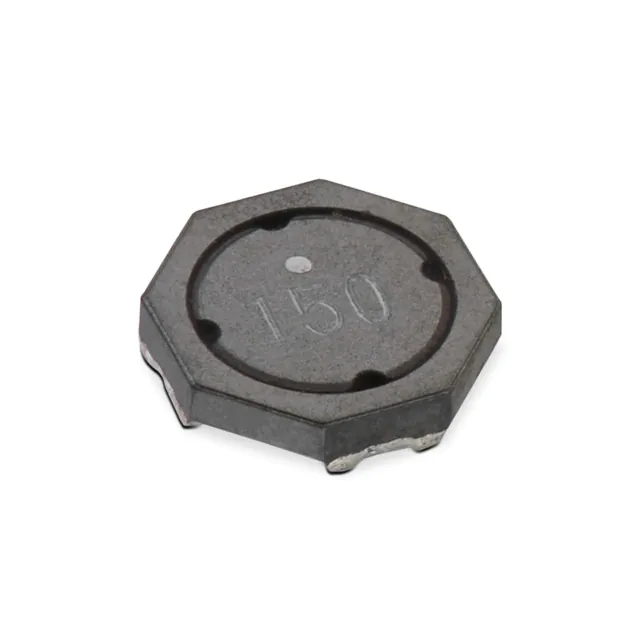

76889430056INDUCTOR ARRAY 2 COIL 5.6UH SMD |
2,072 | 1.47 |
|
Datasheet |
WE-TDC HV | Nonstandard | Tape & Reel (TR) | Active | 2 | 5.6 µH | - | ±20% | 1.4 A | - | 2 A | - | 234mOhm | - | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.083" (2.10mm) |
|
|
76889430100INDUCTOR ARRAY 2 COIL 10UH SMD |
1,015 | 1.47 |
|
Datasheet |
WE-TDC HV | Nonstandard | Tape & Reel (TR) | Active | 2 | 10 µH | - | ±20% | 1.1 A | - | 1.67 A | - | 234mOhm | - | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.083" (2.10mm) |
|
|
76889430150INDUCTOR ARRAY 2 COIL 15UH SMD |
1,861 | 1.47 |
|
Datasheet |
WE-TDC HV | Nonstandard | Tape & Reel (TR) | Active | 2 | 15 µH | - | ±20% | 0.95 A | - | 1.3 A | - | 422mOhm | - | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.083" (2.10mm) |
|
|
76889430220INDUCTOR ARRAY 2 COIL 22UH SMD |
1,261 | 1.47 |
|
Datasheet |
WE-TDC HV | Nonstandard | Tape & Reel (TR) | Active | 2 | 22 µH | - | ±20% | 0.75 A | - | 1 A | - | 780mOhm | - | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.083" (2.10mm) |
|

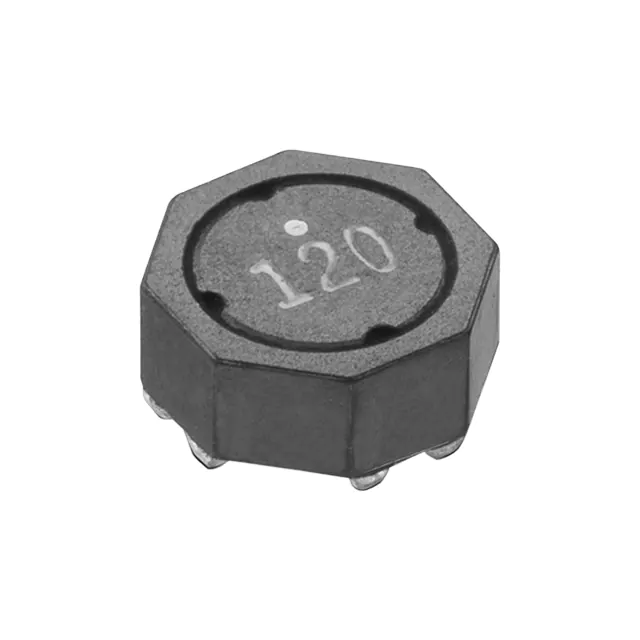

76889440047INDUCTOR ARRAY 2 COIL 4.7UH SMD |
3,723 | 1.47 |
|
Datasheet |
WE-TDC HV | Nonstandard | Tape & Reel (TR) | Active | 2 | 4.7 µH | - | ±20% | 2.45 A | - | 4.7 A | - | 110mOhm | - | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.161" (4.10mm) |
|
|
76889440150INDUCTOR ARRAY 2 COIL 15UH SMD |
1,833 | 1.47 |
|
Datasheet |
WE-TDC HV | Nonstandard | Tape & Reel (TR) | Active | 2 | 15 µH | - | ±20% | 1.25 A | - | 2.8 A | - | 355mOhm | - | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.161" (4.10mm) |
|
|
76889440220INDUCTOR ARRAY 2 COIL 22UH SMD |
4,994 | 1.47 |
|
Datasheet |
WE-TDC HV | Nonstandard | Tape & Reel (TR) | Active | 2 | 22 µH | - | ±20% | 1 A | - | 2.1 A | - | 455mOhm | - | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.161" (4.10mm) |
|
CTX0.47-1P-RINDUCT ARRAY 2 COIL 420NH SMD |
2,474 | 1.91 |
|
Datasheet |
Econo-Pac™ | Nonstandard | Tape & Reel (TR) | Active | 2 | 420 nH | 1.67 µH | ±20% | 5.5 A | 2.75 A | - | - | 5mOhm Max | 21mOhm Max | Unshielded | - | -40°C ~ 85°C | Surface Mount | 0.450" L x 0.450" W (11.43mm x 11.43mm) | 0.165" (4.19mm) |
|

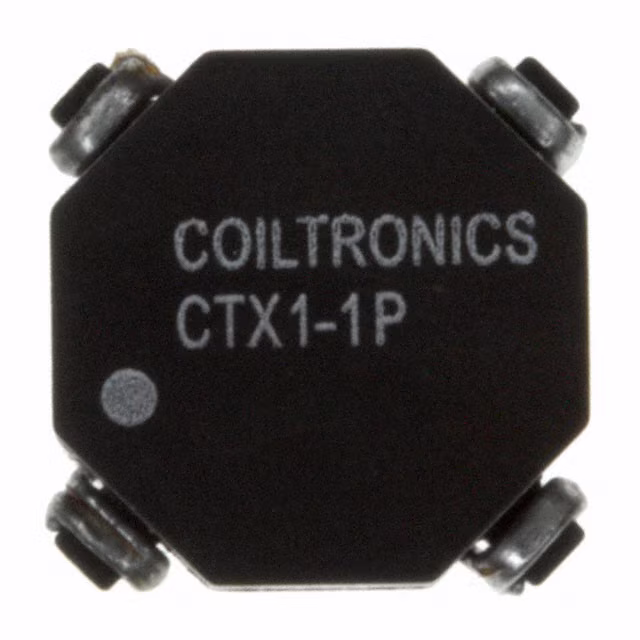

CTX1-1P-RINDUCT ARRAY 2 COIL 1.07UH SMD |
4,387 | 1.91 |
|
Datasheet |
Econo-Pac™ | Nonstandard | Tape & Reel (TR) | Active | 2 | 1.07 µH | 4.28 µH | ±20% | 4.5 A | 2.25 A | - | - | 8mOhm Max | 32mOhm Max | Unshielded | - | -40°C ~ 85°C | Surface Mount | 0.450" L x 0.450" W (11.43mm x 11.43mm) | 0.165" (4.19mm) |
|
|
CTX0.68-1P-RINDUCT ARRAY 2 COIL 600NH SMD |
1,514 | 1.91 |
|
Datasheet |
Econo-Pac™ | Nonstandard | Tape & Reel (TR) | Active | 2 | 600 nH | 2.4 µH | ±20% | 5.1 A | 2.55 A | - | - | 6mOhm Max | 25mOhm Max | Unshielded | - | -40°C ~ 85°C | Surface Mount | 0.450" L x 0.450" W (11.43mm x 11.43mm) | 0.165" (4.19mm) |
|

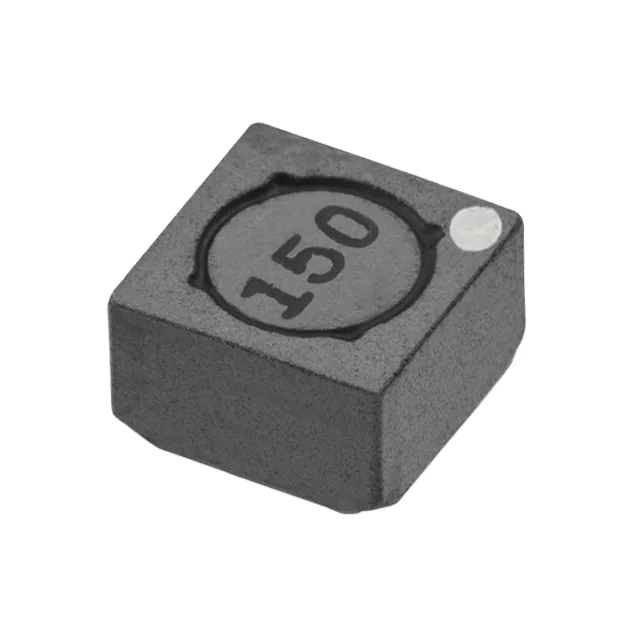

744889015100INDUCT ARRAY 2 COIL 10UH SMD |
1,409 | 1.31 |
|
Datasheet |
WE-MTCI | Nonstandard | Tape & Reel (TR) | Active | 2 | 10 µH | - | ±20% | 0.95 A | - | 1.5 A | - | 600mOhm | - | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.205" L x 0.205" W (5.20mm x 5.20mm) | 0.122" (3.10mm) |
|
|
744889015220INDUCT ARRAY 2 COIL 22UH SMD |
1,502 | 1.31 |
|
Datasheet |
WE-MTCI | Nonstandard | Tape & Reel (TR) | Active | 2 | 22 µH | - | ±20% | 0.6 A | - | 1 A | - | 1.2Ohm | - | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.205" L x 0.205" W (5.20mm x 5.20mm) | 0.122" (3.10mm) |
|
|
744889015330INDUCT ARRAY 2 COIL 33UH SMD |
2,283 | 1.31 |
|
Datasheet |
WE-MTCI | Nonstandard | Tape & Reel (TR) | Active | 2 | 33 µH | - | ±20% | 0.45 A | - | 0.75 A | - | 2.4Ohm | - | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.205" L x 0.205" W (5.20mm x 5.20mm) | 0.122" (3.10mm) |
|
|
CTX2-1P-RINDUCT ARRAY 2 COIL 2.02UH SMD |
1,912 | 1.97 |
|
Datasheet |
Econo-Pac™ | Nonstandard | Tape & Reel (TR) | Active | 2 | 2.02 µH | 8.08 µH | ±20% | 3.4 A | 1.7 A | - | - | 13mOhm Max | 54mOhm Max | Unshielded | - | -40°C ~ 85°C | Surface Mount | 0.450" L x 0.450" W (11.43mm x 11.43mm) | 0.165" (4.19mm) |
|
7448841220INDUCT ARRAY 2 COIL 22UH SMD |
2,296 | 2.75 |
|
Datasheet |
WE-DPC HV | Nonstandard | Tape & Reel (TR) | Active | 2 | 22 µH | - | ±20% | 800 mA | - | 1 A | - | 650mOhm | - | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.205" L x 0.205" W (5.20mm x 5.20mm) | 0.122" (3.10mm) |
|
|
7448841015INDUCT ARRAY 2 COIL 1.5UH SMD |
1,709 | 1.62 |
|
Datasheet |
WE-DPC HV | Nonstandard | Tape & Reel (TR) | Active | 2 | 1.5 µH | - | ±30% | 2.7 A | - | 3.7 A | - | 68mOhm | - | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.205" L x 0.205" W (5.20mm x 5.20mm) | 0.122" (3.10mm) |
|
|
7448841082INDUCT ARRAY 2 COIL 8.2UH SMD |
1,813 | 1.62 |
|
Datasheet |
WE-DPC HV | Nonstandard | Tape & Reel (TR) | Active | 2 | 8.2 µH | - | ±30% | 1.3 A | - | 1.6 A | - | 265mOhm | - | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.205" L x 0.205" W (5.20mm x 5.20mm) | 0.122" (3.10mm) |
|
SDQ25-4R7-RINDUCT ARRAY 2 COIL 5UH SMD |
2,935 | 2.13 |
|
Datasheet |
SDQ | Nonstandard | Tape & Reel (TR) | Active | 2 | 5 µH | 20 µH | ±20% | 1.96 A | 980 mA | 1.8 A | 900 mA | 65.3mOhm | 261.2mOhm | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.205" L x 0.205" W (5.20mm x 5.20mm) | 0.098" (2.50mm) |
|
|
SDQ25-R47-RINDUCT ARRAY 2 COIL 392NH SMD |
4,239 | 2.13 |
|
Datasheet |
SDQ | Nonstandard | Tape & Reel (TR) | Active | 2 | 392 nH | 1.57 µH | ±30% | 3.71 A | 1.86 A | 6.43 A | 3.21 A | 18.1mOhm | 72.5mOhm | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.205" L x 0.205" W (5.20mm x 5.20mm) | 0.098" (2.50mm) |
|
|
SDQ25-R82-RINDUCT ARRAY 2 COIL 648NH SMD |
3,392 | 2.13 |
|
Datasheet |
SDQ | Nonstandard | Tape & Reel (TR) | Active | 2 | 648 nH | 2.59 µH | ±30% | 3.37 A | 1.68 A | 5 A | 2.5 A | 22.1mOhm | 88.3mOhm | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.205" L x 0.205" W (5.20mm x 5.20mm) | 0.098" (2.50mm) |
