Arrays, Signal Transformers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Number of Coils | Inductance - Connected In Parallel | Inductance - Connected In Series | Tolerance | Current Rating - Parallel | Current Rating - Series | Current Saturation - Parallel | Current Saturation - Series | DC Resistance (DCR) - Parallel | DC Resistance (DCR) - Series | Shielding | Ratings | Operating Temperature | Mounting Type | Size / Dimension | Height |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SRF1280A-821MINDUCT ARRAY 2 COIL 820UH SMD |
3,464 | 1.14 |
|
Datasheet |
SRF1280A | Nonstandard | Tape & Reel (TR) | Active | 2 | 820 µH | 3.28 mH | ±20% | 650 mA | 325 mA | 1.27 A | 633 mA | 1.632Ohm Max | 5.896Ohm Max | Shielded | AEC-Q200 | -40°C ~ 125°C | Surface Mount | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.315" (8.00mm) |
|
SDQ25-331-RINDUCT ARRAY 2 COIL 329.7UH SMD |
3,212 | 2.36 |
|
Datasheet |
SDQ | Nonstandard | Tape & Reel (TR) | Active | 2 | 329.7 µH | 1.3 mH | ±20% | 292 mA | 146 mA | 222 mA | 111 mA | 2.93Ohm | 11.71Ohm | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.205" L x 0.205" W (5.20mm x 5.20mm) | 0.098" (2.50mm) |
|
|
SDQ25-471-RINDUCT ARRAY 2 COIL 472.4UH SMD |
4,669 | 2.36 |
|
Datasheet |
SDQ | Nonstandard | Tape & Reel (TR) | Active | 2 | 472.4 µH | 1.8 mH | ±20% | 243 mA | 121 mA | 185 mA | 93 mA | 4.25Ohm | 16.99Ohm | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.205" L x 0.205" W (5.20mm x 5.20mm) | 0.098" (2.50mm) |
|
|
SRF1280A-151MINDUCT ARRAY 2 COIL 150UH SMD |
4,707 | 2.39 |
|
Datasheet |
SRF1280A | Nonstandard | Tape & Reel (TR) | Active | 2 | 150 µH | 600 µH | ±20% | 1.59 A | 796 mA | 3.01 A | 1.51 A | 261mOhm Max | 1.013Ohm Max | Shielded | AEC-Q200 | -40°C ~ 125°C | Surface Mount | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.315" (8.00mm) |
|
CTX5-2P-RINDUCT ARRAY 2 COIL 4.9UH SMD |
4,531 | 2.29 |
|
Datasheet |
Econo-Pac™ | Nonstandard | Tape & Reel (TR) | Active | 2 | 4.9 µH | 19.58 µH | ±20% | 2.5 A | 1.25 A | - | - | 32mOhm Max | 128mOhm Max | Unshielded | - | -40°C ~ 85°C | Surface Mount | 0.450" L x 0.450" W (11.43mm x 11.43mm) | 0.235" (5.97mm) |
|
|
SDQ25-681-RINDUCT ARRAY 2 COIL 677.4UH SMD |
3,532 | 2.39 |
|
Datasheet |
SDQ | Nonstandard | Tape & Reel (TR) | Active | 2 | 677.4 µH | 2.7 mH | ±20% | 197 mA | 98 mA | 155 mA | 77 mA | 6.45Ohm | 25.78Ohm | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.205" L x 0.205" W (5.20mm x 5.20mm) | 0.098" (2.50mm) |
|
|
CTX15-1P-RINDUCT ARRAY 2 COIL 15.03UH SMD |
3,067 | 2.33 |
|
Datasheet |
Econo-Pac™ | Nonstandard | Tape & Reel (TR) | Active | 2 | 15.03 µH | 60.12 µH | ±20% | 1.4 A | 700 mA | - | - | 87mOhm Max | 348mOhm Max | Unshielded | - | -40°C ~ 85°C | Surface Mount | 0.450" L x 0.450" W (11.43mm x 11.43mm) | 0.165" (4.19mm) |
|
|
SDQ25-821-RINDUCT ARRAY 2 COIL 824.3UH SMD |
3,742 | 2.41 |
|
Datasheet |
SDQ | Nonstandard | Tape & Reel (TR) | Active | 2 | 824.3 µH | 3.3 mH | ±20% | 186 mA | 93 mA | 140 mA | 70 mA | 7.25Ohm | 28.99Ohm | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.205" L x 0.205" W (5.20mm x 5.20mm) | 0.098" (2.50mm) |
|
SCX147-101INDUCT ARRAY 2 COIL 100UH SMD |
4,510 | 0.00 |
|
Datasheet |
SCX147 | Nonstandard | Tape & Reel (TR) | Obsolete | 2 | 100 µH | 396.9 µH | ±20% | 920 mA | 460 mA | - | - | 303mOhm Max | 1.21Ohm Max | Unshielded | - | - | Surface Mount | 0.567" L x 0.567" W (14.40mm x 14.40mm) | 0.276" (7.00mm) |
|
|
SCX147-330INDUCT ARRAY 2 COIL 33UH SMD |
2,325 | 0.00 |
|
Datasheet |
SCX147 | Nonstandard | Tape & Reel (TR) | Obsolete | 2 | 33 µH | 132.5 µH | ±20% | 1.8 A | 900 mA | - | - | 72mOhm Max | 288mOhm Max | Unshielded | - | - | Surface Mount | 0.567" L x 0.567" W (14.40mm x 14.40mm) | 0.276" (7.00mm) |
|

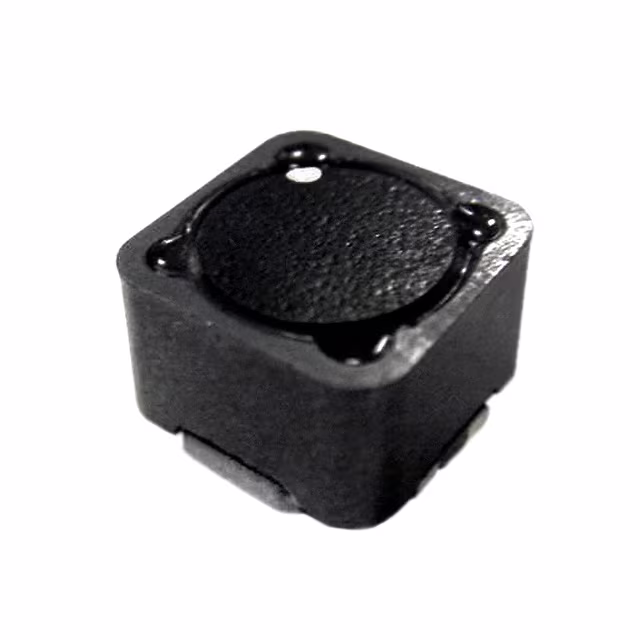

HM78D-1210680MLFTRINDUCT ARRAY 2 COIL 68UH SMD |
2,287 | 2.31 |
|
Datasheet |
HM78D | Nonstandard | Cut Tape (CT) | Discontinued at Digi-Key | 2 | 68 µH | 272 µH | ±20% | 800 mA | 400 mA | 4.45 A | 2.2 A | 98mOhm Max | 392mOhm Max | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.413" (10.50mm) |
|
|
CTX0.47-3P-RINDUCT ARRAY 2 COIL 460NH SMD |
1,096 | 2.43 |
|
Datasheet |
Econo-Pac™ | Nonstandard | Tape & Reel (TR) | Active | 2 | 460 nH | 1.85 µH | ±20% | 6.2 A | 3.1 A | - | - | 6mOhm Max | 25mOhm Max | Unshielded | - | -40°C ~ 85°C | Surface Mount | 0.550" L x 0.550" W (13.97mm x 13.97mm) | 0.190" (4.83mm) |
|
|
CTX0.68-3P-RINDUCT ARRAY 2 COIL 670NH SMD |
1,505 | 2.43 |
|
Datasheet |
Econo-Pac™ | Nonstandard | Tape & Reel (TR) | Active | 2 | 670 nH | 266 µH | ±20% | 5.7 A | 2.85 A | - | - | 7mOhm Max | 28mOhm Max | Unshielded | - | -40°C ~ 85°C | Surface Mount | 0.550" L x 0.550" W (13.97mm x 13.97mm) | 0.190" (4.83mm) |
|
|
CTX5-3P-RINDUCT ARRAY 2 COIL 4.74UH SMD |
3,238 | 2.43 |
|
Datasheet |
Econo-Pac™ | Nonstandard | Tape & Reel (TR) | Active | 2 | 4.74 µH | 18.94 µH | ±20% | 3.2 A | 1.6 A | - | - | 22mOhm Max | 90mOhm Max | Unshielded | - | -40°C ~ 85°C | Surface Mount | 0.550" L x 0.550" W (13.97mm x 13.97mm) | 0.190" (4.83mm) |
|
|
SDQ25-680-RINDUCT ARRAY 2 COIL 69.19UH SMD |
2,674 | 2.50 |
|
Datasheet |
SDQ | Nonstandard | Tape & Reel (TR) | Active | 2 | 69.19 µH | 276.8 µH | ±20% | 603 mA | 302 mA | 484 mA | 242 mA | 686.5mOhm | 2.75Ohm | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.205" L x 0.205" W (5.20mm x 5.20mm) | 0.098" (2.50mm) |
|
|
SDQ25-8R2-RINDUCT ARRAY 2 COIL 8.71UH SMD |
2,657 | 2.50 |
|
Datasheet |
SDQ | Nonstandard | Tape & Reel (TR) | Active | 2 | 8.71 µH | 34.85 µH | ±20% | 1.57 A | 785 mA | 1.36 A | 682 mA | 101.5mOhm | 405.9mOhm | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.205" L x 0.205" W (5.20mm x 5.20mm) | 0.098" (2.50mm) |
|
|
CTX2-3P-RINDUCT ARRAY 2 COIL 1.85UH SMD |
4,262 | 2.44 |
|
Datasheet |
Econo-Pac™ | Nonstandard | Tape & Reel (TR) | Active | 2 | 1.85 µH | 7.4 µH | ±20% | 4.6 A | 2.3 A | - | - | 11mOhm Max | 45mOhm Max | Unshielded | - | -40°C ~ 85°C | Surface Mount | 0.550" L x 0.550" W (13.97mm x 13.97mm) | 0.190" (4.83mm) |
|
|
CTX1-3P-RINDUCT ARRAY 2 COIL 910NH SMD |
4,340 | 2.47 |
|
Datasheet |
Econo-Pac™ | Nonstandard | Tape & Reel (TR) | Active | 2 | 910 nH | 3.63 µH | ±20% | 5.4 A | 2.7 A | - | - | 8mOhm Max | 32mOhm Max | Unshielded | - | -40°C ~ 85°C | Surface Mount | 0.550" L x 0.550" W (13.97mm x 13.97mm) | 0.190" (4.83mm) |
|
P0598NLTINDUCT ARRAY 2 COIL 3.9UH SMD |
3,916 | 2.28 |
|
Datasheet |
HCCI-80 | Nonstandard | Tape & Reel (TR) | Active | 2 | 3.9 µH | 15.6 µH | ±15% | 34 A | 17 A | - | - | 1.6mOhm Max | 6.4mOhm Max | Unshielded | - | -40°C ~ 130°C | Surface Mount | 1.220" L x 1.000" W (30.99mm x 25.40mm) | 0.500" (12.70mm) |
|
SDQ12-220-RINDUCT ARRAY 2 COIL 22.09UH SMD |
1,559 | 2.56 |
|
Datasheet |
SDQ | Nonstandard | Tape & Reel (TR) | Active | 2 | 22.09 µH | 88.36 µH | ±20% | 548 mA | 274 mA | 647 mA | 323 mA | 833.2mOhm | 3.33Ohm | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.205" L x 0.205" W (5.20mm x 5.20mm) | 0.047" (1.19mm) |
