Audio Transformers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Turns Ratio - Primary:Secondary | Impedance - Primary (Ohms) | Impedance - Secondary (Ohms) | DC Resistance (DCR) - Primary | DC Resistance (DCR) - Secondary | Transformer Type | Frequency Range | Frequency Response | Voltage - Isolation | Insertion Loss | Return Loss | Power Level | Operating Temperature | Approval Agency | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TG110-S055N1LFTRISO MOD 10/100 16P SMD T/R |
1,205 | 0.00 |
|
- |
- | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
TG110-S055N1LFISO MOD 10/100 16P SMD |
4,710 | 0.00 |
|
- |
- | Tube | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
5-2337822-2AUDIO XFMR SMD |
2,938 | 2.90 |
|
Datasheet |
- | Tube | Active | 1CT:1CT | - | - | - | - | - | - | - | 1500Vrms | -1dB Max @ 100kHz ~ 100MHz | -18dB Min @ 1MHz ~ 30MHz | - | -40°C ~ 105°C | - | Surface Mount | 0.719" L x 0.482" W (18.25mm x 12.24mm) | 0.285" (7.24mm) | Gull Wing |
|
|
TG111-S12NYNLFISO MOD 1G POE 0.35A MINI 24P SM |
3,560 | 0.00 |
|
Datasheet |
- | Tube | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
TG22-3506NLLFISO MOD 10/100 1C:1C 16P SMD |
3,987 | 0.00 |
|
- |
- | Tube | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
TG22-3506NDLFISO MOD 10/100 1C:1C 16P SMD |
4,256 | 0.00 |
|
- |
- | Tube | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
TG22-3506NLLFTRISO MOD 10/100 1C:1C 16P SMD T/R |
4,320 | 0.00 |
|
- |
- | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
TG22-S012NDLFISO MOD 10/100 1C:1C 16P SMD |
3,831 | 0.00 |
|
- |
- | Tube | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
TG111-S12NYNRLTRISO MOD 1G POE 0.35A MINI 24P SM |
1,197 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Not For New Designs | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
TTC-5024AUDIO XFMR 600 / 330 SMD |
1,493 | 2.28 |
|
Datasheet |
TTC | Tape & Reel (TR) | Active | 1:1 | 600 | 330 | 150Ohm | 150Ohm | Data/Voice Coupling | 200Hz ~ 4kHz | ±0.2dB | 1875VRMS @ 1 Second | 3dB Max @ 2kHz | 16dB Min @ 200Hz ~ 4kHz | - | -20°C ~ 85°C | UL60950, EN60950 | Surface Mount | 0.378" L x 0.492" W (9.60mm x 12.50mm) | 0.299" (7.60mm) | Flat Lead |
|
|
TTC-5027AUDIO XFMR 30K / 30K SMD |
2,872 | 2.93 |
|
Datasheet |
TTC | Tape & Reel (TR) | Active | 1:1 | 30k | 30k | 165Ohm | 165Ohm | Data/Voice Coupling | - | - | 1875VRMS @ 1 Second | - | - | - | -20°C ~ 85°C | UL60950, EN60950 | Surface Mount | 0.492" L x 0.378" W (12.50mm x 9.60mm) | 0.299" (7.60mm) | Flat Lead |
|
|
TTC-5034AUDIO XFMR 20K / 20K SMD |
4,885 | 2.05 |
|
Datasheet |
TTC | Tape & Reel (TR) | Active | 1:1 | 20k | 20k | 1.3kOhm | 1.3kOhm | Data/Voice Coupling | - | - | 1875VRMS @ 1 Second | - | - | - | -20°C ~ 85°C | UL60950, EN60950 | Surface Mount | 0.378" L x 0.492" W (9.60mm x 12.50mm) | 0.299" (7.60mm) | Flat Lead |
|
|
TTC-5035AUDIO XFMR 600 / 346 SMD |
2,807 | 2.59 |
|
Datasheet |
TTC | Tape & Reel (TR) | Active | 1:1 | 600 | 346 | 135Ohm | 135Ohm | Data/Voice Coupling | 200Hz ~ 4kHz | ±0.2dB | 1875VRMS @ 1 Second | 3dB Max @ 2kHz | 16dB Min @ 200Hz ~ 4kHz | - | -20°C ~ 85°C | UL60950, EN60950 | Surface Mount | 0.378" L x 0.492" W (9.60mm x 12.50mm) | 0.299" (7.60mm) | Flat Lead |
|
|
TG22-3506NDLFTRISO MOD 10/100 1C:1C 16P SMD T/R |
2,379 | 0.00 |
|
- |
- | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
TG110-BP10NYNLFISO MOD 1G BACKPLN 8CH AUTO |
2,477 | 0.00 |
|
Datasheet |
- | Tube | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
TG22-S012NDLFTRISO MOD 10/100 1C:1C 16P SMD T/R |
4,247 | 0.00 |
|
- |
- | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
TG10-DA2N5LFISO MOD AUDIO 1:1 X-TEMP 16P SMD |
4,805 | 0.00 |
|
Datasheet |
- | Tube | Active | 1:1 | - | - | - | - | Data/Voice | 10kHz ~ 200MHz | - | 1500V | - | - | - | -40°C ~ 85°C | cURus | Surface Mount | 0.500" L x 0.280" W (12.70mm x 7.11mm) | 0.250" (6.35mm) | Gull Wing |
|

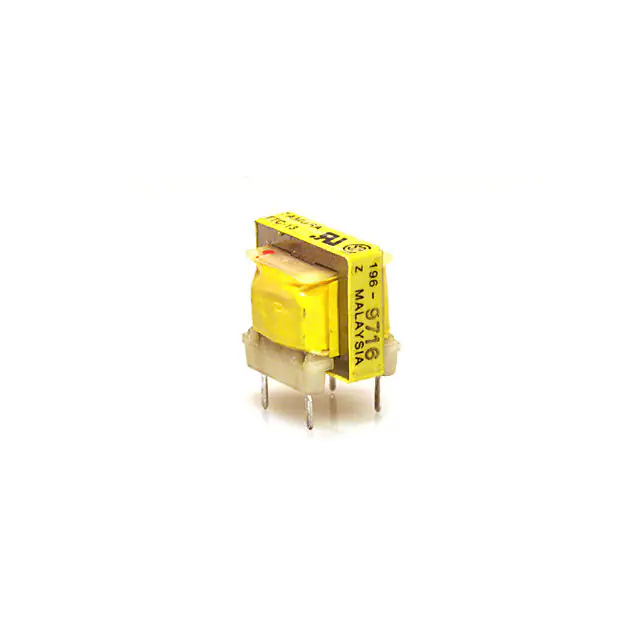

TTC-13AUDIO XFMR 4K / 600 TH |
2,286 | 3.02 |
|
Datasheet |
TTC | Bulk | Active | 1:0.397 | 4k | 600 | 225Ohm | 45Ohm | Data/Voice Coupling | 300Hz ~ 3.5kHz | ±0.5dB | 1500VRMS @ 1 Minute | 1.2dB Max @ 1kHz | - | -45dB ~ 7dB | - | CSA-C22.2 No. 66-M1988, UL1459 | Through Hole | 0.799" L x 0.650" W (20.30mm x 16.50mm) | 0.736" (18.70mm) | PC Pin |
|
|
TG10-DA2N5LFTRISO MOD AUDIO 1:1 X-TEMP 16P SMD |
4,016 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Active | 1:1 | - | - | - | - | General Purpose | 10kHz ~ 200MHz | - | 1500V | - | - | - | -40°C ~ 85°C | cURus | Surface Mount | 0.500" L x 0.280" W (12.70mm x 7.11mm) | 0.250" (6.35mm) | Gull Wing |
|
|
TG110-BP10NYNLFTRISO MOD 1G BACKPLN 8CH AUTO |
4,222 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
