Common Mode Chokes
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SC-03-55JCMC 5.5MH 3A 2LN TH |
173 | 4.54 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 5.5 mH @ 100 kHz | 3A | 110mOhm | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
|
B82791H2152N010CMC 1.5A 2LN TH |
595 | 5.30 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | - | 1.5A | - | - | 250V | -40°C ~ 125°C | - | ENEC, UR, VDE | - | - | - |
|
CMS2-12-RCMC 915UH 670MA 2LN SMD |
1,544 | 4.25 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | - | 915 µH @ 100 kHz | 670mA | 330mOhm (Typ) | - | - | -40°C ~ 160°C | - | - | - | - | - |
|

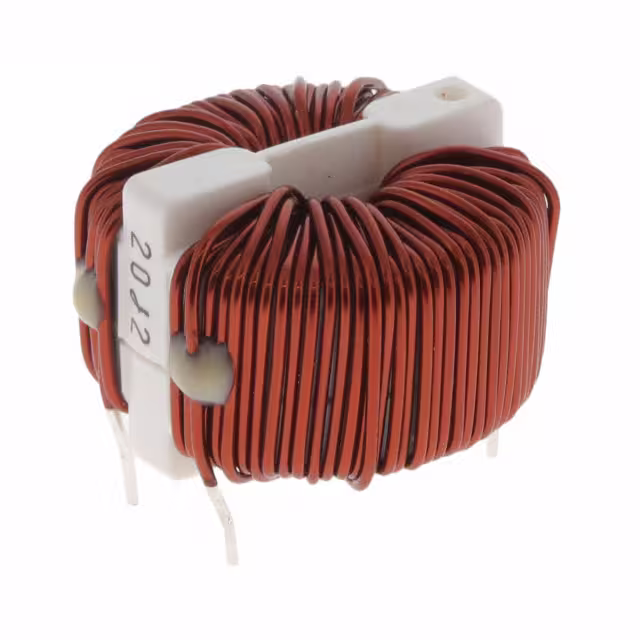

SC22-04-95HCMC 9.45MH 4.3A 2LN TH |
170 | 6.55 |
|
Datasheet |
Horizontal, No Base, 4 PC Pin | Power Line | 2 | - | 9.45 mH @ 10 kHz | 4.3A | 80mOhm | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
|
HHBC8S-0R6A0067VCMC 67UH 2A 2LN TH |
169 | 3.54 |
|
Datasheet |
Vertical, No Base, 2 PC Pin | - | 2 | - | 67 µH @ 100 kHz | 2A | 67.8mOhm | - | - | -40°C ~ 125°C | - | - | - | - | - |
|
ST-101CMC 200MA 2LN 3K OHM TH |
149 | 4.61 |
|
Datasheet |
Vertical, No Base, 4 PC Pin | - | 2 | 3 kOhms @ 500 kHz | - | 200mA | 180mOhm | 50V | - | -20°C ~ 75°C | - | - | - | - | - |
|
744212470CMC 47UH 300MA 2LN 300 OHM SMD |
1,832 | 4.50 |
|
Datasheet |
Horizontal, 4 J-Lead | Signal Line | 2 | 300 Ohms @ 300 MHz | 47 µH @ 100 kHz | 300mA | 160mOhm | 80V | - | -40°C ~ 105°C | - | - | - | - | - |
|
FE2X10-4-2NLCMC 1.2A 2LN TH |
837 | 4.60 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | - | 1.2A | 410mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|

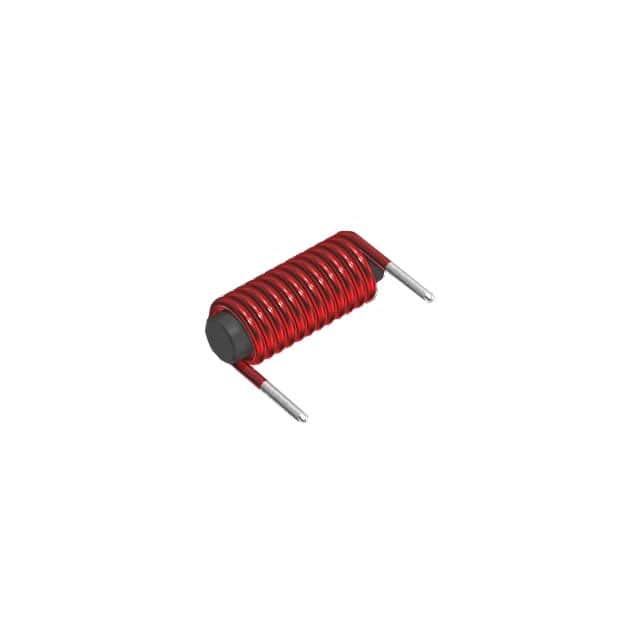

AML1330-4R7M250-S1CMC 25A 2LN TH AEC-Q200 |
286 | 4.95 |
|
Datasheet |
Radial, Horizontal Cylinder | Power Line | 2 | - | - | 25A | 3.5mOhm | - | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
EH28-2.0-02-11MCMC 11MH 2A 2LN TH |
328 | 3.94 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 11 mH @ 10 kHz | 2A | 162mOhm (Typ) | - | 250V | -25°C ~ 100°C | - | - | - | - | - |
|
SC22-06-70JHCMC 7MH 6A 2LN TH |
150 | 6.62 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 7 mH @ 10 kHz | 6A | - | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
|
EH28-3.0-02-5M0CMC 5MH 3A 2LN TH |
500 | 2.12 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 5 mH @ 400 Hz | 3A | 79mOhm (Typ) | - | 250V | -25°C ~ 100°C | - | - | - | - | - |
|
SC-03-E900CMC 9MH 3A 2LN TH |
222 | 4.89 |
|
Datasheet |
Vertical, No Base, 4 PC Pin | Power Line | 2 | - | 9 mH @ 10 kHz | 3A | 130mOhm | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
|
SC-01-80GCMC 8MH 1A 2LN TH |
736 | 4.13 |
|
Datasheet |
Vertical, No Base, 4 PC Pin | Power Line | 2 | - | 8 mH @ 100 kHz | 1A | 300mOhm | 250V | 250V | -40°C ~ 105°C | - | - | - | - | - |
|
EH28-1.0-02-75M-XCMC 75MH 1A 2LN TH |
467 | 4.05 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 75 mH @ 400 Hz | 1A | 880mOhm | - | 250V | -25°C ~ 100°C | - | - | - | - | - |
|
B82724J2222N021CMC 20MH 2.2A 2LN TH |
317 | 5.20 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 20 mH @ 10 kHz | 2.2A | 250mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | ENEC, UR, VDE | - | - | - |
|
EH28-2.0-02-15M-XCMC 15MH 2A 2LN TH |
228 | 4.08 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 15 mH @ 400 Hz | 2A | 196mOhm | - | 250V | -25°C ~ 100°C | - | - | - | - | - |
|

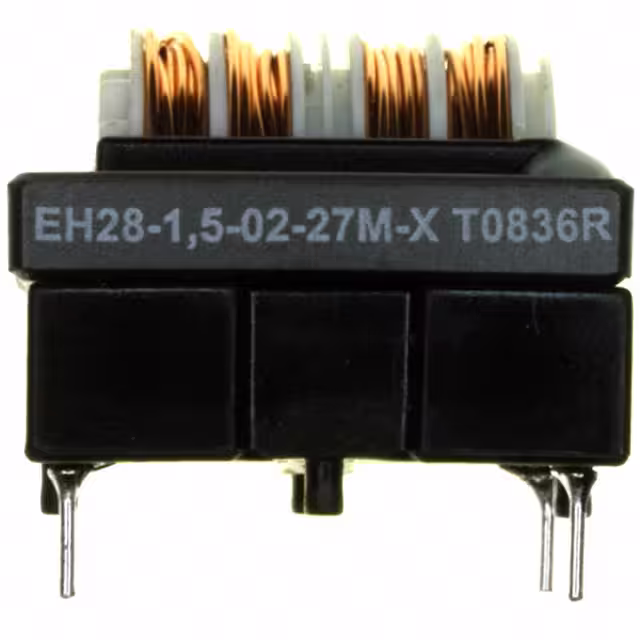

EH28-1.5-02-27M-XCMC 27MH 1.5A 2LN TH |
498 | 4.05 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 27 mH @ 400 Hz | 1.5A | 282mOhm | - | 250V | -25°C ~ 100°C | - | - | - | - | - |
|
744290283CMC 28MH 300MA 2LN SMD |
429 | 4.63 |
|
Datasheet |
Horizontal, 4 Flat Lead | Signal Line | 2 | - | 28 mH @ 10 kHz | 300mA | 2.8Ohm | 80V | - | -40°C ~ 125°C | - | - | - | - | - |
|
SC-02-500CMC 5MH 2A 2LN TH |
166 | 4.25 |
|
Datasheet |
Vertical, No Base, 4 PC Pin | Power Line | 2 | - | 5 mH @ 100 kHz | 2A | 100mOhm | 250V | 250V | -40°C ~ 105°C | - | - | - | - | - |
