Common Mode Chokes
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SC-02-E115JCMC 11.5MH 2A 2LN TH |
267 | 3.85 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 11.5 mH @ 10 kHz | 2A | 155mOhm | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
|

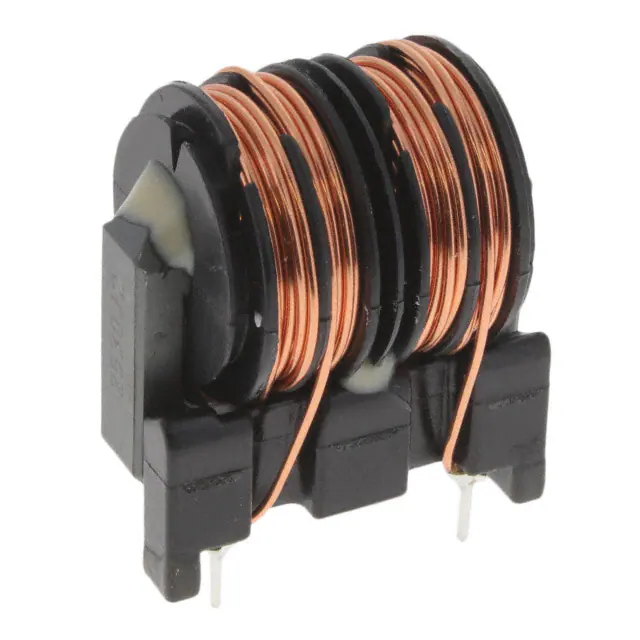

SS30V-250070CMC 7MH 2.5A 2LN TH |
138 | 3.85 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 7 mH @ 1 kHz | 2.5A | 160mOhm | - | 250V | -40°C ~ 120°C | - | - | - | - | - |
|
SC-02-E50JKHCMC 5.4MH 2.7A 2LN TH |
276 | 3.89 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 5.4 mH @ 10 kHz | 2.7A | - | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
|
B82724A2202N001CMC 6.8MH 2A 2LN TH |
220 | 5.20 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 6.8 mH @ 10 kHz | 2A | 170mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | ENEC, UR, VDE | - | - | - |
|

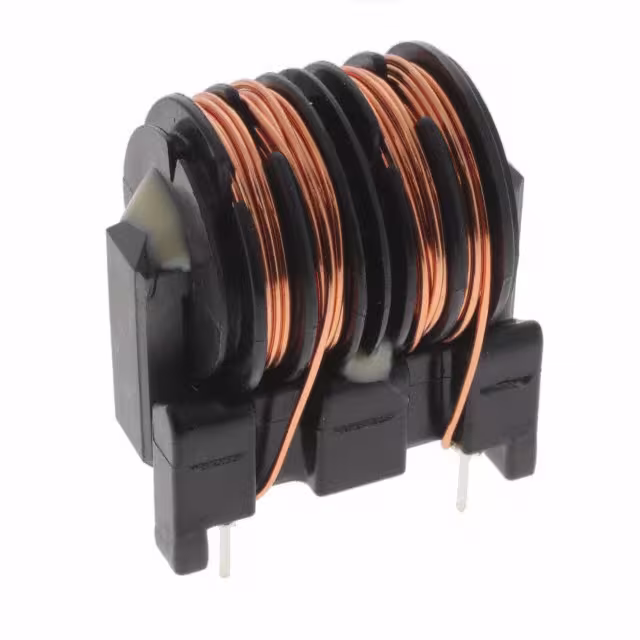

SS30V-200100CMC 10MH 2A 2LN TH |
200 | 3.85 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 10 mH @ 1 kHz | 2A | 210mOhm | - | 250V | -40°C ~ 120°C | - | - | - | - | - |
|
SS30V-R080960CMC 96MH 800MA 2LN TH |
168 | 3.94 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 96 mH @ 1 kHz | 800mA | 1.5Ohm | - | 250V | -40°C ~ 120°C | - | - | - | - | - |
|

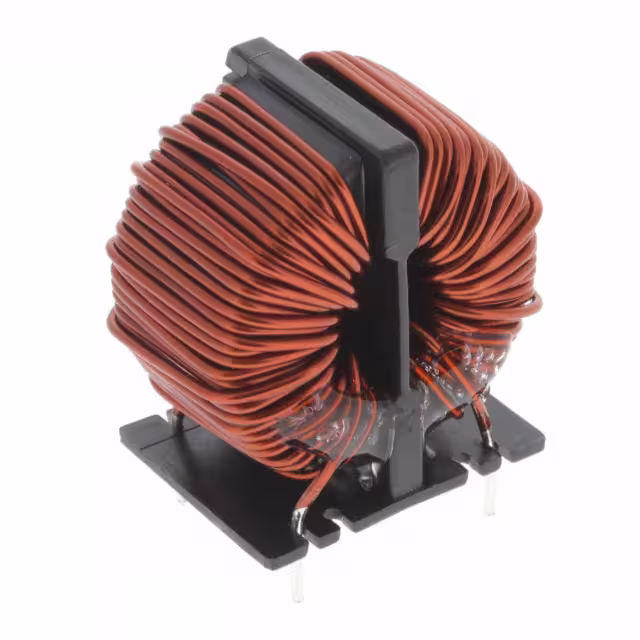

SC-05-100JCMC 10.5MH 5A 2LN TH |
178 | 5.50 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 10.5 mH @ 16 kHz | 5A | 100mOhm | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
|
ECMT1V2017H-200-RCMC 20MH 1A 2LN TH |
123 | 3.31 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 20 mH @ 1 kHz | 1A | 550mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
TX8111NLTCMC 51UH 2LN SMD |
825 | 3.89 |
|
Datasheet |
Horizontal, 4 PC Pad | - | 2 | - | 51 µH @ 100 kHz | - | 200mOhm | - | - | -40°C ~ 85°C | - | - | - | - | - |
|
SC-07-030VCMC 360UH 7A 2LN TH |
300 | 3.90 |
|
Datasheet |
Vertical, No Base, 4 PC Pin | Power Line | 2 | - | 360 µH @ 100 kHz | 7A | 14mOhm | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
|

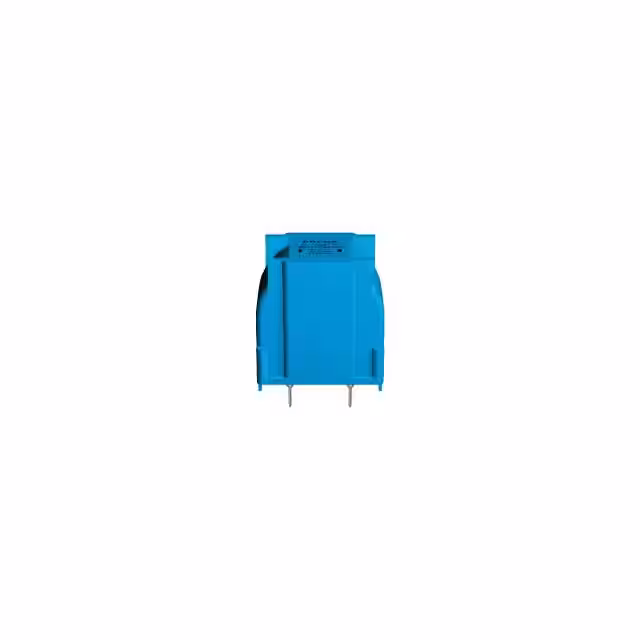

B82723J2142N020CMC 27MH 1.4A 2LN TH |
200 | 4.34 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 27 mH @ 10 kHz | 1.4A | 440mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | ENEC, UR, VDE | - | - | - |
|
|
SC-02-E120JCMC 12MH 2A 2LN TH |
116 | 5.59 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 12 mH @ 10 kHz | 2A | 180mOhm | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
|
B82734R2142B030CMC 39MH 1.4A 2LN TH |
1,026 | 4.51 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 39 mH @ 10 kHz | 1.4A | 460mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | ENEC, UR, VDE | - | - | - |
|
|
SC-06-182JHCMC 1.8MH 6A 2LN TH |
150 | 5.66 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 1.8 mH @ 10 kHz | 6A | - | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
|

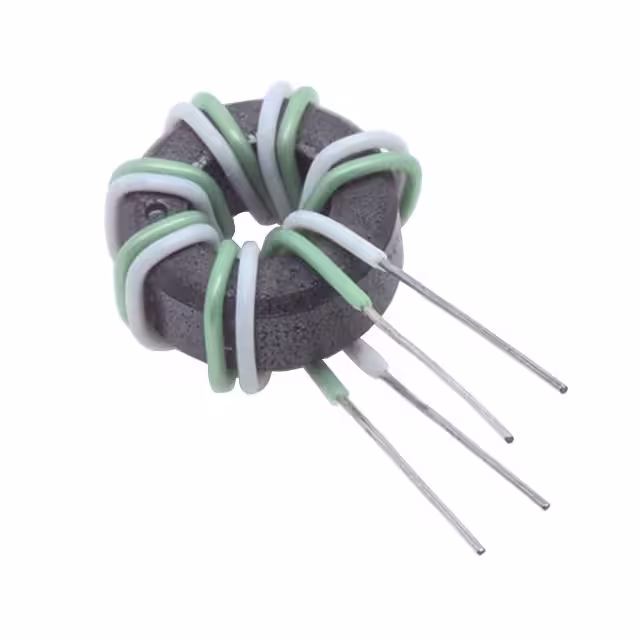

ST-201ACMC 200MA 2LN 1.5K OHM TH |
475 | 3.95 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | 1.5 kOhms @ 7 MHz | - | 200mA | 150mOhm | 50V | - | -20°C ~ 65°C | - | - | - | - | - |
|
|
SS30V-R150270CMC 27MH 1.5A 2LN TH |
238 | 3.66 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 27 mH @ 1 kHz | 1.5A | 500mOhm | - | 250V | -40°C ~ 120°C | - | - | - | - | - |
|
B82724J8672N040CMC 2.2MH 6.7A 2LN TH |
500 | 6.48 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 2.2 mH @ 10 kHz | 6.7A | 17mOhm (Typ) | 800V | 250V | -40°C ~ 125°C | - | - | - | - | - |
|

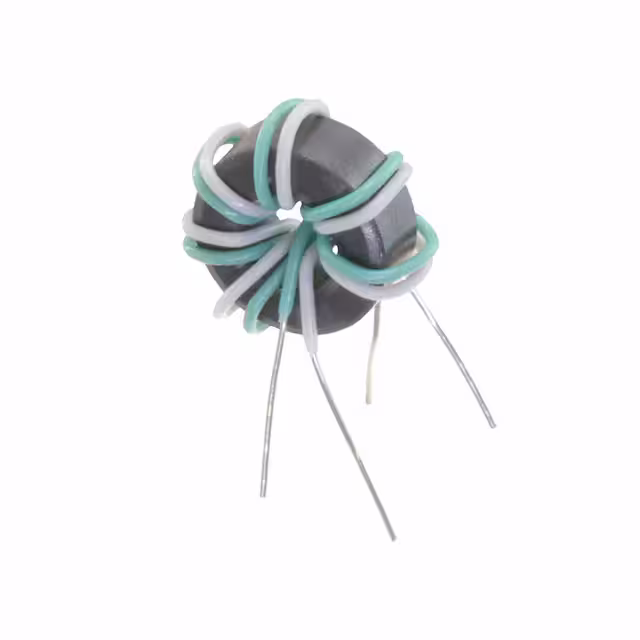

ST-202SCMC 1A 2LN 600 OHM TH |
107 | 3.98 |
|
Datasheet |
Vertical, No Base, 4 PC Pin | - | 2 | 600 Ohms @ 100 MHz | - | 1A | 35mOhm | 50V | - | -20°C ~ 75°C | - | - | - | - | - |
|

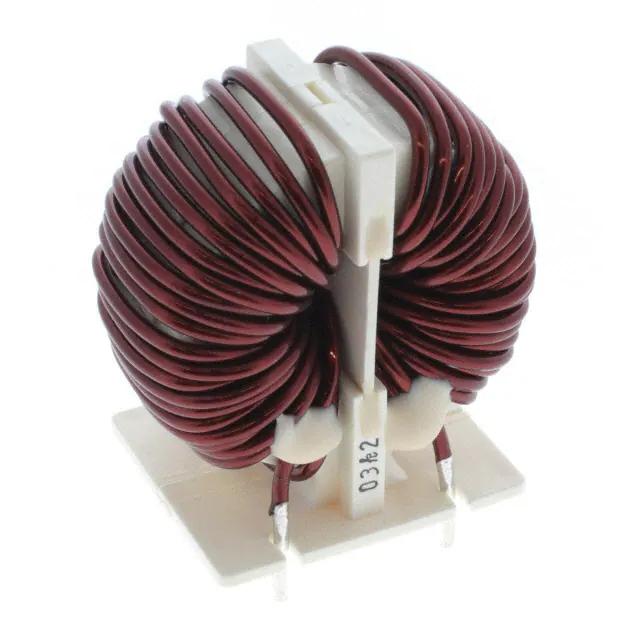

SC-15-02JCMC 200UH 15A 2LN TH |
104 | 5.70 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 200 µH @ 100 kHz | 15A | 6mOhm | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
|
|
SC-07-276JHCMC 2.76MH 7A 2LN TH |
136 | 5.79 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 2.76 mH @ 10 kHz | 7A | - | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
