Common Mode Chokes
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
ICM2020ER101RCMC 8.5A 2LN 100 OHM 100MHZ |
1,965 | 0.00 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | 100 Ohms @ 100 MHz | - | 8.5A | 6mOhm | 80V | - | -40°C ~ 125°C | - | - | - | - | - |
|

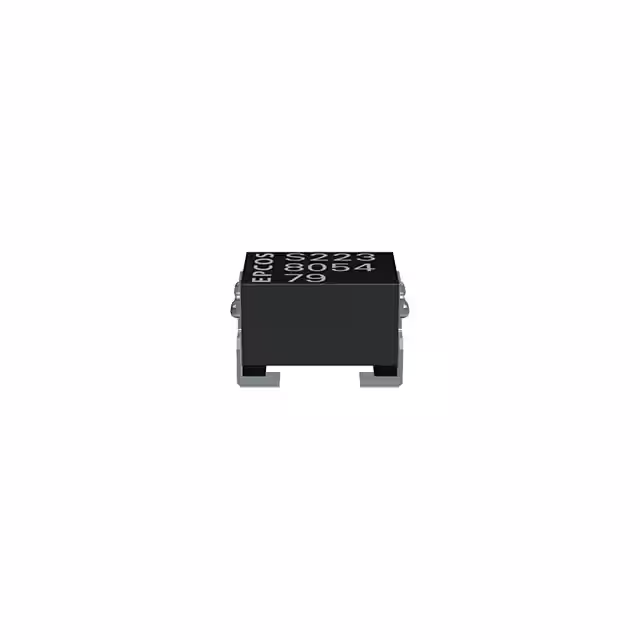

B82789S0223H002CMC 22UH 250MA 2LN SMD AEC-Q200 |
6,935 | 0.97 |
|
Datasheet |
Horizontal, 4 L-Lead | Signal Line | 2 | - | 22 µH @ 100 kHz | 250mA | 580mOhm | 80V | 42V | -55°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
B82721A2501N022CMC 27MH 500MA 2LN TH |
600 | 1.76 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 27 mH @ 10 kHz | 500mA | 1.1Ohm (Typ) | - | 250V | -40°C ~ 125°C | - | ENEC, UR, VDE | - | - | - |
|

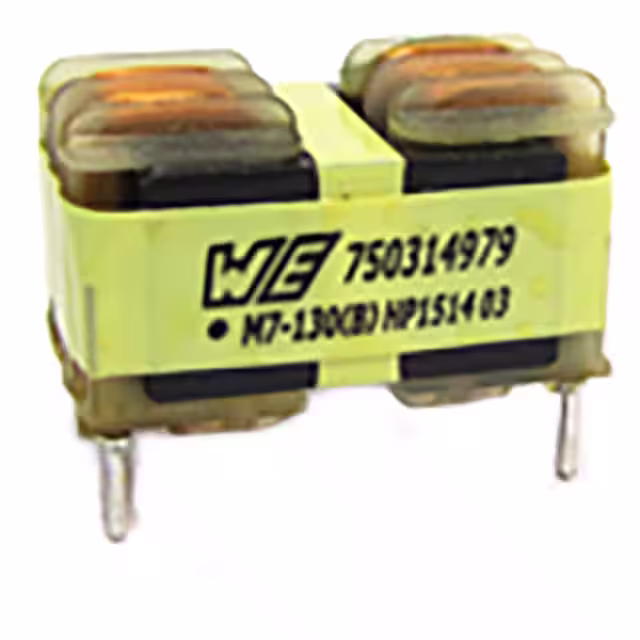

750314979CMC 15MH 850MA 2LN TH |
315 | 1.59 |
|
Datasheet |
Horizontal, 4 PC Pin | - | 2 | - | 15 mH @ 10 kHz | 850mA | 684mOhm | - | - | -40°C ~ 125°C | - | - | - | - | - |
|
750314980CMC 18MH 800MA 2LN TH |
313 | 1.59 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 18 mH @ 10 kHz | 800mA | 734mOhm | - | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
ACT1210E-131-2P-TL00CMF 130uH ETHERNET 10Base-T1S |
10,687 | 0.00 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | - | 130 µH @ 100 kHz | 70mA | 2.9Ohm | 80V | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
|
B82789C0104H001CMC 100UH 150MA 2LN SMD AEC-Q200 |
2,392 | 0.00 |
|
Datasheet |
Horizontal, 4 L-Lead | Signal Line | 2 | - | 100 µH @ 100 kHz | 150mA | 1.5Ohm | 80V | 42V | -55°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
|
B82789S0223H001CHOKES |
2,494 | 0.00 |
|
Datasheet |
4-SMD, J-Lead | Signal Line | 2 | - | 22 µH @ 100 kHz | 250mA | 580mOhm (Typ) | 80V | 42V | -55°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
B82731T2551A020CMC 39MH 550MA 2LN TH |
551 | 1.74 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 39 mH @ 10 kHz | 550mA | 2.2Ohm (Typ) | - | 250V | -40°C ~ 125°C | - | ENEC, UR, VDE | - | - | - |
|
|
PM2741NLTIND CMC 94UH 1.1A |
1,235 | 0.00 |
|
Datasheet |
Vertical, 8 Flat Lead | Power Line | 4 | - | - | 1.1A | 30mOhm | - | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
SN8D-300CMC 45UH 2A 2LN TH |
184 | 3.31 |
|
Datasheet |
Vertical, No Base, 2 PC Pin | Power Line | 2 | - | 45 µH @ 100 kHz | 2A | 52mOhm | - | - | -25°C ~ 105°C | - | - | - | - | - |
|
|
093267IND FILTER CHOKE 27MH 0.50A |
574 | 0.00 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | - | 500mA | 2Ohm | - | - | -25°C ~ 125°C | - | - | - | - | - |
|
APPM00090748701XY0CMC 5A 2LN 700 OHM SMD AEC-Q200 |
706 | 1.31 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | 700 Ohms @ 100 MHz | - | 5A | 10mOhm | 80V | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
DLW5BSZ801TQ2LCMC 1.5A 2LN 800 OHM SMD |
329 | 2.47 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 800 Ohms @ 100 MHz | - | 1.5A | 56mOhm | 50V | - | -40°C ~ 105°C | - | - | - | - | - |
|
B82732W2142B030CMC 10MH 1.4A 2LN TH |
1,120 | 1.94 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 10 mH @ 10 kHz | 1.4A | 300mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | ENEC, UR, VDE | - | - | - |
|
SS26V-120169CMC 16.9MH 1.2A 2LN TH |
350 | 1.65 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 16.9 mH @ 1 kHz | 1.2A | 550mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
|
DLW5BSZ601TQ2LCMC 1A 2LN 600 OHM SMD |
350 | 1.37 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 600 Ohms @ 100 MHz | - | 1A | 120mOhm | 50V | - | -40°C ~ 105°C | - | - | - | - | - |
|
B82720A2301N042CMC 22MH 300MA 2LN TH |
652 | 1.80 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 22 mH @ 10 kHz | 300mA | 1.5Ohm (Typ) | - | 250V | -40°C ~ 125°C | - | ENEC, UR, VDE | - | - | - |
|
|
SS21VB-R220010CHOKE CMC 1MH 2.2A |
240 | 0.00 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 1 mH @ 1 kHz | 2.2A | 72mOhm | - | 500V | -40°C ~ 120°C | - | - | - | - | - |
|
|
SS21VB-R130033CHOKE CMC 3.3MH 1.3A |
240 | 0.00 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 3.3 mH @ 1 kHz | 1.3A | 226mOhm | - | 500V | -40°C ~ 120°C | - | - | - | - | - |
