Common Mode Chokes
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EMI8132MUTAGCMC 100MA 4LN SMD ESD |
3,000 | 0.99 |
|
Datasheet |
10-XFDFN | Signal Line | 4 | - | - | 100mA | 6Ohm (Typ) | - | - | -40°C ~ 85°C | - | - | TVS Diode ESD Protection | - | - |
|

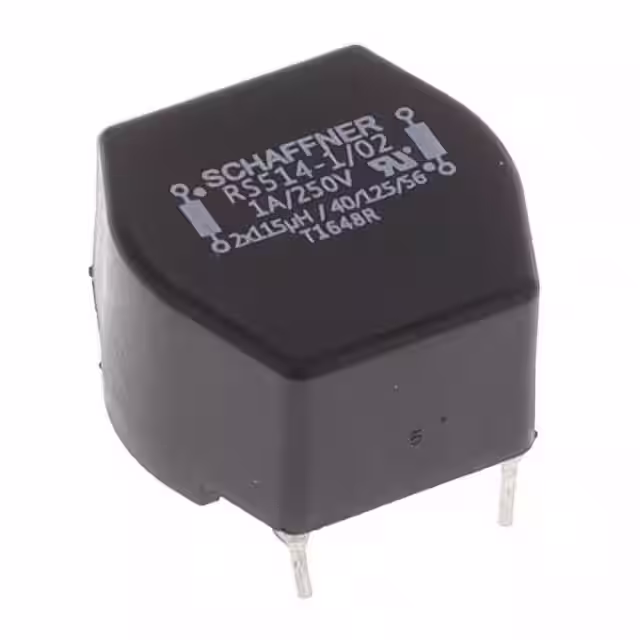

RS514-1-02CMC 120UH 1A 2LN TH |
291 | 3.70 |
|
Datasheet |
Horizontal, 4 PC Pin | Signal Line | 2 | - | 120 µH @ 1 kHz | 1A (Typ) | 200mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | UR, VDE | - | - | - |
|
TCE0806S-500-2P-T200CMC 100MA 2LN 50 OHM SMD ESD |
418 | 1.68 |
|
Datasheet |
0302 (0806 Metric), 6 Lead | Signal Line | 2 | 50 Ohms @ 100 MHz | - | 100mA | 2.5Ohm | 10V | - | -25°C ~ 85°C | - | - | TVS Diode ESD Protection | - | - |
|

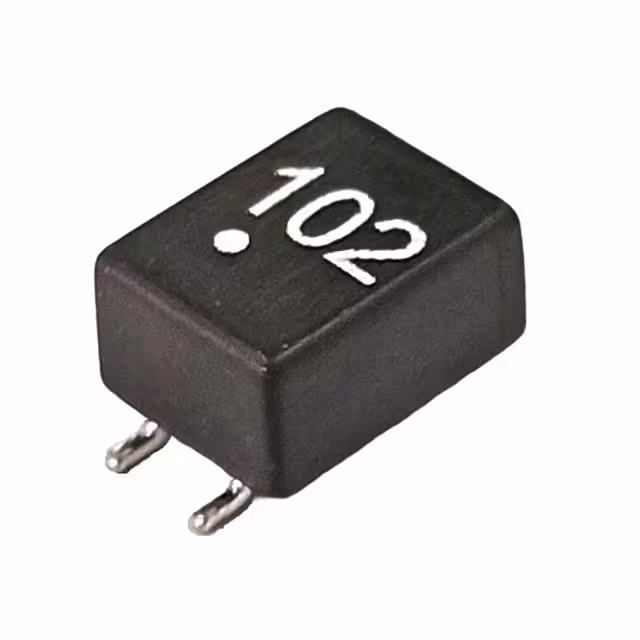

CM422SG102NBCMC 1MH 500MA 2LN SMD |
990 | 1.64 |
|
Datasheet |
- | Signal Line | 2 | - | 1 mH @ 100 kHz | 500mA | 300mOhm | - | - | -40°C ~ 125°C | - | - | - | - | - |
|

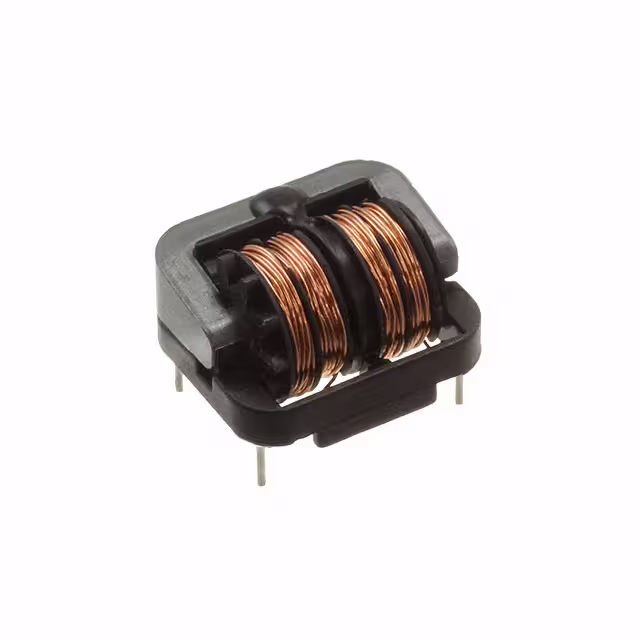

SSR10HS-07265CMC 26.5MH 700MA 2LN TH |
4,207 | 1.22 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 26.5 mH @ 10 kHz | 700mA | 850mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
SSR10HS-17048CMC 4.8MH 1.7A 2LN TH |
4,485 | 1.22 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 4.8 mH @ 10 kHz | 1.7A | 170mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
SS11VL-R11076CMC 7.6MH 1.1A 2LN TH |
296 | 1.92 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 7.6 mH @ 1 kHz | 1.1A | 400mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
|
SSR10HS-11110CMC 11MH 1.1A 2LN TH |
4,805 | 1.22 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 11 mH @ 10 kHz | 1.1A | 330mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
|
LPD5030V-103MRCCMC 1.3A 2LN 11.69 OHM SMD |
4,612 | 0.00 |
|
Datasheet |
Nonstandard | Signal Line | 2 | 11.69 kOhms @ 40 MHz | 10 µH @ 100 kHz | 1.3A | 490mOhm | - | - | -40°C ~ 85°C | - | - | - | - | - |
|
|
LPD5030V-333MRCCMC 670MA 2LN 25.81 OHM SMD |
2,537 | 0.00 |
|
Datasheet |
Nonstandard, 4 Lead | Signal Line | 2 | 25.81 kOhms @ 19 MHz | 33 µH @ 100 kHz | 670mA | 895mOhm | - | - | -40°C ~ 85°C | - | - | - | - | - |
|
|
LPD5030V-472MRCCMC 1.9A 2LN 7.85 OHM SMD |
1,959 | 0.00 |
|
Datasheet |
Nonstandard | Signal Line | 2 | 7.85 kOhms @ 66 MHz | 4.7 µH @ 100 kHz | 1.9A | 322mOhm | - | - | -40°C ~ 85°C | - | - | - | - | - |
|
|
LPD5030V-154MRCCMC 310MA 2LN 102.7 OHM SMD |
947 | 0.00 |
|
Datasheet |
Nonstandard | Signal Line | 2 | 102.7 kOhms @ 66 MHz | 150 µH @ 100 kHz | 310mA | 3.82Ohm | - | - | -40°C ~ 85°C | - | - | - | - | - |
|
|
LPD5030V-682MRCCMC 1.55A 2LN 9.2 OHM SMD |
850 | 0.00 |
|
Datasheet |
Nonstandard, 4 Lead | Signal Line | 2 | 9.2 kOhms @ 66 MHz | 6.8 µH @ 100 kHz | 1.55A | 395mOhm | - | - | -40°C ~ 85°C | - | - | - | - | - |
|
|
LPD5030V-224MRCCMC 240MA 2LN 174.7 OHM SMD |
598 | 0.00 |
|
Datasheet |
Nonstandard, 4 Lead | Signal Line | 2 | 174.7 kOhms @ 66 MHz | 220 µH @ 100 kHz | 240mA | 5.25Ohm | - | - | -40°C ~ 85°C | - | - | - | - | - |
|
EMI8131MUTAGCMC 100MA 2LN SMD ESD |
1,543 | 1.10 |
|
Datasheet |
6-XFDFN | Signal Line | 2 | - | - | 100mA | 6Ohm (Typ) | - | - | -40°C ~ 85°C | - | - | TVS Diode ESD Protection | - | - |
|

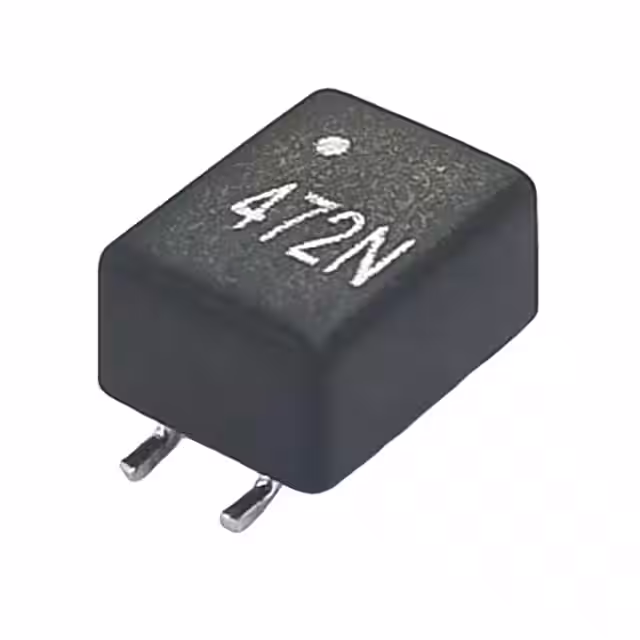

CM422SG472NCMC 300MA 2LN SMD |
1,000 | 1.74 |
|
Datasheet |
- | Signal Line | 2 | - | - | 300mA | 900mOhm | - | - | -40°C ~ 125°C | - | - | - | - | - |
|
DLP31DN441ML4LCMC 70MA 4LN 440 OHM SMD |
6,610 | 1.43 |
|
Datasheet |
1206 (3216 Metric), 8 Leads | Signal Line | 4 | 440 Ohms @ 100 MHz | - | 70mA | 4.3Ohm | 10V | - | -40°C ~ 85°C | - | - | - | - | - |
|
|
FL2D-10-1021MH 2 LINE COMMON MODE CHOKE THR |
120 | 0.00 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 1 mH @ 1 kHz | 1A | 70mOhm | - | - | -40°C ~ 105°C | - | - | - | - | - |
|
SSR10V-05595CMC 59.5MH 500MA 2LN TH |
105 | 1.99 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 59.5 mH @ 10 kHz | 500mA | 1.7Ohm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
|
WCM 1513FASV-701-LM2 LINE COMMON MODE CHOKE SURFACE |
1,261 | 0.00 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | 700 Ohms @ 100 MHz | - | 10A | 5mOhm | 125V | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
