Common Mode Chokes
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
WCM1211F-701T80-M2 LINE COMMON MODE CHOKE SURFACE |
840 | 0.00 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | 700 Ohms @ 100 MHz | - | 8A | 6mOhm | 125V | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
FL2D-10-5023.5MH 2 LINE COMMON MODE CHOKE T |
120 | 0.00 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 3.5 mH @ 1 kHz | 1A | 220mOhm (Typ) | - | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
WCM5555FASV-501-LMCMC 2LN 500OHM 10.5MOHM 4.5A |
4,183 | 0.00 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | 500 Ohms @ 100 MHz | - | 4.5A | 10.5mOhm | 80V | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
|
WCM5555FASV-101-LMCMC 2LN 100OHM 6MOHM 8.5A |
3,519 | 0.00 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | 140 Ohms @ 100 MHz | - | 8.5A | 6mOhm | 80V | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
|
WCM5555FASV-102-LMCMC 2LN 1000OHM 20MOHM 3A |
2,805 | 0.00 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | 1 kOhms @ 100 MHz | - | 3A | 20mOhm | 80V | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
|
WCM5555FASV-301-LMCMC 2LN 300OHM 7.5MOHM 4.8A |
2,016 | 0.00 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | 300 Ohms @ 100 MHz | - | 4.8A | 7.5mOhm | 80V | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
|
WCM5555FASV-701-LMCMC 2LN 700OHM 13MOHM 3.8A |
1,304 | 0.00 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | 700 Ohms @ 100 MHz | - | 3.8A | 13mOhm | 80V | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
|
WCM5555FASV-142-LMCMC 2LN 1400OHM 38MOHM 2.8A |
281 | 0.00 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | 1.4 kOhms @ 100 MHz | - | 2.8A | 38mOhm | 80V | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|

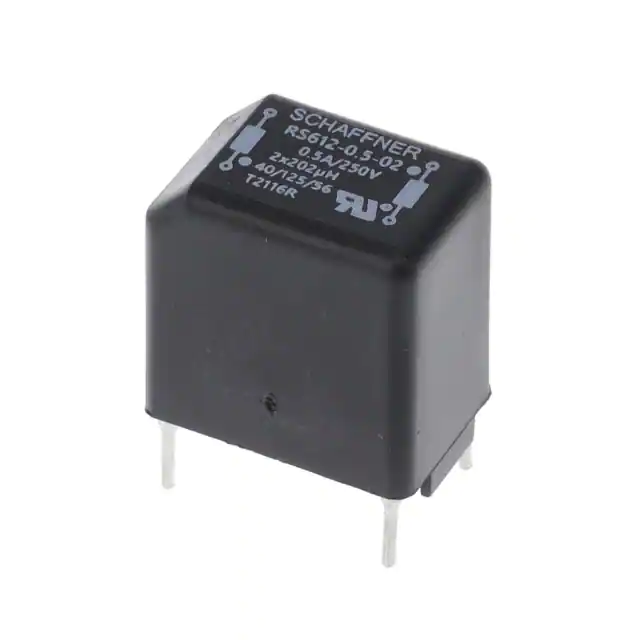

RS612-0.5-02CMC 200UH 500MA 2LN TH |
424 | 3.21 |
|
Datasheet |
Vertical, 4 PC Pin | Signal Line | 2 | - | 200 µH @ 1 kHz | 500mA (Typ) | 650mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | UR, VDE | - | - | - |
|

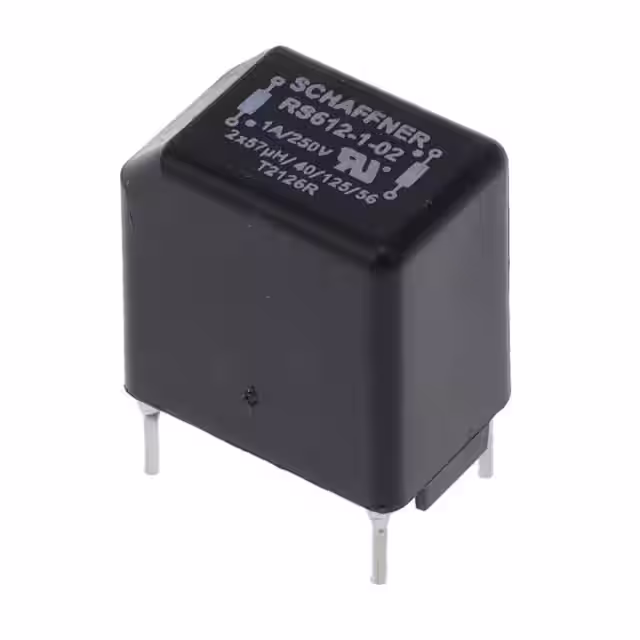

RS612-1-02CMC 55UH 1A 2LN TH |
840 | 3.27 |
|
Datasheet |
Vertical, 4 PC Pin | Signal Line | 2 | - | 55 µH @ 1 kHz | 1A (Typ) | 130mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | UR, VDE | - | - | - |
|
RS512-1-02CMC 55UH 1A 2LN TH |
150 | 3.27 |
|
Datasheet |
Horizontal, 4 PC Pin | Signal Line | 2 | - | 55 µH @ 1 kHz | 1A (Typ) | 130mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | UR, VDE | - | - | - |
|
|
WCM 1211FASV-102-LM2 LINE COMMON MODE CHOKE SURFACE |
885 | 0.00 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | 1 kOhms @ 100 MHz | - | 7A | 8mOhm | 80V | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|

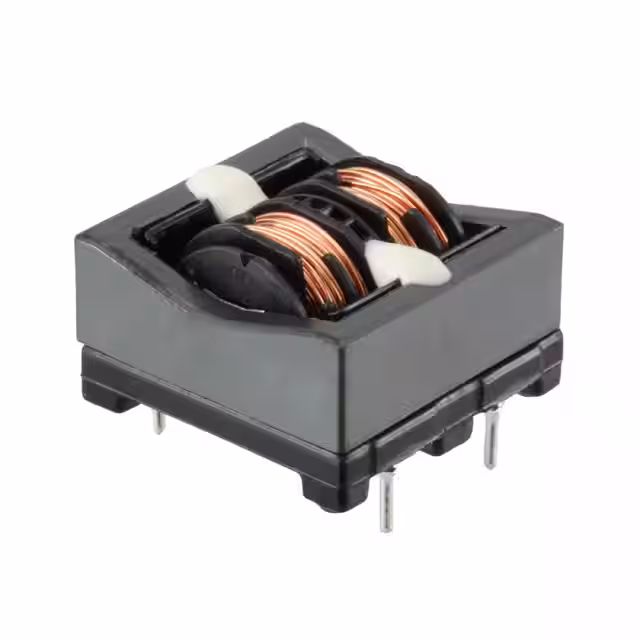

SSR21HS-07245CMC 24.5MH 700MA 2LN TH |
3,945 | 1.80 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 24.5 mH @ 10 kHz | 700mA | 590mOhm | 250V | - | -25°C ~ 120°C | - | - | - | - | - |
|
LCFE080602W500TGCMC 100MA 2LN 50 OHM SMD ESD |
18,006 | 1.94 |
|
Datasheet |
0302 (0806 Metric), 6 Lead | Signal Line | 2 | 50 Ohms @ 100 MHz | - | 100mA | 7Ohm | 5V | - | -40°C ~ 85°C | - | - | TVS Diode ESD Protection | - | - |
|

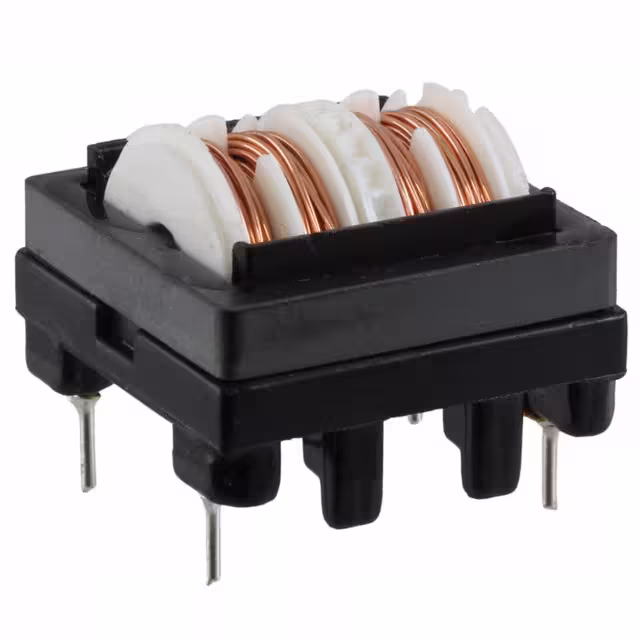

SS24H-R10170-CHCMC 17MH 1A 2LN TH |
1,700 | 1.67 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 17 mH @ 1 kHz | 1A | 550mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
SSR21H-06425CMC 42.5MH 600MA 2LN TH |
3,668 | 1.67 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 42.5 mH @ 10 kHz | 600mA | 890mOhm | 250V | - | -25°C ~ 120°C | - | - | - | - | - |
|

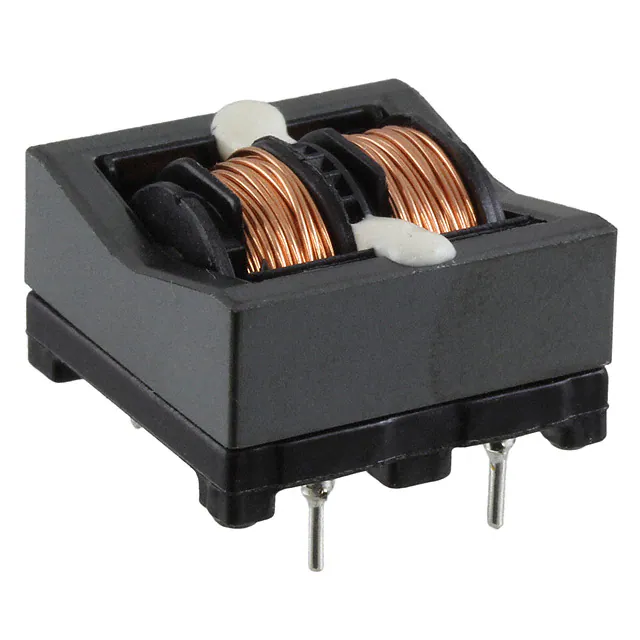

SSR21H-10215CMC 21.5MH 1A 2LN TH |
4,237 | 1.68 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 21.5 mH @ 10 kHz | 1A | 410mOhm | 250V | - | -25°C ~ 120°C | - | - | - | - | - |
|
|
LCFE080602A250TGCMC 100MA 2LN 25 OHM SMD ESD |
15,447 | 1.94 |
|
Datasheet |
0302 (0806 Metric), 6 Lead | Signal Line | 2 | 25 Ohms @ 100 MHz | - | 100mA | 5Ohm | 5V | - | -40°C ~ 85°C | - | - | TVS Diode ESD Protection | - | - |
|
SSHB21HS-18046CMC 4.6MH 1.8A 2LN TH |
1,184 | 1.71 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 4.6 mH @ 10 kHz | 1.8A | 200mOhm | - | 250V | -25°C ~ 130°C | - | - | - | - | - |
|
TCE0806S-350-2PCMC 100MA 2LN 35 OHM SMD ESD |
4,735 | 1.68 |
|
Datasheet |
0302 (0806 Metric), 6 Lead | Signal Line | 2 | 35 Ohms @ 100 MHz | - | 100mA | 1.8Ohm | 10V | - | -25°C ~ 85°C | - | - | TVS Diode ESD Protection | - | - |
