Common Mode Chokes
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

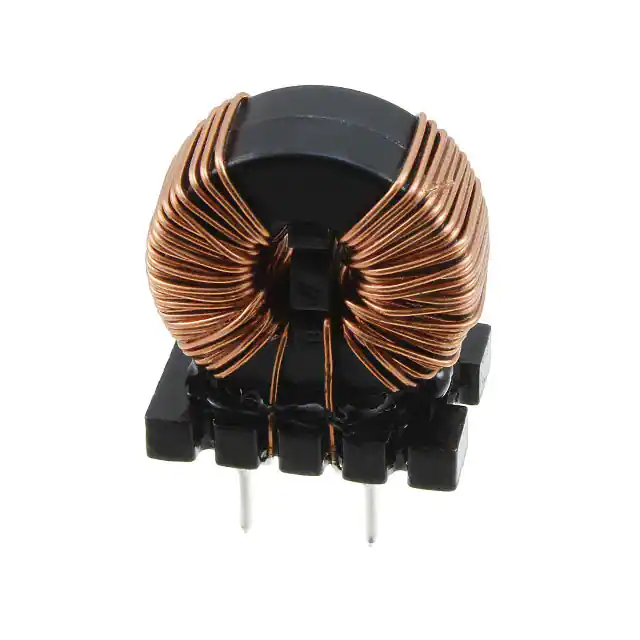

7448040515CMC 15MH 5A 2LN TH |
4,812 | 14.07 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 15 mH @ 10 kHz | 5A | 40mOhm | - | 300V | -55° C ~ 125°C | - | - | - | - | - |
|
8119-RCCMC 4MH 14.5A 2LN TH |
3,828 | 11.79 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 4 mH @ 1 kHz | 14.5A | 12mOhm | - | - | -55°C ~ 105°C | - | - | - | - | - |
|

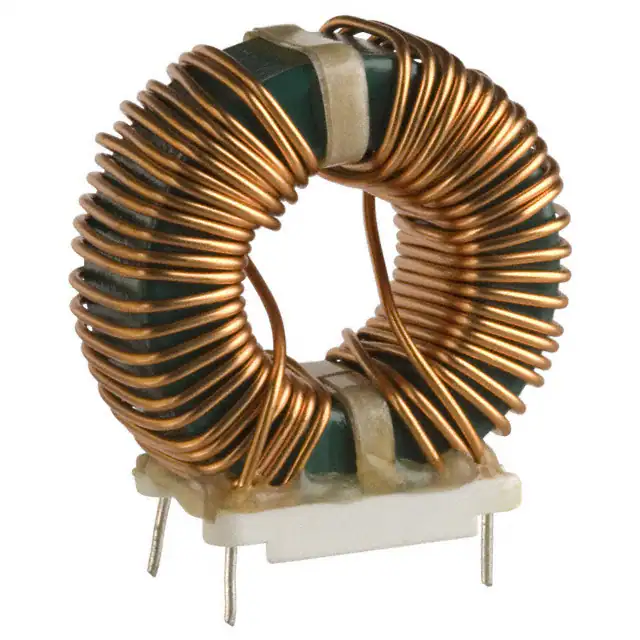

8118-RCCMC 7.3MH 9.3A 2LN TH |
3,308 | 11.79 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 7.3 mH @ 1 kHz | 9.3A | 32mOhm | - | - | -55°C ~ 105°C | - | - | - | - | - |
|
RT8132-6-6M0CMC 6MH 6A 3LN TH |
2,029 | 10.01 |
|
Datasheet |
Horizontal, 6 PC Pin | Power Line | 3 | - | 6 mH @ 100 kHz | 6A | 27mOhm (Typ) | - | 600V | -40°C ~ 100°C | - | - | - | - | - |
|
RT8532-6-6M0CMC 6MH 6A 3LN TH |
1,661 | 10.31 |
|
Datasheet |
Vertical, 6 PC Pin | Power Line | 3 | - | 6 mH @ 100 kHz | 6A | 27mOhm (Typ) | - | 600V | -40°C ~ 100°C | - | - | - | - | - |
|
CMX1616Z162B-10CMC 1.584MH 24A 2LN TH |
3,876 | 8.86 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 1.584 mH @ 100 kHz | 24A | 4.1mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
SCF25XV-350-2R4A003JVCMC 220UH 35A 2LN TH AEC-Q200 |
4,859 | 12.70 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 220 µH @ 100 kHz | 35A | 0.65mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
|
RT8132-8-4M8CMC 4.8MH 8A 3LN TH |
1,330 | 10.61 |
|
Datasheet |
Horizontal, 6 PC Pin | Power Line | 3 | - | 4.8 mH @ 100 kHz | 8A | 17mOhm (Typ) | - | 600V | -40°C ~ 100°C | - | - | - | - | - |
|
B82747S4203A020CMC 1.3MH 20A 3LN TH |
3,396 | 13.71 |
|
Datasheet |
Vertical, 6 PC Pin | Power Line | 3 | - | 1.3 mH @ 10 kHz | 20A | 5.2mOhm (Typ) | - | 440/250V | -40°C ~ 125°C | - | - | - | - | - |
|

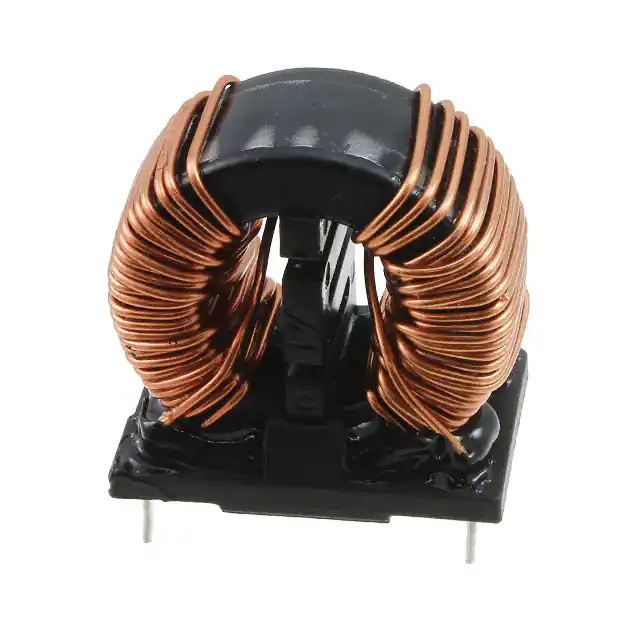

7448050530CMC 30MH 5A 2LN TH |
2,529 | 16.65 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 30 mH @ 10 kHz | 5A | 46mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|

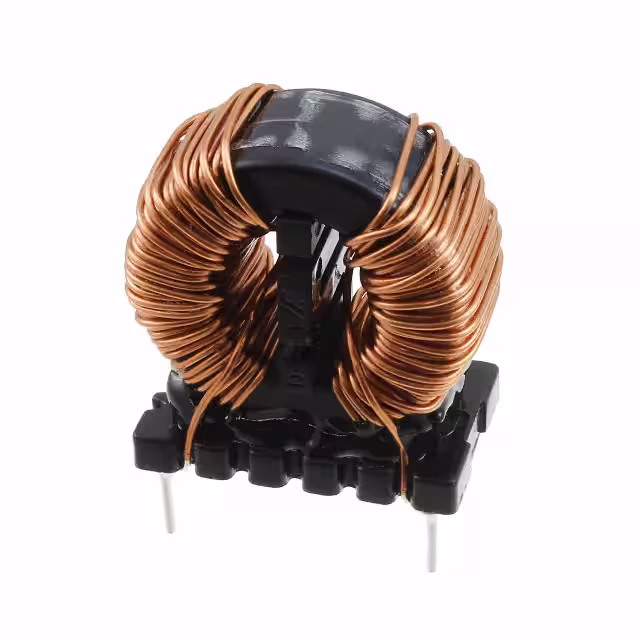

7448050219CMC 190MH 2A 2LN TH |
4,705 | 16.65 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 190 mH @ 10 kHz | 2A | 310mOhm | - | 300V | -55° C ~ 125°C | - | - | - | - | - |
|
B82726E6333B040CMC 420UH 33A 2LN TH |
4,038 | 14.53 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 420 µH @ 100 kHz | 33A | 1.4mOhm (Typ) | 1000V (1kV) | 600V | -40°C ~ 125°C | - | UR | - | - | - |
|
|
B82747E6253A040CMC 1MH 25A 3LN TH |
4,519 | 15.78 |
|
Datasheet |
Vertical, 6 PC Pin | Power Line | 3 | - | 1 mH @ 100 kHz | 25A | 2.8mOhm (Typ) | - | 600/350V | -40°C ~ 125°C | - | UR | - | - | - |
|
7448263505CMC 500UH 35A 2LN TH |
1,194 | 22.16 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 500 µH @ 100 kHz | 35A | 2.3mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
|
RT8132-20-2M5CMC 2.5MH 20A 3LN TH |
2,365 | 13.99 |
|
Datasheet |
Horizontal, 6 PC Pin | Power Line | 3 | - | 2.5 mH @ 100 kHz | 20A | 7mOhm (Typ) | - | 600V | -40°C ~ 100°C | - | - | - | - | - |
|
7448062603CMC 3MH 26A 2LN TH |
3,015 | 25.80 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 3 mH @ 10 kHz | 26A | 4.5mOhm | - | 300V | -55° C ~ 125°C | - | - | - | - | - |
|
7448062105CMC 5MH 21A 2LN TH |
1,247 | 25.80 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 5 mH @ 10 kHz | 21A | 6.5mOhm | - | 300V | -55° C ~ 125°C | - | - | - | - | - |
|
B82747S6313N061CMC 950UH 31A 3LN TH |
4,819 | 21.11 |
|
Datasheet |
Radial - 6 Leads | Power Line | 3 | - | 950 µH @ 100 kHz | 31A | 1.5mOhm (Typ) | - | 440/250V | -40°C ~ 125°C | - | - | - | - | - |
|
CM6149-224CMC 220UH 1A 2LN SMD |
170 | 14.78 |
|
Datasheet |
Horizontal, 4 PC Pad | - | 2 | - | 220 µH @ 10 kHz | 1A | 60mOhm | - | - | -55°C ~ 105°C | - | - | - | - | - |
|
|
SCF39XV-200-Z2R1A012JHCMC 3.6MH 20A HRZ |
3,584 | 0.00 |
|
Datasheet |
Horizontal, 8 PC Pin | Power Line | 2 | - | 3.6 mH @ 100 kHz | 20A | 4.14mOhm (Typ) | 1000V (1kV) | 1000V (1kV) | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
