Common Mode Chokes
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
SCF39XV-420-2R4B004JHCMC 0.4MH 42A HRZ |
4,297 | 0.00 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 400 µH @ 100 kHz | 42A | 0.53mOhm (Typ) | 1000V (1kV) | 1000V (1kV) | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
|
SCF39XV-200-2R2A013JHCMC 4.2MH 20A HRZ |
3,263 | 0.00 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 4.2 mH @ 100 kHz | 20A | 4.28mOhm (Typ) | 1000V (1kV) | 1000V (1kV) | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
|
SCF39XV-100-1R5A028JHCMC 19.5MH 10A HRZ |
2,806 | 0.00 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 19.5 mH @ 100 kHz | 10A | 17.91mOhm (Typ) | 1000V (1kV) | 1000V (1kV) | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
DKIH-3252-324Q-NKCMC 32A 2LN TH |
1,049 | 29.13 |
|
Datasheet |
Horizontal, 4 PC Pin | - | 2 | - | - | 32A | 2.3mOhm | - | - | -40°C ~ 100°C | - | ENEC, UR | - | - | - |
|
RD7137-16-2M8CMC 2.8MH 16A 3LN TH |
3,690 | 25.91 |
|
Datasheet |
- | Power Line | 3 | - | 2.8 mH @ 1 kHz | 16A (Typ) | 10.7mOhm (Typ) | 850V | 600V | -25°C ~ 110°C | - | - | - | - | - |
|
RB8522-50-0M8CMC 750UH 50A 2LN TH |
1,736 | 35.46 |
|
Datasheet |
Vertical, 8 PC Pin | Power Line | 2 | - | 750 µH @ 400 Hz | 50A | 1.7mOhm (Typ) | 1000V (1kV) | 600V | -40°C ~ 125°C | - | - | - | - | - |
|
|
SCF56X-800-S2R4C004JHIND CMC 0.34MH 80A 0.55MOHM |
1,309 | 0.00 |
|
Datasheet |
Horizontal, 6 PC Pin | Power Line | 3 | - | 340 µH @ 100 kHz | 80A | 0.55mOhm | 600V | 600V | -40°C ~ 130°C | - | - | - | - | - |
|
SRF2012A-261YACMC 300MA 2LN 260OHM SMD AECQ200 |
670 | 0.44 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 260 Ohms @ 100 MHz | - | 300mA | 400mOhm | 50V | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
2744045446CMC 2LN 60 OHM SMD |
274 | 0.51 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 60 Ohms @ 100 MHz | - | - | - | - | - | -55°C ~ 125°C | - | - | - | - | - |
|
SPDL2012-900-2P-TCMC 400MA 2LN 90OHM SMD AEC-Q200 |
220 | 0.59 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 90 Ohms @ 100 MHz | - | 400mA | 300mOhm | 50V | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
ICM1206ER102MCMC 230MA 2LN 1K OHM SMD |
551 | 0.88 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 1 kOhms @ 100 MHz | - | 230mA | 1Ohm | 50V | - | -40°C ~ 85°C | - | - | - | - | - |
|
ACE1V4532-110-RCMC 11UH 250MA 2LN 700OHM SMD |
1,678 | 0.92 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 700 Ohms @ 10 MHz | 11 µH @ 100 kHz | 250mA | 600mOhm | 50V | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|

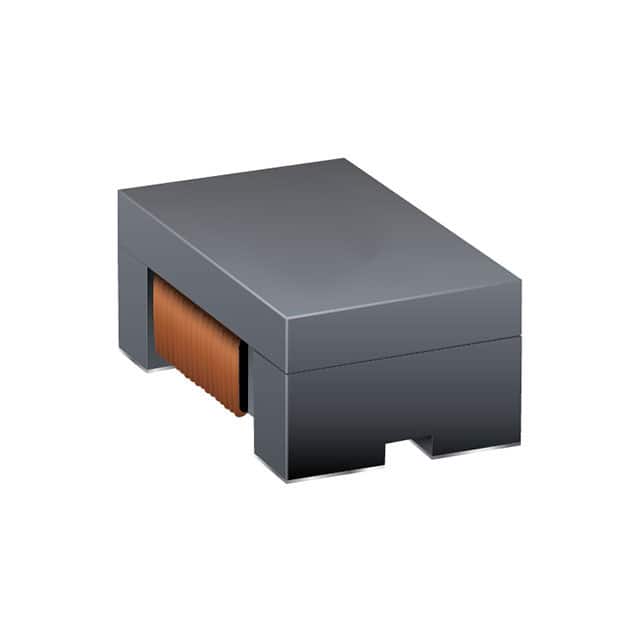

SRF4530A-110YCMC 11UH 360MA 2LN 600OHM SMD |
1,384 | 0.93 |
|
Datasheet |
Horizontal, 4 PC Pad | - | 2 | 600 Ohms @ 10 MHz | 11 µH @ 100 kHz | 360mA | 500mOhm | 50V | - | -55°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
|
SRF4530A-101YHCMC 100UH 200MA 2LN 7.5KOHM SMD |
598 | 0.93 |
|
Datasheet |
Horizontal, 4 PC Pad | - | 2 | 7.5 kOhms @ 10 MHz | 100 µH @ 100 kHz | 200mA | 1.5Ohm | 50V | - | -55°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
|
SRF4530A-220YCMC 22UH 310MA 2LN 1.2KOHM SMD |
1,390 | 0.93 |
|
Datasheet |
Horizontal, 4 PC Pad | - | 2 | 1.2 kOhms @ 10 MHz | 22 µH @ 100 MHz | 310mA | 600mOhm | 50V | - | -55°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
|
ACE1V3225-220-RCMC 22UH 250MA 2LN 1KOHM SMD |
1,491 | 0.89 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 1 kOhms @ 10 MHz | 22 µH @ 100 kHz | 250mA | 500mOhm | 80V | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
|
ACE1V4532-101-RCMC 100UH 150MA 2LN 5KOHM SMD |
1,052 | 0.84 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 5 kOhms @ 10 MHz | 100 µH @ 100 kHz | 150mA | 2Ohm | 50V | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
|
ACE1V4532-220-RCMC 22UH 200MA 2LN 1KOHM SMD |
964 | 0.79 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 1 kOhms @ 10 MHz | 22 µH @ 100 kHz | 200mA | 1Ohm | 50V | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
ECMS1V0704-701-RCMC 4A 2LN 700 OHM SMD |
1,264 | 1.09 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | 700 Ohms @ 100 MHz | - | 4A | 15mOhm | 80V | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
ECMS1V0905-102-RCMC 4A 2LN 1K OHM SMD |
450 | 1.10 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | 1 kOhms @ 100 MHz | - | 4A | 13mOhm | 80V | - | -40°C ~ 125°C | - | - | - | - | - |
