Common Mode Chokes
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
7446821027CMC 27MH 1A 2LN TH |
3,415 | 5.70 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 27 mH @ 10 kHz | 1A | 640mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
7446322010CMC 10MH 1.9A 2LN TH |
3,608 | 5.70 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 10 mH @ 10 kHz | 1.9A | 180mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|

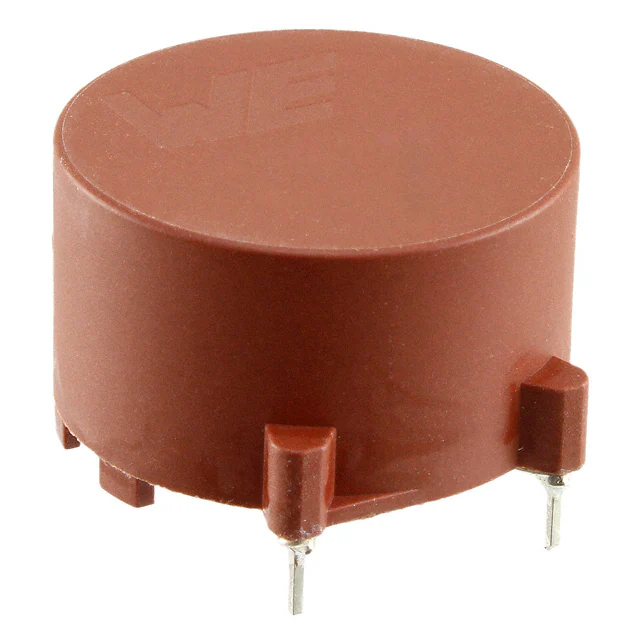

7446823003CMC 2.7MH 3A 2LN TH |
2,099 | 5.70 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 2.7 mH @ 10 kHz | 3A | 60mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
7446823006CMC 5.6MH 2.4A 2LN TH |
2,459 | 5.70 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 5.6 mH @ 10 kHz | 2.4A | 100mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
B82724B2402N001CMC 3.3MH 4A 2LN TH |
2,210 | 7.67 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 3.3 mH @ 10 kHz | 4A | 65mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | ENEC, UR, VDE | - | - | - |
|
SCR-100-1R2A010JHCMC 1MH 10A 2LN TH |
3,661 | 5.37 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 1 mH @ 10 kHz | 10A | 9.6mOhm | 250V | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
8104-RCCMC 10MH 2.4A 2LN TH |
2,459 | 6.38 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 10 mH @ 1 kHz | 2.4A | 170mOhm | - | - | -55°C ~ 105°C | - | - | - | - | - |
|
SCR22-060-1R0A075JCMC 7.5MH 6A 2LN TH |
1,982 | 5.56 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 7.5 mH @ 10 kHz | 6A | 42mOhm | 250V | 250V | -25°C ~ 120°C | - | - | - | - | - |
|

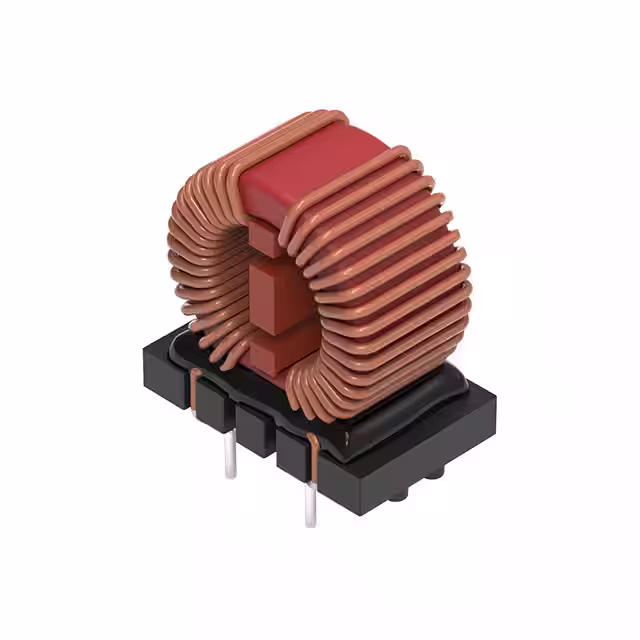

744824801CMC 1MH 10A 2LN TH |
1,590 | 6.62 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 1 mH @ 10 kHz | 10A | 7mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|

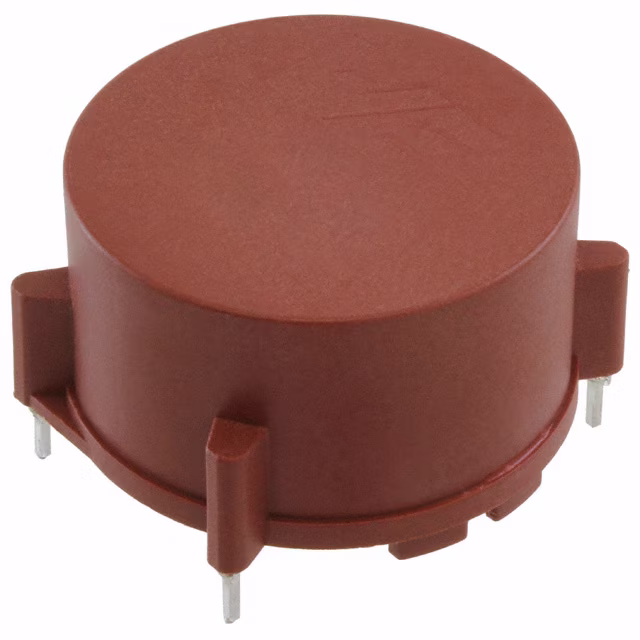

7446923010CMC 10MH 3A 2LN TH |
4,418 | 6.65 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 10 mH @ 10 kHz | 3A | 155mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
TCK-073CMC 305UH 2LN TH |
2,533 | 6.29 |
|
Datasheet |
Horizontal, 4 PC Pin | - | 2 | - | 305 µH @ 100 kHz | - | 20mOhm | 500V | - | -40°C ~ 105°C | - | - | - | - | - |
|
|
TCK-067CMC 620UH 7.5A 2LN TH |
1,643 | 6.29 |
|
Datasheet |
Horizontal, 4 PC Pin | - | 2 | - | 620 µH @ 100 kHz | 7.5A | 25mOhm | 500V | - | -40°C ~ 105°C | - | - | - | - | - |
|
744834405CMC 5MH 4A 2LN TH |
1,687 | 6.72 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 5 mH @ 10 kHz | 4A | 50mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
B82722S0103A020CMC 630UH 10.4A 2LN SMD |
199 | 8.55 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | - | 630 µH @ 100 kHz | 10.4A | 8.8mOhm | 80V | 48V | - | - | - | - | - | - |
|
B82725A2202N001CMC 18MH 2A 2LN TH |
3,695 | 8.24 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 18 mH @ 10 kHz | 2A | 330mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | ENEC, UR, VDE | - | - | - |
|

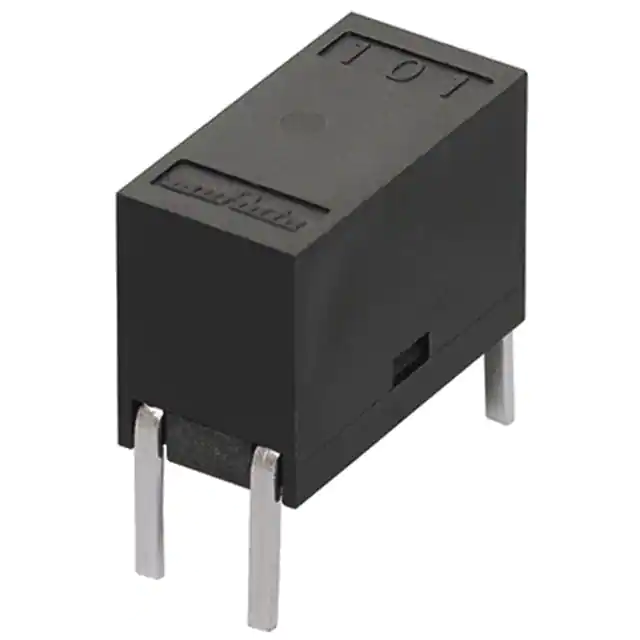

PLT10HN450180P0BCMC 18A 2LN 45 OHM TH |
2,184 | 6.11 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | 45 Ohms @ 100 MHz | - | 18A | 1.8mOhm | 300V | - | -55°C ~ 125°C | - | - | - | - | - |
|
ET3542-054CMC 12MH 2.5A 2LN TH ESD |
2,647 | 8.40 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 12 mH @ 10 kHz | 2.5A | 200mOhm | - | 250V | -20°C ~ 105°C | - | CSA, IEC, UL | - | - | - |
|
|
SCR25-200-1R7A008JHCMC 800UH 20A 2LN TH |
1,603 | 7.26 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 800 µH @ 10 kHz | 20A | 4.7mOhm | 250V | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
B82724V2123U040CMC 1.5MH 12A 2LN TH |
4,081 | 10.93 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 1.5 mH @ 10 kHz | 12A | 6.3mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|

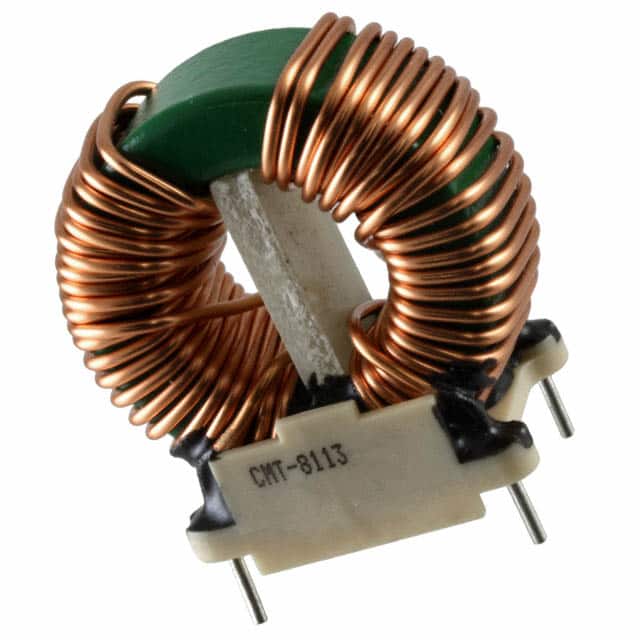

CMT-8113CMC 5MH 8.9A 2LN TH ESD |
2,065 | 9.16 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 5 mH @ 1 kHz | 8.9A | 22mOhm | - | 1500V (1.5kV) | -55°C ~ 105°C | - | CSA, IEC, UL, VDE | - | - | - |
