Common Mode Chokes
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CM2824B103R-10CMC 200MA 2LN 400 OHM SMD |
54,209 | 7.60 |
|
Datasheet |
Horizontal, 4 Flat Lead | Power, Signal Line | 2 | 400 Ohms @ 100 MHz | - | 200mA | 1.3Ohm | 80V | - | -40°C ~ 100°C | - | - | - | - | - |
|

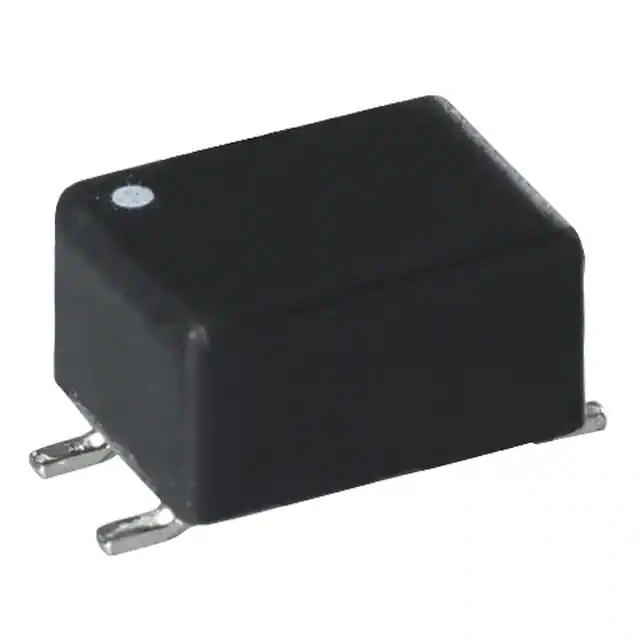

CC2824E253R-10CMC 25UH 800MA 2LN 2KOHM SMD |
15,524 | 3.71 |
|
Datasheet |
Horizontal, 4 Flat Lead | Signal Line | 2 | 2 kOhms @ 100 MHz | 25 µH @ 100 kHz | 800mA | 260mOhm | 80V | 42V | -40°C ~ 125°C | - | - | - | - | - |
|

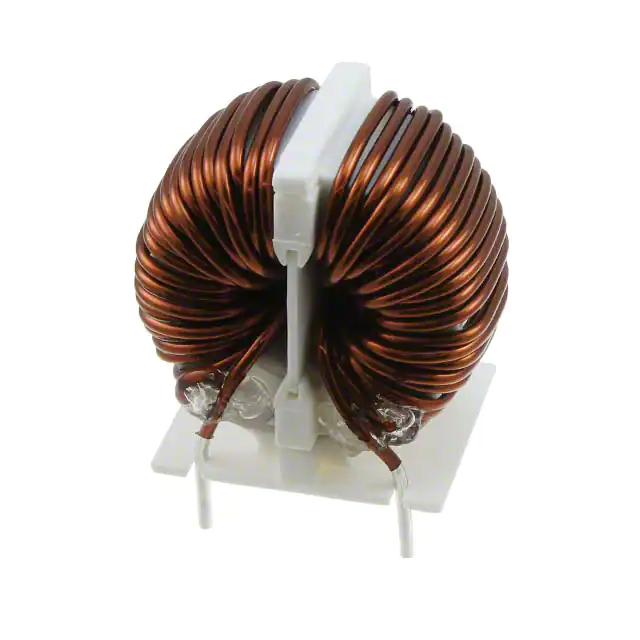

SC-10-30JCMC 3MH 10A 2LN TH |
8,985 | 7.37 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 3 mH @ 100 kHz | 10A | 30mOhm | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
|

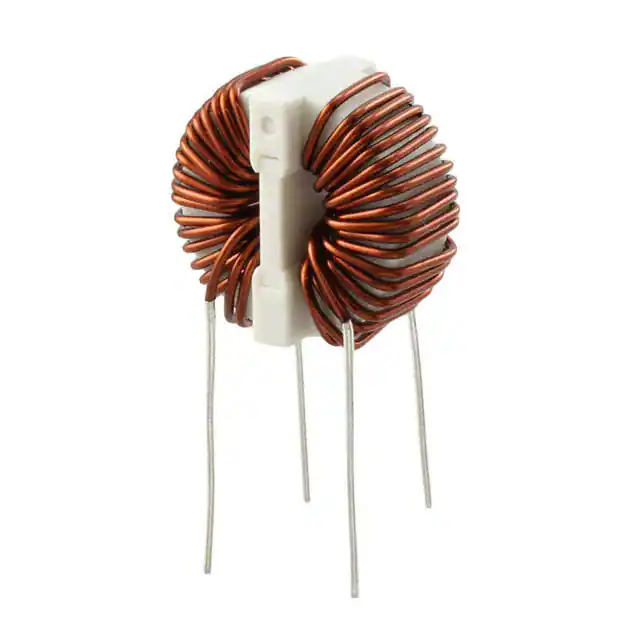

SCF20-05-550CMC 5.5MH 5A 2LN TH |
3,285 | 7.30 |
|
Datasheet |
Vertical, No Base, 4 PC Pin | Power Line | 2 | - | 5.5 mH @ 10 kHz | 5A | 28mOhm | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
|

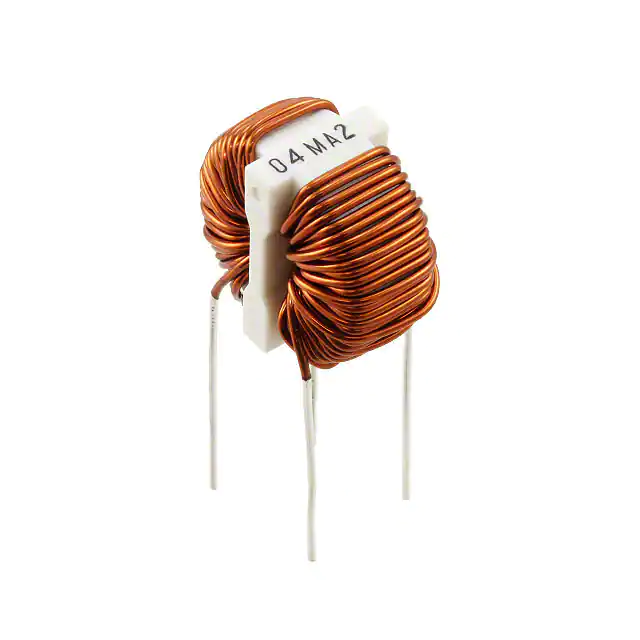

SCF20-05-1100CMC 11MH 5A 2LN TH |
758 | 7.30 |
|
Datasheet |
Vertical, No Base, 4 PC Pin | Power Line | 2 | - | 11 mH @ 10 kHz | 5A | 39mOhm | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
|

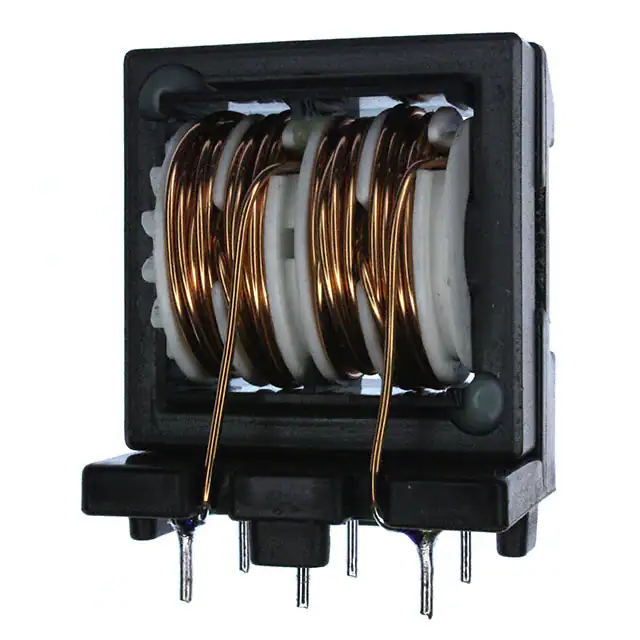

EV35-3.0-02-10MCMC 10MH 3A 2LN TH |
308 | 7.40 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 10 mH @ 400 Hz | 3A | 72mOhm (Typ) | - | 250V | -25°C ~ 100°C | - | - | - | - | - |
|

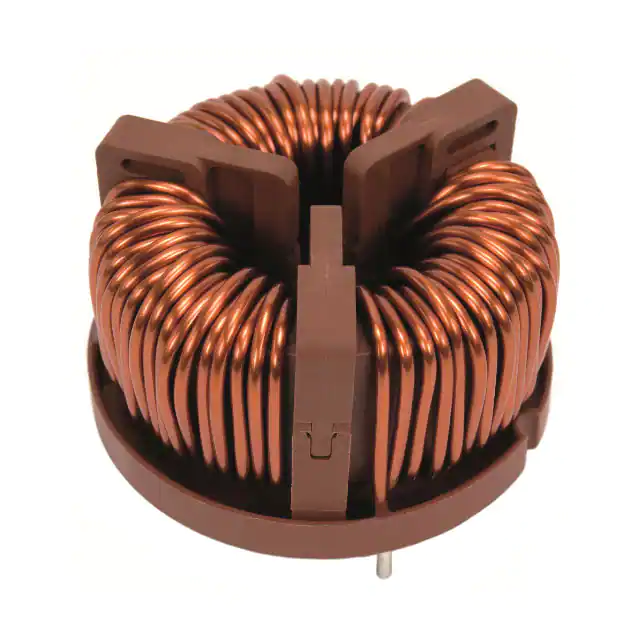

T60405R6123X213CMC 2.96MH 12.4A 2LN 2.95KOHM TH |
2,743 | 10.21 |
|
Datasheet |
Horizontal, 4 PC Pin | - | 2 | 2.95 kOhms @ 100 kHz | 2.96 mH @ 100 kHz | 12.4A | - | - | - | -40°C ~ 130°C | - | - | - | - | - |
|
B82726S2163N030CMC 2.2MH 16A 2LN TH |
10,720 | 12.58 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 2.2 mH @ 10 kHz | 16A | 7.1mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|

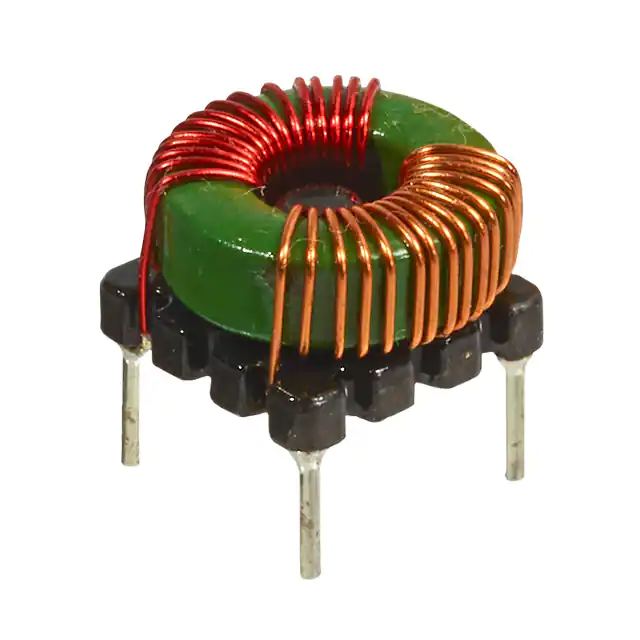

TCK-017CMC 497UH 1.7A 2LN TH |
515 | 7.95 |
|
Datasheet |
Horizontal, 4 PC Pin | - | 2 | - | 497 µH @ 100 kHz | 1.7A | 100mOhm | 500V | - | -40°C ~ 105°C | - | - | - | - | - |
|

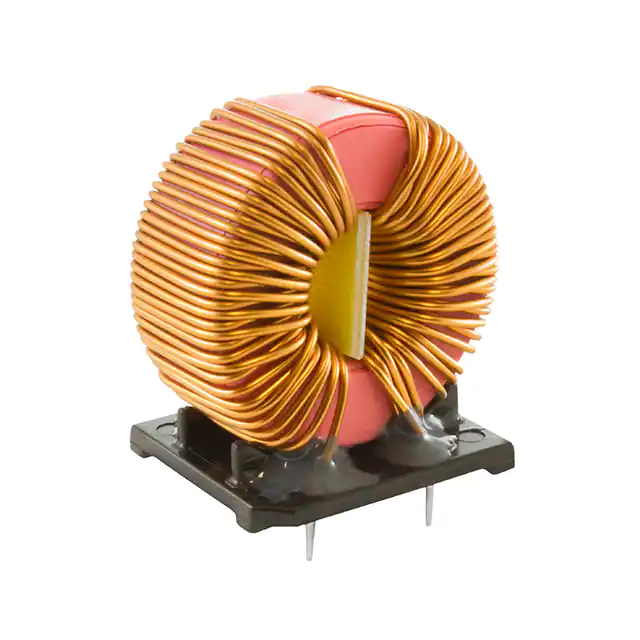

PH9455.405NLCMC 4.5MH 12A 2LN 4.4K OHM TH |
6,305 | 9.07 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | 4.4 kOhms @ 4 MHz | 4.5 mH @ 4 MHz | 12A | 8.5mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
|
PH9455.105NLCMC 1MH 22A 2LN 1.5K OHM TH |
144 | 9.07 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | 1.5 kOhms @ 15.94 MHz | 1 mH @ 15.94 MHz | 22A | 2.1mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|

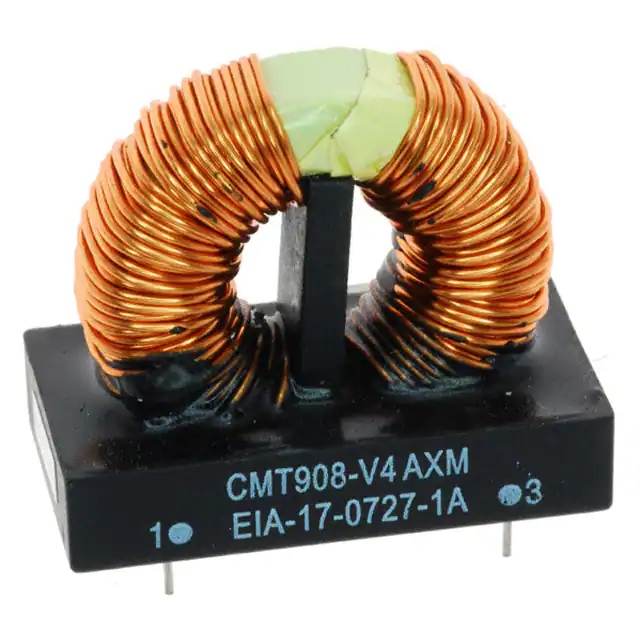

CMT908-V4CMC 16MH 2.6A 2LN TH ESD |
3,849 | 9.11 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 16 mH @ 10 kHz | 2.6A | 160mOhm | - | 1500V (1.5kV) | -40°C ~ 125°C | - | CSA, IEC, UL, VDE | - | - | - |
|
|
B82726E6243A041CMC 1MH 24A 2LN TH |
633 | 12.25 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 1 mH @ 100 kHz | 24A | 2.3mOhm (Typ) | 1000V (1kV) | 600V | -40°C ~ 125°C | - | UR | - | - | - |
|

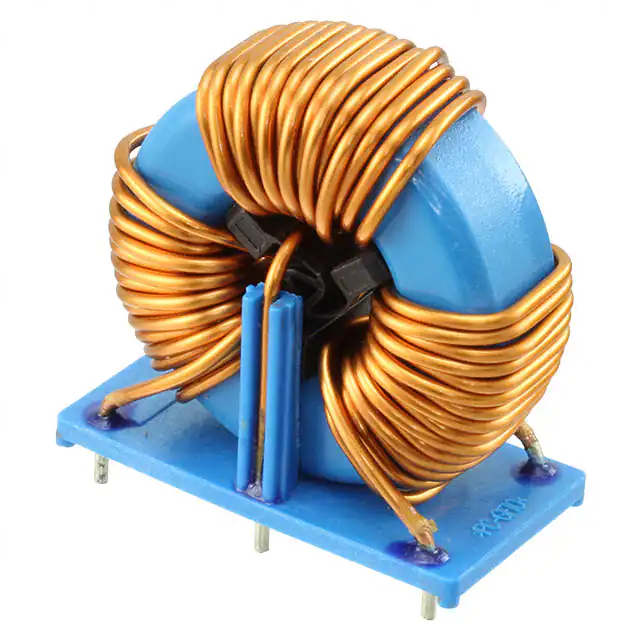

B82746S4103A021CMC 2MH 10A 3LN TH |
392 | 12.25 |
|
Datasheet |
Vertical, 6 PC Pin | Power Line | 3 | - | 2 mH @ 10 kHz | 10A | 9.6mOhm (Typ) | - | 500/300V | -40°C ~ 125°C | - | UR | - | - | - |
|

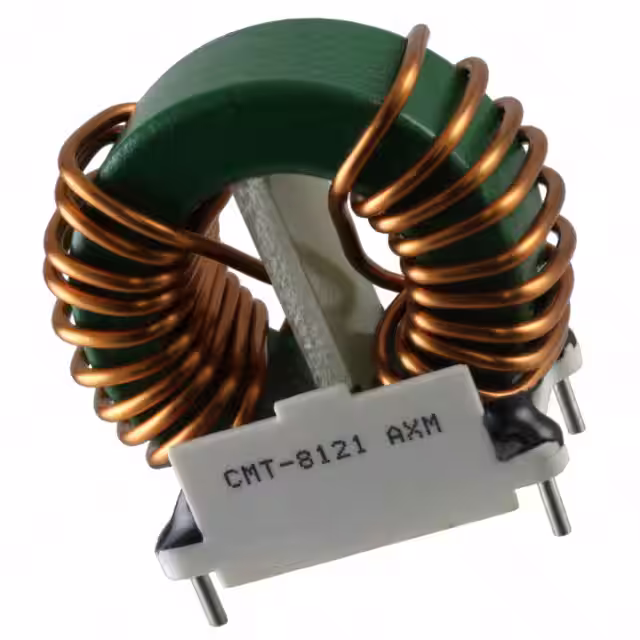

CMT-8121CMC 1MH 20A 2LN TH ESD |
1,850 | 10.08 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 1 mH @ 1 kHz | 20A | 7mOhm | - | 1500V (1.5kV) | -55°C ~ 105°C | - | CSA, IEC, UL, VDE | - | - | - |
|

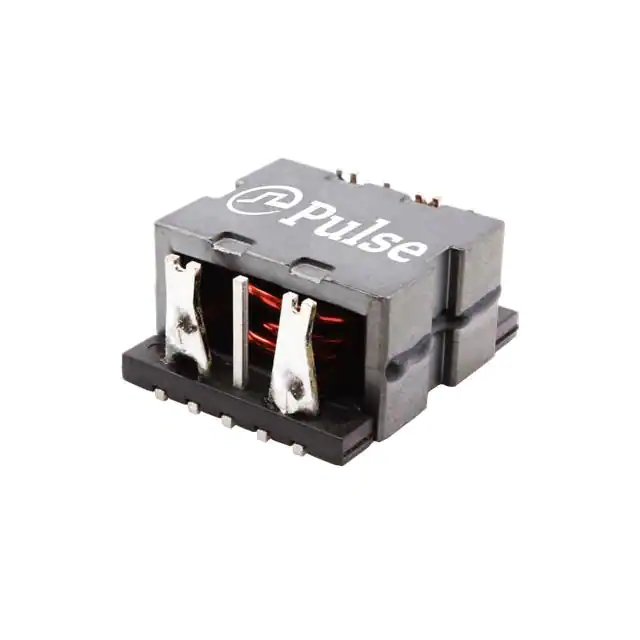

PH9408.364NLTCMC 23A 2LN 1.5K OHM SMD |
883 | 9.45 |
|
Datasheet |
Nonstandard | - | 2 | 1.5 kOhms @ 1.3 MHz | - | 23A | 3.5mOhm | - | - | -40°C ~ 125°C | - | - | - | - | - |
|

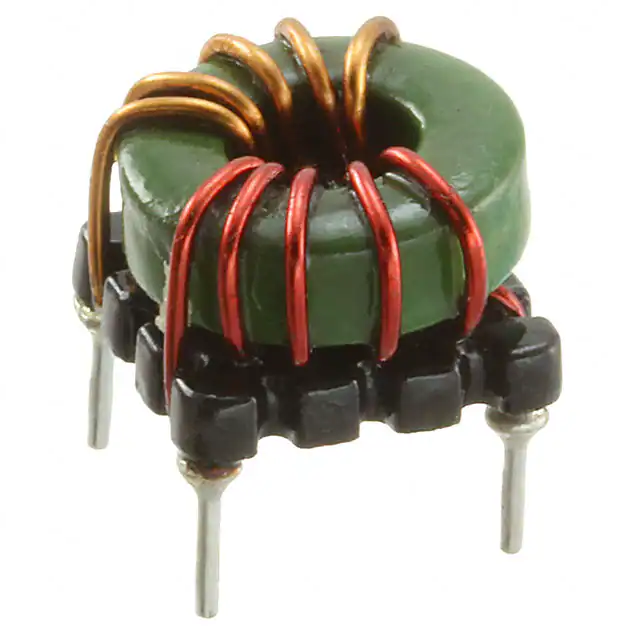

CMC-06CMC 3.3A 2LN TH |
424 | 11.03 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | - | 3.3A | 35mOhm | - | - | -40°C ~ 105°C | - | - | - | - | - |
|
|
T60405R6123X616CMC 3.1MH 16A 2LN 3K OHM TH |
1,345 | 10.71 |
|
Datasheet |
Horizontal, 4 PC Pin | - | 2 | 3 kOhms @ 100 kHz | 3.1 mH @ 100 kHz | 16A | - | - | - | -40°C ~ 130°C | - | - | - | - | - |
|

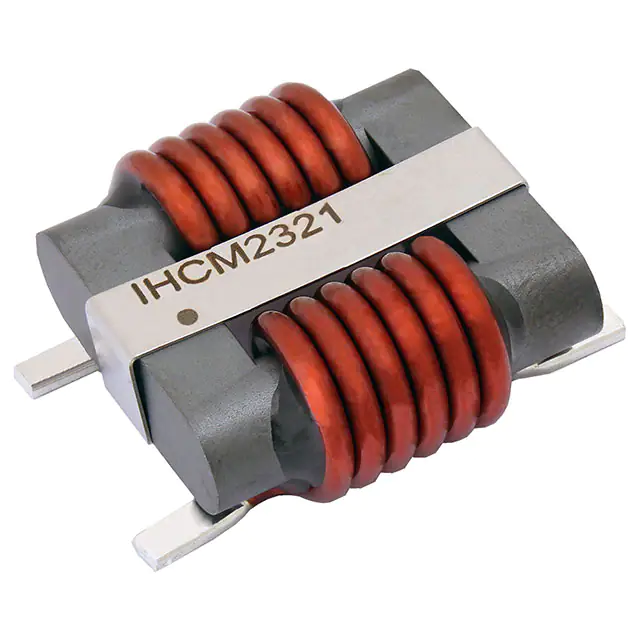

IHCM2321AAEG121N10CMC 120UH 25A 2LN 480 OHM SMD |
483 | 10.73 |
|
Datasheet |
Horizontal, 4 Flat Lead | Power Line | 2 | 480 Ohms @ 10 MHz | 120 µH @ 100 kHz | 25A | 1.8mOhm | - | - | -40°C ~ 155°C | - | - | - | - | - |
|

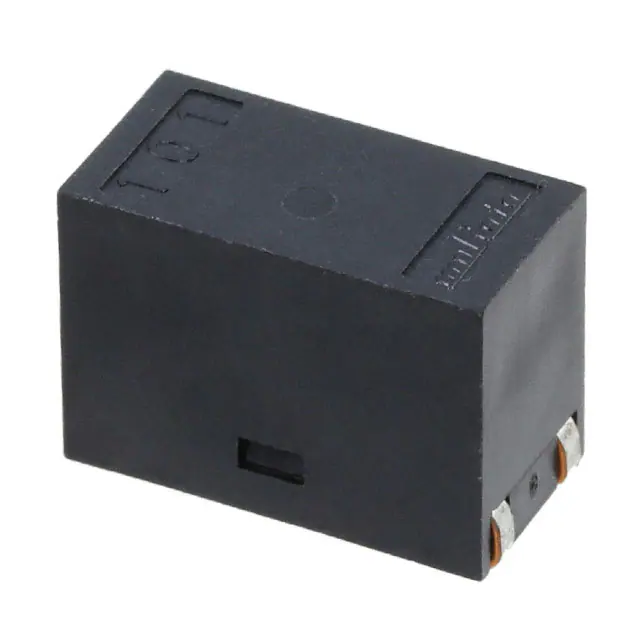

PLT10HH101150PNLCMC 15A 2LN 100 OHM SMD AEC-Q200 |
333 | 13.09 |
|
Datasheet |
Vertical, 4 PC Pad | Power Line | 2 | 100 Ohms @ 10 MHz | - | 15A | 2.3mOhm | 300V | - | -55°C ~ 125°C | - | - | - | - | - |
