Common Mode Chokes
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PG1265NLTCMC 20A 2LN SMD |
1,125 | 4.60 |
|
Datasheet |
Horizontal, 4 PC Pad | - | 2 | - | - | 20A | 4.1mOhm | - | - | -40°C ~ 130°C | - | - | - | - | - |
|

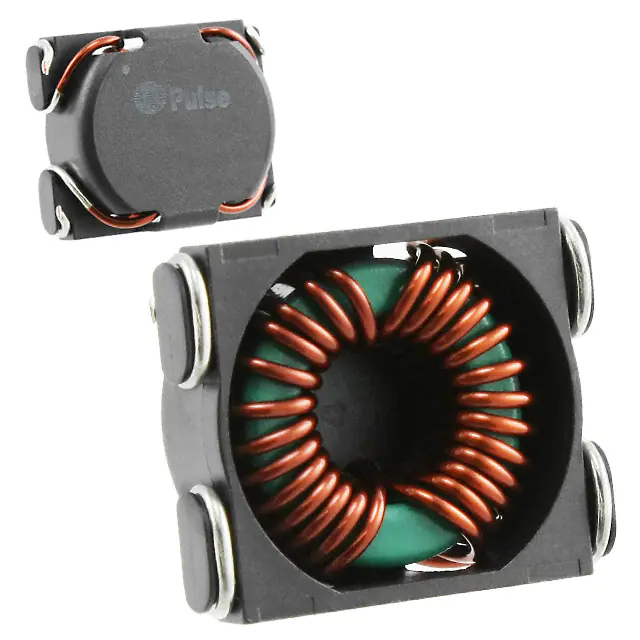

P0469NLTCMC 11.6A 2LN SMD |
3,159 | 4.66 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | - | - | 11.6A | 10mOhm | - | - | -40°C ~ 120°C | - | - | - | - | - |
|

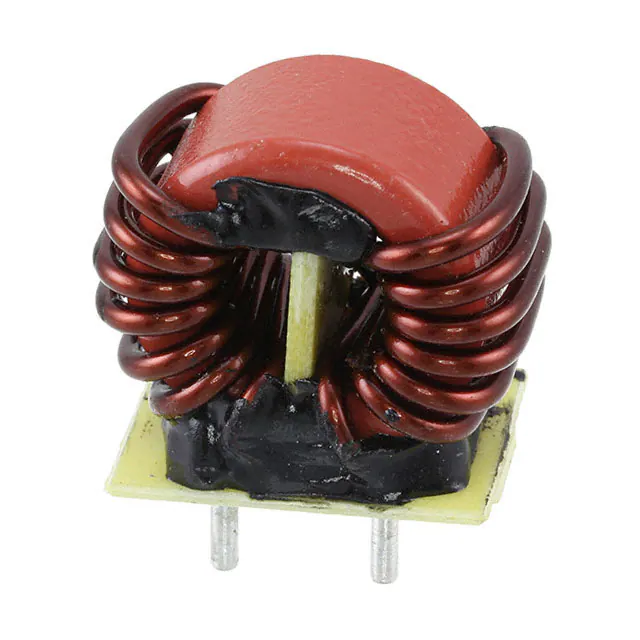

S14100038CMC 560UH 20A 2LN TH |
1,544 | 4.46 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 560 µH @ 10 kHz | 20A | 2.8mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|

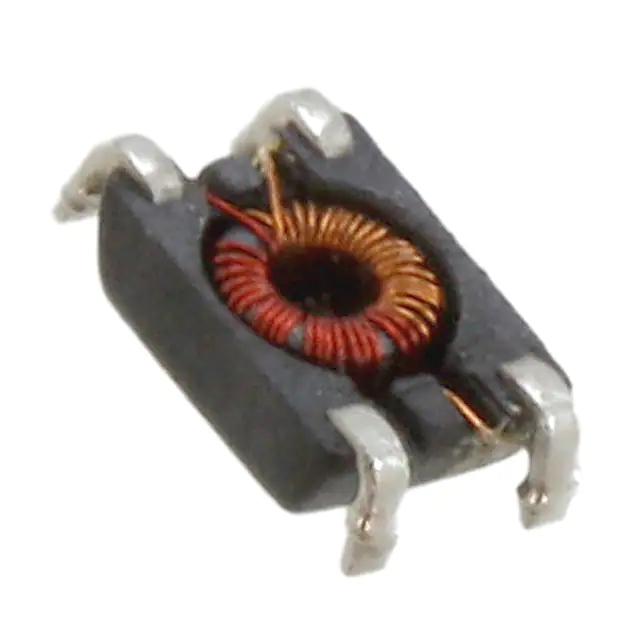

744212221CMC 220UH 300MA 2LN 1.2K OHM SMD |
4,072 | 4.50 |
|
Datasheet |
Horizontal, 4 J-Lead | Signal Line | 2 | 1.2 kOhms @ 35 MHz | 220 µH @ 100 kHz | 300mA | 280mOhm | 80V | - | -40°C ~ 105°C | - | - | - | - | - |
|
|
744212510CMC 51UH 300MA 2LN 300 OHM SMD |
3,276 | 4.50 |
|
Datasheet |
Horizontal, 4 J-Lead | Signal Line | 2 | 300 Ohms @ 300 MHz | 51 µH @ 100 kHz | 300mA | 160mOhm | 80V | - | -40°C ~ 105°C | - | - | - | - | - |
|
744290321CMC 320UH 3.25A 2LN SMD |
4,542 | 4.63 |
|
Datasheet |
Horizontal, 4 Flat Lead | Power, Signal Line | 2 | - | 320 µH @ 10 kHz | 3.25A | 29mOhm | 80V | - | -40°C ~ 125°C | - | - | - | - | - |
|
744290121CMC 120UH 5.5A 2LN SMD |
1,357 | 4.63 |
|
Datasheet |
Horizontal, 4 Flat Lead | Power, Signal Line | 2 | - | 120 µH @ 10 kHz | 5.5A | 10.5mOhm | 80V | - | -40°C ~ 125°C | - | - | - | - | - |
|

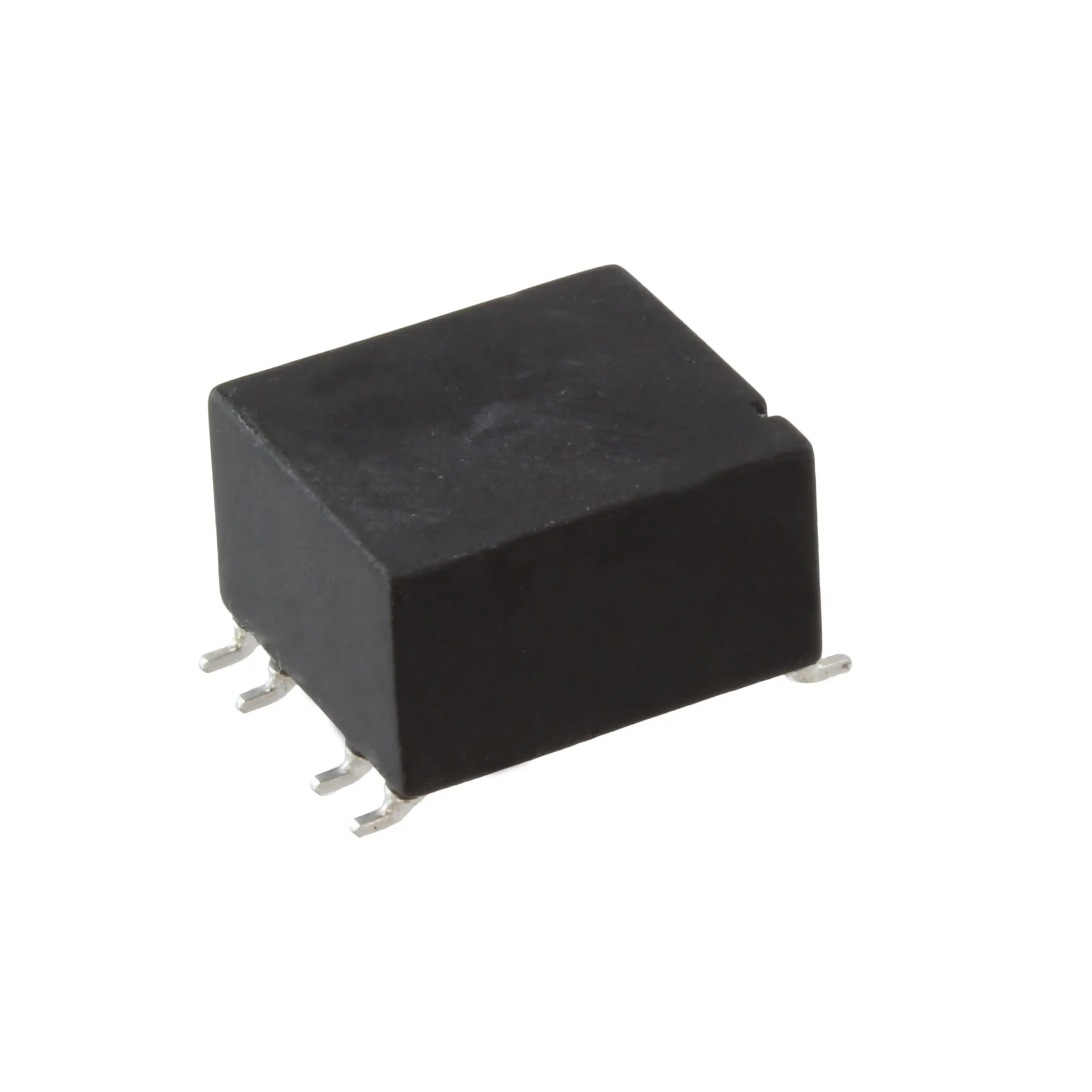

744290152CMC 1.5MH 1.5A 2LN SMD |
750 | 4.63 |
|
Datasheet |
Horizontal, 4 Flat Lead | Power, Signal Line | 2 | - | 1.5 mH @ 10 kHz | 1.5A | 120mOhm | 80V | - | -40°C ~ 125°C | - | - | - | - | - |
|

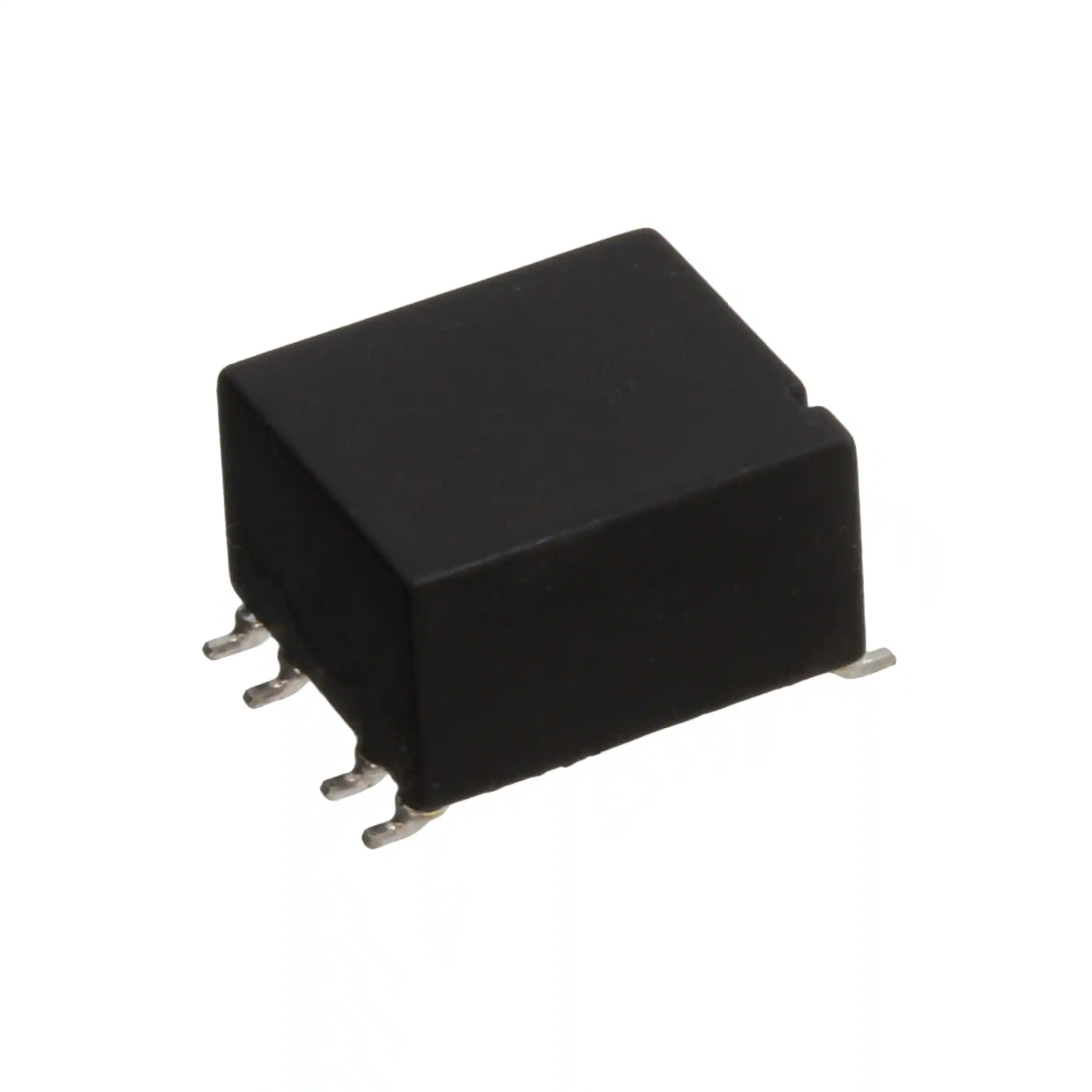

744290130CMC 13UH 10A 2LN SMD |
124 | 4.63 |
|
Datasheet |
Horizontal, 4 Flat Lead | Signal Line | 2 | - | 13 µH @ 10 kHz | 10A | 2.7mOhm | 80V | - | -40°C ~ 125°C | - | - | - | - | - |
|

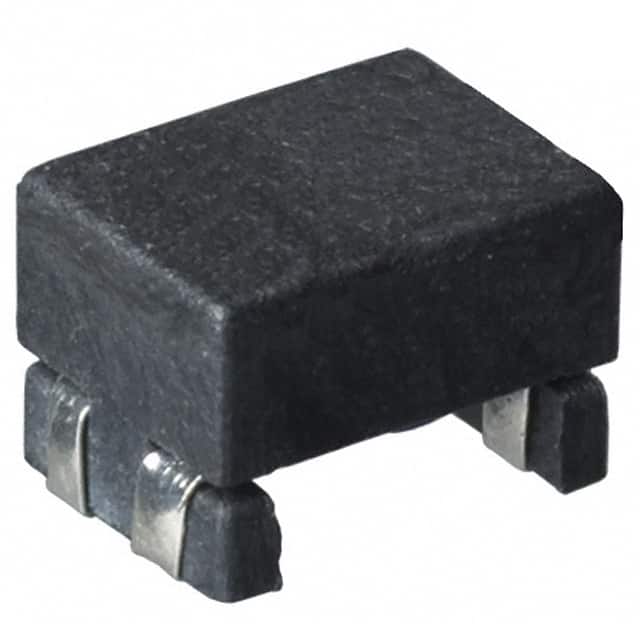

CC1812C513R-10CMC 51UH 200MA 2LN 3.5KOHM SMD |
18,639 | 6.31 |
|
Datasheet |
Horizontal, 4 Flat Lead | Signal Line | 2 | 3.5 kOhms @ 40 MHz | 51 µH @ 100 kHz | 200mA | 500mOhm | 80V | 42V | -40°C ~ 125°C | - | - | - | - | - |
|
CC2824E513R-10CMC 51UH 800MA 2LN 3.8KOHM SMD |
6,372 | 4.85 |
|
Datasheet |
Horizontal, 4 Flat Lead | Signal Line | 2 | 3.8 kOhms @ 50 MHz | 51 µH @ 100 kHz | 800mA | 300mOhm | 80V | 42V | -40°C ~ 125°C | - | - | - | - | - |
|
B82792C2105N365CMC 1MH 500MA 4LN SMD |
2,013 | 6.08 |
|
Datasheet |
Horizontal, 8 Gull Wing | Signal Line | 4 | - | 1 mH @ 100 kHz | 500mA | 170mOhm (Typ) | 80V | 42V | -40°C ~ 125°C | - | - | - | - | - |
|
|
B82792C0685N365CMC 6.8MH 600MA 2LN SMD |
1,252 | 5.66 |
|
Datasheet |
Horizontal, 8 Gull Wing | Signal Line | 2 | - | 6.8 mH @ 10 kHz | 600mA | 500mOhm (Typ) | 80V | 42V | -40°C ~ 125°C | - | - | - | - | - |
|
CMS1-1-RCMC 4.5UH 7A 2LN SMD |
2,397 | 4.74 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | - | 4.5 µH @ 100 kHz | 7A | 2.7mOhm (Typ) | - | - | -40°C ~ 160°C | - | - | - | - | - |
|

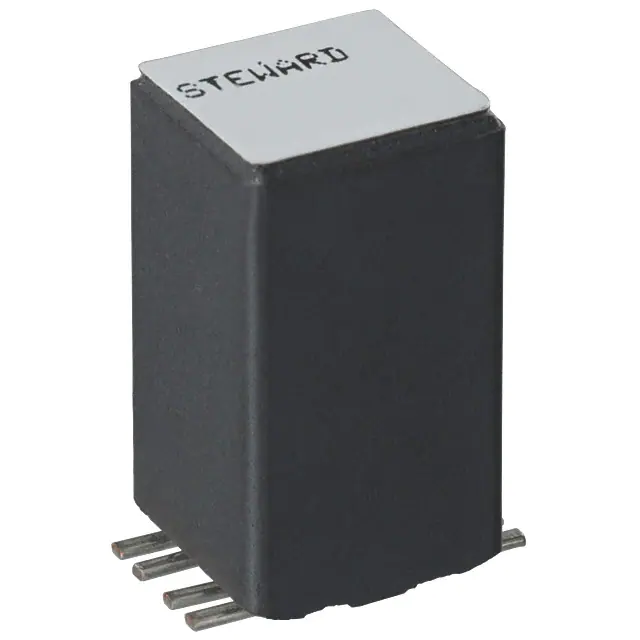

CM3032V301R-10CMC 8A 4LN 300 OHM SMD |
4,459 | 5.28 |
|
Datasheet |
Vertical, 8 Flat Lead | Power Line | 4 | 300 Ohms @ 100 MHz | - | 8A | 10mOhm | 30V | - | -40°C ~ 125°C | - | - | - | - | - |
|

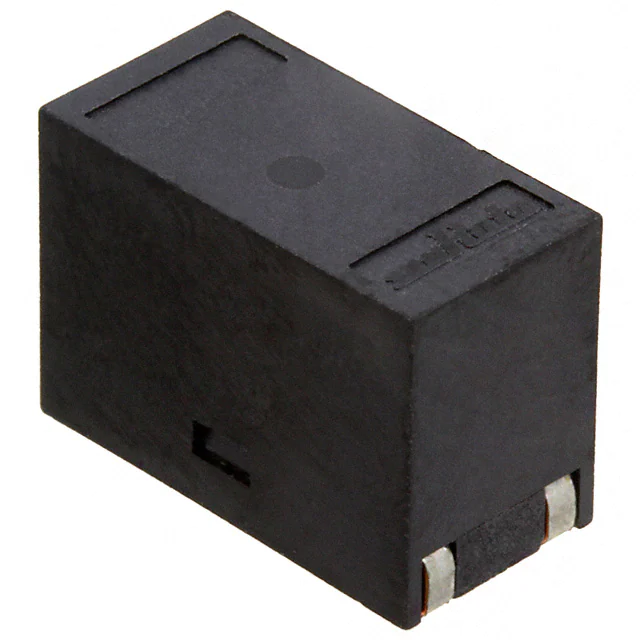

PLT10HH1026R0PNLCMC 6A 2LN 1K OHM SMD AEC-Q200 |
5,681 | 5.68 |
|
Datasheet |
Vertical, 4 PC Pad | Power Line | 2 | 1 kOhms @ 10 MHz | - | 6A | 8mOhm (Typ) | 100V | - | -55°C ~ 105°C | AEC-Q200 | - | - | - | - |
|
|
PLT10HH9016R0PNLCMC 6A 2LN 900 OHM SMD AEC-Q200 |
5,393 | 5.68 |
|
Datasheet |
Vertical, 4 PC Pad | Power Line | 2 | 900 Ohms @ 10 MHz | - | 6A | 8.5mOhm | 100V | - | -55°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
|
PLT10HH501100PNLCMC 10A 2LN 500 OHM SMD AEC-Q200 |
3,741 | 5.68 |
|
Datasheet |
Vertical, 4 PC Pad | Power Line | 2 | 500 Ohms @ 10 MHz | - | 10A | 4.1mOhm | 100V | - | -55°C ~ 105°C | AEC-Q200 | - | - | - | - |
|
|
CMS1-2-RCMC 8UH 5.7A 2LN SMD |
892 | 5.17 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | - | 8 µH @ 100 kHz | 5.7A | 4mOhm (Typ) | - | - | -40°C ~ 160°C | - | - | - | - | - |
|

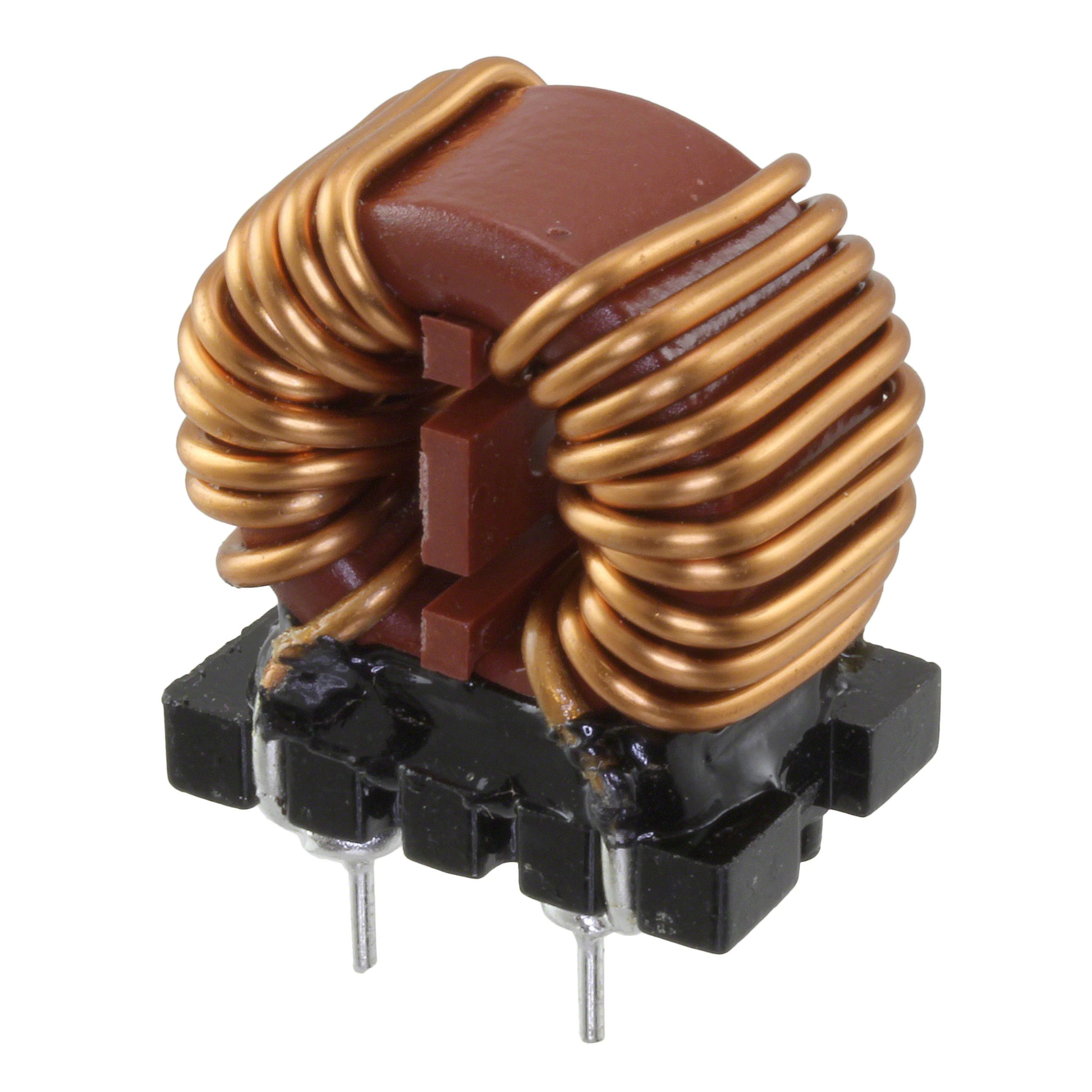

744824101CMC 1MH 10A 2LN TH |
936 | 5.63 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 1 mH @ 10 kHz | 10A | 7mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
