Common Mode Chokes
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SC-20-E18JCMC 1.8MH 20A 2LN TH |
1,936 | 10.63 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 1.8 mH @ 10 kHz | 20A | 6.8mOhm | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
|
PE-62912NLCMC 3MH 3.5A 2LN TH |
1,011 | 7.51 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 3 mH @ 1 kHz | 3.5A | 60mOhm | - | - | -40°C ~ 125°C | - | - | - | - | - |
|
SC22-08-260CMC 2.6MH 8A 2LN TH |
4,897 | 7.67 |
|
Datasheet |
Horizontal, No Base, 4 PC Pin | Power Line | 2 | - | 2.6 mH @ 1 kHz | 8A | 30mOhm | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
|
RN152-1-02-68MCMC 68MH 1A 2LN TH |
4,335 | 6.44 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 68 mH @ 10 kHz | 1A | 1.3Ohm (Typ) | - | 300V | -40°C ~ 100°C | - | ENEC, UR, VDE | - | - | - |
|
SC-15-35JHCMC 3.5MH 15A 2LN TH |
1,169 | 10.88 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 3.5 mH @ 1 kHz | 15A | - | 250V | 250V | -40°C ~ 105°C | - | - | - | - | - |
|

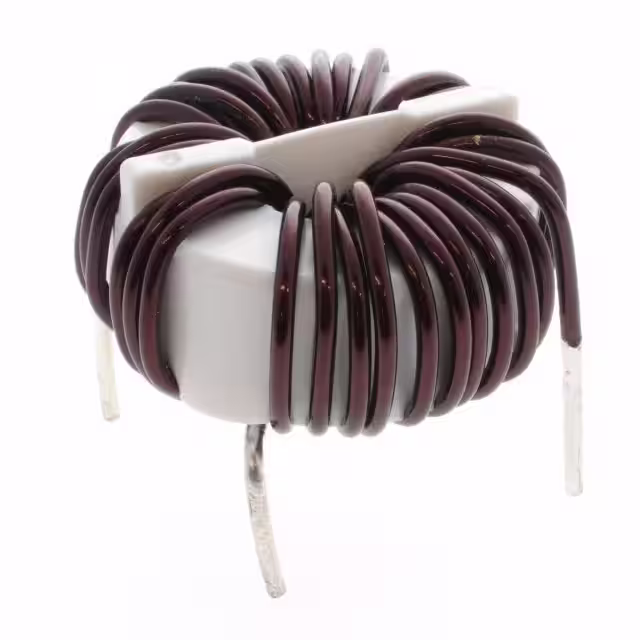

SC-18-180CMC 1.8MH 18A 2LN TH |
4,550 | 11.43 |
|
Datasheet |
Horizontal, No Base, 4 PC Pin | Power Line | 2 | - | 1.8 mH @ 1 kHz | 18A | 11mOhm | 250V | 250V | -40°C ~ 105°C | - | - | - | - | - |
|
SC-08-1000CMC 10MH 8A 2LN TH |
3,861 | 11.45 |
|
Datasheet |
Vertical, No Base, 4 PC Pin | Power Line | 2 | - | 10 mH @ 100 kHz | 8A | 70mOhm | 250V | 250V | -40°C ~ 105°C | - | - | - | - | - |
|
|
SC-18-E15JHCMC 1.5MH 18A 2LN TH |
1,348 | 11.09 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 1.5 mH @ 100 kHz | 18A | - | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
|
|
SC-10-E80JHCMC 8MH 10A 2LN TH |
1,647 | 11.23 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 8 mH @ 10 kHz | 10A | - | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
|

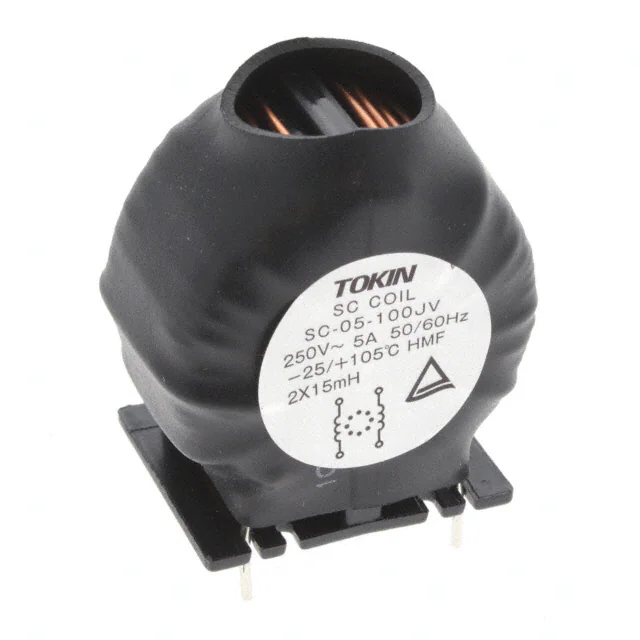

SC-05-100JVCMC 15MH 5A 2LN TH |
2,314 | 8.34 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 15 mH @ 16 kHz | 5A | - | 250V | 250V | -40°C ~ 105°C | - | - | - | - | - |
|
|
SC-18-15JHCMC 1.5MH 18A 2LN TH |
1,038 | 11.80 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 1.5 mH @ 100 kHz | 18A | - | 250V | 250V | -40°C ~ 105°C | - | - | - | - | - |
|
|
SC-10-55JHCMC 5.5MH 10A 2LN TH |
3,195 | 11.52 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 5.5 mH @ 1 kHz | 10A | - | 250V | 250V | -40°C ~ 105°C | - | - | - | - | - |
|
SC-02-50JCMC 5MH 2A 2LN TH |
1,376 | 7.23 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 5 mH @ 100 kHz | 2A | 120mOhm | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
|

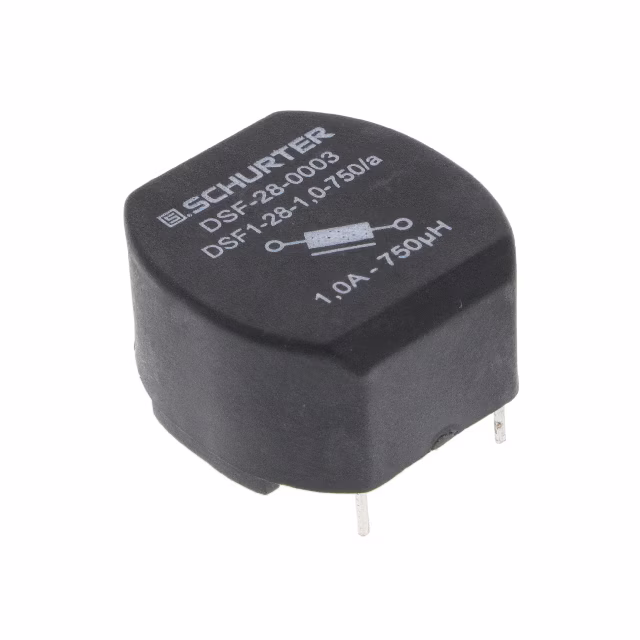

DSF-28-0003CMC 1A 2LN TH |
3,905 | 7.30 |
|
Datasheet |
Nonstandard | - | 2 | - | - | 1A | 360mOhm | 600V | - | -40°C ~ 125°C | - | - | - | - | - |
|
DSF-28-0001CMC 450MA 2LN TH |
3,734 | 7.30 |
|
Datasheet |
Nonstandard | - | 2 | - | - | 450mA | 1.9Ohm | 600V | - | -40°C ~ 125°C | - | - | - | - | - |
|
DSF-28-0007CMC 4.5A 2LN TH |
1,636 | 7.30 |
|
Datasheet |
Nonstandard | - | 2 | - | - | 4.5A | 10mOhm | 600V | - | -40°C ~ 125°C | - | - | - | - | - |
|
DSF-28-0008CMC 4.5A 2LN TH |
3,977 | 7.30 |
|
Datasheet |
Nonstandard | - | 2 | - | - | 4.5A | 10mOhm | 600V | - | -40°C ~ 125°C | - | - | - | - | - |
|
SCR38B-350-1R8B008JH-BKCMC 850UH 35A 2LN TH |
1,239 | 11.90 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 850 µH @ 10 kHz | 35A | 2.7mOhm | 500V | 500V | 25°C ~ 120°C | - | - | - | - | - |
|
SCT25XV-070-1R1A022JVCMC 3.89MH 7A 2LN TH AEC-Q200 |
3,679 | 12.12 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 3.89 mH @ 100 kHz | 7A | 20.83mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
SCR25XV-110-1R4A013JVCMC 2.1MH 11A 2LN TH AEC-Q200 |
1,682 | 12.47 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 2.1 mH @ 100 kHz | 11A | 7.72mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 120°C | AEC-Q200 | - | - | - | - |
