Common Mode Chokes
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SCT29XV-110-1R5A019JHCMC 1.21MH 11A 2LN TH AEC-Q200 |
1,595 | 12.82 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 1.21 mH @ 100 kHz | 11A | 8.07mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
|
SCT29XV-060-1R1A036JHCMC 4.33MH 6A 2LN TH AEC-Q200 |
3,558 | 12.82 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 4.33 mH @ 100 kHz | 6A | 27.4mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
|
SCT29XV-200-2R0A011JHCMC 400UH 20A 2LN TH AEC-Q200 |
1,279 | 12.82 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 400 µH @ 100 kHz | 20A | 2.84mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
|
SCT29XV-070-1R2A030JHCMC 3MH 7A 2LN TH AEC-Q200 |
4,446 | 12.82 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 3 mH @ 100 kHz | 7A | 19.2mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
SC-18-E15JCMC 1.5MH 18A 2LN TH |
1,919 | 9.16 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 1.5 mH @ 10 kHz | 18A | 8mOhm | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
|
CAOV-4.0-2.2CMC 2.2MH 4A 2LN TH |
4,970 | 9.40 |
|
Datasheet |
Vertical, No Base, 4 PC Pin | Signal Line | 2 | - | 2.2 mH @ 10 kHz | 4A | 30mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
SC-08-700CMC 7MH 8A 2LN TH |
2,198 | 9.95 |
|
Datasheet |
Vertical, No Base, 4 PC Pin | Power Line | 2 | - | 7 mH @ 1 kHz | 8A | 40mOhm | 250V | 250V | -40°C ~ 105°C | - | - | - | - | - |
|
SCT19XV-100-1R1A009JVCMC 300UH 10A 2LN TH AEC-Q200 |
1,337 | 9.43 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 300 µH @ 100 kHz | 10A | 6.03mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
|
SCT19XV-190-1R5A005JVCMC 93UH 19A 2LN TH AEC-Q200 |
4,361 | 9.43 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 93 µH @ 100 kHz | 19A | 1.89mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
|
SCT19XV-220-1R6A004JVCMC 60UH 22A 2LN TH AEC-Q200 |
1,281 | 9.43 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 60 µH @ 100 kHz | 22A | 1.38mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
|
SCT19XV-120-1R2A007JVCMC 180UH 12A 2LN TH AEC-Q200 |
4,763 | 9.43 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 180 µH @ 100 kHz | 12A | 3.99mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
|
SC-10-340CMC 3.4MH 10A 2LN TH |
1,900 | 9.99 |
|
Datasheet |
Vertical, No Base, 4 PC Pin | Power Line | 2 | - | 3.4 mH @ 100 kHz | 10A | 32mOhm | 250V | 250V | -40°C ~ 105°C | - | - | - | - | - |
|

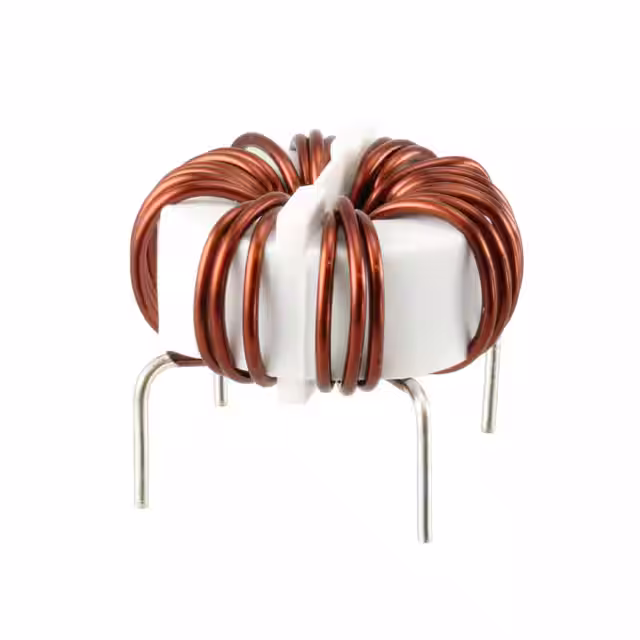

SC-15-100CMC 1MH 15A 2LN TH |
3,606 | 9.03 |
|
Datasheet |
Horizontal, No Base, 4 PC Pin | Power Line | 2 | - | 1 mH @ 100 kHz | 15A | 12mOhm | 250V | 250V | -40°C ~ 105°C | - | - | - | - | - |
|
|
SC-15-201CMC 2MH 15A 2LN TH |
4,239 | 10.13 |
|
Datasheet |
Vertical, No Base, 4 PC Pin | Power Line | 2 | - | 2 mH @ 100 kHz | 15A | 12mOhm | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
|
SC-15-12JHCMC 1.2MH 15A 2LN TH |
100 | 10.26 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 1.2 mH @ 10 kHz | 15A | - | 250V | 250V | -40°C ~ 105°C | - | - | - | - | - |
|
SC-15-230CMC 2.3MH 15A 2LN TH |
1,930 | 10.69 |
|
Datasheet |
Horizontal, No Base, 4 PC Pin | Power Line | 2 | - | 2.3 mH @ 100 kHz | 15A | 13mOhm | 250V | 250V | -40°C ~ 105°C | - | - | - | - | - |
|
PL8207CMC 3.3A 2LN SMD |
4,966 | 9.32 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | - | - | 3.3A | 60mOhm | - | - | -55°C ~ 130°C | - | - | - | - | - |
|
|
SC-20-10JRCMC 1MH 20A 2LN TH |
1,496 | 10.75 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 1 mH @ 100 kHz | 20A | - | 250V | 250V | -40°C ~ 105°C | - | - | - | - | - |
|
SC-20-104CMC 1MH 20A 2LN TH |
3,044 | 10.95 |
|
Datasheet |
Horizontal, No Base, 4 PC Pin | Power Line | 2 | - | 1 mH @ 100 kHz | 20A | 8mOhm | 250V | 250V | -40°C ~ 105°C | - | - | - | - | - |
|
|
SC-15-E350CMC 3.5MH 15A 2LN TH |
2,451 | 10.97 |
|
Datasheet |
Vertical, No Base, 4 PC Pin | Power Line | 2 | - | 3.5 mH @ 100 kHz | 15A | 20mOhm | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
