Common Mode Chokes
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

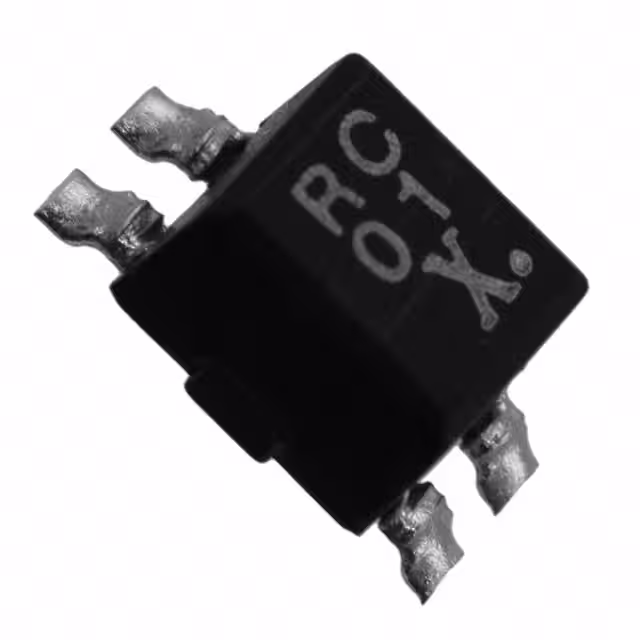

CM04RC01TCMC 1.5A 2LN 800 OHM SMD |
2,497 | 0.00 |
|
Datasheet |
Horizontal, 4 Gull Wing | Power, Signal Line | 2 | 800 Ohms @ 100 MHz | - | 1.5A | 60mOhm | 50V | - | -25°C ~ 105°C | - | - | - | - | - |
|
CM3822R151R-00CMC 5A 6LN 150 OHM SMD |
1,379 | 0.00 |
|
Datasheet |
Vertical, 12 Flat Lead | Power Line | 6 | 150 Ohms @ 100 MHz | - | 5A | 20mOhm | - | - | -55°C ~ 125°C | - | - | - | - | - |
|
MCZ1210AH201L2TCMC 100MA 2LN 200 OHM SMD |
2,403 | 0.52 |
|
Datasheet |
0504 (1210 Metric), 4 Lead | Signal Line | 2 | 200 Ohms @ 100 MHz | - | 100mA | 4Ohm | 5V | - | -40°C ~ 85°C | - | - | - | - | - |
|
|
MCZ1210AH301L2TA0GCMC 100MA 2LN 300 OHM SMD |
2,880 | 0.52 |
|
Datasheet |
0504 (1210 Metric), 4 Lead | Signal Line | 2 | 300 Ohms @ 100 MHz | - | 100mA | 4.5Ohm | 5V | - | -40°C ~ 85°C | - | - | - | - | - |
|
DLP11RB400UL2LCMC 100MA 2LN 40 OHM SMD |
2,192 | 0.24 |
|
Datasheet |
0504 (1210 Metric), 4 Lead | Signal Line | 2 | 40 Ohms @ 100 MHz | - | 100mA | 1.63Ohm | 5V | - | -40°C ~ 85°C | - | - | - | - | - |
|
|
DLP11RN450UL2LCMC 100MA 2LN 45 OHM SMD |
1,321 | 0.48 |
|
Datasheet |
0504 (1210 Metric), 4 Lead | Signal Line | 2 | 45 Ohms @ 100 MHz | - | 100mA | 1Ohm | 5V | - | -40°C ~ 85°C | - | - | - | - | - |
|
CM5022R800R-00CMC 5A 8LN 80 OHM SMD |
3,028 | 0.00 |
|
Datasheet |
Vertical, 16 Flat Lead | Power Line | 8 | 80 Ohms @ 100 MHz | - | 5A | 20mOhm | - | - | -55°C ~ 125°C | - | - | - | - | - |
|
ECMS1V0704-301-RCMC 5A 2LN 300 OHM SMD |
2,178 | 0.50 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | 300 Ohms @ 100 MHz | - | 5A | 10mOhm | 80V | - | -40°C ~ 125°C | - | - | - | - | - |
|
AWCU00453226223TM2CMC 22UH 310MA 2LN SMD AEC-Q200 |
4,806 | 0.51 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | - | 22 µH @ 100 kHz | 310mA | 600mOhm | 50V | - | -50°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
|
AWCU00453226113TM2CMC 11UH 360MA 2LN SMD AEC-Q200 |
4,498 | 0.51 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | - | 11 µH @ 100 kHz | 360mA | 500mOhm | 50V | - | -50°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
TCE1210G-900-2P-T200CMC 100MA 2LN 90 OHM SMD ESD |
3,071 | 0.00 |
|
- |
0504 (1210 Metric), 6 Lead | Signal Line | 2 | 90 Ohms @ 100 MHz | - | 100mA | 1.75Ohm | 10V | - | -25°C ~ 85°C | - | - | TVS Diode ESD Protection | - | - |
|
ACMS-Q3225C-510-TCMC 51UH 200MA 2LN 2.5KOHM SMD |
4,861 | 1.01 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 2.5 kOhms @ 10 MHz | 51 µH @ 100 kHz | 200mA | 1.5Ohm | 80V | - | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
|
ACMS-Q3225C-220-TCMC 22UH 300MA 2LN 1.1KOHM SMD |
2,091 | 1.01 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 1.1 kOhms @ 10 MHz | 22 µH @ 100 kHz | 300mA | 500mOhm | 80V | - | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
|
ACMS-Q3225C-110-TCMC 11UH 400MA 2LN 550OHM SMD |
2,876 | 1.01 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 550 Ohms @ 10 MHz | 11 µH @ 100 kHz | 400mA | 300mOhm | 80V | - | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
ACM2012E-391-2P-T00CMC 300MA 2LN 390 OHM SMD |
3,104 | 0.53 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 390 Ohms @ 100 MHz | - | 300mA | 800mOhm | 50V | - | -40°C ~ 85°C | - | - | - | - | - |
|
|
AWCU00332523510XT2CMC 51UH 200MA 2LN 2.6KOHM SMD |
1,896 | 0.51 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 2.6 kOhms @ 10 MHz | 51 µH @ 100 kHz | 200mA | 700mOhm | 80V | - | -50°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
|
AWCU00332523101XMFCMC 100UH 115MA 2LN SMD AEC-Q200 |
3,166 | 0.51 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | - | 100 µH @ 100 kHz | 115mA | 2.2Ohm | 50V | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
|
AWCU00332523110XT2CMC 11UH 300MA 2LN 550OHM SMD |
1,142 | 0.51 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 550 Ohms @ 10 MHz | 11 µH @ 100 kHz | 300mA | 400mOhm | 80V | - | -50°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
|
AWCU00332525101XG0CMC 100UH 150MA 2LN 5.1KOHM SMD |
3,214 | 0.51 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 5.1 kOhms @ 10 MHz | 100 µH @ 100 kHz | 150mA | 1.5Ohm | 80V | - | -50°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
|
AWCU00332523101XT2CMC 100UH 150MA 2LN 5.1KOHM SMD |
3,643 | 0.51 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 5.1 kOhms @ 10 MHz | 100 µH @ 100 kHz | 150mA | 1.5Ohm | 80V | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
