Common Mode Chokes
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
UU9LFNP-B-B392COMMON MODE CHOKE |
3,886 | 0.00 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 3.9 mH @ 1 kHz | 380mA | 1.2Ohm | - | - | - | - | - | - | - | - |
|
|
UU9LFNP-B-B222COMMON MODE CHOKE |
4,607 | 0.00 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 2.2 mH @ 1 kHz | 500mA | 700mOhm | - | - | - | - | - | - | - | - |
|
|
UU9LFNP-B-B471COMMON MODE CHOKE |
2,377 | 0.00 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 470 µH @ 1 kHz | 1A | 150mOhm | - | - | - | - | - | - | - | - |
|
|
UU9LFNP-B-B682COMMON MODE CHOKE |
1,066 | 0.00 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 6.8 mH @ 1 kHz | 250mA | 2.5Ohm | - | - | - | - | - | - | - | - |
|
|
UU9LFNP-B-B472COMMON MODE CHOKE |
1,197 | 0.00 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 4.7 mH @ 1 kHz | 340mA | 1.6Ohm | - | - | - | - | - | - | - | - |
|
|
UU9LFNP-B-B102COMMON MODE CHOKE |
1,789 | 0.00 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 1 mH @ 1 kHz | 700mA | 350mOhm | - | - | - | - | - | - | - | - |
|
|
UU9LFNP-B-B681COMMON MODE CHOKE |
4,354 | 0.00 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 680 µH @ 1 kHz | 850mA | 250mOhm | - | - | - | - | - | - | - | - |
|
ACM4520V-142-2P-TL00CMC 1A 2LN 1.4K OHM SMD AEC-Q200 |
3,405 | 0.65 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | 1.4 kOhms @ 100 MHz | - | 1A | 80mOhm | 50V | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
|
ACM4520V-231-2P-TL00CMC 1.5A 2LN 230OHM SMD AEC-Q200 |
2,962 | 0.65 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | 230 Ohms @ 100 MHz | - | 1.5A | 50mOhm | 50V | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
|
ACM4520V-421-2P-TL00CMC 1.4A 2LN 420OHM SMD AEC-Q200 |
3,595 | 0.65 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | 420 Ohms @ 100 MHz | - | 1.4A | 55mOhm | 50V | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
|
ACM4520V-901-2P-TL00CMC 1.2A 2LN 900OHM SMD AEC-Q200 |
4,092 | 0.65 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | 900 Ohms @ 100 MHz | - | 1.2A | 60mOhm | 50V | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
MCZ2010AH121TCMC 100MA 4LN 120 OHM SMD |
4,674 | 0.00 |
|
Datasheet |
0804 (2010 Metric), 8 Lead | Signal Line | 4 | 120 Ohms @ 100 MHz | - | 100mA | 2Ohm | 5V | - | -40°C ~ 85°C | - | - | - | - | - |
-0,35-4-Lead-DLP11T-Series.jpg)
|

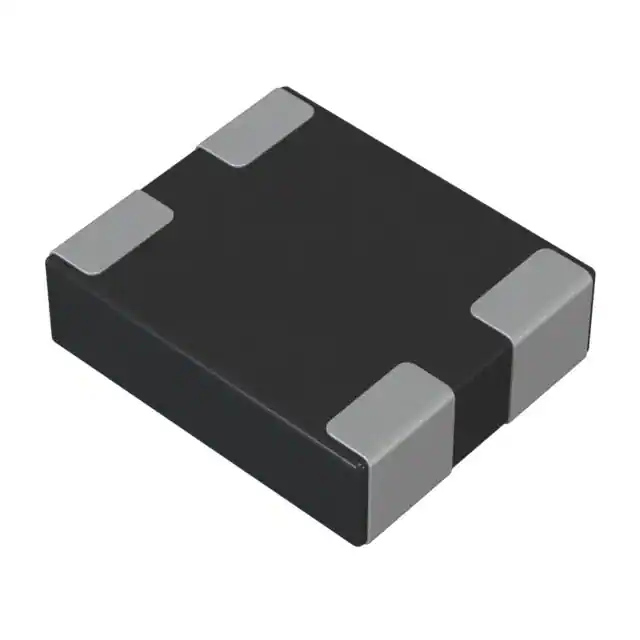

DLP11TB800UL2LCMC 100MA 2LN 80 OHM SMD |
2,094 | 0.65 |
|
Datasheet |
0504 (1210 Metric), 4 Lead | Signal Line | 2 | 80 Ohms @ 100 MHz | - | 100mA | 1.88Ohm | 5V | - | -40°C ~ 85°C | - | - | - | - | - |
|
TCM0806S-120-2PCMC 100MA 2LN 12 OHM SMD |
3,447 | 0.00 |
|
Datasheet |
0302 (0806 Metric), 4 Lead | Signal Line | 2 | 12 Ohms @ 100 MHz | - | 100mA | 1Ohm | 10V | - | -25°C ~ 85°C | - | - | - | - | - |
|
B82786C0104H002CMC 100UH 150MA 2LN 5.1KOHM SMD |
1,954 | 0.76 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 5.1 kOhms @ 10 MHz | 100 µH @ 100 kHz | 150mA | 1.5Ohm | 80V | - | -55°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
|
B82786C0223H002CMC 22UH 250MA 2LN 1.1KOHM SMD |
2,431 | 0.76 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 1.1 kOhms @ 10 MHz | 22 µH @ 100 kHz | 250mA | 500mOhm | 80V | - | -55°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
|
B82786C0113H002CMC 11UH 300MA 2LN 550OHM SMD |
1,292 | 0.76 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 550 Ohms @ 10 MHz | 11 µH @ 100 kHz | 300mA | 400mOhm | 80V | - | -55°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
TCM2010H-900-4P-T000CMC 100MA 4LN 90 OHM SMD |
2,168 | 0.00 |
|
Datasheet |
0504 (1210 Metric), 4 Lead | Signal Line | 4 | 90 Ohms @ 100 MHz | - | 100mA | 850mOhm | 10V | - | -25°C ~ 85°C | - | - | - | - | - |
|
|
TCM2010H-900-4PCMC 100MA 4LN 90 OHM SMD |
1,963 | 0.00 |
|
Datasheet |
0804 (2010 Metric), 8 Lead | Signal Line | 4 | 90 Ohms @ 100 MHz | - | 100mA | - | 10V | - | -25°C ~ 85°C | - | - | - | - | - |
|
|
ACMP-5045-102-TCMC 1.5A 2LN 1K OHM SMD |
2,311 | 1.01 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | 1 kOhms @ 100 MHz | - | 1.5A | 60mOhm | 50V | - | -40°C ~ 125°C | - | - | - | - | - |
