Common Mode Chokes
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CPFC54-510SCOMMON MODE CHOKE |
2,019 | 0.00 |
|
Datasheet |
Horizontal, 4 Gull Wing | Signal Line | 2 | - | 51 µH @ 100 kHz | 600mA | 160mOhm (Typ) | - | - | - | - | - | - | - | - |
|
|
CPFC54-250CCOMMON MODE CHOKE |
2,415 | 0.00 |
|
Datasheet |
Horizontal, 4 Gull Wing | Signal Line | 2 | - | 25 µH @ 100 kHz | 700mA | 130mOhm (Typ) | - | - | - | - | - | - | - | - |
|
|
CPFC54-222CCOMMON MODE CHOKE |
1,021 | 0.00 |
|
Datasheet |
Horizontal, 4 Gull Wing | Signal Line | 2 | - | 2.2 mH @ 100 kHz | 400mA | 400mOhm (Typ) | - | - | - | - | - | - | - | - |
|
|
CPFC54-101CCOMMON MODE CHOKE |
4,859 | 0.00 |
|
Datasheet |
Horizontal, 4 Gull Wing | Signal Line | 2 | - | 100 µH @ 100 kHz | 500mA | 230mOhm (Typ) | - | - | - | - | - | - | - | - |
|
|
CPFC54-471CCOMMON MODE CHOKE |
4,231 | 0.00 |
|
Datasheet |
Horizontal, 4 Gull Wing | Signal Line | 2 | - | 470 µH @ 100 kHz | 500mA | 200mOhm (Typ) | - | - | - | - | - | - | - | - |
|
|
CPFC54-110CCOMMON MODE CHOKE |
1,579 | 0.00 |
|
Datasheet |
Horizontal, 4 Gull Wing | Signal Line | 2 | - | 11 µH @ 100 kHz | 700mA | 120mOhm (Typ) | - | - | - | - | - | - | - | - |
|
|
CPFC54-102CCOMMON MODE CHOKE |
2,204 | 0.00 |
|
Datasheet |
Horizontal, 4 Gull Wing | Signal Line | 2 | - | 1 mH @ 100 kHz | 500mA | 200mOhm (Typ) | - | - | - | - | - | - | - | - |
|
|
MGPWL-00292-PCOMMON MODE CHOKE 7.2UH |
1,283 | 1.68 |
|
- |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
CM6032V201R-00CMC 8A 8LN 200 OHM SMD |
2,805 | 0.00 |
|
Datasheet |
Vertical, 16 Flat Lead | Power, Signal Line | 8 | 200 Ohms @ 100 MHz | - | 8A | 10mOhm | - | - | -55°C ~ 125°C | - | - | - | - | - |
|

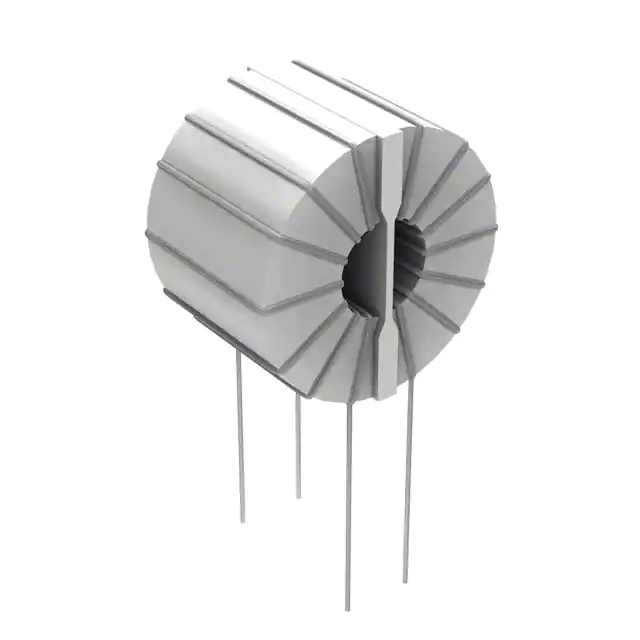

TF1714VU-103Y1R0-01CMC 1A 2LN TH |
1,174 | 0.00 |
|
Datasheet |
Vertical, No Base, 4 PC Pin | Power Line | 2 | - | - | 1A | 350mOhm | - | - | -20°C ~ 120°C | - | - | - | - | - |
|
|
TF1713VU-102Y2R0-01CMC 2A 2LN TH |
4,455 | 0.00 |
|
Datasheet |
Vertical, No Base, 4 PC Pin | Power Line | 2 | - | - | 2A | - | - | - | -20°C ~ 120°C | - | - | - | - | - |
|
|
TF1713VU-102Y3R0-01CMC 3A 2LN TH |
1,753 | 0.00 |
|
Datasheet |
Vertical, No Base, 4 PC Pin | Power Line | 2 | - | - | 3A | - | - | - | -20°C ~ 120°C | - | - | - | - | - |
|
|
TF1714VU-102Y3R0-01CMC 3A 2LN TH |
2,402 | 0.00 |
|
Datasheet |
Vertical, No Base, 4 PC Pin | Power Line | 2 | - | - | 3A | 45mOhm | - | - | -20°C ~ 120°C | - | - | - | - | - |
|
|
TF1714VU-502Y1R0-01CMC 1A 2LN TH |
1,751 | 0.00 |
|
Datasheet |
Vertical, No Base, 4 PC Pin | Power Line | 2 | - | - | 1A | 250mOhm | - | - | -20°C ~ 120°C | - | - | - | - | - |
|
CM5022R201R-00CMC 5A 8LN 200 OHM SMD |
4,551 | 0.00 |
|
Datasheet |
Vertical, 16 Flat Lead | Power Line | 8 | 200 Ohms @ 100 MHz | - | 5A | 20mOhm | - | - | -55°C ~ 125°C | - | - | - | - | - |
|
|
LG11-0366NTLFCMC 36UH 2CH EXT TEMP 8P SMD |
4,501 | 0.00 |
|
Datasheet |
8-SOIC (0.295", 7.50mm Width) | Signal Line | 4 | - | - | - | 450mOhm | - | - | -40°C ~ 85°C | - | - | - | - | - |
|
|
LG11-RP36NTLFCMC 40U POE 0.35A EXT TEMP 8P SM |
3,855 | 0.00 |
|
Datasheet |
8-SOIC (0.295", 7.50mm Width) | Signal Line | 4 | - | - | - | 400mOhm | - | - | -40°C ~ 85°C | - | - | - | - | - |
|
|
LG11-0246NTLFCMC 24UH 4WRE EXT TEMP 8P SMD |
4,769 | 0.00 |
|
Datasheet |
8-SOIC (0.295", 7.50mm Width) | Signal Line | 4 | - | - | - | 400mOhm | - | - | -40°C ~ 85°C | - | - | - | - | - |
|
|
LG01-1006N1LFCMC 100UH 2CH EXT TEMP 16P SMD |
3,283 | 0.00 |
|
Datasheet |
16-SOIC (0.280", 7.11mm Width) | Signal Line | 4 | - | - | - | 650mOhm | - | - | -40°C ~ 85°C | - | UL | - | - | - |
|
|
LG01-0506NLFCMC 50UH 3CH EXT TEMP 16P SMD |
1,109 | 0.00 |
|
Datasheet |
16-SOIC (0.280", 7.11mm Width) | Signal Line | 6 | - | - | - | 150mOhm | - | - | -40°C ~ 85°C | - | UL | - | - | - |
