Common Mode Chokes
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
UU16LFBNP-402CMC 4MH 1A 2LN TH |
1,782 | 1.88 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 4 mH @ 1 kHz | 1A | 350mOhm | - | - | - | - | - | - | - | - |
|
|
UU16LFBNP-802CMC 8MH 800MA 2LN TH |
2,786 | 1.88 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 8 mH @ 1 kHz | 800mA | 600mOhm | - | - | - | - | - | - | - | - |
|
750341636CMC 20MH 780MA 2LN TH |
3,586 | 2.89 |
|
Datasheet |
Horizontal, 4 PC Pin | - | 2 | - | 20 mH @ 10 kHz | 780mA | 950mOhm | - | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
750341637CMC 25MH 650MA 2LN TH |
4,571 | 2.89 |
|
Datasheet |
Horizontal, 4 PC Pin | - | 2 | - | 25 mH @ 10 kHz | 650mA | 1.35Ohm | - | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
750341780CMC 42MH 500MA 2LN TH |
3,099 | 2.89 |
|
Datasheet |
Horizontal, 4 PC Pin | - | 2 | - | 42 mH @ 10 kHz | 500mA | 1.94Ohm | - | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
750341781CMC 70MH 380MA 2LN TH |
4,783 | 2.89 |
|
Datasheet |
Horizontal, 4 PC Pin | - | 2 | - | 70 mH @ 10 kHz | 380mA | 3.03Ohm | - | - | -40°C ~ 125°C | - | - | - | - | - |
|
SH-211CMC 3A 2LN TH |
1,616 | 3.15 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 0.5 µH @ 100 kHz | 3A | 18mOhm | 150V | - | -25°C ~ 80°C | - | - | - | - | - |
|
|
SH-212CMC 3A 2LN TH |
4,734 | 1.58 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 1.5 µH @ 100 kHz | 3A | 23mOhm | 150V | - | -25°C ~ 80°C | - | - | - | - | - |
|
SSR21NVS-05570CMC 57MH 500MA 2LN TH |
1,823 | 1.62 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 57 mH @ 10 kHz | 500mA | 1.06Ohm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
|
SSR21NVS-13110CMC 11MH 1.3A 2LN TH |
1,911 | 3.10 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 11 mH @ 10 kHz | 1.3A | 190mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|

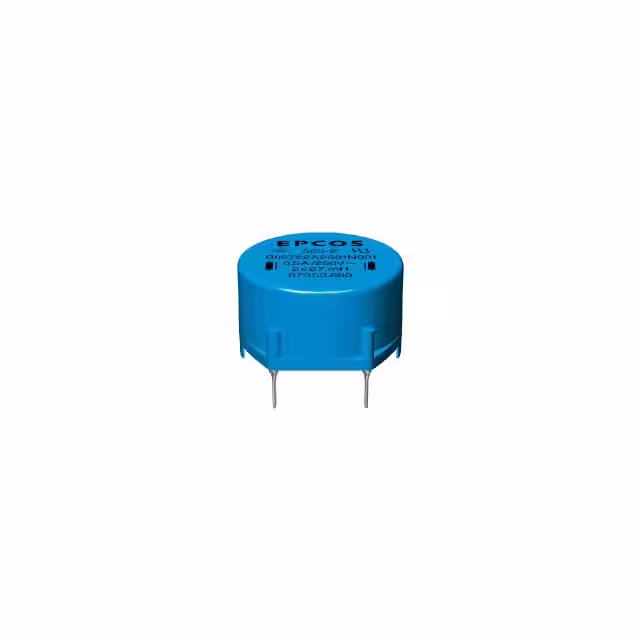

B82722A2301N002CMC 68MH 300MA 2LN TH |
3,086 | 2.14 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 68 mH @ 10 kHz | 300mA | 2.5Ohm (Typ) | - | 250V | -40°C ~ 125°C | - | ENEC, UR, VDE | - | - | - |
|
B82722A2501N020CMC 56MH 500MA 2LN TH |
4,700 | 2.14 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 56 mH @ 10 kHz | 500mA | 2Ohm (Typ) | - | 250V | -40°C ~ 125°C | - | ENEC, UR, VDE | - | - | - |
|
|
B82722A2132N001CMC 6.8MH 1.3A 2LN TH |
1,242 | 1.96 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 6.8 mH @ 10 kHz | 1.3A | 230mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | ENEC, UR, VDE | - | - | - |
|
750314977CMC 6.8MH 1.3A 2LN TH |
3,109 | 1.59 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 6.8 mH @ 10 kHz | 1.3A | 314mOhm | - | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
BX8333DNLTCHOKE SGL DSL 33MH SDM |
2,818 | 1.58 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MGDU4-00008-PCOMMON MODE CHOKE |
3,767 | 1.75 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
DKFP-0275-0120LCMC 2LN TH |
1,381 | 1.48 |
|
Datasheet |
- | - | 2 | - | - | - | - | - | 250V | -40°C ~ 125°C | - | UR | - | - | - |
|
|
BX8333DNLCHOKE SGL DSL 33MH SDM |
2,604 | 1.59 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
LG11-0246NTRLCMC 24UH 4WRE EXT TEMP 8P SMD |
3,878 | 0.00 |
|
Datasheet |
8-SOIC (0.295", 7.50mm Width) | Signal Line | 4 | - | - | - | 400mOhm | - | - | -40°C ~ 85°C | - | UL | - | - | - |
|
|
LG11-0366NTRLCMC 36UH 2CH EXT TEMP 8P SMD |
2,580 | 0.00 |
|
Datasheet |
8-SOIC (0.295", 7.50mm Width) | Signal Line | 4 | - | - | - | 450mOhm | - | - | -40°C ~ 85°C | - | UL | - | - | - |
