Common Mode Chokes
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
LG11-0346N1RLTRCMC 35UH 8CH/SH EXT TEMP 16P SMD |
1,287 | 0.00 |
|
Datasheet |
16-SOIC (0.280", 7.11mm Width) | Signal Line | 8 | - | - | - | 300mOhm | - | - | -40°C ~ 85°C | - | - | - | - | - |
|
|
LG11-0346N3RLTRCMC 35UG 4W EXT TEMP 16P SMD T/R |
1,108 | 0.00 |
|
- |
16-SOIC (0.295", 7.50mm Width) | Signal Line | 4 | - | 35 µH @ 100 kHz | - | 300mOhm | - | - | -40°C ~ 85°C | - | - | - | - | - |
|
|
LG11-0366N1RLTRCMC 36UH 4CH/SH EXT TEMP 16P SMD |
4,677 | 0.00 |
|
Datasheet |
16-SOIC (0.280", 7.11mm Width) | Signal Line | 8 | - | - | - | 450mOhm | - | - | -40°C ~ 85°C | - | - | - | - | - |
|
B82724J2501N001CMC 82MH 500MA 2LN TH |
3,064 | 2.64 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 82 mH @ 10 kHz | 500mA | 2.3Ohm (Typ) | - | 250V | -40°C ~ 125°C | - | ENEC, UR, VDE | - | - | - |
|
B82724J2102N021CMC 39MH 1A 2LN TH |
4,289 | 2.64 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 39 mH @ 10 kHz | 1A | 750mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | ENEC, UR, VDE | - | - | - |
|
|
B82724J2162N001CMC 10MH 1.6A 2LN TH |
3,251 | 2.64 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 10 mH @ 10 kHz | 1.6A | 350mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | ENEC, UR, VDE | - | - | - |
|
|
B82724J2252N001CMC 5.6MH 2.5A 2LN TH |
2,391 | 2.64 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 5.6 mH @ 10 kHz | 2.5A | 125mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | ENEC, UR, VDE | - | - | - |
|
|
B82724J2272N020CMC 6.6MH 2.7A 2LN TH |
1,202 | 2.64 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 6.6 mH @ 10 kHz | 2.7A | 110mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | ENEC, UR, VDE | - | - | - |
|
|
B82724J2332N001CMC 5.6MH 3.3A 2LN TH |
1,838 | 2.64 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 5.6 mH @ 10 kHz | 3.3A | 95mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | ENEC, UR, VDE | - | - | - |
|
|
B82724J2602N020CMC 1.8MH 6A 2LN TH |
4,583 | 2.64 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 1.8 mH @ 10 kHz | 6A | 31mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | ENEC, UR, VDE | - | - | - |
|
|
B82724J2801N002CMC 49MH 800MA 2LN TH |
4,403 | 2.64 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 49 mH @ 10 kHz | 800mA | 1.95Ohm (Typ) | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|

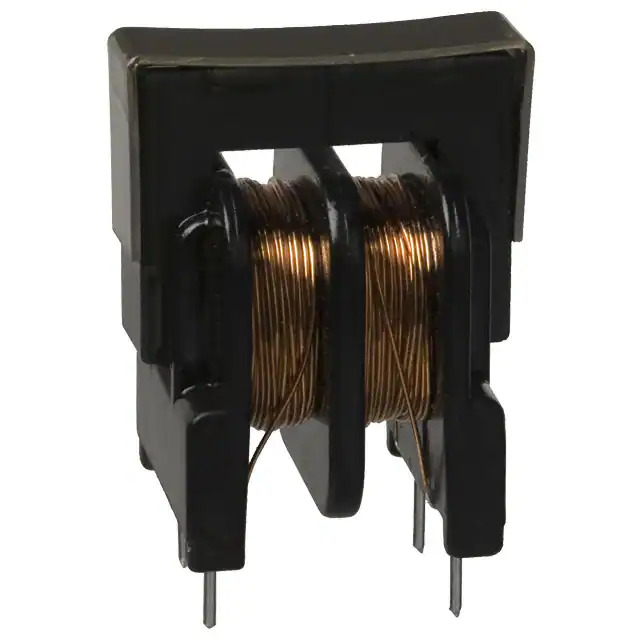

UU16LFNP-802CMC 8MH 900MA 2LN TH |
3,268 | 0.00 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 8 mH @ 1 kHz | 900mA | 460mOhm | - | - | - | - | - | - | - | - |
|
SSRH24NHS-12500CMC 50MH 1.2A 2LN TH |
2,129 | 1.93 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 50 mH @ 10 kHz | 1.2A | 430mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
|
SSRH24NHS-16320CMC 32MH 1.6A 2LN TH |
3,843 | 1.93 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 32 mH @ 10 kHz | 1.6A | 265mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
|
SSRH24NHS-30092CMC 9.2MH 3A 2LN TH |
3,827 | 1.93 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 9.2 mH @ 10 kHz | 3A | 79mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
ZJYS51R5-4PT-01CMC 2A 4LN 200 OHM SMD |
2,606 | 0.00 |
|
Datasheet |
Horizontal, 8 Gull Wing | Signal Line | 4 | 200 Ohms @ 100 MHz | - | 2A | 120mOhm | 50V | - | -25°C ~ 85°C | - | - | - | - | - |
|
|
ZJYS51R5-M4PAT-01CMC 500MA 4LN 200 OHM SMD |
4,549 | 0.00 |
|
Datasheet |
Vertical, 8 Gull Wing | Signal Line | 4 | 200 Ohms @ 100 MHz | - | 500mA | 250mOhm | 50V | - | -25°C ~ 85°C | - | - | - | - | - |
|
7350-V-RCCMC 500UH 1.5A 2LN TH |
1,931 | 1.82 |
|
Datasheet |
Vertical, No Base, 4 PC Pin | - | 2 | - | 500 µH @ 1 kHz | 1.5A | 120mOhm | - | - | -55°C ~ 105°C | - | - | - | - | - |
|
|
LG11-0346N1LFCMC 35UH 8CH/SH EXT TEMP 16P SMD |
3,005 | 0.00 |
|
Datasheet |
16-SOIC (0.280", 7.11mm Width) | Signal Line | 8 | - | - | - | 300mOhm | - | - | -40°C ~ 85°C | - | - | - | - | - |
|
|
LG11-0346N3LFCMC 35UG 4W EXT TEMP 16P SMD |
4,233 | 0.00 |
|
- |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
