Common Mode Chokes
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
LG01-0356N2RLCMC 35UH 4CH EXT TEMP 16P SMD |
1,071 | 0.00 |
|
Datasheet |
16-SOIC (0.280", 7.11mm Width) | Signal Line | 8 | - | - | - | 350mOhm | - | - | 0°C ~ 70°C | - | UL | - | - | - |
|

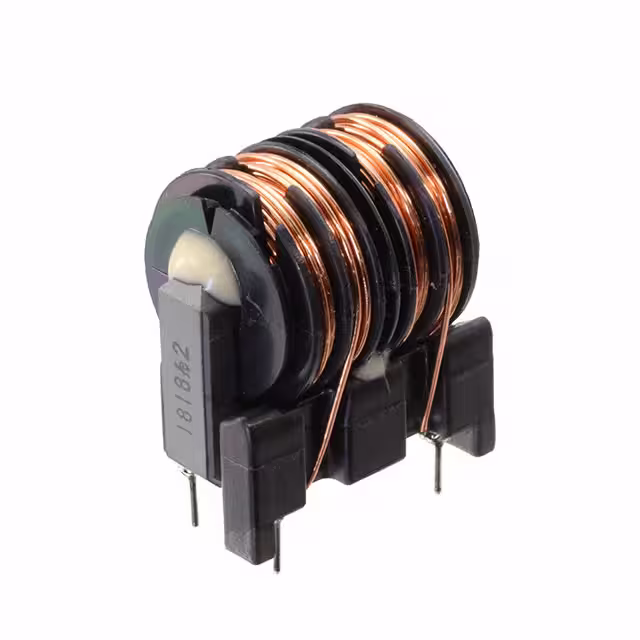

SS30V-180145CMC 14.5MH 1.8A 2LN TH |
4,260 | 3.85 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 14.5 mH @ 1 kHz | 1.8A | 230mOhm | - | 250V | -40°C ~ 120°C | - | - | - | - | - |

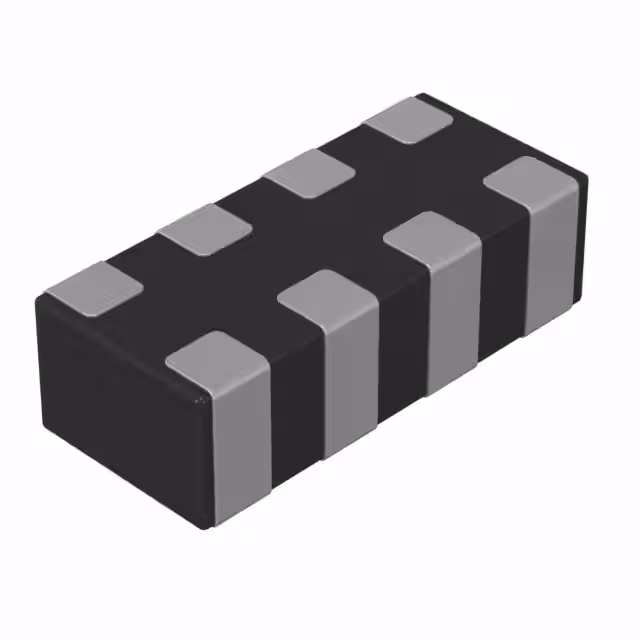

-8-Lead-DLP1N-Series.jpg)
|
DLP1NDN350HL4LCMC 100MA 4LN 35 OHM SMD |
1,088 | 1.36 |
|
Datasheet |
0603 (1608 Metric), 8 Lead | Signal Line | 4 | 35 Ohms @ 100 MHz | - | 100mA | 2.25Ohm | 5V | - | -40°C ~ 85°C | - | - | - | - | - |
|
|
DLP1NDN670HL4LCMC 80MA 4LN 67 OHM SMD |
3,658 | 1.36 |
|
Datasheet |
0603 (1608 Metric), 8 Lead | Signal Line | 4 | 67 Ohms @ 100 MHz | - | 80mA | 3.63Ohm | 5V | - | -40°C ~ 85°C | - | - | - | - | - |
|
|
DLP1NDN900HL4LCMC 60MA 4LN 90 OHM SMD |
2,028 | 1.36 |
|
Datasheet |
0603 (1608 Metric), 8 Lead | Signal Line | 4 | 90 Ohms @ 100 MHz | - | 60mA | 4.63Ohm | 5V | - | -40°C ~ 85°C | - | - | - | - | - |
|

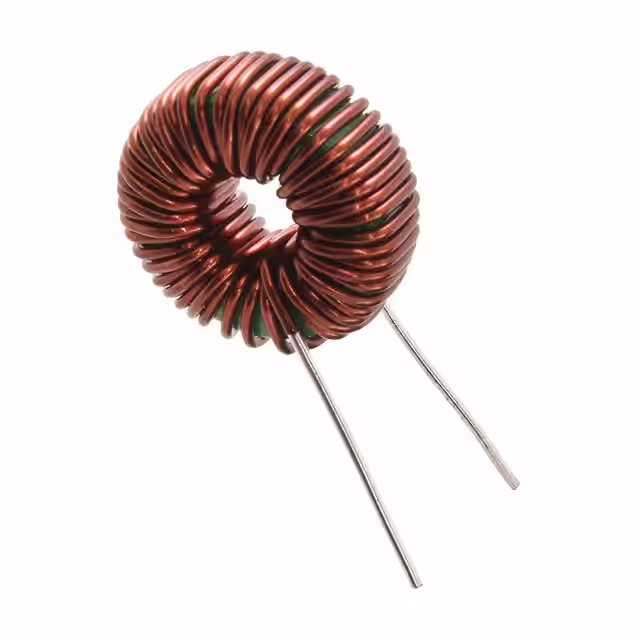

SN12P-500NMC 100.0UH 5.0A 0.0400 OHM TH |
2,164 | 2.07 |
|
Datasheet |
Vertical, No Base, 2 PC Pin | Power Line | 2 | - | 100 µH @ 100 kHz | - | - | - | - | -25°C ~ 105°C | - | - | - | - | - |
|
744795080CMC 80UH 500MA 2LN 1.34 OHM TH |
3,740 | 0.00 |
|
Datasheet |
Horizontal, 4 PC Pad | - | 2 | 1.34 Ohms @ 100 MHz | 80 µH @ 1 kHz | 500mA | 60mOhm | 80V | - | -40°C ~ 85°C | - | - | - | - | - |
|
|
LG11-0346N1RLCMC 35UH 8CH/SH EXT TEMP 16P SMD |
3,205 | 0.00 |
|
Datasheet |
16-SOIC (0.295", 7.50mm Width) | Signal Line | 8 | - | 35 µH @ 100 kHz | - | 300mOhm | - | - | -40°C ~ 85°C | - | - | - | - | - |
|
|
LG11-0346N3RLCMC 35UG 4W EXT TEMP 16P SMD |
3,809 | 0.00 |
|
- |
16-SOIC (0.295", 7.50mm Width) | Signal Line | 4 | - | 35 µH @ 100 kHz | - | 300mOhm | - | - | -40°C ~ 85°C | - | - | - | - | - |
|
|
LG11-0366N1RLCMC 36UH 4CH/SH EXT TEMP 16P SMD |
4,428 | 0.00 |
|
Datasheet |
16-SOIC (0.295", 7.50mm Width) | Signal Line | 8 | - | 36 µH @ 100 kHz | - | 450mOhm | - | - | -40°C ~ 85°C | - | - | - | - | - |
|
|
TF3424HU-302Y7R0-01CMC 7A 2LN TH |
1,713 | 0.00 |
|
Datasheet |
Horizontal, No Base, 4 PC Pin | Power Line | 2 | - | - | 7A | 60mOhm | - | - | -20°C ~ 120°C | - | - | - | - | - |
|
|
TF3424HU-502Y5R0-01CMC 5A 2LN TH |
2,284 | 0.00 |
|
Datasheet |
Horizontal, No Base, 4 PC Pin | Power Line | 2 | - | - | 5A | 80mOhm | - | - | -20°C ~ 120°C | - | - | - | - | - |
|
|
TF3435VU-502Y5R0-01CMC 5A 2LN TH |
1,280 | 0.00 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | - | 5A | 100mOhm | - | - | -20°C ~ 120°C | - | - | - | - | - |
|
B82724A2102N001CMC 33MH 1A 2LN TH |
2,549 | 2.78 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 33 mH @ 10 kHz | 1A | 750mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | ENEC, UR, VDE | - | - | - |
|
|
B82724A2501N001CMC 82MH 500MA 2LN TH |
3,905 | 2.78 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 82 mH @ 10 kHz | 500mA | 2.3Ohm (Typ) | - | 250V | -40°C ~ 125°C | - | ENEC, UR, VDE | - | - | - |
|
B82724A2102N021CMC 39MH 1A 2LN TH |
2,880 | 2.78 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 39 mH @ 10 kHz | 1A | 750mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | ENEC, UR, VDE | - | - | - |
|
|
B82724A2142N021CMC 37MH 1.4A 2LN TH |
1,683 | 2.78 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 37 mH @ 10 kHz | 1.4A | 420mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | ENEC, UR, VDE | - | - | - |
|
|
B82724A2162N001CMC 10MH 1.6A 2LN TH |
2,775 | 2.78 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 10 mH @ 10 kHz | 1.6A | 350mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | ENEC, UR, VDE | - | - | - |
|
|
B82724A2182N021CMC 33MH 1.8A 2LN TH |
3,829 | 2.78 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 33 mH @ 10 kHz | 1.8A | 400mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | ENEC, UR, VDE | - | - | - |
|
|
B82724A2252N001CMC 5.6MH 2.5A 2LN TH |
1,821 | 2.78 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 5.6 mH @ 10 kHz | 2.5A | 125mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | ENEC, UR, VDE | - | - | - |
