Common Mode Chokes
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
DKFP-D22D-0210DKFP COMP.CHOKE THT P O 2A 2X10M |
2,437 | 0.00 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | - | 2A | 149mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | cURus | - | - | - |
|
|
DKFP-D22D-1N15DKFP COMP.CHOKE THT P O 1.5A 2X1 |
2,593 | 0.00 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | - | 1.5A | 232mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | cURus | - | - | - |
|
|
DKFP-D22D-043LDKFP COMP.CHOKE THT P O 4A 2X3.3 |
4,653 | 0.00 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | - | 4A | 45mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | cURus | - | - | - |
|
|
FL2D-10-103B10MH @ 10 KHZ 2 LINE COMMON MODE |
2,486 | 0.00 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 10 mH @ 10 kHz | 1A | 250mOhm | - | - | -40°C ~ 105°C | - | - | - | - | - |
|
T60405R6161X0196161X019 |
1,474 | 0.00 |
|
- |
Vertical, 4 PC Pin | - | 2 | - | 7.25 mH @ 10 kHz | 4A | 25mOhm | - | - | -40°C ~ 60°C | - | - | - | - | - |
|
7112-RCCMC 850UH 2A 2LN TH |
2,909 | 2.84 |
|
Datasheet |
Vertical, No Base, 4 PC Pin | - | 2 | - | 850 µH @ 1 kHz | 2A | 50mOhm | - | - | -55°C ~ 105°C | - | - | - | - | - |
|
|
7114-RCCMC 2.55MH 2A 2LN TH |
1,127 | 2.84 |
|
Datasheet |
Vertical, No Base, 4 PC Pin | - | 2 | - | 2.55 mH @ 1 kHz | 2A | 85mOhm | - | - | -55°C ~ 105°C | - | - | - | - | - |
|
|
7115-RCCMC 4.25MH 2A 2LN TH |
3,906 | 2.84 |
|
Datasheet |
Vertical, No Base, 4 PC Pin | - | 2 | - | 4.25 mH @ 1 kHz | 2A | 110mOhm | - | - | -55°C ~ 105°C | - | - | - | - | - |
|
CM7060R301R-10CMC 5A 2LN 300 OHM SMD |
3,149 | 1.05 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | 300 Ohms @ 100 MHz | - | 5A | 10mOhm | 80V | - | -40°C ~ 125°C | - | - | - | - | - |
|

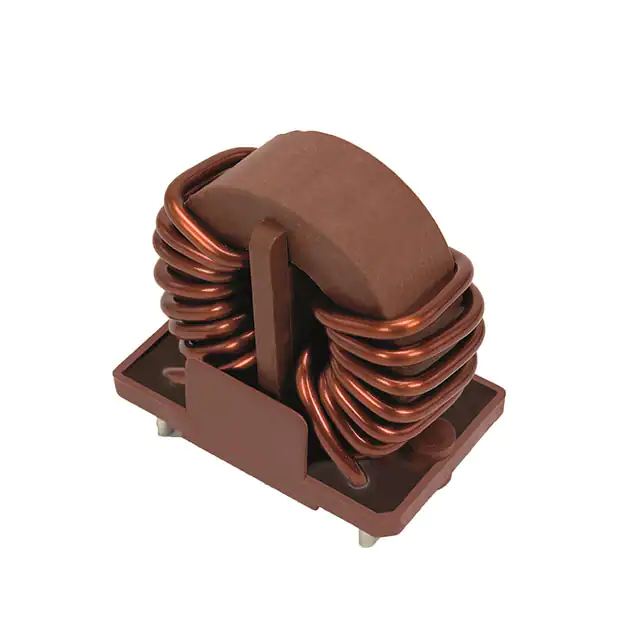

T60405R6161X504CMC 6.6MH 20MA 2LN 6.5KOHM TH |
3,026 | 3.06 |
|
Datasheet |
Horizontal, 4 PC Pin | - | 2 | 6.5 kOhms @ 100 kHz | 6.6 mH @ 100 kHz | 5A | - | - | - | -40°C ~ 70°C | - | - | - | - | - |
|

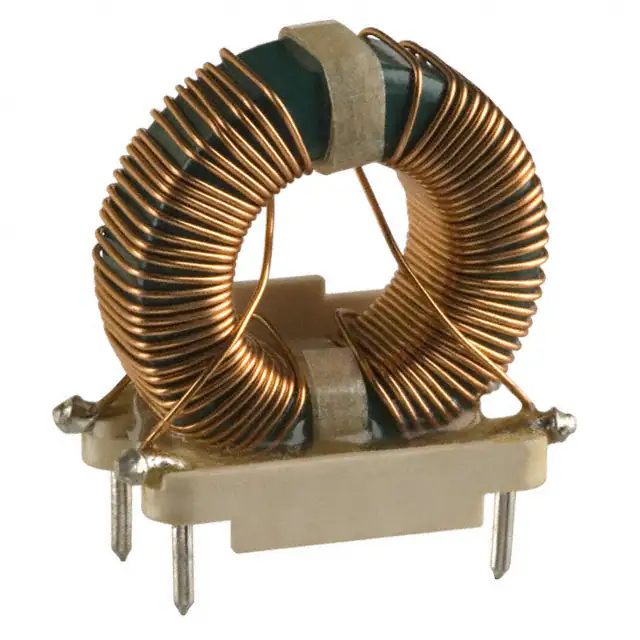

8105-RCCMC 7MH 2.8A 2LN TH |
4,687 | 3.71 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 7 mH @ 1 kHz | 2.8A | 120mOhm | - | - | -55°C ~ 105°C | - | - | - | - | - |
|
|
HF2024-601Y3R0-T01CMC 3A 2LN TH |
1,357 | 0.00 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | - | 3A | 60mOhm | - | - | -20°C ~ 120°C | - | - | - | - | - |
|
|
HF2024-123Y0R8-T01CMC 800MA 2LN TH |
3,723 | 0.00 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | - | 800mA | 920mOhm | - | - | -20°C ~ 120°C | - | - | - | - | - |
|
|
TF3524TU-202Y5R0-01CMC 5A 3LN TH |
1,547 | 0.00 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 3 | - | - | 5A | 60mOhm | - | - | -20°C ~ 120°C | - | - | - | - | - |
|
|
TF3524TU-302Y3R0-01CMC 3A 3LN TH |
3,563 | 0.00 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 3 | - | - | 3A | 100mOhm | - | - | -20°C ~ 120°C | - | - | - | - | - |
|
CMS3-13-RCMC 1.03MH 880MA 2LN SMD |
4,178 | 3.47 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | - | 1.03 mH @ 100 kHz | 880mA | 210mOhm (Typ) | - | - | -40°C ~ 160°C | - | - | - | - | - |
|
|
503 00 403 00COMMON MODE CHOKES |
1,199 | 0.00 |
|
- |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

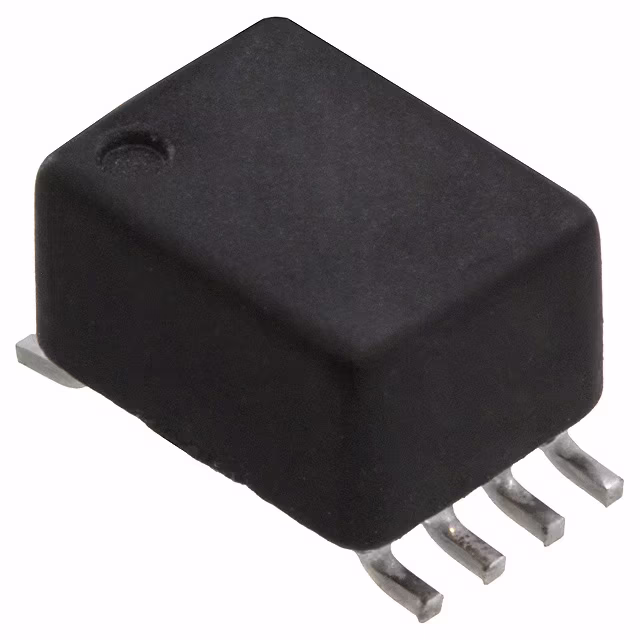

CMJ-4-470CMC 47UH 500MA 4LN SMD |
4,464 | 1.71 |
|
Datasheet |
Horizontal, 8 Flat Lead | Signal Line | 4 | - | 47 µH @ 100 kHz | 500mA | 180mOhm | - | - | 0°C ~ 70°C | - | - | - | - | - |
|
|
LG01-0346NULFCMC 35UH 8CH EXT TEMP 32P SMD |
1,724 | 0.00 |
|
- |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
FL2D-10-203B20MH @ 10 KHZ 2 LINE COMMON MODE |
2,228 | 0.00 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 20 mH @ 10 kHz | 1A | 330mOhm | - | - | -40°C ~ 105°C | - | - | - | - | - |
