Common Mode Chokes
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

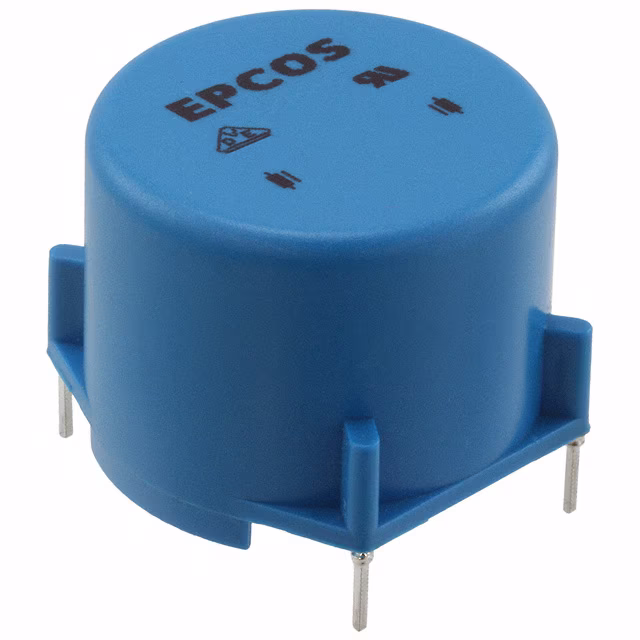

B82724B2102N001CMC 33MH 1A 2LN TH |
4,967 | 4.47 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 33 mH @ 10 kHz | 1A | 750mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | ENEC, UR, VDE | - | - | - |
|
B82724B2182N021CMC 33MH 1.8A 2LN TH |
1,154 | 4.47 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 33 mH @ 10 kHz | 1.8A | 400mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | ENEC, UR, VDE | - | - | - |
|
B82724B2402N030CMC 7MH 4A 2LN TH |
1,868 | 4.47 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 7 mH @ 10 kHz | 4A | 65mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | ENEC, UR, VDE | - | - | - |
|
|
B82724B2501N001CMC 100MH 500MA 2LN TH |
4,878 | 4.47 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 100 mH @ 10 kHz | 500mA | 2.8Ohm (Typ) | - | 250V | -40°C ~ 125°C | - | ENEC, UR, VDE | - | - | - |
|
|
LG01-0346NULFTRCMC 35UH 8CH EXT TEMP 32P SMD T/ |
1,787 | 0.00 |
|
- |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

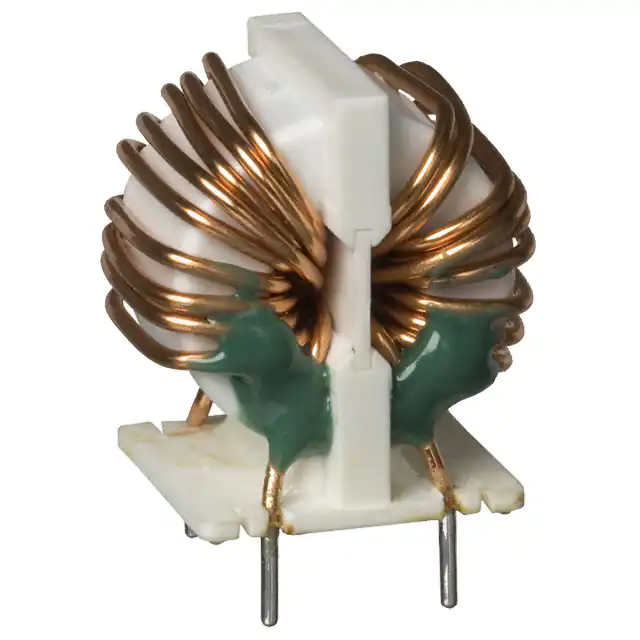

PFC2225BNP-801CMC 800UH 8A 2LN TH |
1,300 | 3.63 |
|
Datasheet |
Vertical, No Base, 4 PC Pin | - | 2 | - | 800 µH @ 1 kHz | 8A | 12.5mOhm | - | - | -40°C ~ 85°C | - | - | - | - | - |
|

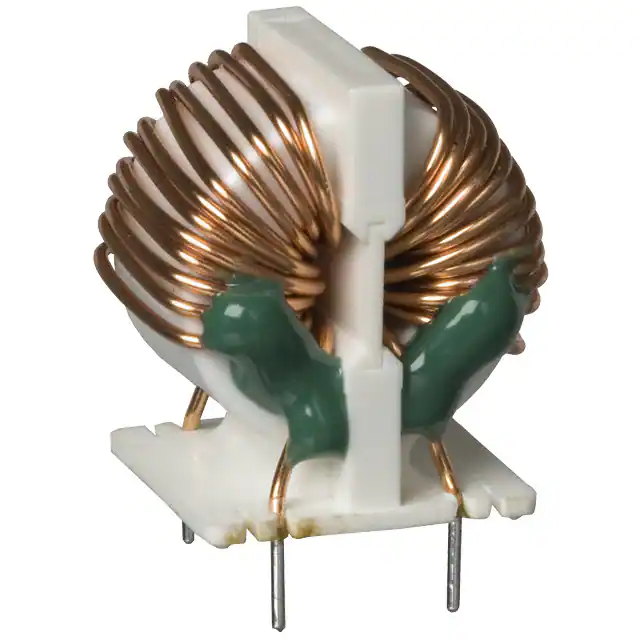

PFC2225BNP-152CMC 1.5MH 5A 2LN TH |
4,140 | 3.63 |
|
Datasheet |
Vertical, No Base, 4 PC Pin | - | 2 | - | 1.5 mH @ 1 kHz | 5A | 26mOhm | - | - | -40°C ~ 85°C | - | - | - | - | - |
|

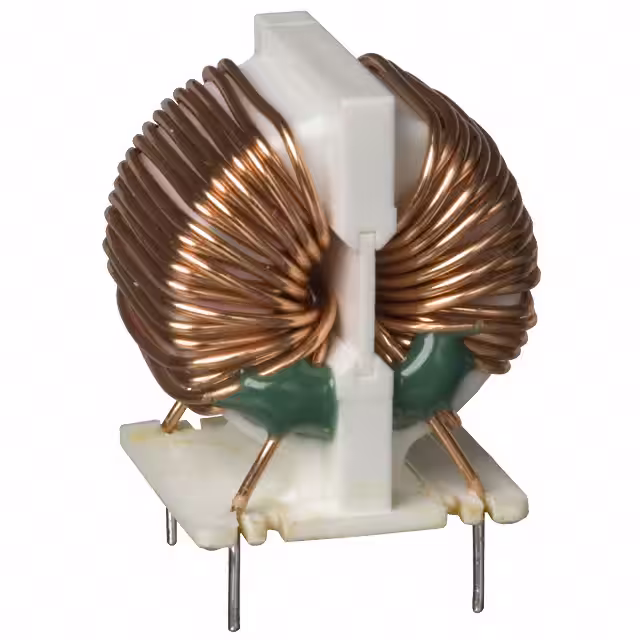

PFC2225BNP-402CMC 4MH 4A 2LN TH |
3,802 | 3.63 |
|
Datasheet |
Vertical, No Base, 4 PC Pin | Power Line | 2 | - | 4 mH @ 1 kHz | 4A | 54mOhm | - | 250V | -40°C ~ 85°C | - | - | - | - | - |
|

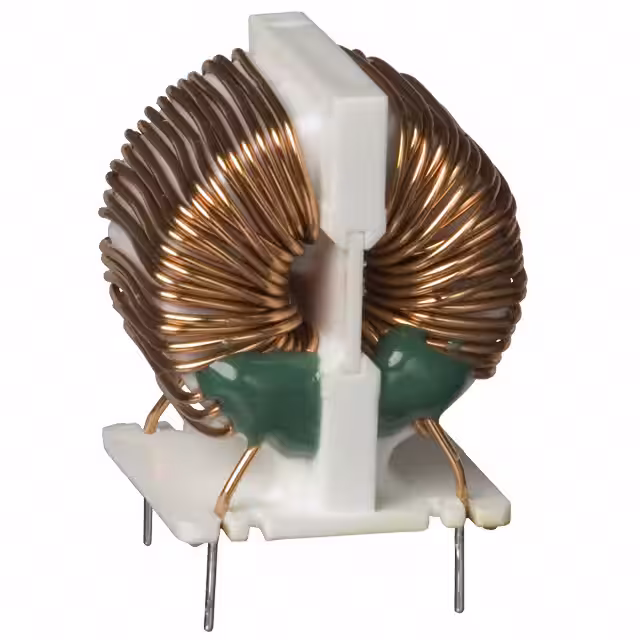

PFC2225BNP-502CMC 5MH 3A 2LN TH |
1,589 | 3.63 |
|
Datasheet |
Vertical, No Base, 4 PC Pin | - | 2 | - | 5 mH @ 1 kHz | 3A | 81mOhm | - | - | -40°C ~ 85°C | - | - | - | - | - |
|

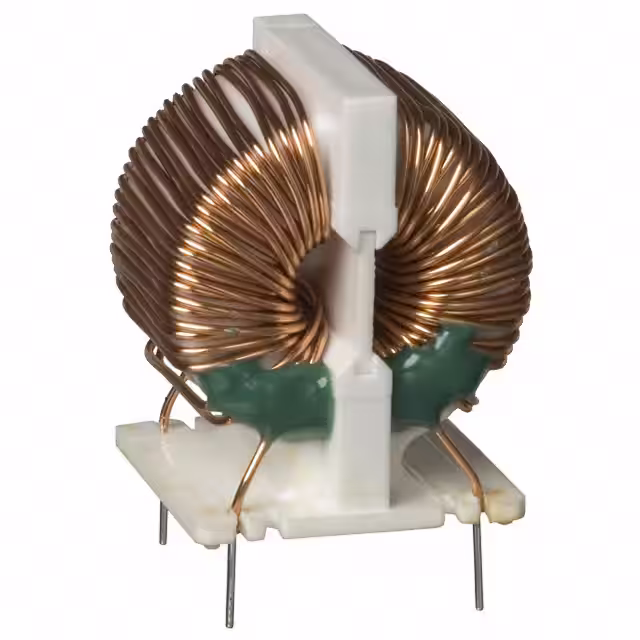

PFC2225BNP-702CMC 7MH 2.5A 2LN TH |
3,541 | 3.63 |
|
Datasheet |
Vertical, No Base, 4 PC Pin | - | 2 | - | 7 mH @ 1 kHz | 2.5A | 135mOhm | - | - | -40°C ~ 85°C | - | - | - | - | - |
|
PFC2225BNP-702BCMC 7MH 3A 2LN TH |
3,938 | 3.63 |
|
Datasheet |
Vertical, No Base, 4 PC Pin | Power Line | 2 | - | 7 mH @ 1 kHz | 3A | 70mOhm | - | 250V | -40°C ~ 85°C | - | - | - | - | - |
|
|
TF0804B-08P-01CMC 25UH 500MA 2LN TH |
4,067 | 0.00 |
|
Datasheet |
Horizontal, 8 PC Pin | Signal Line | 2 | - | 25 µH @ 1 kHz | 500mA | 100mOhm | - | - | -20°C ~ 120°C | - | - | - | - | - |
|
|
TF0804V-04P-02CMC 1A 2LN TH |
3,520 | 0.00 |
|
Datasheet |
Vertical, No Base, 4 PC Pin | Power Line | 2 | - | - | 1A | 36mOhm | - | - | -20°C ~ 120°C | - | - | - | - | - |
|
P0473TCMC 1.63A 2LN SMD |
4,401 | 0.00 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | - | - | 1.63A | 110mOhm | - | - | -40°C ~ 120°C | - | - | - | - | - |
|
|
LG01-0346NURLCMC 35UH 8CH EXT TEMP 32P SMD |
2,445 | 0.00 |
|
- |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
SPDL151306-400-2P-T2 LINE SMD COMMON MODE CHOKE 400 |
2,022 | 0.00 |
|
Datasheet |
Horizontal, 4 PC Pad | Power, Signal Line | 2 | 400 Ohms @ 100 MHz | - | 10A | 6Ohm | 50V | - | -40°C ~ 125°C | - | - | - | - | - |
|
750315740CMC 6MH 450MA 2LN SMD |
1,776 | 2.28 |
|
Datasheet |
Horizontal, 4 Gull Wing | Power Line | 2 | - | 6 mH @ 10 kHz | 450mA | 1.6Ohm (Typ) | - | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
750315742CMC 24MH 240MA 2LN SMD |
1,814 | 2.28 |
|
Datasheet |
Horizontal, 4 Gull Wing | Power Line | 2 | - | 24 mH @ 10 kHz | 240mA | 6.3Ohm (Typ) | - | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
750315743CMC 45MH 180MA 2LN SMD |
2,744 | 2.28 |
|
Datasheet |
Horizontal, 4 Gull Wing | Power Line | 2 | - | 45 mH @ 10 kHz | 180mA | 10.05Ohm (Typ) | - | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
750315744CMC 57MH 160MA 2LN SMD |
3,278 | 2.28 |
|
Datasheet |
Horizontal, 4 Gull Wing | Power Line | 2 | - | 57 mH @ 10 kHz | 160mA | 15.7Ohm (Typ) | - | - | -40°C ~ 125°C | - | - | - | - | - |
