Common Mode Chokes
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CM9900R-826CMC 82MH 100MA 2LN TH |
1,269 | 7.38 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 82 mH @ 1 kHz | 100mA | 13.1Ohm | - | - | -55°C ~ 125°C | - | - | - | - | - |
|
|
PL8203CMC 7.2A 2LN SMD |
3,230 | 8.04 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | - | - | 7.2A | 15mOhm | - | - | -55°C ~ 130°C | - | - | - | - | - |
|

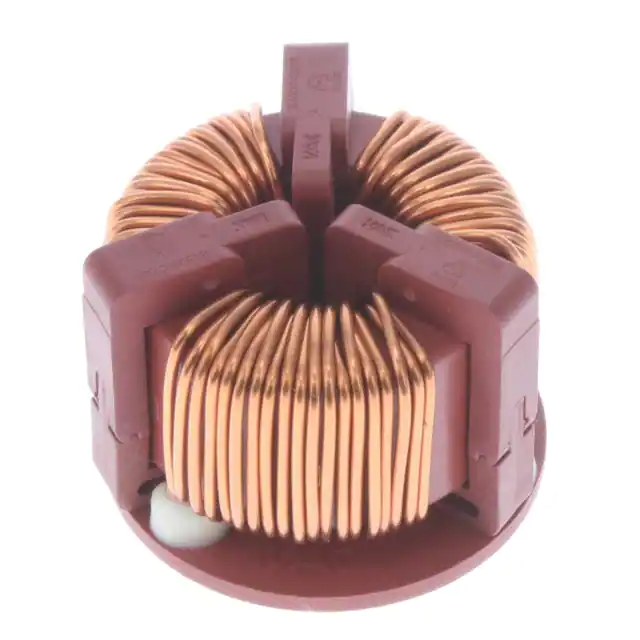

T60405S6123X306CMC 7.36MH 7A 2LN 8.65K OHM TH |
3,344 | 12.90 |
|
Datasheet |
Horizontal, 6 PC Pin | - | 2 | 8.65 kOhms @ 100 kHz | 7.36 mH @ 100 kHz | 7A | - | - | - | -40°C ~ 130°C | - | - | - | - | - |
|
|
CMF3-2502SMCOMMON MODE TRANSFORMER CHOKE |
2,030 | 0.00 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | - | 25 µH @ 1 kHz | 8.5A | 10mOhm | - | - | -55°C ~ 125°C | - | - | - | - | - |
|
|
T60405S4615X0274615X027 |
3,116 | 0.00 |
|
- |
Horizontal, 6 PC Pin | - | 3 | - | 11 mH @ 10 kHz | 3A | 50mOhm | - | - | -40°C ~ 60°C | - | - | - | - | - |
|
|
TF6136HU-102Y20R0-01CMC 20A 2LN TH |
4,494 | 0.00 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | - | 20A | - | - | - | -20°C ~ 120°C | - | - | - | - | - |
|
DSO1-20-0001CMC 630MA 2LN TH |
4,121 | 3.87 |
|
Datasheet |
Radial | - | 2 | - | - | 630mA | 750mOhm | 600V | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
DSO1-20-0002CMC 1.4A 2LN TH |
2,125 | 3.87 |
|
Datasheet |
Radial | - | 2 | - | - | 1.4A | 175mOhm | 600V | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
DSO1-20-0003CMC 3.15A 2LN TH |
1,261 | 3.87 |
|
Datasheet |
Radial | - | 2 | - | - | 3.15A | 33mOhm | 600V | - | -40°C ~ 125°C | - | - | - | - | - |
|

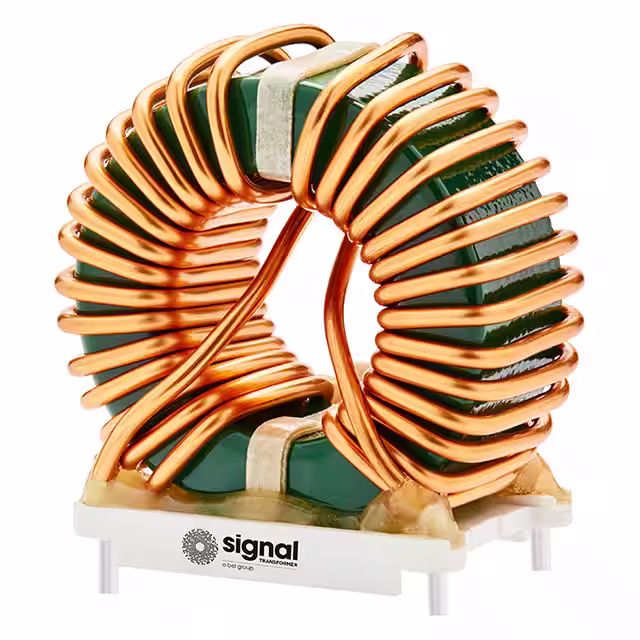

HCTC-2.4-17CMC 2.4MH 17A 2LN TH |
2,932 | 7.71 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 2.4 mH @ 1 kHz | 17A | 8mOhm | - | - | -55°C ~ 105°C | - | - | - | - | - |
|

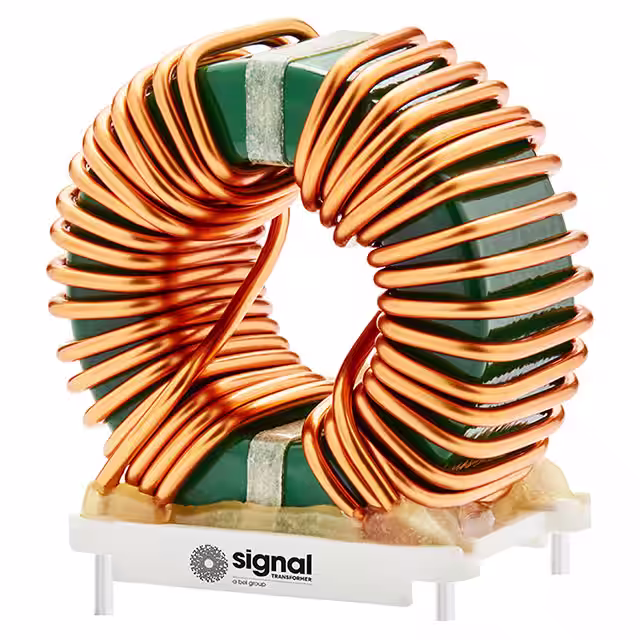

HCTC-4-14.5CMC 4MH 14.5A 2LN TH |
1,876 | 7.75 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 4 mH @ 1 kHz | 14.5A | 12mOhm | - | - | -55°C ~ 105°C | - | - | - | - | - |
|
CME375-4CMC 17.8MH 2.7A 2LN TH ESD |
3,583 | 9.90 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 17.8 mH @ 10 kHz | 2.7A | 196mOhm | - | 250V | -40°C ~ 80°C | - | CSA, IEC, UL, VDE | - | - | - |
|
|
CMF3-5002SMCOMMON MODE TRANSFORMER CHOKE |
3,288 | 0.00 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | - | 50 µH @ 1 kHz | 8.5A | 10mOhm | - | - | -55°C ~ 125°C | - | - | - | - | - |
|
|
CMF3-4503SMCOMMON MODE TRANSFORMER CHOKE |
4,694 | 0.00 |
|
Datasheet |
Horizontal, 4 PC Pad | - | 2 | - | 450 µH @ 1 kHz | 5.7A | 22mOhm | - | - | -55°C ~ 125°C | - | - | - | - | - |
|
CMT-8116CMC 50MH 2.3A 2LN TH ESD |
4,606 | 10.08 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 50 mH @ 1 kHz | 2.3A | 450mOhm | - | 1500V (1.5kV) | -55°C ~ 105°C | - | CSA, IEC, UL, VDE | - | - | - |
|
CMT-8117CMC 36MH 2.9A 2LN TH ESD |
3,947 | 10.08 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 36 mH @ 1 kHz | 2.9A | 300mOhm | - | 1500V (1.5kV) | -55°C ~ 105°C | - | CSA, IEC, UL, VDE | - | - | - |
|
|
CMF61-1003SMLFCOMMON MODE TRANSFORMER CHOKE |
4,918 | 0.00 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | - | 100 µH @ 10 kHz | 1.6A | 30mOhm | - | - | -55°C ~ 125°C | - | - | - | - | - |
|
|
CMF61-6803SMLFCOMMON MODE TRANSFORMER CHOKE |
3,751 | 0.00 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | - | 680 µH @ 10 kHz | 500mA | 170mOhm | - | - | -55°C ~ 125°C | - | - | - | - | - |
|
|
CMF3-1003SMCOMMON MODE TRANSFORMER CHOKE |
3,002 | 0.00 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | - | 100 µH @ 1 kHz | 7.7A | 12mOhm | - | - | -55°C ~ 125°C | - | - | - | - | - |
|
|
CMF3-1003SMLFCOMMON MODE TRANSFORMER CHOKE |
2,758 | 0.00 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | - | 100 µH @ 1 kHz | 7.7A | 12mOhm | - | - | -55°C ~ 125°C | - | - | - | - | - |
