Common Mode Chokes
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CMF61-2203SMLFCOMMON MODE TRANSFORMER CHOKE |
4,574 | 0.00 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | - | 220 µH @ 10 kHz | 1A | 60mOhm | - | - | -55°C ~ 125°C | - | - | - | - | - |
|
|
CMF61-1504SMCOMMON MODE TRANSFORMER CHOKE |
3,265 | 0.00 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | - | 1.5 mH @ 10 kHz | 240mA | 500mOhm | - | - | -55°C ~ 125°C | - | - | - | - | - |
|
|
CMF61-2204SMCOMMON MODE TRANSFORMER CHOKE |
1,605 | 0.00 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | - | 2.2 mH @ 10 kHz | 180mA | 750mOhm | - | - | -55°C ~ 125°C | - | - | - | - | - |
|
|
CMF61-2203SMCOMMON MODE TRANSFORMER CHOKE |
1,230 | 0.00 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | - | 220 µH @ 10 kHz | 1A | 60mOhm | - | - | -55°C ~ 125°C | - | - | - | - | - |
|
|
CMF61-2502SMCOMMON MODE TRANSFORMER CHOKE |
4,336 | 0.00 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | - | 25 µH @ 10 kHz | 3A | 10mOhm | - | - | -55°C ~ 125°C | - | - | - | - | - |
|

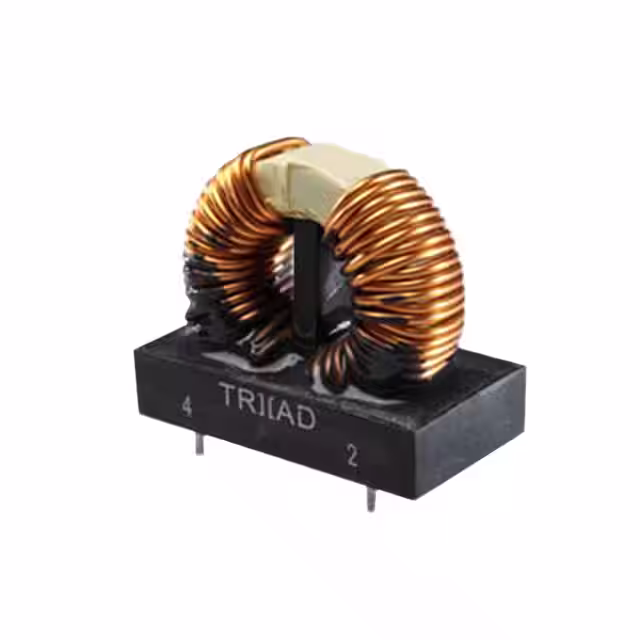

CMT908-V2-BCMC 4MH 5.2A 2LN TH ESD |
4,989 | 5.83 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 4 mH @ 10 kHz | 5.2A | 40mOhm | - | 1500V (1.5kV) | -40°C ~ 125°C | - | CSA, IEC, UL, VDE | - | - | - |
|
|
CMT908-V3-BCMC 8MH 3.2A 2LN TH ESD |
2,937 | 5.83 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 8 mH @ 10 kHz | 3.2A | 120mOhm | - | 1500V (1.5kV) | -40°C ~ 125°C | - | CSA, IEC, UL, VDE | - | - | - |
|
|
CMF3-2504SMCOMMON MODE TRANSFORMER CHOKE |
2,719 | 0.00 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | - | 2.5 mH @ 1 kHz | 2.2A | 150mOhm | - | - | -55°C ~ 125°C | - | - | - | - | - |
|

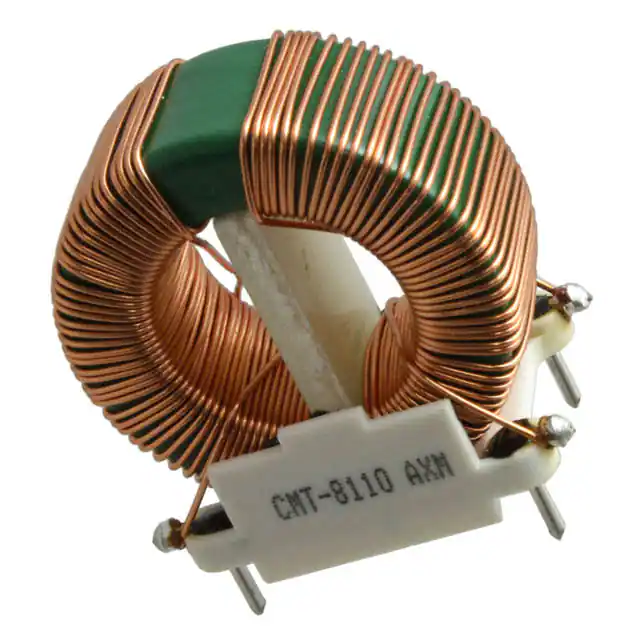

CMT-8109CMC 30MH 2.3A 2LN TH ESD |
3,785 | 8.25 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 30 mH @ 1 kHz | 2.3A | 330mOhm | - | 1500V (1.5kV) | -55°C ~ 105°C | - | CSA, IEC, UL, VDE | - | - | - |
|

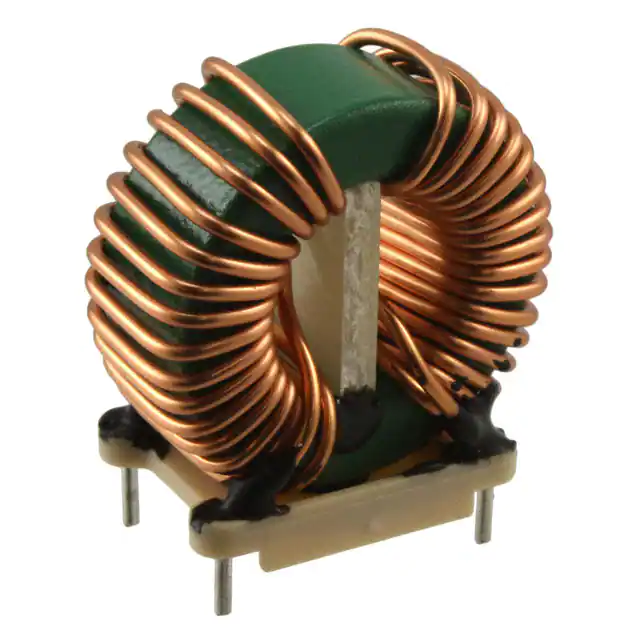

CMT-8114CMC 2.5MH 12.5A 2LN TH ESD |
1,770 | 8.25 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 2.5 mH @ 1 kHz | 12.5A | 11mOhm | - | 1500V (1.5kV) | -55°C ~ 105°C | - | CSA, IEC, UL, VDE | - | - | - |
|
CMT-8109-BCMC 30MH 2.3A 2LN TH ESD |
4,494 | 5.86 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 30 mH @ 1 kHz | 2.3A | 330mOhm | - | 1500V (1.5kV) | -55°C ~ 105°C | - | CSA, IEC, UL, VDE | - | - | - |
|

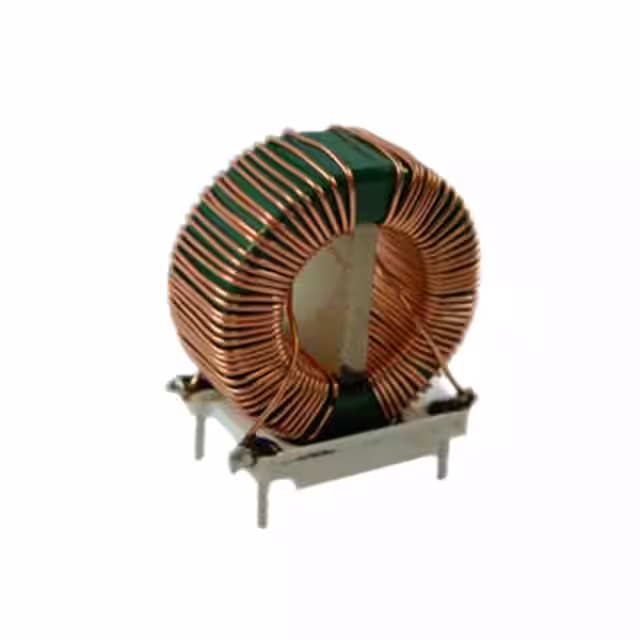

CMT-8110-BCMC 20MH 2.9A 2LN TH ESD |
4,160 | 5.86 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 20 mH @ 1 kHz | 2.9A | 210mOhm | - | 1500V (1.5kV) | -55°C ~ 105°C | - | CSA, IEC, UL, VDE | - | - | - |
|

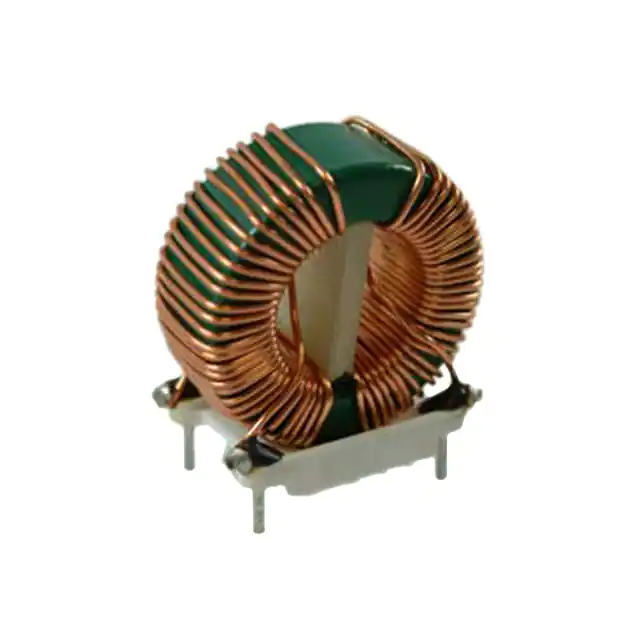

CMT-8111-BCMC 12MH 4A 2LN TH ESD |
2,319 | 5.86 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 12 mH @ 1 kHz | 4A | 110mOhm | - | 1500V (1.5kV) | -55°C ~ 105°C | - | CSA, IEC, UL, VDE | - | - | - |
|

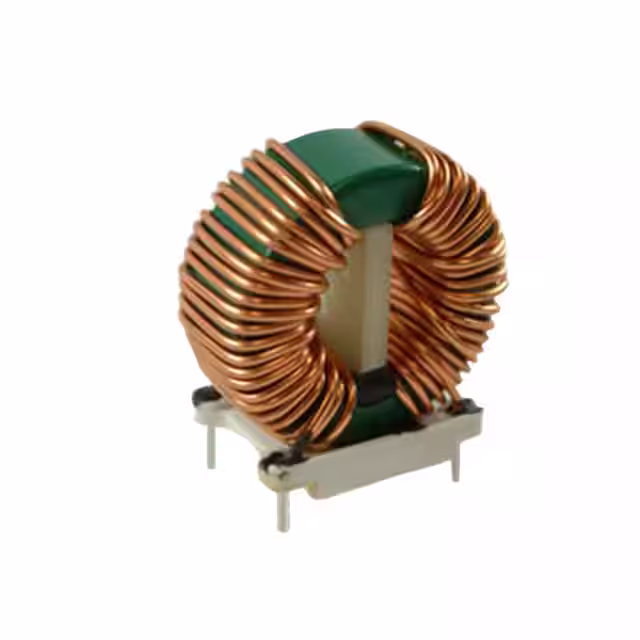

CMT-8112-BCMC 8MH 5.6A 2LN TH ESD |
2,114 | 5.86 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 8 mH @ 1 kHz | 5.6A | 55mOhm | - | 1500V (1.5kV) | -55°C ~ 105°C | - | CSA, IEC, UL, VDE | - | - | - |
|

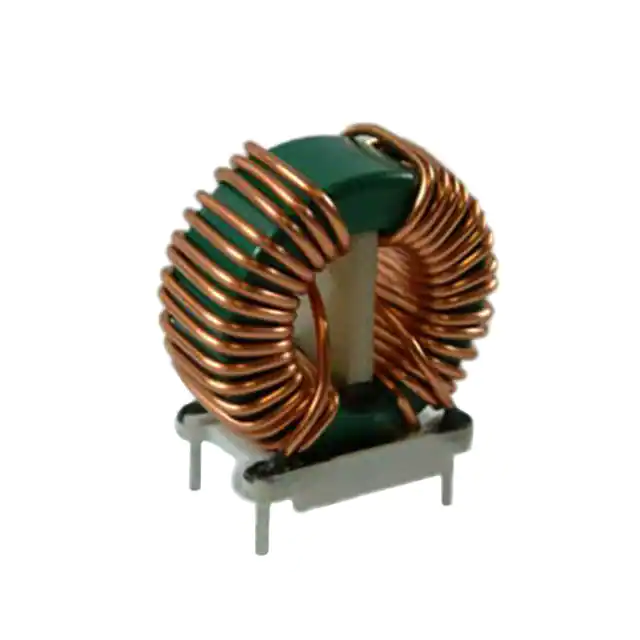

CMT-8113-BCMC 5MH 8.9A 2LN TH ESD |
2,615 | 5.86 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 5 mH @ 1 kHz | 8.9A | 22mOhm | - | 1500V (1.5kV) | -55°C ~ 105°C | - | CSA, IEC, UL, VDE | - | - | - |
|
CMT-8114-BCMC 2.5MH 12.5A 2LN TH ESD |
1,735 | 5.86 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 2.5 mH @ 1 kHz | 12.5A | 11mOhm | - | 1500V (1.5kV) | -55°C ~ 105°C | - | CSA, IEC, UL, VDE | - | - | - |
|

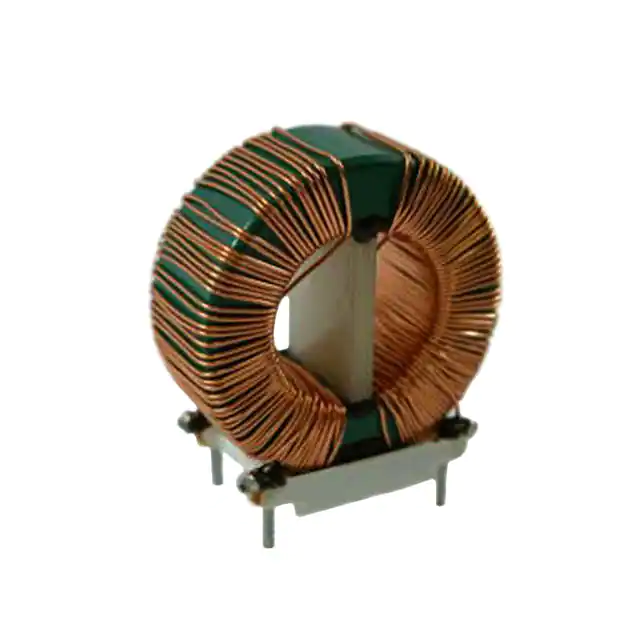

CMT-8115-BCMC 1.2MH 16A 2LN TH ESD |
3,829 | 5.86 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 1.2 mH @ 1 kHz | 16A | 6mOhm | - | 1500V (1.5kV) | -55°C ~ 105°C | - | CSA, IEC, UL, VDE | - | - | - |
|

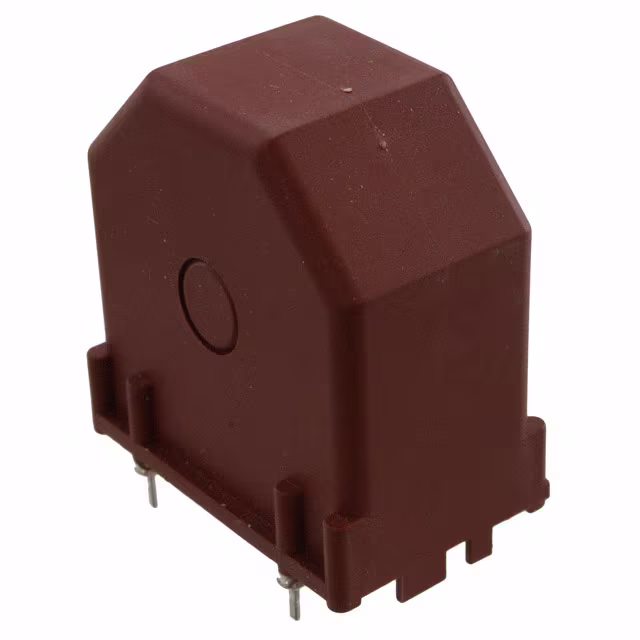

CAV-7.5-3.3CMC 3.3MH 7.5A 2LN TH |
4,941 | 10.15 |
|
Datasheet |
Vertical, 4 PC Pin | Signal Line | 2 | - | 3.3 mH @ 10 kHz | 7.5A | 16mOhm (Typ) | - | - | -40°C ~ 125°C | - | - | - | - | - |
|
DSO1-25-0001CMC 1.4A 2LN TH |
4,218 | 5.08 |
|
Datasheet |
Radial | - | 2 | - | - | 1.4A | 200mOhm | 600V | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
FE3X033-10-7NLCMC 8A 3LN TH |
1,269 | 11.83 |
|
Datasheet |
- | - | 3 | - | - | 8A | 14mOhm (Typ) | - | 500V | 0°C ~ 60°C | - | - | - | - | - |
