Common Mode Chokes
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

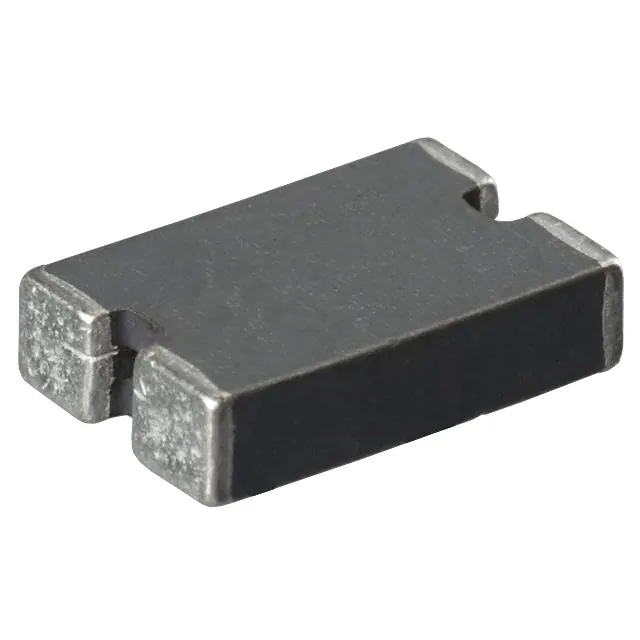

CM3322X630R-10CMC 10A 2LN 63 OHM SMD |
4,229 | 0.00 |
|
Datasheet |
Horizontal, 4 PC Pad | Power, Signal Line | 2 | 63 Ohms @ 100 MHz | - | 10A | 8mOhm | - | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
CM3322P400R-10CMC 4A 2LN 40 OHM SMD |
1,768 | 0.00 |
|
Datasheet |
Horizontal, 4 PC Pad | Power, Signal Line | 2 | 40 Ohms @ 100 MHz | - | 4A | 30mOhm | - | - | -40°C ~ 125°C | - | - | - | - | - |
|
UU9LFNP-B471CMC 470UH 1A 2LN TH |
3,157 | 0.00 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 470 µH @ 1 kHz | 1A | 150mOhm | - | - | - | - | - | - | - | - |
|
|
UU9LFNP-B102CMC 1MH 700MA 2LN TH |
1,479 | 0.00 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 1 mH @ 1 kHz | 700mA | 350mOhm | - | - | - | - | - | - | - | - |
|
|
UU9LFNP-B222CMC 2.2MH 500MA 2LN TH |
4,926 | 0.92 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 2.2 mH @ 1 kHz | 500mA | 700mOhm | - | - | - | - | - | - | - | - |
|
|
UU9LFNP-B392CMC 3.9MH 380MA 2LN TH |
3,194 | 0.00 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 3.9 mH @ 1 kHz | 380mA | 1.2Ohm | - | - | - | - | - | - | - | - |
|

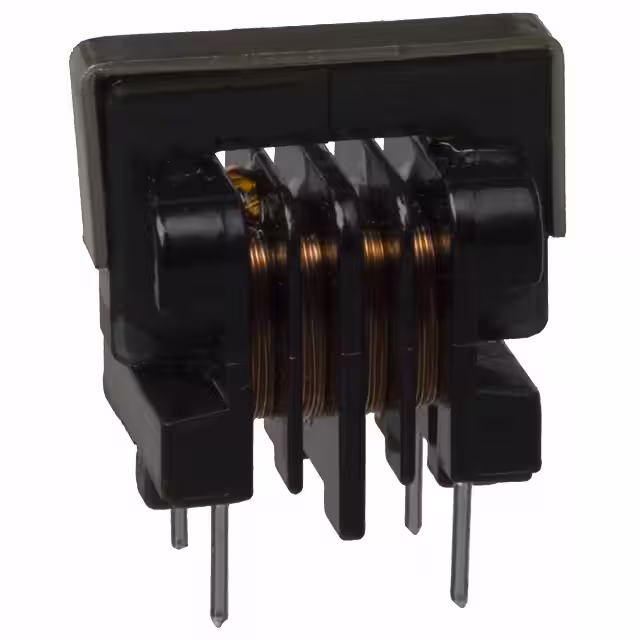

UU9LFBNP-B283CMC 56MH 130MA 2LN TH |
4,190 | 0.00 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 56 mH @ 1 kHz | 130mA | 13Ohm | - | - | - | - | - | - | - | - |
|
PFC2225BNP-451CMC 450UH 10A 2LN TH |
2,368 | 0.00 |
|
Datasheet |
Vertical, No Base, 4 PC Pin | - | 2 | - | 450 µH @ 1 kHz | 10A | 8.5mOhm | - | - | -40°C ~ 85°C | - | - | - | - | - |
|

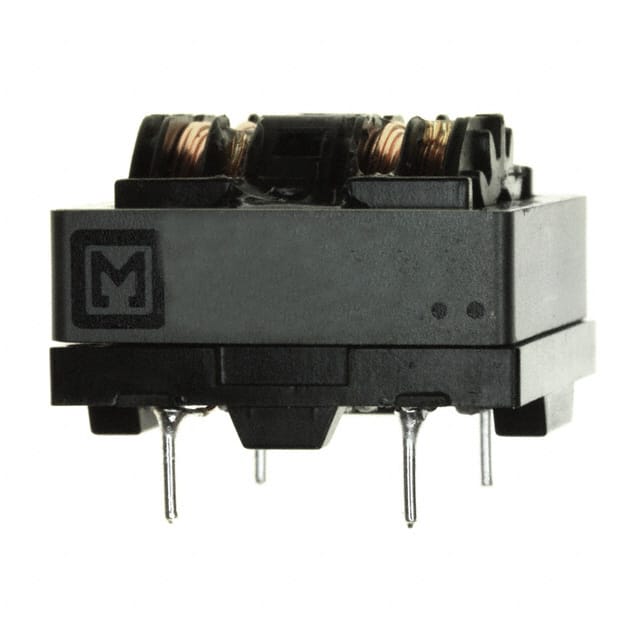

ELF-25C012FCMC 1.2A 2LN TH |
2,273 | 3.84 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | - | 1.2A | 310mOhm (Typ) | - | 250V | -20°C ~ 115°C | - | - | - | - | - |
|

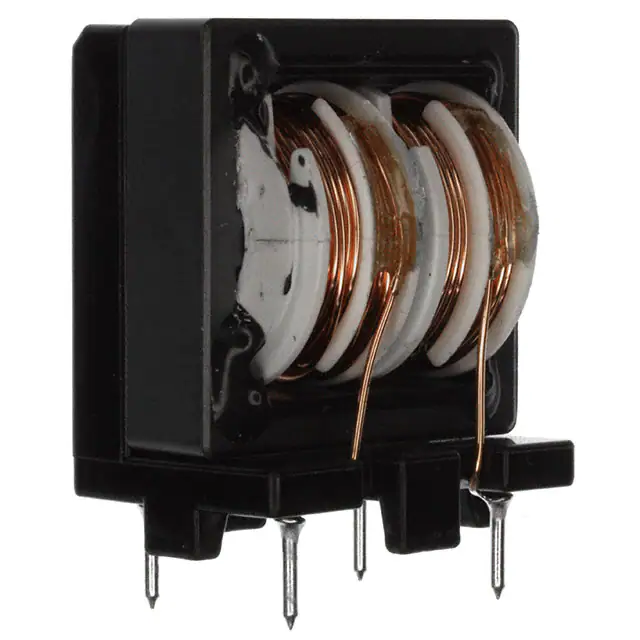

ELF-22V020ACMC 2A 2LN TH |
3,260 | 0.00 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | - | 2A | 203mOhm (Typ) | - | - | - | - | - | - | - | - |
|

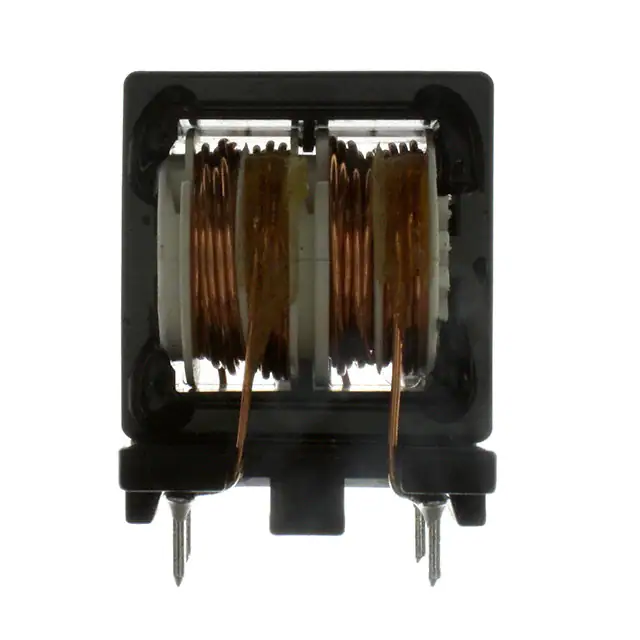

ELF-22V030ACMC 3A 2LN TH |
4,482 | 0.00 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | - | 3A | 85mOhm (Typ) | - | - | - | - | - | - | - | - |
|

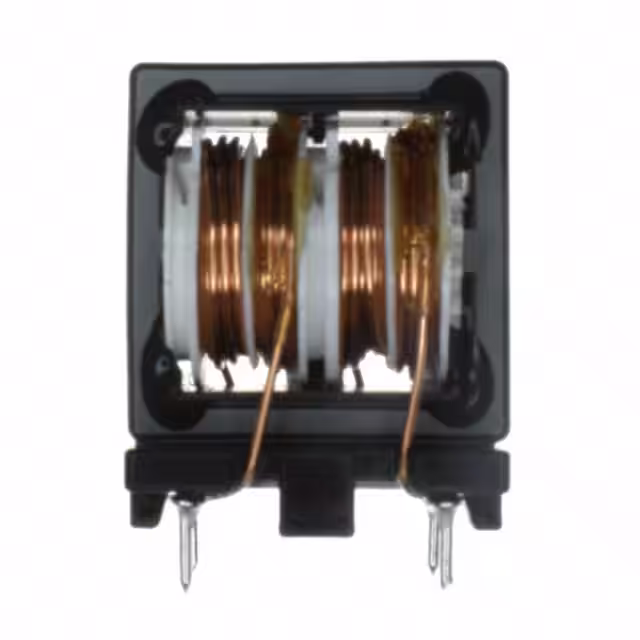

ELF-22V040ACMC 4A 2LN TH |
3,630 | 0.00 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | - | 4A | 59mOhm (Typ) | - | - | - | - | - | - | - | - |
|

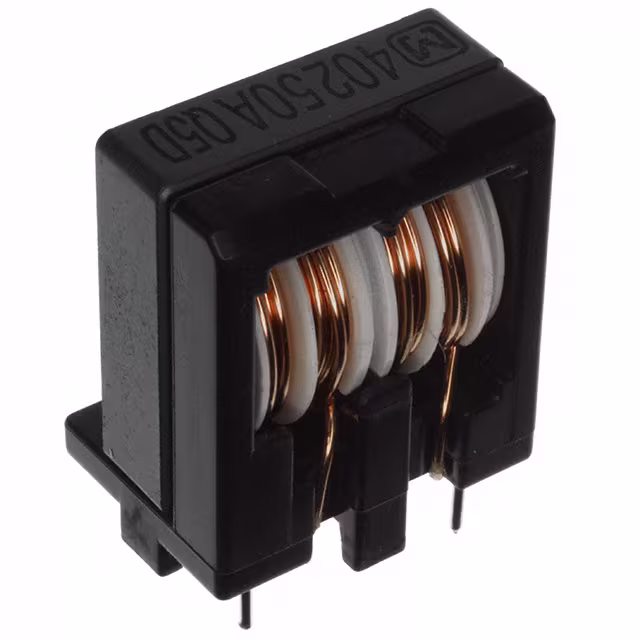

ELF-22V050ACMC 5A 2LN TH |
3,703 | 0.00 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | - | 5A | 38mOhm (Typ) | - | - | - | - | - | - | - | - |
|

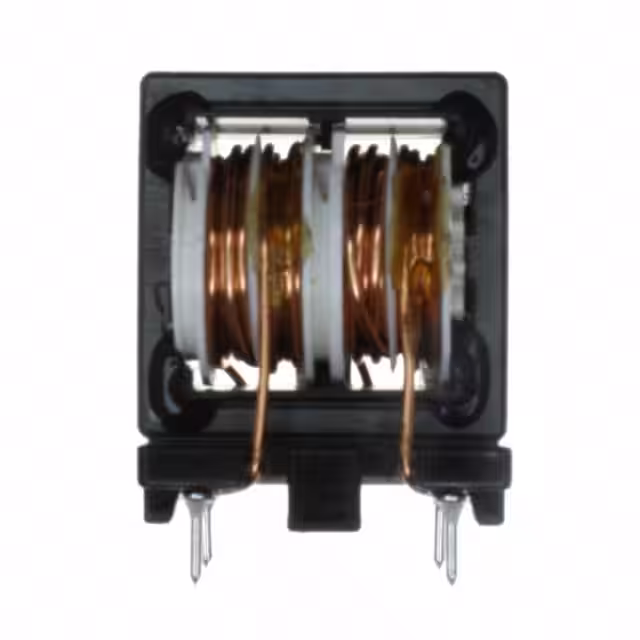

ELF-22V060ACMC 6A 2LN TH |
2,628 | 0.00 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | - | 6A | 25mOhm (Typ) | - | - | - | - | - | - | - | - |
|

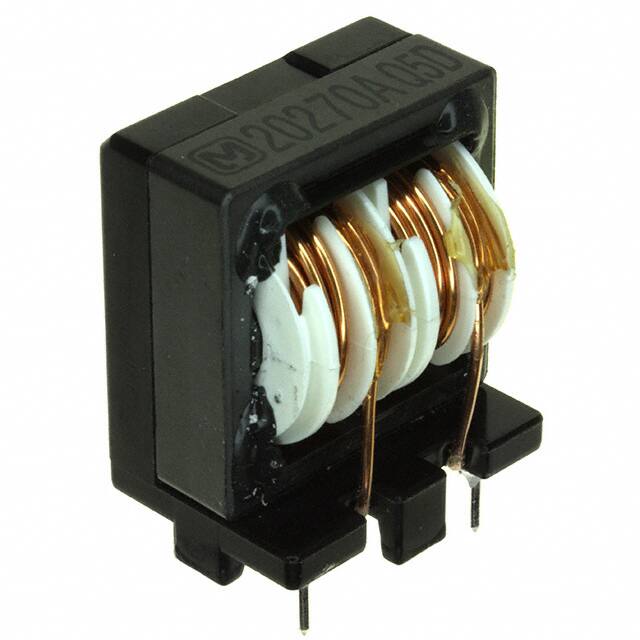

ELF-22V070ACMC 7A 2LN TH |
1,032 | 0.00 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | - | 7A | 21mOhm (Typ) | - | - | - | - | - | - | - | - |
|

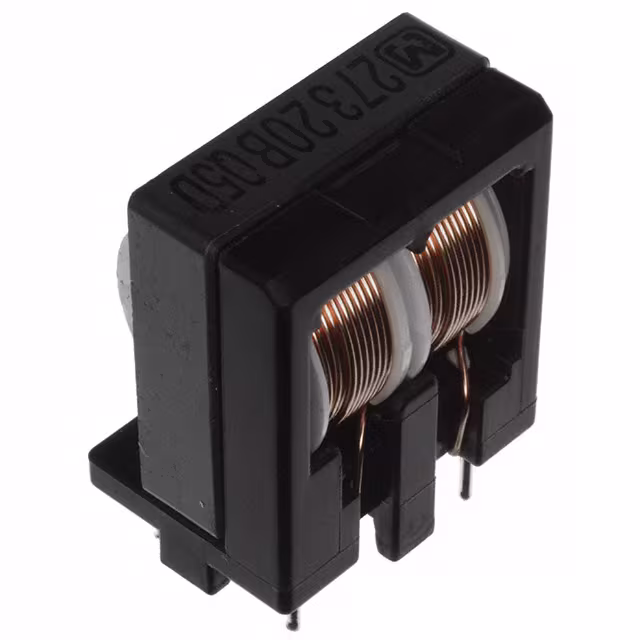

ELF-22V020BCMC 8A 2LN TH |
4,274 | 0.00 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | - | 8A | 14mOhm (Typ) | - | - | - | - | - | - | - | - |
|

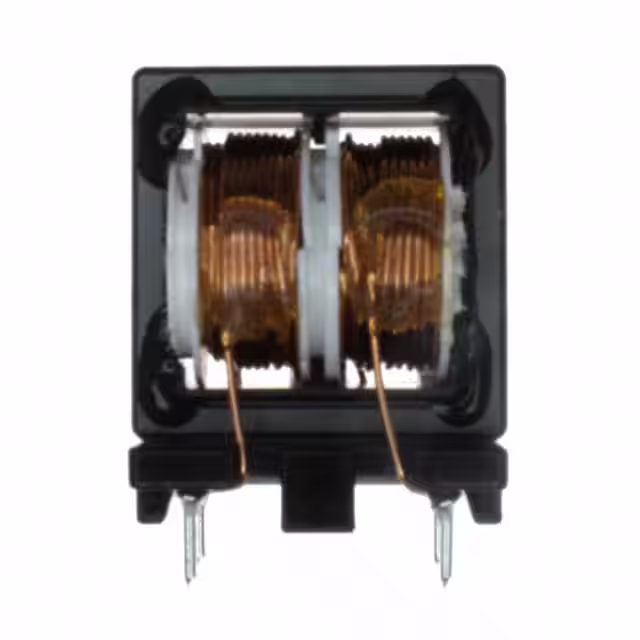

ELF-22V025BCMC 2.5A 2LN TH |
1,277 | 0.00 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | - | 2.5A | 138mOhm (Typ) | - | - | - | - | - | - | - | - |
|
ELF-22V030BCMC 3A 2LN TH |
4,563 | 0.00 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | - | 3A | 102mOhm (Typ) | - | - | - | - | - | - | - | - |
|
ELF-22V035BCMC 3.5A 2LN TH |
1,982 | 0.00 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | - | 3.5A | 75mOhm (Typ) | - | - | - | - | - | - | - | - |
|

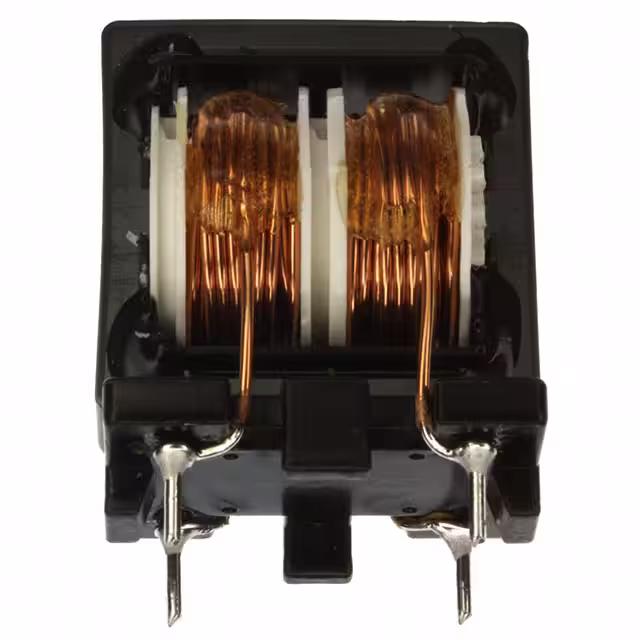

ELF-22V040BCMC 4A 2LN TH |
3,224 | 0.00 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | - | 4A | 57mOhm (Typ) | - | - | - | - | - | - | - | - |
