Common Mode Chokes
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ZJYS81R5-2P50T-G01CMC 500MA 2LN 2KOHM SMD AEC-Q200 |
1,529 | 0.00 |
|
Datasheet |
Vertical, 4 Gull Wing | Signal Line | 2 | 2 kOhms @ 10 MHz | - | 500mA | 250mOhm | 80V | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|

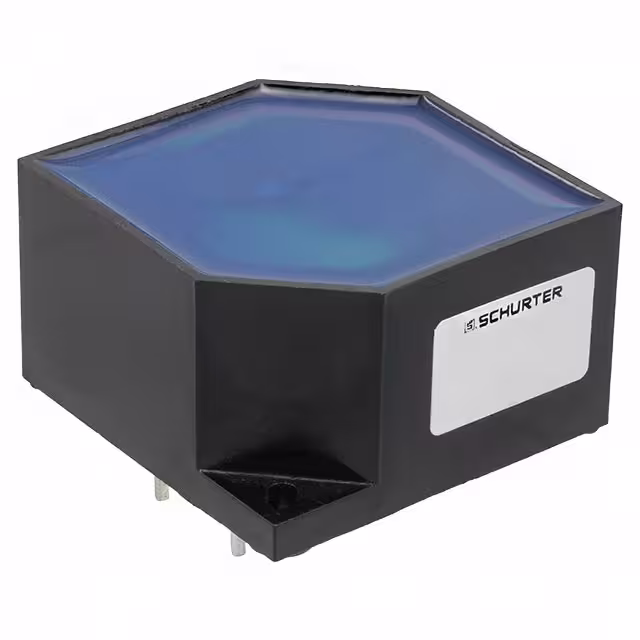

DKIL-0246-2001CMC 20A 2LN TH |
3,207 | 0.00 |
|
- |
Radial | - | 2 | - | - | 20A | 6mOhm | 760V | 540V | -25°C ~ 100°C | - | UR | - | - | - |
|
DKIL-0331-1502CMC 3LN TH |
2,447 | 0.00 |
|
- |
Nonstandard | - | 3 | - | - | - | - | 760V | 540V | -25°C ~ 100°C | - | UR | - | - | - |
|

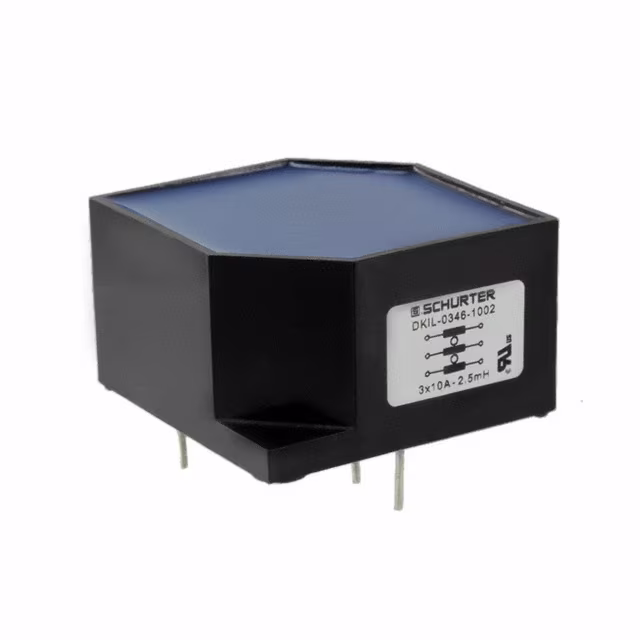

DKIL-0346-1002CMC 10A 3LN TH |
1,613 | 0.00 |
|
- |
Radial - 6 Leads | - | 3 | - | - | 10A | 15mOhm | 760V | 540V | -25°C ~ 100°C | - | UR | - | - | - |
|
|
DKIL-0346-1501CMC 15A 3LN TH |
3,725 | 0.00 |
|
- |
Nonstandard | - | 3 | - | - | 15A | 7mOhm | 760V | 540V | -25°C ~ 100°C | - | UR | - | - | - |
|
|
DLNP-6148-01C5CMC 1A 2LN TH |
4,785 | 0.00 |
|
- |
Radial | - | 2 | - | - | 1A | 280mOhm | 600V | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
DLNP-6148-D6D1CMC 600MA 2LN TH |
3,752 | 0.00 |
|
- |
Radial | - | 2 | - | - | 600mA | 600mOhm | 600V | - | -40°C ~ 125°C | - | - | - | - | - |
|
CM01H900TCMC 280MA 2LN 90 OHM SMD |
3,404 | 0.00 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 90 Ohms @ 100 MHz | - | 280mA | 500mOhm | 20V | - | -40°C ~ 125°C | - | - | - | - | - |
-4-Lead.jpg)
|
DLP0NSN670HL2LCMC 110MA 2LN 67 OHM SMD |
4,766 | 0.54 |
|
Datasheet |
0302 (0806 Metric), 4 Lead | Signal Line | 2 | 67 Ohms @ 100 MHz | - | 110mA | 3Ohm | 5V | - | -40°C ~ 85°C | - | - | - | - | - |
|
|
DLP0NSN121HL2LCMC 90MA 2LN 120 OHM SMD |
4,617 | 0.00 |
|
Datasheet |
0302 (0806 Metric), 4 Lead | Signal Line | 2 | 120 Ohms @ 100 MHz | - | 90mA | 4.75Ohm | 5V | - | -40°C ~ 85°C | - | - | - | - | - |
|
RN102-0.3-02CMC 12MH 300MA 2LN TH |
3,788 | 0.00 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 12 mH @ 1 kHz | 300mA (Typ) | 1.275Ohm (Typ) | - | 250V | -40°C ~ 125°C | - | UR, VDE | - | - | - |
|
|
RN102-0.6-02CMC 4.4MH 600MA 2LN TH |
4,088 | 0.00 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 4.4 mH @ 1 kHz | 600mA (Typ) | 385mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | UR, VDE | - | - | - |
|
|
RN102-1-02CMC 3MH 1A 2LN TH |
4,080 | 0.00 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 3 mH @ 1 kHz | 1A (Typ) | 205mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | UR, VDE | - | - | - |
|
|
RN102-1.5-02CMC 1.6MH 1.5A 2LN TH |
3,134 | 0.00 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 1.6 mH @ 10 kHz | 1.5A (Typ) | 100mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | UR, VDE | - | - | - |
|
|
RN102-2-02CMC 1.1MH 2A 2LN TH |
2,430 | 0.00 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 1.1 mH @ 10 kHz | 2A (Typ) | 70mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | UR, VDE | - | - | - |
|
RN112-0.4-02CMC 39MH 400MA 2LN TH |
1,748 | 0.00 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 39 mH @ 1 kHz | 400mA (Typ) | 1.67Ohm (Typ) | - | 250V | -40°C ~ 125°C | - | UR, VDE | - | - | - |
|
|
RN112-0.6-02CMC 15MH 600MA 2LN TH |
4,452 | 0.00 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 15 mH @ 1 kHz | 600mA (Typ) | 465mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | UR, VDE | - | - | - |
|
|
RN112-0.8-02CMC 10MH 800MA 2LN TH |
4,016 | 0.00 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 10 mH @ 10 kHz | 800mA (Typ) | 370mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | UR, VDE | - | - | - |
|
|
RN112-1.2-02CMC 6.8MH 1.2A 2LN TH |
1,723 | 0.00 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 6.8 mH @ 1 kHz | 1.2A (Typ) | 245mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | UR, VDE | - | - | - |
|
|
RN112-1.5-02CMC 3.3MH 1.5A 2LN TH |
3,568 | 0.00 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 3.3 mH @ 1 kHz | 1.5A (Typ) | 135mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | UR, VDE | - | - | - |
