Common Mode Chokes
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ACMP-Q3226-102-TCMC 750MA 2LN 1KOHM SMD AEC-Q200 |
2,197 | 1.68 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | 1 kOhms @ 100 MHz | - | 750mA | 200mOhm | 50V | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|

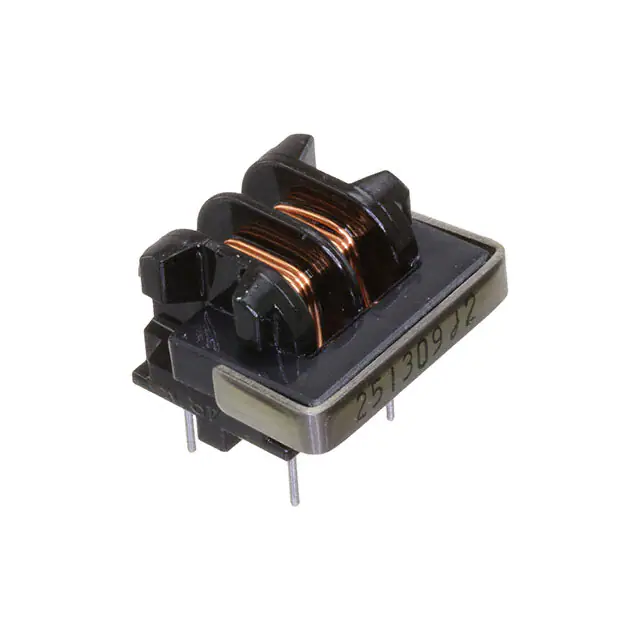

SU9HD-25013CMC 13.02UH 2.5A 2LN TH |
933 | 1.42 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 13.02 µH @ 1 kHz | 2.5A | 42mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
SU9HD-40006CMC 5.95UH 4A 2LN TH |
780 | 1.42 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 5.95 µH @ 1 kHz | 4A | 27.5mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
DR221-223AECMC 22UH 250MA 2LN SMD |
2,623 | 1.50 |
|
Datasheet |
Horizontal, 4 Flat Lead | Signal Line | 2 | - | 22 µH @ 10 kHz | 250mA | 230mOhm | 50V | 100V | -40°C ~ 125°C | - | - | - | - | - |
|
|
ACMS-Q3222F-101-TCMC 100UH 150MA 2LN SMD AEC-Q200 |
3,577 | 1.83 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | - | 100 µH @ 100 kHz | 150mA | 2.5Ohm | 50V | - | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
AWCU00453226223TT2CMC 22UH 200MA 2LN SMD AEC-Q200 |
1,439 | 1.52 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 1.2 kOhms @ 10 MHz | 22 µH @ 100 kHz | 200mA | 1Ohm | 50V | - | -50°C ~ 150°C | - | - | - | Automotive | AEC-Q200 |
|
ACMP-4724-900-TCMC 3.2A 2LN 90 OHM SMD |
3,962 | 1.83 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | 90 Ohms @ 100 MHz | - | 3.2A | 35mOhm | 50V | - | -40°C ~ 125°C | - | - | - | - | - |
|
EMI8041MUTAGCMC 100MA 2LN SMD ESD |
5,614 | 0.87 |
|
Datasheet |
6-XFDFN | Signal Line | 2 | - | - | 100mA | 6Ohm (Typ) | - | - | -40°C ~ 85°C | - | - | TVS Diode ESD Protection | - | - |
|
|
SU7VC-12002CMC 250UH 1.2A 2LN TH |
1,676 | 1.59 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 250 µH @ 1 kHz | 1.2A | 160mOhm | - | 125V | -25°C ~ 120°C | - | - | - | - | - |
|
|
SU7VC-10003CMC 300UH 1A 2LN TH |
1,649 | 1.59 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 300 µH @ 1 kHz | 1A | 200mOhm | - | 125V | -25°C ~ 120°C | - | - | - | - | - |
|
SRF1006-501YCMC 500UH 840MA 2LN 800 OHM SMD |
2,477 | 1.60 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 800 Ohms @ 2 MHz | 500 µH @ 100 kHz | 840mA | 70mOhm | 50V | - | -40°C ~ 105°C | - | - | - | - | - |
|
|
SRF1006-472YCMC 4.7MH 250MA 2LN 6.2KOHM SMD |
983 | 1.60 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 6.2 kOhms @ 600 kHz | 4.7 mH @ 100 kHz | 250mA | 1Ohm | 50V | - | -40°C ~ 105°C | - | - | - | - | - |
|
SRF0905A-472YCMC 4.7MH 400MA 2LN SMD AEC-Q200 |
6,807 | 1.62 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 4 kOhms @ 300 kHz | 4.7 mH @ 100 kHz | 400mA | 900mOhm | 80V | - | -40°C ~ 105°C | - | - | - | - | - |
|
|
SRF0905A-400YCMC 40UH 900MA 2LN SMD AEC-Q200 |
4,113 | 1.62 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 800 Ohms @ 20 MHz | 40 µH @ 1 kHz | 900mA | 250mOhm | 80V | - | -40°C ~ 105°C | AEC-Q200 | - | - | - | - |
|
|
SRF1006-121YCMC 120UH 1.4A 2LN 200 OHM SMD |
790 | 1.60 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 200 Ohms @ 10 MHz | 120 µH @ 100 kHz | 1.4A | 25mOhm | 50V | - | -40°C ~ 105°C | - | - | - | - | - |
|
|
SU9VF-05030CMC 3MH 500MA 2LN TH |
445 | 1.82 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 3 mH @ 1 kHz | 500mA | 1Ohm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
|
SU9V-R03090CMC 9MH 300MA 2LN TH |
6,596 | 2.07 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 9 mH @ 1 kHz | 300mA | 3Ohm | - | 250V | -25°C ~ 125°C | - | - | - | - | - |
|
ECMT1V1717S-600-RCMC 60MH 400MA 2LN TH |
1,471 | 2.55 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 60 mH @ 1 kHz | 400mA | 3.3Ohm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|

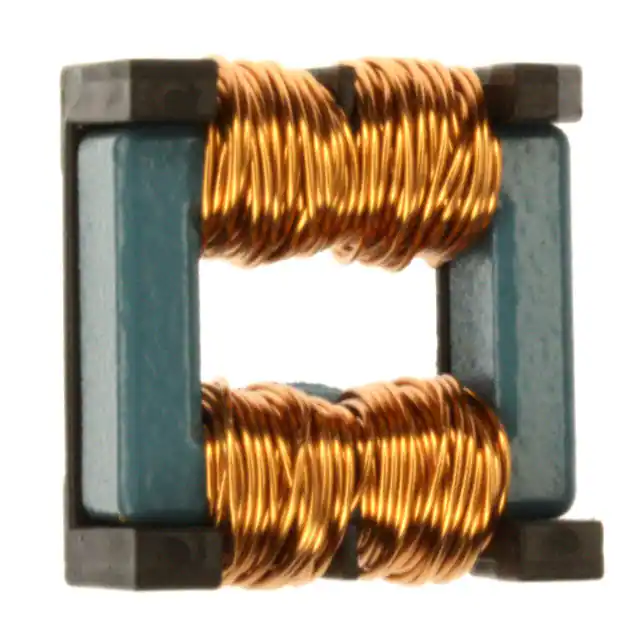

B82733F2192B001CMC 15MH 1.9A 2LN TH |
3,847 | 3.30 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 15 mH @ 10 kHz | 1.9A | 279mOhm (Typ) | - | 300V | -40°C ~ 125°C | - | ENEC, UR, VDE | - | - | - |
|
|
ACMP-7038-700-TCMC 15A 2LN 70 OHM SMD |
266 | 2.18 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | 70 Ohms @ 100 MHz | - | 15A | 5mOhm | 125V | - | -40°C ~ 125°C | - | - | - | - | - |
