Common Mode Chokes
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
.jpg)
|
PE-1206CCMC102STSCMC 230MA 2LN 1K OHM SMD |
4,242 | 0.94 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 1 kOhms @ 100 MHz | - | 230mA | 1Ohm | 50V | - | - | - | - | - | - | - |
|
PCMF2USB3B/CZCMC 4LN SMD ESD |
6,550 | 0.82 |
|
Datasheet |
10-UFBGA, WLCSP | Signal Line | 4 | - | - | - | 3Ohm (Typ) | - | - | -40°C ~ 85°C | - | - | TVS Diode ESD Protection | - | - |
|
ACE1V3225-201-RCMC 200UH 70MA 2LN SMD AEC-Q200 |
3,805 | 0.86 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | - | 200 µH @ 100 kHz | 70mA | 4.8Ohm | 80V | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
CM1210C113R-1ACMC 10UH 300MA 2LN 550OHM SMD |
106,433 | 1.17 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 550 Ohms @ 10 MHz | 10 µH @ 100 kHz | 300mA | 400mOhm | 80V | - | -55°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
|
PCMF2HDMI2BA-CZCMC 2LN SMD ESD |
5,387 | 0.92 |
|
Datasheet |
10-UFBGA, WLCSP | Signal Line | 2 | - | - | - | 2.2Ohm (Typ) | - | - | -40°C ~ 125°C | - | - | TVS Diode ESD Protection | - | - |
|
UU9LFNP-B472CMC 4.7MH 340MA 2LN TH |
1,738 | 0.00 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 4.7 mH @ 1 kHz | 340mA | 1.6Ohm | - | - | - | - | - | - | - | - |
|
784231091CMC 370MA 2LN 90OHM SMD AEC-Q200 |
1,309 | 0.91 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 90 Ohms @ 100 MHz | - | 370mA | 300mOhm | 50V | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
|
ACE1V3225-110-RCMC 11UH 300MA 2LN 500OHM SMD |
5,170 | 0.90 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 500 Ohms @ 10 MHz | 11 µH @ 100 kHz | 300mA | 400mOhm | 80V | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
PE-1210CCMC271STSCMC 2LN 270 OHM SMD |
3,763 | 1.01 |
|
Datasheet |
Horizontal, 4 PC Pad | - | 2 | 270 Ohms @ 100 MHz | - | - | 250mOhm | 50V | - | -40°C ~ 85°C | - | - | - | - | - |
|
ECMS1V0704-272-RCMC 1A 2LN 2.7K OHM SMD |
3,559 | 1.07 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | 2.7 kOhms @ 100 MHz | - | 1A | 63mOhm | 80V | - | -40°C ~ 125°C | - | - | - | - | - |
.jpg)
|
744231181CMC 330MA 2LN 180OHM SMD AECQ200 |
3,794 | 1.13 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 180 Ohms @ 100 MHz | - | 330mA | 350mOhm | 50V | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
ECMS1V0905-222-RCMC 3A 2LN 2.2K OHM SMD |
1,193 | 1.12 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | 2.2 kOhms @ 100 MHz | - | 3A | 50mOhm | 80V | - | -40°C ~ 125°C | - | - | - | - | - |
|

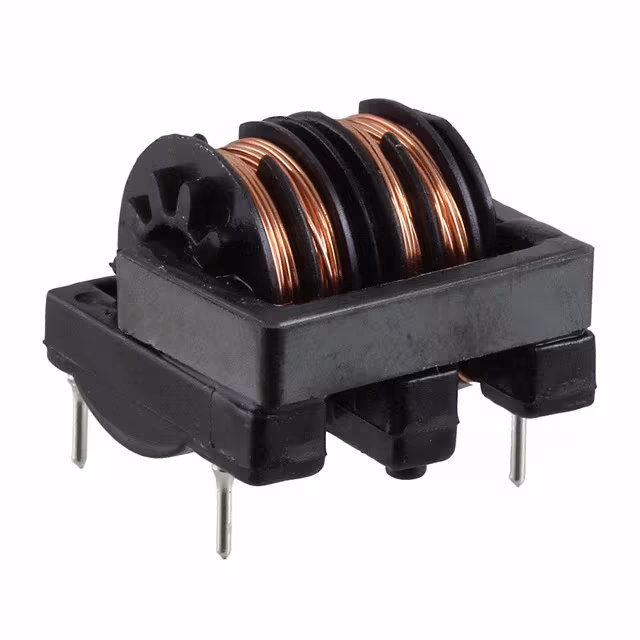

SS11H-07120-CHCMC 12MH 700MA 2LN TH |
4,092 | 2.12 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 12 mH @ 1 kHz | 700mA | 900mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
CM1210B104R-1ACMC 100UH 150MA 2LN 5.1KOHM SMD |
21,372 | 1.17 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 5.1 kOhms @ 10 MHz | 100 µH @ 100 kHz | 150mA | 1.5Ohm | 80V | - | -55°C ~ 150°C | AEC-Q200 | - | - | - | - |
|

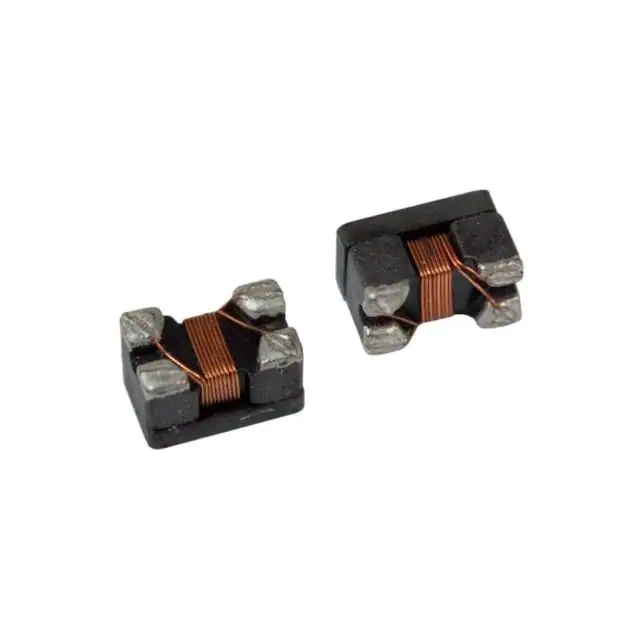

CM1210B223R-1ACMC 22UH 250MA 2LN 1.1KOHM SMD |
9,624 | 1.17 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 1.1 kOhms @ 10 MHz | 22 µH @ 100 kHz | 250mA | 500mOhm | 80V | - | -55°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
CM1812B223R-1ACMC 22UH 310MA 2LN 1.2KOHM SMD |
7,940 | 1.17 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 1.2 kOhms @ 10 MHz | 22 µH @ 100 kHz | 310mA | 1Ohm | 50V | - | -55°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
CM1812B113R-1ACMC 11UH 360MA 2LN 600OHM SMD |
7,816 | 1.17 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 600 Ohms @ 10 MHz | 11 µH @ 100 kHz | 360mA | 600mOhm | 50V | - | -55°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
SU9HF-02100CMC 10MH 200MA 2LN TH |
841 | 1.32 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 10 mH @ 1 kHz | 200mA | 4Ohm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
2752065447CMC 5A 2LN 230 OHM SMD |
8,099 | 1.21 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 230 Ohms @ 100 MHz | - | 5A | 4.1mOhm | - | - | -55°C ~ 125°C | - | - | - | - | - |
|
744230181CMC 400MA 2LN 180OHM SMD AECQ200 |
3,250 | 1.31 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 180 Ohms @ 100 MHz | - | 400mA | 210mOhm | 50V | - | -40°C ~ 105°C | AEC-Q200 | - | - | - | - |
