Current Sense Transformers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Frequency Range | Type | Current Rating (Amps) | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Current Ratio | DC Resistance (DCR) | Ratings | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

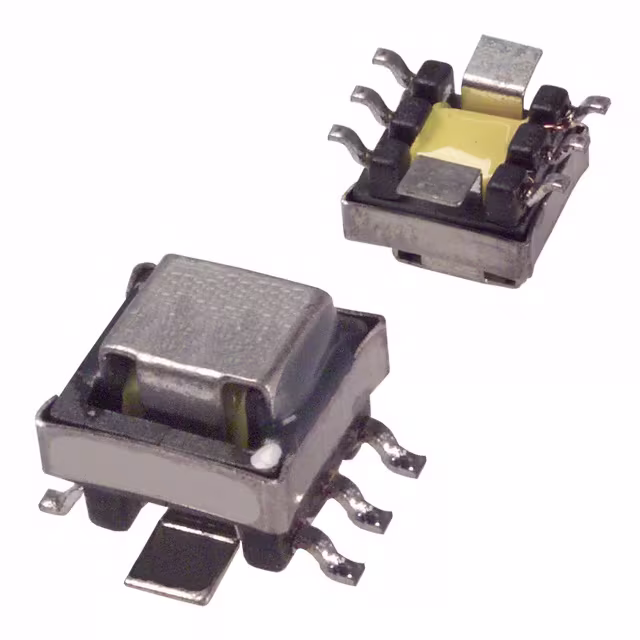

TCS-01CURR SENSE XFMR 1:20 SMD |
2,508 | 0.00 |
|
Datasheet |
TCS | Tape & Reel (TR) | Obsolete | 250kHz Min | Invasive | - | 80 µH | - | 1:20 | - | 6mOhm Primary, 550mOhm Secondary | - | Surface Mount | 0.276" L x 0.331" W (7.00mm x 8.40mm) | 0.205" (5.20mm) | Gull Wing |
|
|
TCS-02CURR SENSE XFMR 1:30 SMD |
4,910 | 0.00 |
|
Datasheet |
TCS | Tape & Reel (TR) | Obsolete | 250kHz Min | Invasive | - | 180 µH | - | 1:30 | - | 6mOhm Primary, 870mOhm Secondary | - | Surface Mount | 0.276" L x 0.331" W (7.00mm x 8.40mm) | 0.205" (5.20mm) | Gull Wing |
|
|
TCS-03CURR SENSE XFMR 1:40 SMD |
4,025 | 0.00 |
|
Datasheet |
TCS | Tape & Reel (TR) | Obsolete | 250kHz Min | Invasive | - | 320 µH | - | 1:40 | - | 6mOhm Primary, 1.14Ohm Secondary | - | Surface Mount | 0.276" L x 0.331" W (7.00mm x 8.40mm) | 0.205" (5.20mm) | Gull Wing |
|
|
TCS-05CURR SENSE XFMR 1:60 SMD |
4,397 | 0.00 |
|
Datasheet |
TCS | Tape & Reel (TR) | Obsolete | 250kHz Min | Invasive | - | 720 µH | - | 1:60 | - | 6mOhm Primary, 1.75Ohm Secondary | - | Surface Mount | 0.276" L x 0.331" W (7.00mm x 8.40mm) | 0.205" (5.20mm) | Gull Wing |
|
|
TCS-07CURR SENSE XFMR 1:100 SMD |
4,908 | 0.00 |
|
Datasheet |
TCS | Tape & Reel (TR) | Obsolete | 250kHz Min | Invasive | - | 2 mH | - | 1:100 | - | 6mOhm Primary, 5.9Ohm Secondary | - | Surface Mount | 0.276" L x 0.331" W (7.00mm x 8.40mm) | 0.205" (5.20mm) | Gull Wing |
|
|
TCS-08CURR SENSE XFMR 1:125 SMD |
2,352 | 0.00 |
|
Datasheet |
TCS | Tape & Reel (TR) | Obsolete | 250kHz Min | Invasive | - | 3 mH | - | 1:125 | - | 6mOhm Primary, 7.7Ohm Secondary | - | Surface Mount | 0.276" L x 0.331" W (7.00mm x 8.40mm) | 0.205" (5.20mm) | Gull Wing |
|

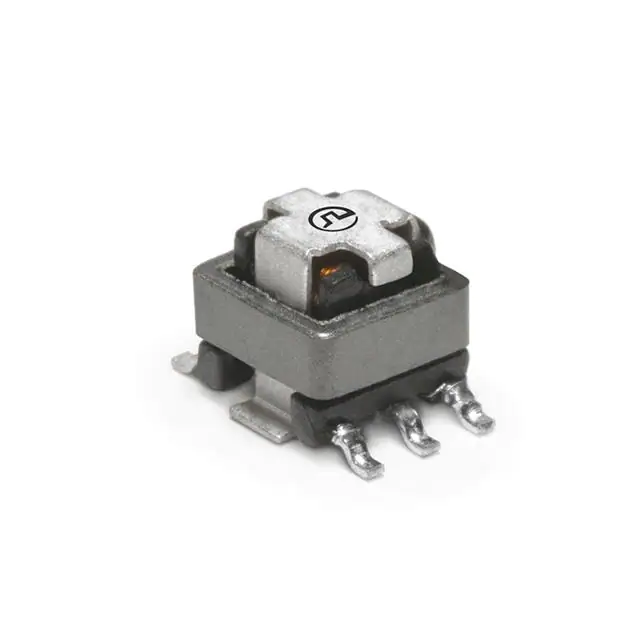

PA1005.060NLCURR SENSE XFMR 1:60 20A SMD |
4,037 | 1.12 |
|
Datasheet |
PA1005.XXXNL | Tray | Active | 20kHz ~ 1MHz | Invasive | 20 A | 720 µH | - | 1:60 | - | 0.75mOhm Primary, 2.5Ohm Secondary Max | - | Surface Mount | - | 0.217" (5.50mm) | Gull Wing |
|
|
PA1005.040NLCURR SENSE XFMR 1:40 20A SMD |
4,127 | 1.12 |
|
Datasheet |
PA1005.XXXNL | Tray | Active | 20kHz ~ 1MHz | Invasive | 20 A | 320 µH | - | 1:40 | - | 0.75mOhm Primary, 1.14Ohm Secondary Max | - | Surface Mount | - | 0.217" (5.50mm) | Gull Wing |
|
|
PA1005.030NLCURR SENSE XFMR 1:30 20A SMD |
3,526 | 1.12 |
|
Datasheet |
PA1005.XXXNL | Tray | Active | 20kHz ~ 1MHz | Invasive | 20 A | 180 µH | - | 1:30 | - | 0.75mOhm Primary, 870mOhm Secondary Max | - | Surface Mount | - | 0.217" (5.50mm) | Gull Wing |
|
PA1005.020NLCURR SENSE XFMR 1:20 20A SMD |
4,250 | 1.12 |
|
Datasheet |
PA1005.XXXNL | Tray | Active | 20kHz ~ 1MHz | Invasive | 20 A | 80 µH | - | 1:20 | - | 0.75mOhm Primary, 550mOhm Secondary Max | - | Surface Mount | - | 0.217" (5.50mm) | Gull Wing |
|
PA1005.040QNLCURR SENSE XFMR 1:40 20A SMD |
1,673 | 1.14 |
|
Datasheet |
- | Tray | Active | 50kHz ~ 1MHz | Invasive | 20 A | 320 µH | - | 1:40 | - | 0.75mOhm Primary, 1.14Ohm Secondary | AEC-Q200 | Surface Mount | 0.284" L x 0.330" W (7.21mm x 8.38mm) | 0.217" (5.50mm) | Gull Wing |
|
CS-1100-RCURR SENSE XFMR 20A T/H |
2,613 | 0.00 |
|
Datasheet |
CS | Bulk | Obsolete | 20kHz ~ 200kHz | Non-Invasive (Solid Core) | 20 A | 22.4 mH | - | - | 100:1 | 1.3Ohm | - | Through Hole | 0.675" L x 0.375" W (17.15mm x 9.53mm) | 0.800" (20.32mm) | PC Pin |
|
|
CS-1200-RCURR SENSE XFMR 40A T/H |
3,049 | 0.00 |
|
Datasheet |
CS | Bulk | Obsolete | 20kHz ~ 100kHz | Non-Invasive (Solid Core) | 40 A | 89.7 mH | - | - | 200:1 | 3.3Ohm | - | Through Hole | 0.675" L x 0.375" W (17.15mm x 9.53mm) | 0.800" (20.32mm) | PC Pin |
|
|
CS-1050-RCURR SENSE XFMR 10A T/H |
2,403 | 0.00 |
|
Datasheet |
CS | Bulk | Obsolete | 20kHz ~ 200kHz | Non-Invasive (Solid Core) | 10 A | 5.6 mH | - | - | 50:1 | 600mOhm | - | Through Hole | 0.675" L x 0.375" W (17.15mm x 9.53mm) | 0.800" (20.32mm) | PC Pin |
|
749252070CURR SENSE XFMR 1:70 7A SMD |
1,872 | 5.28 |
|
Datasheet |
WE-CST | Tape & Reel (TR) | Active | 1MHz | Invasive | 7 A | 400 µH | 31.5VµS | 1:70 | - | 3mOhm Primary, 4.6Ohm Secondary | - | Surface Mount | 0.185" L x 0.183" W (4.70mm x 4.65mm) | 0.140" (3.55mm) | Gull Wing |
|
AS-101CURR SENSE XFMR 1:100 15A T/H |
1,152 | 1.54 |
|
Datasheet |
AS | Tray | Active | 20kHz ~ 200kHz | Non-Invasive (Solid Core) | 15 A | 25 mH | 350VµS | 1:100 | - | 1.1Ohm Secondary | - | Through Hole | 0.677" L x 0.375" W (17.20mm x 9.53mm) | 0.803" (20.40mm) | PC Pin |
|

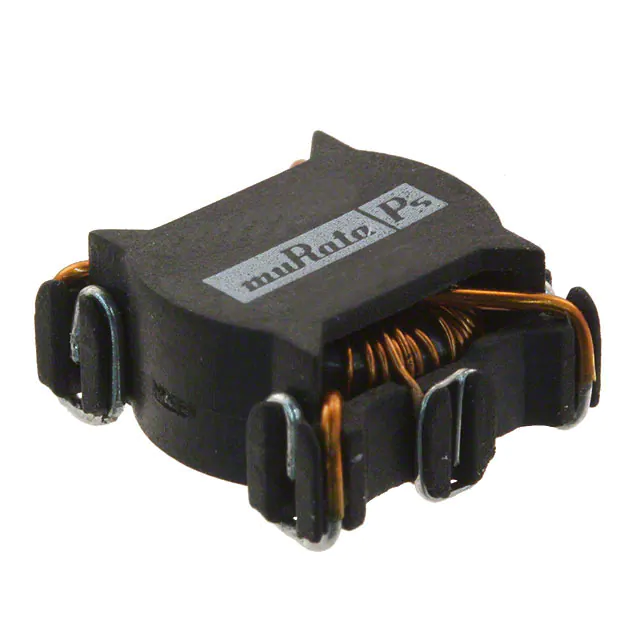

55050C-RCURR SENSE XFMR 1:1:50 15A SMD |
3,143 | 0.00 |
|
Datasheet |
5500 | Tape & Reel (TR) | Obsolete | 50kHz ~ 500kHz | Invasive | 15 A | 3.8 mH | - | 1:1:50 | - | 2.3mOhm Primary, 350mOhm Secondary | - | Surface Mount | 0.575" L x 0.496" W (14.60mm x 12.60mm) | 0.280" (7.10mm) | - |
|
|
AS-102CURR SENSE XFMR 1:200 15A T/H |
3,258 | 1.57 |
|
Datasheet |
AS | Tray | Active | 20kHz ~ 200kHz | Non-Invasive (Solid Core) | 15 A | - | 700VµS | 1:200 | - | 4.5Ohm Secondary | - | Through Hole | 0.677" L x 0.375" W (17.20mm x 9.53mm) | 0.803" (20.40mm) | PC Pin |
|
B82801A0185A150CURR SENSE XFMR 1:150 7A SMD |
1,865 | 0.00 |
|
Datasheet |
B82801A | Tape & Reel (TR) | Obsolete | 50kHz ~ 1MHz | Invasive | 7 A | 1.84 mH | 43.2VµS | 1:150 | - | 2.5mOhm Primary, 21Ohm Secondary | - | Surface Mount | 0.185" L x 0.138" W (4.70mm x 3.50mm) | 0.138" (3.50mm) | J Lead |
|
|
AS-103CURR SENSE XFMR 1:300 15A T/H |
2,548 | 1.63 |
|
Datasheet |
AS | Tray | Active | 20kHz ~ 200kHz | Non-Invasive (Solid Core) | 15 A | - | 900VµS | 1:300 | - | 10Ohm Secondary | - | Through Hole | 0.677" L x 0.375" W (17.20mm x 9.53mm) | 0.803" (20.40mm) | PC Pin |
