Current Sense Transformers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Frequency Range | Type | Current Rating (Amps) | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Current Ratio | DC Resistance (DCR) | Ratings | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AS-102CURR SENSE XFMR 15A 1:200 VRT |
3,755 | 1.57 |
|
Datasheet |
AS | Bulk | Active | - | - | - | - | - | - | - | - | - | - | 0.677" L x 0.375" W (17.20mm x 9.53mm) | 0.803" (20.40mm) | - |
|

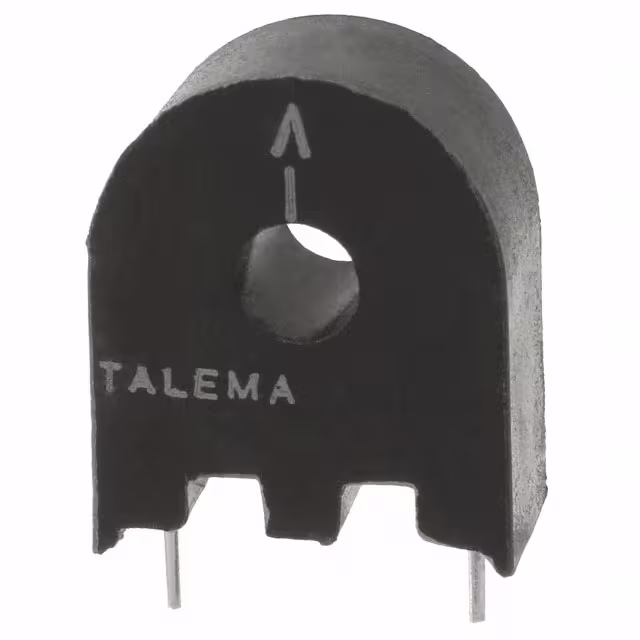

AX-0750CURR SENSE XFMR 7.5A T/H |
1,469 | 2.49 |
|
Datasheet |
AX | Tray | Active | 50Hz ~ 60Hz | Non-Invasive (Solid Core) | 7.5 A | - | - | - | 750:1 | - | - | Through Hole | 0.677" L x 0.375" W (17.20mm x 9.53mm) | 0.803" (20.40mm) | PC Pin |
|
PCS020-EE05180SCURRENT SENSE TRANSF 20A 180UH |
3,079 | 2.64 |
|
Datasheet |
PCS | Tape & Reel (TR) | Active | 1MHz | Invasive | 20 A | 180 mH | 16.2VµS | 1:30 | 30:1 | 7mOhm Primary, 870mOhm Secondary Max | - | Surface Mount | 0.245" L x 0.235" W (6.22mm x 5.97mm) | 0.209" (5.31mm) | Gull Wing |
|
|
PCS020-EE05980SCURRENT SENSE TRANSF 20A 980UH |
1,990 | 2.64 |
|
Datasheet |
PCS | Tape & Reel (TR) | Active | 1MHz | Invasive | 20 A | 980 mH | 37.8VµS | 1:70 | 70:1 | 7mOhm Primary, 4.75Ohm Secondary Max | - | Surface Mount | 0.245" L x 0.235" W (6.22mm x 5.97mm) | 0.209" (5.31mm) | Gull Wing |
|
|
PCS020-EE05500SCURRENT SENSE TRANSF 20A 500UH |
3,714 | 2.64 |
|
Datasheet |
PCS | Tape & Reel (TR) | Active | 1MHz | Invasive | 20 A | 500 mH | 27VµS | 1:50 | 50:1 | 7mOhm Primary, 1.5Ohm Secondary Max | - | Surface Mount | 0.245" L x 0.235" W (6.22mm x 5.97mm) | 0.209" (5.31mm) | Gull Wing |
|
|
AS-110CURR SENSE XFMR 15A 1:50CT VRT |
3,599 | 2.65 |
|
Datasheet |
AS | Bulk | Active | - | - | - | - | - | - | - | - | - | - | 0.677" L x 0.375" W (17.20mm x 9.53mm) | 0.803" (20.40mm) | - |
|

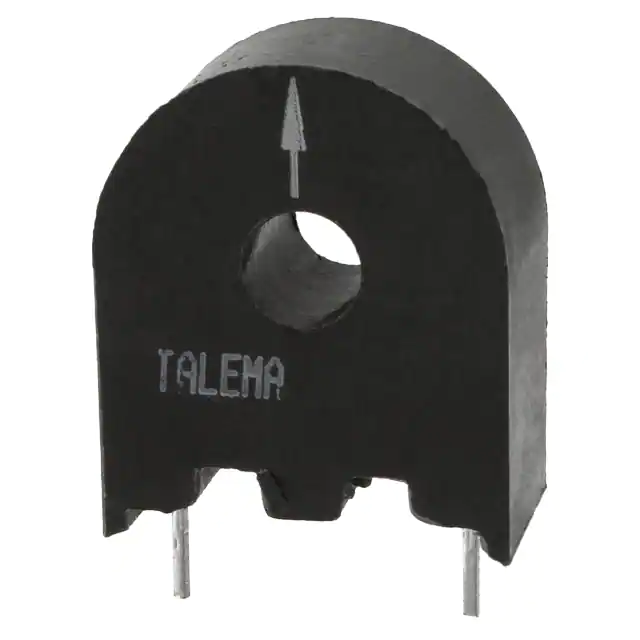

AX-1000CURR SENSE XFMR 10A T/H |
1,854 | 2.68 |
|
Datasheet |
AX | Tray | Active | 50Hz ~ 60Hz | Non-Invasive (Solid Core) | 10 A | - | - | - | 1000:1 | - | - | Through Hole | 0.677" L x 0.375" W (17.20mm x 9.53mm) | 0.803" (20.40mm) | PC Pin |
|
AS-114CURR SENSE XFMR 1:500CT 15A T/H |
1,472 | 2.71 |
|
Datasheet |
AS | Tray | Active | 20kHz ~ 200kHz | Non-Invasive (Solid Core) | - | 700 mH | 1500VµS | 1:500CT | - | 12.5Ohm Max | - | Through Hole | 0.677" L x 0.375" W (17.20mm x 9.53mm) | 0.803" (20.40mm) | PC Pin |
|
|
AS-113CURR SENSE XFMR 1:300CT 15A T/H |
4,801 | 2.71 |
|
Datasheet |
AS | Tray | Active | 20kHz ~ 200kHz | Non-Invasive (Solid Core) | - | 250 mH | 900VµS | 1:300CT | - | 5Ohm Max | - | Through Hole | 0.677" L x 0.375" W (17.20mm x 9.53mm) | 0.803" (20.40mm) | PC Pin |
|
|
T60404E4629X0074629X007 |
2,587 | 0.00 |
|
- |
- | Box | Active | - | Non-Invasive (Solid Core) | - | 105 H | - | 1:2000 | 2000:1 | 112Ohm | - | Free Hanging (In-Line) | 0.906" L x 0.433" W (23.00mm x 11.00mm) | 0.965" (24.50mm) | Wire Leads |
|
|
AS-400CURR SENSE XFMR 1A 1:100 VRT |
1,534 | 2.77 |
|
Datasheet |
AS | Bulk | Active | - | - | - | - | - | - | - | - | - | - | 0.701" L x 0.504" W (17.80mm x 12.80mm) | 0.787" (20.00mm) | - |
|
|
AS-104CURR SENSE XFMR 15A 1:500 VRT |
2,908 | 1.63 |
|
Datasheet |
AS | Bulk | Active | - | - | - | - | - | - | - | - | - | - | 0.677" L x 0.375" W (17.20mm x 9.53mm) | 0.803" (20.40mm) | - |
|
|
T60404E4624X5024624X502 |
4,939 | 0.00 |
|
- |
- | Box | Active | - | Non-Invasive (Solid Core) | 60 A | 116 H | - | 1:2500 | 2500:1 | 55Ohm | - | Through Hole | 1.220" L x 0.551" W (31.00mm x 14.00mm) | 1.240" (31.50mm) | PC Pin |
|
|
T60404E4624X0024624X002 |
2,970 | 0.00 |
|
- |
- | Box | Active | - | Non-Invasive (Solid Core) | - | 116 H | - | 1:2500 | 2500:1 | 52.4Ohm | - | Free Hanging (In-Line) | 1.201" L x 0.563" W (30.50mm x 14.30mm) | 1.220" (31.00mm) | Wire Leads |
|
|
T60404E4622X0024622X002 |
3,033 | 0.00 |
|
- |
- | Box | Active | - | Non-Invasive (Solid Core) | 20 A | 108 H | - | 1:2500 | 2500:1 | 50.9Ohm | - | Free Hanging (In-Line) | 1.102" L x 0.563" W (28.00mm x 14.30mm) | 1.181" (30.00mm) | Wire Leads |
|
AP-1500CURR SENSE XFMR 10A T/H |
1,256 | 2.81 |
|
Datasheet |
AP | Tray | Active | - | Non-Invasive (Solid Core) | 10 A | - | - | - | 1500:1 | 120Ohm Max | - | Through Hole | 0.677" L x 0.375" W (17.20mm x 9.53mm) | 0.803" (20.40mm) | PC Pin |
|
|
T60404A4658X0374658X037 |
4,182 | 0.00 |
|
- |
- | Box | Active | - | Non-Invasive (Solid Core) | - | 9 H | - | 1:1000 | 1:1000 | 50Ohm | - | Through Hole | 0.661" L x 0.354" W (16.80mm x 9.00mm) | 0.748" (19.00mm) | PC Pin |
|
|
PCS040-EF13340SCURRENT SENSE TRANSF 40A 340UH |
4,141 | 2.87 |
|
Datasheet |
PCS | Tape & Reel (TR) | Active | 1MHz | Invasive | 40 A | 340 µH | 50.8VµS | 1:20 | 20:1 | 1mOhm Primary, 180mOhm Secondary Max | - | Surface Mount | - | 0.413" (10.50mm) | Gull Wing |
|
|
PCS040-EF1304KSCURRENT SENSE TRANSF 40A 4160UH |
3,162 | 2.87 |
|
Datasheet |
PCS | Tape & Reel (TR) | Active | 1MHz | Invasive | 40 A | 4.16 mH | 177.8VµS | 1:70 | 70:1 | 1mOhm Primary, 1Ohm Secondary Max | - | Surface Mount | - | 0.413" (10.50mm) | Gull Wing |
|
|
PCS040-EF1308KSCURRENT SENSE TRANSF 40A 8500UH |
2,388 | 2.87 |
|
Datasheet |
PCS | Tape & Reel (TR) | Active | 1MHz | Invasive | 40 A | 8.5 mH | 254VµS | 1:100 | 100:1 | 1mOhm Primary, 1.45Ohm Secondary Max | - | Surface Mount | - | 0.413" (10.50mm) | Gull Wing |
