Current Sense Transformers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Frequency Range | Type | Current Rating (Amps) | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Current Ratio | DC Resistance (DCR) | Ratings | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
855-305/200-509CURR SENSE XFMR 200A CHAS MNT |
1,402 | 644.09 |
|
Datasheet |
- | Box | Active | 50Hz ~ 60Hz | Non-Invasive (Solid Core) | 200 A | - | - | - | - | - | - | Chassis Mount | 2.362" L x 1.378" W (60.00mm x 35.00mm) | 3.173" (80.60mm) | Terminal Block |
|
|
855-305/150-209CURR SENSE XFMR 150A CHAS MNT |
4,216 | 644.09 |
|
Datasheet |
- | Box | Active | 50Hz ~ 60Hz | Non-Invasive (Solid Core) | 150 A | - | - | - | - | - | - | Chassis Mount | 2.362" L x 1.378" W (60.00mm x 35.00mm) | 3.173" (80.60mm) | Terminal Block |
|
|
855-305/100-209CURR SENSE XFMR 100A CHAS MNT |
3,874 | 644.09 |
|
Datasheet |
- | Box | Active | 50Hz ~ 60Hz | Non-Invasive (Solid Core) | 100 A | - | - | - | - | - | - | Chassis Mount | 2.362" L x 1.378" W (60.00mm x 35.00mm) | 3.173" (80.60mm) | Terminal Block |
|
2438480000CMA-812-15-5A-7.5VA-0.5 |
1,724 | 0.00 |
|
Datasheet |
- | Box | Active | 50Hz | Non-Invasive (Split Core) | 1.5 kA | - | - | - | - | - | - | Chassis Mount | 6.102" L x 2.283" W (154.99mm x 57.99mm) | 7.795" (197.99mm) | Terminal Block |
|
|
855-305/750-509CURR SENSE XFMR 750A CHAS MNT |
3,999 | 724.93 |
|
Datasheet |
- | Box | Active | 50Hz ~ 60Hz | Non-Invasive (Solid Core) | 750 A | - | - | - | - | - | - | Chassis Mount | 2.362" L x 1.378" W (60.00mm x 35.00mm) | 3.173" (80.60mm) | Terminal Block |
|
|
855-305/600-509CURR SENSE XFMR 600A CHAS MNT |
1,820 | 724.93 |
|
Datasheet |
- | Box | Active | 50Hz ~ 60Hz | Non-Invasive (Solid Core) | 600 A | - | - | - | - | - | - | Chassis Mount | 2.362" L x 1.378" W (60.00mm x 35.00mm) | 3.173" (80.60mm) | Terminal Block |
|
855-405/600-509CURR SENSE XFMR 600A CHAS MNT |
4,107 | 681.05 |
|
Datasheet |
- | Box | Active | 50Hz ~ 60Hz | Non-Invasive (Solid Core) | 600 A | - | - | - | - | - | - | Chassis Mount | 2.756" L x 1.378" W (70.00mm x 35.00mm) | 3.589" (91.15mm) | Terminal Block |
|
|
855-405/750-509CURR SENSE XFMR 750A CHAS MNT |
2,072 | 681.05 |
|
Datasheet |
- | Box | Active | 50Hz ~ 60Hz | Non-Invasive (Solid Core) | 750 A | - | - | - | - | - | - | Chassis Mount | 2.756" L x 1.378" W (70.00mm x 35.00mm) | 3.589" (91.15mm) | Terminal Block |
|
|
2656290000KCMA-RCM-812D |
1,042 | 0.00 |
|
Datasheet |
- | Box | Active | 50Hz | Non-Invasive (Split Core) | 18 A | - | - | - | - | - | - | DIN Rail | 6.102" L x 2.283" W (154.99mm x 57.99mm) | 7.795" (197.99mm) | Terminal Block |
|
|
RA 2000-S/SP2TRANSDUCER |
1,994 | 0.00 |
|
- |
RA | Bulk | Active | 20Hz ~ 3kHz | Non-Invasive (Solid Core) | 4 A | - | - | Rogowski Coil | - | - | - | Chassis Mount | 5.512" L x 8.465" W (140.00mm x 215.00mm) | 8.780" (223.00mm) | Terminal Block |
|
|
RA 2000-S/SP4TRANSDUCER |
1,842 | 0.00 |
|
- |
RA | Bulk | Active | 20Hz ~ 3kHz | Non-Invasive (Solid Core) | 4 A | - | - | Rogowski Coil | - | - | - | Chassis Mount | 5.512" L x 8.465" W (140.00mm x 215.00mm) | 8.780" (223.00mm) | Terminal Block |
|
|
RA 2000-S/SP3TRANSDUCER |
2,232 | 0.00 |
|
- |
RA | Bulk | Active | 20Hz ~ 3kHz | Non-Invasive (Solid Core) | 4 A | - | - | Rogowski Coil | - | - | - | Chassis Mount | 5.512" L x 8.465" W (140.00mm x 215.00mm) | 8.780" (223.00mm) | Terminal Block |
|
|
RA 2000-T/SP2TRANSDUCER |
4,634 | 0.00 |
|
- |
RA | Bulk | Active | 20Hz ~ 3kHz | Non-Invasive (Solid Core) | 4 A | - | - | Rogowski Coil | - | - | - | Chassis Mount | 5.512" L x 8.465" W (140.00mm x 215.00mm) | 8.780" (223.00mm) | Terminal Block |
|
7201CURR SENSE XFMR 10A UNI TH |
3,472 | 1.14 |
|
Datasheet |
7200 | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | 0.748" L x 0.433" W (19.00mm x 11.00mm) | 0.791" (20.10mm) | - |
|
7202CURR SENSE XFMR 20A UNI TH |
2,460 | 1.36 |
|
Datasheet |
7200 | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | 0.748" L x 0.433" W (19.00mm x 11.00mm) | 0.791" (20.10mm) | - |
|
7203CURR SENSE XFMR 35A UNI TH |
4,884 | 1.94 |
|
Datasheet |
7200 | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | 0.748" L x 0.433" W (19.00mm x 11.00mm) | 0.791" (20.10mm) | - |
|

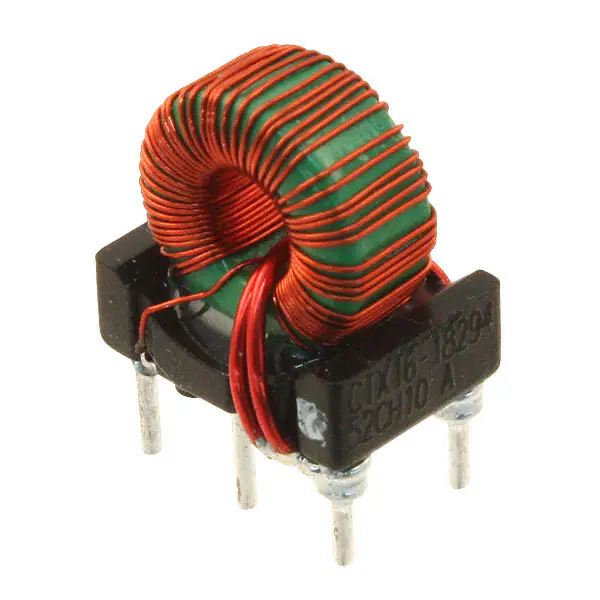

CTX16-18294-RCURR SENSE XFMR T/H |
4,042 | 0.00 |
|
- |
- | Bulk | Active | - | - | - | 8.25 mH | - | - | - | - | - | Through Hole | - | - | PC Pin |
|
55050CCURR SENSE XFMR 1:1:50 15A SMD |
4,557 | 0.00 |
|
Datasheet |
5500 | Tube | Obsolete | 50kHz ~ 500kHz | Invasive | - | 3.8 mH | - | 1:1:50 | - | 2.3mOhm Primary, 350mOhm Secondary | - | Surface Mount | 0.496" L x 0.575" W (12.60mm x 14.60mm) | 0.280" (7.10mm) | - |
|

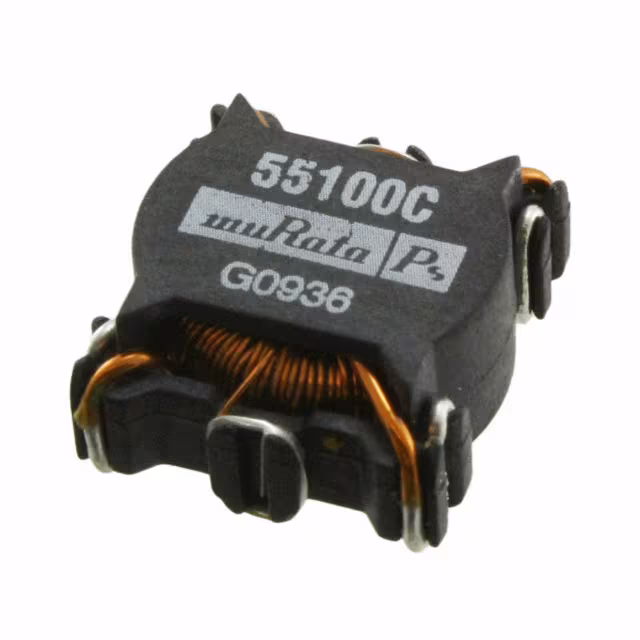

55100CCURR SENSE XFMR 1:1:100 15A SMD |
1,660 | 0.00 |
|
Datasheet |
5500 | Tube | Obsolete | 50kHz ~ 500kHz | Invasive | - | 14.8 mH | - | 1:1:100 | - | 2.3mOhm Primary, 850mOhm Secondary | - | Surface Mount | 0.496" L x 0.575" W (12.60mm x 14.60mm) | 0.280" (7.10mm) | - |
|
55200CCURR SENSE XFMR 1:1:200 15A SMD |
1,628 | 0.00 |
|
Datasheet |
5500 | Tube | Obsolete | 50kHz ~ 500kHz | Invasive | - | 60 mH | - | 1:1:200 | - | 2.3mOhm Primary, 3.6Ohm Secondary | - | Surface Mount | 0.496" L x 0.575" W (12.60mm x 14.60mm) | 0.280" (7.10mm) | - |
