Current Sense Transformers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Frequency Range | Type | Current Rating (Amps) | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Current Ratio | DC Resistance (DCR) | Ratings | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ENVOY AC-OC (5A)CURR SENSE XFMR 5A IN-LINE |
2,938 | 0.00 |
|
- |
- | Box | Obsolete | 20Hz ~ 30kHz | Non-Invasive (Split Core) | - | - | - | - | - | - | - | Free Hanging (In-Line) | - | - | Wire Leads with Connector |
|
|
ENVOY AC-OC (100A)CURR SENSE XFMR 100A IN-LINE |
4,076 | 81.60 |
|
- |
- | Box | Obsolete | 20Hz ~ 30kHz | Non-Invasive (Split Core) | - | - | - | - | - | - | - | Free Hanging (In-Line) | - | - | Wire Leads with Connector |
|
|
ENVOY AC-OC (200A)CURR SENSE XFMR 200A IN-LINE |
2,568 | 81.60 |
|
- |
- | Box | Obsolete | 20Hz ~ 30kHz | Non-Invasive (Split Core) | - | - | - | - | - | - | - | Free Hanging (In-Line) | - | - | Wire Leads with Connector |
.jpg)
|
ENVOY AC (1A)CURR SENSE XFMR 1A IN-LINE |
3,611 | 0.00 |
|
- |
- | Box | Obsolete | 2Hz ~ 50kHz | Non-Invasive (Solid Core) | - | - | - | - | - | - | - | Free Hanging (In-Line) | - | - | Wire Leads with Connector |
|
|
ENVOY AC (10A)CURR SENSE XFMR 10A IN-LINE |
1,350 | 0.00 |
|
- |
- | Box | Obsolete | 2Hz ~ 50kHz | Non-Invasive (Solid Core) | - | - | - | - | - | - | - | Free Hanging (In-Line) | - | - | Wire Leads with Connector |
|
|
ENVOY AC (60A)CURR SENSE XFMR 60A IN-LINE |
2,921 | 0.00 |
|
- |
- | Box | Obsolete | 2Hz ~ 50kHz | Non-Invasive (Solid Core) | - | - | - | - | - | - | - | Free Hanging (In-Line) | - | - | Wire Leads with Connector |
|
|
ENVOY AC (100A)CURR SENSE XFMR 100A IN-LINE |
1,552 | 0.00 |
|
- |
- | Box | Obsolete | 2Hz ~ 50kHz | Non-Invasive (Solid Core) | - | - | - | - | - | - | - | Free Hanging (In-Line) | - | - | Wire Leads with Connector |
|
PA1005.030QNLTCURR SENSE XFMR 1:30 20A SMD |
2,000 | 0.00 |
|
Datasheet |
PA1005QNL | Tape & Reel (TR) | Active | 50kHz ~ 1MHz | Invasive | 20 A | 180 µH | - | 1:30 | - | 0.75mOhm Primary, 870mOhm Secondary Max | AEC-Q200 | Surface Mount | 0.284" L x 0.330" W (7.21mm x 8.38mm) | 0.217" (5.50mm) | Gull Wing |
|
P8205NLCURR SENSE XFMR 1:50 SMD |
4,342 | 0.00 |
|
- |
P820X | Bag | Active | 20kHz ~ 1MHz | Invasive | 10 A | 500 µH | - | 50:1 | - | 6mOhm Primary, 1.5Ohm Secondary | - | Surface Mount | 0.284" L x 0.330" W (7.21mm x 8.38mm) | 0.217" (5.50mm) | Gull Wing |
|
|
B78418A1974A003CURR SENSE XFMR |
2,713 | 0.00 |
|
- |
- | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
B78419A9394A003CURR SENSE XFMR |
3,540 | 0.00 |
|
- |
- | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
B78555A9346A003CURR SENSE XFMR CUSTOM |
4,559 | 0.00 |
|
- |
* | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
ACT07-4319CURR SENSE XFMR 1:2500 30A TH |
3,175 | 10.25 |
|
Datasheet |
- | Tray | Active | 50Hz ~ 60Hz | Non-Invasive (Solid Core) | 30 A | - | - | 1:2500 | 2500:1 | 155Ohm | - | Through Hole | 0.925" L x 0.453" W (23.50mm x 11.50mm) | 0.984" (25.00mm) | PC Pin |
|
PAS6322.030NLTCURR SENSE XFMR 1:30 50A SMD |
1,198 | 0.00 |
|
Datasheet |
PAS6322.XXXNLT | Tape & Reel (TR) | Active | 20kHz ~ 1MHz | Invasive | 50 A | 400 µH | - | 1:30 | - | 0.5mOhm Primary, 240mOhm Secondary Max | - | Surface Mount | 0.122" L x 0.252" W (3.10mm x 6.40mm) | 0.029" (0.73mm) | Gull Wing |
|
|
PAS6322.125NLTCURR SENSE XFMR 1:125 50A SMD |
3,466 | 0.00 |
|
Datasheet |
PAS6322.XXXNLT | Tape & Reel (TR) | Active | 20kHz ~ 1MHz | Invasive | 50 A | 7 mH | - | 1:125 | - | 0.5mOhm Primary, 4.2Ohm Secondary Max | - | Surface Mount | 0.122" L x 0.252" W (3.10mm x 6.40mm) | 0.029" (0.73mm) | Gull Wing |
|
|
ATO-63-B333-D10/SP100CURR SENSE XFMR 63A CHAS MNT |
4,736 | 0.00 |
|
- |
ATO | Bulk | Obsolete | 50Hz ~ 60Hz | Non-Invasive (Split Core) | 63 A | - | - | - | - | - | - | Chassis Mount | 1.319" L x 1.260" W (33.50mm x 32.00mm) | 1.791" (45.50mm) | Wire Leads |
|
|
ATO-50-B225-D10CURR SENSE XFMR 50A CHAS MNT |
4,285 | 0.00 |
|
- |
ATO | Bulk | Obsolete | 50Hz ~ 60Hz | Non-Invasive (Split Core) | 50 A | - | - | - | - | - | - | Chassis Mount | 1.319" L x 1.260" W (33.50mm x 32.00mm) | 1.791" (45.50mm) | Wire Leads |
|
|
ATO-100-B225-D16CURR SENSE XFMR 100A CHAS MNT |
2,215 | 0.00 |
|
- |
ATO | Bulk | Obsolete | 50Hz ~ 60Hz | Non-Invasive (Split Core) | 100 A | - | - | - | - | - | - | Chassis Mount | 1.606" L x 1.307" W (40.80mm x 33.20mm) | 2.209" (56.10mm) | Wire Leads |
|
|
ATO-16-B225-D10CURR SENSE XFMR 16A CHAS MNT |
1,221 | 0.00 |
|
- |
ATO | Bulk | Obsolete | 50Hz ~ 60Hz | Non-Invasive (Split Core) | 16 A | - | - | - | - | - | - | Chassis Mount | 1.319" L x 1.260" W (33.50mm x 32.00mm) | 1.791" (45.50mm) | Wire Leads |
|

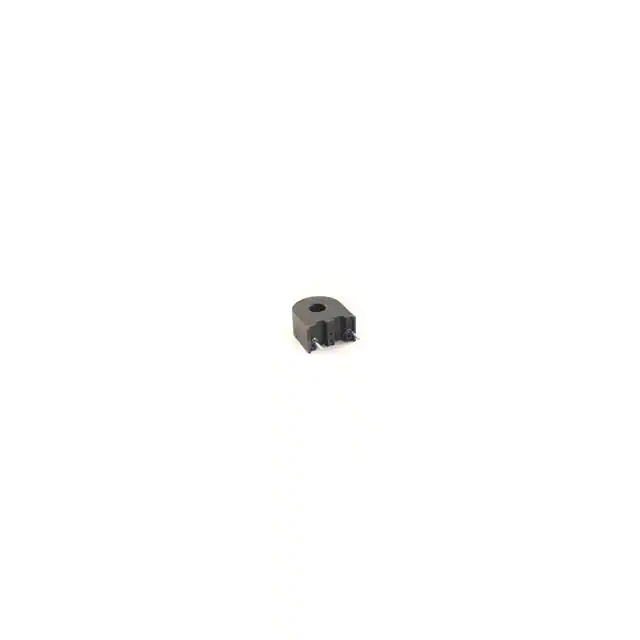

ACT05T02-30-040CURR SENSE XFMR 1:750 30A TH |
2,462 | 3.75 |
|
Datasheet |
- | Box | Active | 20kHz ~ 50kHz | Non-Invasive (Solid Core) | 30 A | 1.125 H | - | 1:750 | 750:1 | 35Ohm | - | Through Hole | 0.709" L x 0.394" W (18.00mm x 10.00mm) | 0.827" (21.00mm) | PC Pin |
