Digital Isolators
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Type | Isolated Power | Number of Channels | Inputs - Side 1/Side 2 | Channel Type | Voltage - Isolation | Common Mode Transient Immunity (Min) | Data Rate | Propagation Delay tpLH / tpHL (Max) | Pulse Width Distortion (Max) | Rise / Fall Time (Typ) | Voltage - Supply | Grade | Qualification | Operating Temperature | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ISO7762QDWQ1DGTL ISO 5000VRMS 6CH 16SOIC |
136 | 6.03 |
|
Datasheet |
- | 16-SOIC (0.295", 7.50mm Width) | Tube | Last Time Buy | Capacitive Coupling | General Purpose | No | 6 | 4/2 | Unidirectional | 5000Vrms | 85kV/µs | 100Mbps | 16ns, 16ns | 4.9ns | 1.1ns, 1.4ns | 2.25V ~ 5.5V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 16-SOIC |
|
|
ISO7763FQDWQ1DGTL ISO 5000VRMS 6CH 16SOIC |
106 | 6.03 |
|
Datasheet |
- | 16-SOIC (0.295", 7.50mm Width) | Tube | Last Time Buy | Capacitive Coupling | General Purpose | No | 6 | 3/3 | Unidirectional | 5000Vrms | 85kV/µs | 100Mbps | 16ns, 16ns | 4.9ns | 1.1ns, 1.4ns | 2.25V ~ 5.5V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 16-SOIC |
|
ISO722DDGTL ISO 2500VRMS 1CH GP 8SOIC |
1,762 | 1.00 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tube | Obsolete | Capacitive Coupling | General Purpose | No | 1 | 1/0 | Unidirectional | 2500Vrms | 25kV/µs | 100Mbps | 24ns, 24ns | 2ns | 1ns, 1ns | 3V ~ 5.5V | - | - | -40°C ~ 125°C | Surface Mount | 8-SOIC |
|
|
ISO7231ADWDGTL ISO 4000VPK 3CH GP 16SOIC |
545 | 1.00 |
|
Datasheet |
- | 16-SOIC (0.295", 7.50mm Width) | Tube | Obsolete | Capacitive Coupling | General Purpose | No | 3 | 2/1 | Unidirectional | 4000Vpk | 25kV/µs | 1Mbps | 95ns, 95ns | 10ns | 2ns, 2ns | 3.15V ~ 5.5V | - | - | -40°C ~ 125°C | Surface Mount | 16-SOIC |
|

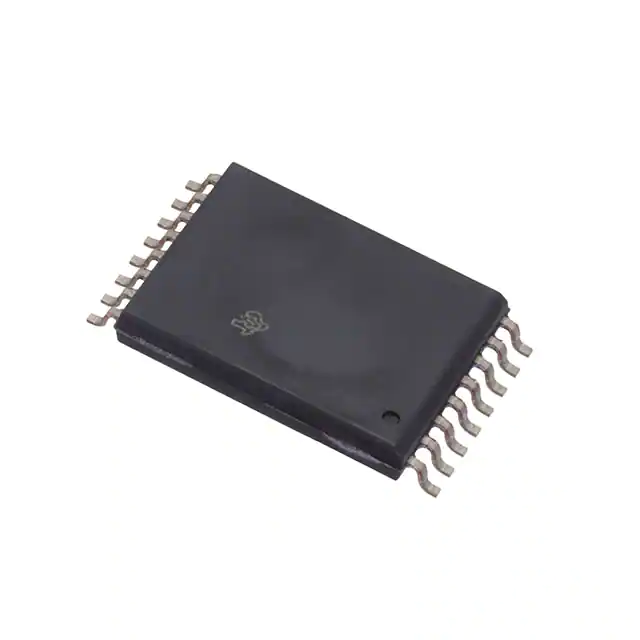

ISO7741QDWWQ1AUTO DGT ISO 4CH WIDE DWW PKG |
4,931 | 6.19 |
|
Datasheet |
- | 16-SOIC (0.551", 14.00mm Width) | Tube | Last Time Buy | Capacitive Coupling | General Purpose | No | 4 | 3/1 | Unidirectional | 5700Vrms | 85kV/µs | 100Mbps | 16ns, 16ns | 4.9ns | 2.4ns, 2.4ns | 2.25V ~ 5.5V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 16-SOIC |
|
ISO7741FQDWWQ1AUTO DGT ISO 4CH WIDE DWW PKG |
2,041 | 6.19 |
|
Datasheet |
- | 16-SOIC (0.551", 14.00mm Width) | Tube | Last Time Buy | Capacitive Coupling | General Purpose | No | 4 | 3/1 | Unidirectional | 5700Vrms | 85kV/µs | 100Mbps | 16ns, 16ns | 4.9ns | 2.4ns, 2.4ns | 2.25V ~ 5.5V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 16-SOIC |
|
|
ADUM3471WARSZ-RL7DGTL ISO 2500VRMS 4CH GP 20SSOP |
3,474 | 7.03 |
|
Datasheet |
- | 20-SSOP (0.209", 5.30mm Width) | Tape & Reel (TR) | Active | Magnetic Coupling | General Purpose | No | 4 | 3/1 | Unidirectional | 2500Vrms | 25kV/µs | 1Mbps | 100ns, 100ns | 40ns | 2.5ns, 2.5ns | 3V ~ 3.6V, 4.5V ~ 5.5V | Automotive | - | -40°C ~ 105°C | Surface Mount | 20-SSOP |
|
ADUM1301WTRWZ-RLDGTL ISO 2500VRMS 3CH GP 16SOIC |
4,974 | 1.00 |
|
Datasheet |
- | 16-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Magnetic Coupling | General Purpose | No | 3 | 2/1 | Unidirectional | 2500Vrms | 25kV/µs | 10Mbps | 32ns, 32ns | 3ns | 2.5ns, 2.5ns | 3V ~ 5.5V | Automotive | - | -40°C ~ 125°C | Surface Mount | 16-SOIC |
|
ADUM140D0BRQZ-RL7DGTL ISO 3000VRMS 4CH GP 16QSOP |
1,451 | 4.44 |
|
Datasheet |
iCoupler® | 16-SSOP (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Magnetic Coupling | General Purpose | No | 4 | 4/0 | Unidirectional | 3000Vrms | 75kV/µs | 150Mbps | 13ns, 13ns | 3ns | 2.5ns, 2.5ns | 1.7V ~ 5.5V | - | - | -40°C ~ 125°C | Surface Mount | 16-QSOP |
|
ADUM1401WTRWZ35-RLADUM1401 - QUAD-CHANNEL DIGITAL |
394 | 1.00 |
|
Datasheet |
* | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
NSI8221W0-DSWWR2CH REINFORCED 15MM DGTL ISO |
900 | 0.00 |
|
Datasheet |
NSI822x | 16-SOIC (0.551", 14.00mm Width) | Cut Tape (CT) | Active | Capacitive Coupling | General Purpose | No | 2 | - | Unidirectional | 8000Vrms | 200kV/µs | 150Mbps | 15ns, 15ns | 5ns | 5ns, 5ns | 2.5V ~ 5.5V | - | - | -55°C ~ 125°C | Surface Mount | 16-SOWW |
|
|
SI8622ED-ASAUTOMOTIVE 5 KV 1 FORWARD & 1 RE |
931 | 0.00 |
|
Datasheet |
- | 16-SOIC (0.295", 7.50mm Width) | Tube | Active | Capacitive Coupling | General Purpose | Yes | 2 | 1/1 | Unidirectional | 5000Vrms | 35kV/µs | 150Mbps | 13ns, 13ns | 4.5ns | 2.5ns, 2.5ns | 2.5V ~ 5.5V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 16-SOIC |
|
|
SI8622BD-ASAUTOMOTIVE 5 KV 1 FORWARD & 1 RE |
818 | 0.00 |
|
Datasheet |
- | 16-SOIC (0.295", 7.50mm Width) | Tube | Active | Capacitive Coupling | General Purpose | Yes | 2 | 1/1 | Unidirectional | 5000Vrms | 35kV/µs | 150Mbps | 13ns, 13ns | 4.5ns | 2.5ns, 2.5ns | 2.5V ~ 5.5V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 16-SOIC |
|
|
ISO721DDGTL ISO 2500VRMS 1CH GP 8SOIC |
4,522 | 5.83 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tube | Obsolete | Capacitive Coupling | General Purpose | No | 1 | 1/0 | Unidirectional | 2500Vrms | 25kV/µs | 100Mbps | 24ns, 24ns | 2ns | 1ns, 1ns | 3V ~ 5.5V | - | - | -40°C ~ 125°C | Surface Mount | 8-SOIC |
|
|
ADUM1400BRWDGTL ISO 2500VRMS 4CH GP 16SOIC |
3,332 | 0.00 |
|
Datasheet |
iCoupler® | 16-SOIC (0.295", 7.50mm Width) | Bulk | Active | Magnetic Coupling | General Purpose | No | 4 | 4/0 | Unidirectional | 2500Vrms | 25kV/µs | 10Mbps | 50ns, 50ns | 3ns | 2.5ns, 2.5ns | 2.7V ~ 5.5V | - | - | -40°C ~ 105°C | Surface Mount | 16-SOIC |
|
|
NSI83086E-DSWRISO FULL DUPLEX RS-485 TRX |
1,960 | 0.00 |
|
Datasheet |
NSI8308x | 16-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Capacitive Coupling | General Purpose | No | 2 | 1/1 | Unidirectional | 5000Vrms | 100kV/µs | 150Mbps | 50ns, 50ns | 10ns | - | 2.5V ~ 5.5V | - | - | -55°C ~ 125°C | Surface Mount | 16-SOIC |
|
|
SI8642BD-ASAUTOMOTIVE 5 KV 2 FORWARD & 2 RE |
498 | 0.00 |
|
Datasheet |
Si864x | 16-SOIC (0.295", 7.50mm Width) | Tube | Active | Capacitive Coupling | General Purpose | Yes | 4 | 2/2 | Unidirectional | 5000Vrms | 35kV/µs | 150Mbps | 13ns, 13ns | 4.5ns | 2.5ns, 2.5ns | 2.375V ~ 5.5V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 16-SOIC |
|
|
ADUM3300WBRWZ-RLDGTL ISO 2500VRMS 3CH GP 16SOIC |
3,309 | 5.62 |
|
- |
- | 16-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Magnetic Coupling | General Purpose | No | 3 | 3/0 | Unidirectional | 2500Vrms | 25kV/µs | 10Mbps | 50ns, 50ns | 3ns | 2.5ns, 2.5ns | 3V ~ 5.5V | Automotive | - | -40°C ~ 105°C | Surface Mount | 16-SOIC |
|
|
ISO1541QDQ1AUTO ISO I2C 2500VRMS 2CH 8SOIC |
244 | 1.00 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tube | Last Time Buy | Capacitive Coupling | I2C | No | 2 | 2/1 | Bidirectional, Unidirectional | 2500Vrms | 25kV/µs | 1Mbps | - | 80ns, 21ns | - | 3V ~ 5.5V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 8-SOIC |
|
SI8441BB-D-IS1DGTL ISO 2500VRMS 4CH GP 16SOIC |
459 | 5.15 |
|
Datasheet |
- | 16-SOIC (0.154", 3.90mm Width) | Tube | Not For New Designs | Capacitive Coupling | General Purpose | No | 4 | 3/1 | Unidirectional | 2500Vrms | 25kV/µs (Typ) | 150Mbps | 9.5ns, 9.5ns | 2.5ns | 3.8ns, 2.8ns | 2.7V ~ 5.5V | - | - | -40°C ~ 125°C | Surface Mount | 16-SOIC |
