Digital Isolators
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Type | Isolated Power | Number of Channels | Inputs - Side 1/Side 2 | Channel Type | Voltage - Isolation | Common Mode Transient Immunity (Min) | Data Rate | Propagation Delay tpLH / tpHL (Max) | Pulse Width Distortion (Max) | Rise / Fall Time (Typ) | Voltage - Supply | Grade | Qualification | Operating Temperature | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ADUM5400ARWZ-RLDGTL ISO 2500VRMS 4CH GP 16SOIC |
4,858 | 8.86 |
|
Datasheet |
IsoPower®, iCoupler® | 16-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Magnetic Coupling | General Purpose | Yes | 4 | 4/0 | Unidirectional | 2500Vrms | 25kV/µs | 1Mbps | 100ns, 100ns | 40ns | 2.5ns, 2.5ns | 4.5V ~ 5.5V | - | - | -40°C ~ 105°C | Surface Mount | 16-SOIC |
|
|
ADUM1310BRWZ-RLDGTL ISO 3750VRMS 3CH GP 16SOIC |
1,791 | 3.30 |
|
Datasheet |
iCoupler® | 16-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Magnetic Coupling | General Purpose | No | 3 | 3/0 | Unidirectional | 3750Vrms | 25kV/µs | 10Mbps | 50ns, 50ns | 5ns | 2.5ns, 2.5ns | 2.7V ~ 5.5V | - | - | -40°C ~ 105°C | Surface Mount | 16-SOIC |
|
|
ADUM3301BRWZ-RLDGTL ISO 2500VRMS 3CH GP 16SOIC |
1,380 | 3.83 |
|
Datasheet |
iCoupler® | 16-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Magnetic Coupling | General Purpose | No | 3 | 2/1 | Unidirectional | 2500Vrms | 25kV/µs | 10Mbps | 50ns, 50ns | 3ns | 2.5ns, 2.5ns | 3V ~ 5.5V | - | - | -40°C ~ 105°C | Surface Mount | 16-SOIC |
|
ADUM4471ARIZ-RLDGTL ISO 5000VRMS 4CH GP 20SOIC |
4,527 | 7.92 |
|
Datasheet |
IsoPower®, iCoupler® | 20-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Magnetic Coupling | General Purpose | Yes | 4 | 3/1 | Unidirectional | 5000Vrms | 25kV/µs | 1Mbps | 100ns, 100ns | 40ns | 2.5ns, 2.5ns | 3V ~ 3.6V, 4.5V ~ 5.5V | - | - | -40°C ~ 105°C | Surface Mount | 20-SOIC-IC |
|
ADM2567EBRNZ-RL73.75KV ISOLATED RS485 25MBPS FD |
1,495 | 10.61 |
|
Datasheet |
iCoupler® | 28-BSSOP (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Magnetic Coupling | RS422, RS485 | Yes | 4 | 1/3 | Unidirectional | 3000Vrms | 250kV/µs | 25Mbps | 25ns, 25ns | - | 4.5ns, 4.5ns | 3V ~ 5.5V | - | - | -40°C ~ 105°C | Surface Mount | 28-SOIC-W-FP |
|
ISO7240MDWDGTL ISO 2500VRMS 4CH GP 16SOIC |
115 | 8.20 |
|
Datasheet |
- | 16-SOIC (0.295", 7.50mm Width) | Tube | Obsolete | Capacitive Coupling | General Purpose | No | 4 | 4/0 | Unidirectional | 2500Vrms | 25kV/µs | 150Mbps | 23ns, 23ns | 2ns | 2ns, 2ns | 3.15V ~ 5.5V | - | - | -40°C ~ 125°C | Surface Mount | 16-SOIC |
|
|
ADUM2210WSRWZ-RLDGTL ISO 5000VRMS 2CH GP 16SOIC |
4,894 | 4.07 |
|
Datasheet |
- | 16-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Magnetic Coupling | General Purpose | No | 2 | 2/0 | Unidirectional | 5000Vrms | 25kV/µs | 1Mbps | 150ns, 150ns | 40ns | 10ns, 10ns | 3V ~ 5.5V | Automotive | - | -40°C ~ 125°C | Surface Mount | 16-SOIC |
|
|
ADUM3470WCRSZ-RL7DGTL ISO 2500VRMS 4CH GP 20SSOP |
2,988 | 8.99 |
|
Datasheet |
- | 20-SSOP (0.209", 5.30mm Width) | Tape & Reel (TR) | Active | Magnetic Coupling | General Purpose | No | 4 | 4/0 | Unidirectional | 2500Vrms | 25kV/µs | 25Mbps | 60ns, 60ns | 8ns | 2.5ns, 2.5ns | 3V ~ 3.6V, 4.5V ~ 5.5V | Automotive | - | -40°C ~ 105°C | Surface Mount | 20-SSOP |
|
|
ADUM3474WCRSZ-RL7DGTL ISO 2500VRMS 4CH GP 20SSOP |
3,258 | 8.38 |
|
Datasheet |
- | 20-SSOP (0.209", 5.30mm Width) | Tape & Reel (TR) | Active | Magnetic Coupling | General Purpose | No | 4 | 0/4 | Unidirectional | 2500Vrms | 25kV/µs | 25Mbps | 60ns, 60ns | 8ns | 2.5ns, 2.5ns | 3V ~ 3.6V, 4.5V ~ 5.5V | Automotive | - | -40°C ~ 105°C | Surface Mount | 20-SSOP |
|
|
ISO7241MDWDGTL ISO 2500VRMS 4CH GP 16SOIC |
952 | 8.61 |
|
Datasheet |
- | 16-SOIC (0.295", 7.50mm Width) | Tube | Obsolete | Capacitive Coupling | General Purpose | No | 4 | 3/1 | Unidirectional | 2500Vrms | 25kV/µs | 150Mbps | 23ns, 23ns | 2ns | 2ns, 2ns | 3.15V ~ 5.5V | - | - | -40°C ~ 125°C | Surface Mount | 16-SOIC |
|
|
ADUM5210ARSZ-RL7DGTL ISO 2500VRMS 2CH GP 20SSOP |
2,326 | 4.72 |
|
Datasheet |
IsoPower®, iCoupler® | 20-SSOP (0.209", 5.30mm Width) | Tape & Reel (TR) | Active | Magnetic Coupling | General Purpose | Yes | 2 | 2/0 | Unidirectional | 2500Vrms | 25kV/µs | 1Mbps | 50ns, 50ns | 10ns | 2.5ns, 2.5ns | 2.7V ~ 5.5V | - | - | -40°C ~ 105°C | Surface Mount | 20-SSOP |
|
|
ISO15DWISO RS485/422 1MBPS 2.5KVRMS |
188 | 1.00 |
|
Datasheet |
- | 16-SOIC (0.295", 7.50mm Width) | Tube | Obsolete | Capacitive Coupling | RS422, RS485 | No | 3 | 2/1 | Unidirectional | 2500Vrms | 25kV/µs | 1Mbps | - | - | - | 3.15V ~ 3.6V | - | - | -40°C ~ 85°C | Surface Mount | 16-SOIC |
|
|
ISO35MDWISO RS485/422 1MBPS 2.5KVRMS |
162 | 8.49 |
|
Datasheet |
- | 16-SOIC (0.295", 7.50mm Width) | Tube | Obsolete | Capacitive Coupling | RS422, RS485 | No | 3 | 2/1 | Unidirectional | 2500Vrms | 25kV/µs | 1Mbps | - | - | - | 3.15V ~ 3.6V | - | - | -55°C ~ 125°C | Surface Mount | 16-SOIC |
|
ISO7820LLDWWDGT ISO 5700VRMS 2CH LVDS 16SOIC |
4,858 | 9.04 |
|
Datasheet |
- | 16-SOIC (0.551", 14.00mm Width) | Bulk | Active | Capacitive Coupling | LVDS | No | 2 | 2/0 | Unidirectional | 5700Vrms | 100kV/µs | 100Mbps | 25ns, 25ns | 4.5ns | 1.38ns, 1.38ns | 2.25V ~ 5.5V | - | - | -55°C ~ 125°C | Surface Mount | 16-SOIC |
|

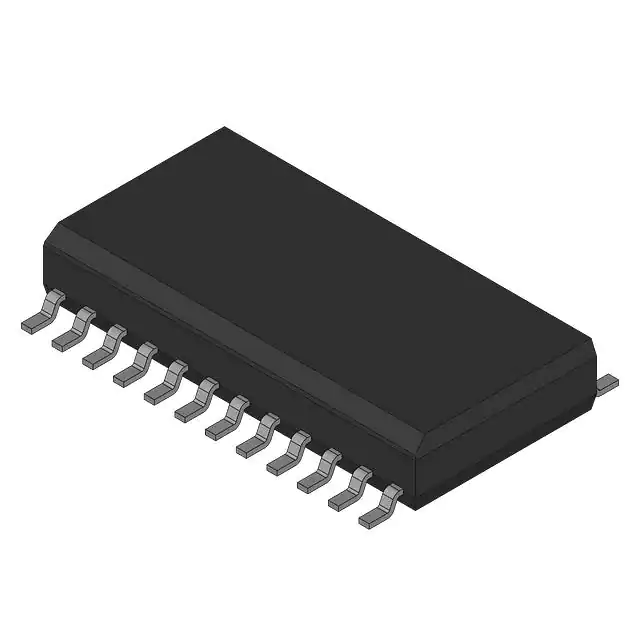

ISO508P-UDGTL ISOL 1500VRMS 8CH 24SOP |
244 | 8.18 |
|
Datasheet |
- | 24-SOIC (0.295", 7.50mm Width) | Tube | Obsolete | - | - | - | 8 | 8/0 | - | 1500Vrms | - | - | - | - | - | 4.5V ~ 5.5V | - | - | -40°C ~ 85°C | - | 24-SOP |
|
|
ISO1176TDWISO RS485 W/ TRANSFORMER DRIVER |
898 | 8.66 |
|
Datasheet |
- | 16-SOIC (0.295", 7.50mm Width) | Tube | Obsolete | Capacitive Coupling | RS422, RS485 | No | 3 | 2/1 | Unidirectional | 2500Vrms | 25kV/µs | 40Mbps | - | - | - | 3.15V ~ 5.5V, 4.75V ~ 5.25V | - | - | -40°C ~ 85°C | Surface Mount | 16-SOIC |
|
ADUM3211WBRZ-RL7DGTL ISO 2500VRMS 2CH GP 8SOIC |
4,312 | 4.46 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Magnetic Coupling | General Purpose | No | 2 | 1/1 | Unidirectional | 2500Vrms | 25kV/µs | 10Mbps | 50ns, 50ns | 3ns | 2.5ns, 2.5ns | 3V ~ 5.5V | Automotive | - | -40°C ~ 125°C | Surface Mount | 8-SOIC |
|
ADUM6200CRIZ-RLDGTL ISO 5000VRMS 2CH GP 16SOIC |
1,000 | 10.34 |
|
Datasheet |
IsoPower®, iCoupler® | 16-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Magnetic Coupling | General Purpose | Yes | 2 | 2/0 | Unidirectional | 5000Vrms | 25kV/µs | 25Mbps | 60ns, 60ns | 6ns | 2.5ns, 2.5ns | 3V ~ 5.5V | - | - | -40°C ~ 105°C | Surface Mount | 16-SOIC-IC |
|
|
ADUM6200CRWZ-RLDGTL ISO 5000VRMS 2CH GP 16SOIC |
1,988 | 1.00 |
|
Datasheet |
IsoPower®, iCoupler® | 16-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Magnetic Coupling | General Purpose | Yes | 2 | 2/0 | Unidirectional | 5000Vrms | 25kV/µs | 25Mbps | 60ns, 60ns | 6ns | 2.5ns, 2.5ns | 3V ~ 5.5V | - | - | -40°C ~ 105°C | Surface Mount | 16-SOIC |
|
|
NSIP83086V-DSWTRISO RS485 W/ ISO POWER |
948 | 0.00 |
|
Datasheet |
NSIP8308X | 20-SOIC (0.295", 7.50mm Width) | Cut Tape (CT) | Active | Capacitive Coupling | General Purpose | No | 2 | 1/1 | Unidirectional | 5000Vrms | 150kV/µs | 150Mbps | - | 88ns, 12ns | - | 3V ~ 5.5V | - | - | -40°C ~ 105°C | Surface Mount | 20-SOP |
