Digital Isolators
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Type | Isolated Power | Number of Channels | Inputs - Side 1/Side 2 | Channel Type | Voltage - Isolation | Common Mode Transient Immunity (Min) | Data Rate | Propagation Delay tpLH / tpHL (Max) | Pulse Width Distortion (Max) | Rise / Fall Time (Typ) | Voltage - Supply | Grade | Qualification | Operating Temperature | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ADUM4400ARWZDGTL ISO 5000VRMS 4CH GP 16SOIC |
6,284 | 1.00 |
|
- |
iCoupler® | 16-SOIC (0.295", 7.50mm Width) | Tube | Active | Magnetic Coupling | General Purpose | No | 4 | 4/0 | Unidirectional | 5000Vrms | 25kV/µs | 1Mbps | 100ns, 100ns | 40ns | 2.5ns, 2.5ns | 3V ~ 5.5V | - | - | -40°C ~ 105°C | Surface Mount | 16-SOIC |
|
|
ADUM2201ARWZ-RLDGTL ISO 5000VRMS 2CH GP 16SOIC |
3,033 | 6.94 |
|
Datasheet |
iCoupler® | 16-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Magnetic Coupling | General Purpose | No | 2 | 1/1 | Unidirectional | 5000Vrms | 25kV/µs | 1Mbps | 150ns, 150ns | 40ns | 10ns, 10ns | 3V ~ 5.5V | - | - | -40°C ~ 105°C | Surface Mount | 16-SOIC |
|
ADUM2201ARIZDGTL ISO 5000VRMS 2CH GP 16SOIC |
182 | 6.94 |
|
Datasheet |
iCoupler® | 16-SOIC (0.295", 7.50mm Width) | Tube | Active | Magnetic Coupling | General Purpose | No | 2 | 1/1 | Unidirectional | 5000Vrms | 25kV/µs | 1Mbps | 150ns, 150ns | 40ns | 10ns, 10ns | 3V ~ 5.5V | - | - | -40°C ~ 105°C | Surface Mount | 16-SOIC-IC |
|
ADUM3152ARSZDGT ISOL 3750VRMS 7CH SPI 20SSOP |
319 | 7.04 |
|
Datasheet |
iCoupler®, SPIsolator™ | 20-SSOP (0.209", 5.30mm Width) | Tube | Active | Magnetic Coupling | SPI | No | 7 | 4/3 | Unidirectional | 3750Vrms | 25kV/µs | 2Mbps | 25ns, 25ns | 3ns | 2.5ns, 2.5ns | 3V ~ 5.5V | - | - | -40°C ~ 125°C | Surface Mount | 20-SSOP |
|
|
ADUM3402BRWZ-RLDGTL ISO 2500VRMS 4CH GP 16SOIC |
6,323 | 7.11 |
|
Datasheet |
iCoupler® | 16-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Magnetic Coupling | General Purpose | No | 4 | 2/2 | Unidirectional | 2500Vrms | 25kV/µs | 10Mbps | 50ns, 50ns | 3ns | 2.5ns, 2.5ns | 3V ~ 5.5V | - | - | -40°C ~ 105°C | Surface Mount | 16-SOIC |
|
|
ADUM3400BRWZ-RLDGTL ISO 2500VRMS 4CH GP 16SOIC |
1,127 | 7.11 |
|
Datasheet |
iCoupler® | 16-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Magnetic Coupling | General Purpose | No | 4 | 4/0 | Unidirectional | 2500Vrms | 25kV/µs | 10Mbps | 50ns, 50ns | 3ns | 2.5ns, 2.5ns | 3V ~ 5.5V | - | - | -40°C ~ 105°C | Surface Mount | 16-SOIC |
|
|
ADUM3401BRWZDGTL ISO 2500VRMS 4CH GP 16SOIC |
225 | 7.11 |
|
Datasheet |
iCoupler® | 16-SOIC (0.295", 7.50mm Width) | Tube | Active | Magnetic Coupling | General Purpose | No | 4 | 3/1 | Unidirectional | 2500Vrms | 25kV/µs | 10Mbps | 50ns, 50ns | 3ns | 2.5ns, 2.5ns | 3V ~ 5.5V | - | - | -40°C ~ 105°C | Surface Mount | 16-SOIC |
|
|
ADUM3402BRWZDGTL ISO 2500VRMS 4CH GP 16SOIC |
145 | 7.11 |
|
Datasheet |
iCoupler® | 16-SOIC (0.295", 7.50mm Width) | Tube | Active | Magnetic Coupling | General Purpose | No | 4 | 2/2 | Unidirectional | 2500Vrms | 25kV/µs | 10Mbps | 50ns, 50ns | 3ns | 2.5ns, 2.5ns | 3V ~ 5.5V | - | - | -40°C ~ 105°C | Surface Mount | 16-SOIC |
|
|
ADUM3401ARWZ-RLDGTL ISO 2500VRMS 4CH GP 16SOIC |
2,212 | 1.00 |
|
Datasheet |
iCoupler® | 16-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Magnetic Coupling | General Purpose | No | 4 | 3/1 | Unidirectional | 2500Vrms | 25kV/µs | 1Mbps | 100ns, 100ns | 40ns | 2.5ns, 2.5ns | 3V ~ 5.5V | - | - | -40°C ~ 105°C | Surface Mount | 16-SOIC |
|
|
ADUM3301CRWZDGTL ISO 2500VRMS 3CH GP 16SOIC |
3,070 | 1.00 |
|
Datasheet |
iCoupler® | 16-SOIC (0.295", 7.50mm Width) | Tube | Active | Magnetic Coupling | General Purpose | No | 3 | 2/1 | Unidirectional | 2500Vrms | 25kV/µs | 90Mbps | 32ns, 32ns | 2ns | 2.5ns, 2.5ns | 3V ~ 5.5V | - | - | -40°C ~ 105°C | Surface Mount | 16-SOIC |
|
|
ADUM5210ARSZDGTL ISO 2500VRMS 2CH GP 20SSOP |
156 | 7.24 |
|
Datasheet |
IsoPower®, iCoupler® | 20-SSOP (0.209", 5.30mm Width) | Tube | Active | Magnetic Coupling | General Purpose | Yes | 2 | 2/0 | Unidirectional | 2500Vrms | 25kV/µs | 1Mbps | 50ns, 50ns | 10ns | 2.5ns, 2.5ns | 2.7V ~ 5.5V | - | - | -40°C ~ 105°C | Surface Mount | 20-SSOP |
|
|
ADUM1301CRWZ-RLDGTL ISO 2500VRMS 3CH GP 16SOIC |
3,253 | 1.00 |
|
Datasheet |
iCoupler® | 16-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Magnetic Coupling | General Purpose | No | 3 | 2/1 | Unidirectional | 2500Vrms | 25kV/µs | 90Mbps | 32ns, 32ns | 2ns | 2.5ns, 2.5ns | 2.7V ~ 5.5V | - | - | -40°C ~ 105°C | Surface Mount | 16-SOIC |
|
|
ADUM1301CRWZDGTL ISO 2500VRMS 3CH GP 16SOIC |
2,201 | 6.63 |
|
Datasheet |
iCoupler® | 16-SOIC (0.295", 7.50mm Width) | Tube | Active | Magnetic Coupling | General Purpose | No | 3 | 2/1 | Unidirectional | 2500Vrms | 25kV/µs | 90Mbps | 32ns, 32ns | 2ns | 2.5ns, 2.5ns | 2.7V ~ 5.5V | - | - | -40°C ~ 105°C | Surface Mount | 16-SOIC |
|
|
ADUM1300CRWZ-RLDGTL ISO 2500VRMS 3CH GP 16SOIC |
2,096 | 6.63 |
|
Datasheet |
iCoupler® | 16-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Magnetic Coupling | General Purpose | No | 3 | 3/0 | Unidirectional | 2500Vrms | 25kV/µs | 90Mbps | 32ns, 32ns | 2ns | 2.5ns, 2.5ns | 2.7V ~ 5.5V | - | - | -40°C ~ 105°C | Surface Mount | 16-SOIC |
|
|
ADUM1300CRWZDGTL ISO 2500VRMS 3CH GP 16SOIC |
820 | 1.00 |
|
Datasheet |
iCoupler® | 16-SOIC (0.295", 7.50mm Width) | Tube | Active | Magnetic Coupling | General Purpose | No | 3 | 3/0 | Unidirectional | 2500Vrms | 25kV/µs | 90Mbps | 32ns, 32ns | 2ns | 2.5ns, 2.5ns | 2.7V ~ 5.5V | - | - | -40°C ~ 105°C | Surface Mount | 16-SOIC |
.jpg)
|
IL 514EDGTL ISO 2500VRMS 3CH GP 16SOIC |
168 | 9.21 |
|
Datasheet |
IsoLoop® | 16-SOIC (0.295", 7.50mm Width) | Tube | Active | GMR (Giant Magnetoresistive) | General Purpose | No | 3 | 2/1 | Unidirectional | 2500Vrms | 30kV/µs | 2Mbps | 25ns, 25ns | 10ns | 1ns, 1ns | 3V ~ 5.5V | - | - | -40°C ~ 85°C | Surface Mount | 16-SOIC |
|
ADUM1281WBRZDGTL ISO 3000VRMS 2CH GP 8SOIC |
4,079 | 1.00 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tube | Active | Magnetic Coupling | General Purpose | No | 2 | 1/1 | Unidirectional | 3000Vrms | 25kV/µs | 25Mbps | 35ns, 35ns | 3ns | 2.5ns, 2.5ns | 3V ~ 5.5V | Automotive | - | -40°C ~ 125°C | Surface Mount | 8-SOIC |
|
|
ADUM3400CRWZ-RLDGTL ISO 2500VRMS 4CH GP 16SOIC |
4,948 | 7.47 |
|
Datasheet |
iCoupler® | 16-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Magnetic Coupling | General Purpose | No | 4 | 4/0 | Unidirectional | 2500Vrms | 25kV/µs | 90Mbps | 32ns, 32ns | 2ns | 2.5ns, 2.5ns | 3V ~ 5.5V | - | - | -40°C ~ 105°C | Surface Mount | 16-SOIC |
|

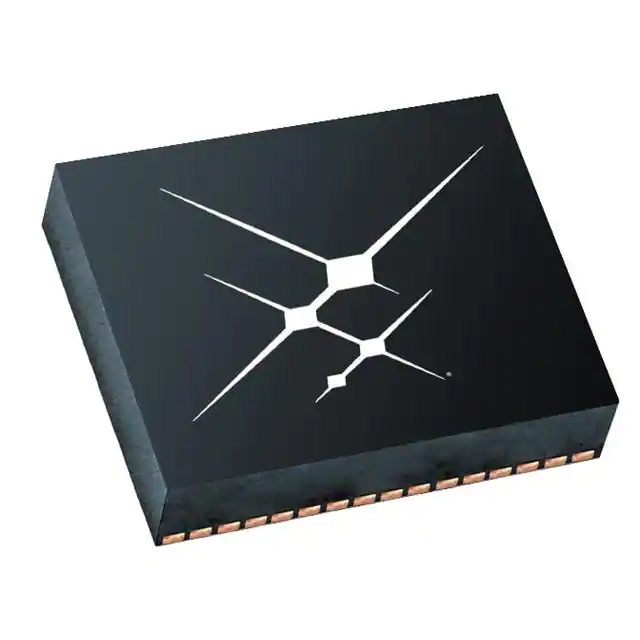

SI83404AAA-IFDGTL ISOL 1500VRMS 4CH SPI 32DFN |
239 | 7.19 |
|
Datasheet |
- | 32-VFDFN Exposed Pad | Tray | Active | Capacitive Coupling | SPI | No | 4 | 4/0 | Unidirectional | 1500Vrms | 100kV/µs | - | 2.3µs, 2.9µs (Typ) | 10µs (Min) | 3µs, 3µs | 2.25V ~ 5.5V | - | - | -40°C ~ 125°C | Surface Mount | 32-DFN (9x9) |
|
MAX14936AAWE+DGTL ISO 5000VRMS 4CH GP 16SOIC |
1,028 | 6.28 |
|
Datasheet |
- | 16-SOIC (0.295", 7.50mm Width) | Tube | Active | Capacitive Coupling | General Purpose | No | 4 | 2/2 | Unidirectional | 5000Vrms | 25kV/µs (Typ) | 1Mbps | 54.1ns, 55.3ns | 4.5ns | 2ns, 2ns | 1.71V ~ 5.5V | - | - | -40°C ~ 125°C | Surface Mount | 16-SOIC |
