Digital Isolators
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Type | Isolated Power | Number of Channels | Inputs - Side 1/Side 2 | Channel Type | Voltage - Isolation | Common Mode Transient Immunity (Min) | Data Rate | Propagation Delay tpLH / tpHL (Max) | Pulse Width Distortion (Max) | Rise / Fall Time (Typ) | Voltage - Supply | Grade | Qualification | Operating Temperature | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
.jpg)
|
IL 515EDGTL ISO 2500VRMS 4CH GP 16SOIC |
337 | 9.74 |
|
Datasheet |
IsoLoop® | 16-SOIC (0.295", 7.50mm Width) | Tube | Active | GMR (Giant Magnetoresistive) | General Purpose | No | 4 | 4/0 | Unidirectional | 2500Vrms | 30kV/µs | 2Mbps | 25ns, 25ns | 10ns | 1ns, 1ns | 3V ~ 5.5V | - | - | -40°C ~ 85°C | Surface Mount | 16-SOIC |
|
ADUM2400BRWZ-RLDGTL ISO 5000VRMS 4CH GP 16SOIC |
1,035 | 1.00 |
|
Datasheet |
iCoupler® | 16-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Magnetic Coupling | General Purpose | No | 4 | 4/0 | Unidirectional | 5000Vrms | 25kV/µs | 10Mbps | 50ns, 50ns | 3ns | 2.5ns, 2.5ns | 2.7V ~ 5.5V | - | - | -40°C ~ 105°C | Surface Mount | 16-SOIC |
|
|
ADUM2402BRWZDGTL ISO 5000VRMS 4CH GP 16SOIC |
799 | 1.00 |
|
Datasheet |
iCoupler® | 16-SOIC (0.295", 7.50mm Width) | Tube | Active | Magnetic Coupling | General Purpose | No | 4 | 2/2 | Unidirectional | 5000Vrms | 25kV/µs | 10Mbps | 50ns, 50ns | 3ns | 2.5ns, 2.5ns | 2.7V ~ 5.5V | - | - | -40°C ~ 105°C | Surface Mount | 16-SOIC |
|
ADUM2402BRIZDGTL ISO 5000VRMS 4CH GP 16SOIC |
278 | 10.34 |
|
Datasheet |
iCoupler® | 16-SOIC (0.295", 7.50mm Width) | Tube | Active | Magnetic Coupling | General Purpose | No | 4 | 2/2 | Unidirectional | 5000Vrms | 25kV/µs | 10Mbps | 50ns, 50ns | 3ns | 2.5ns, 2.5ns | 2.7V ~ 5.5V | - | - | -40°C ~ 105°C | Surface Mount | 16-SOIC-IC |
|
|
ADUM2400BRIZDGTL ISO 5000VRMS 4CH GP 16SOIC |
151 | 1.00 |
|
Datasheet |
iCoupler® | 16-SOIC (0.295", 7.50mm Width) | Tube | Active | Magnetic Coupling | General Purpose | No | 4 | 4/0 | Unidirectional | 5000Vrms | 25kV/µs | 10Mbps | 50ns, 50ns | 3ns | 2.5ns, 2.5ns | 2.7V ~ 5.5V | - | - | -40°C ~ 105°C | Surface Mount | 16-SOIC-IC |
|
|
ADUM2401BRIZDGTL ISO 5000VRMS 4CH GP 16SOIC |
149 | 10.34 |
|
Datasheet |
iCoupler® | 16-SOIC (0.295", 7.50mm Width) | Tube | Active | Magnetic Coupling | General Purpose | No | 4 | 3/1 | Unidirectional | 5000Vrms | 25kV/µs | 10Mbps | 50ns, 50ns | 3ns | 2.5ns, 2.5ns | 2.7V ~ 5.5V | - | - | -40°C ~ 105°C | Surface Mount | 16-SOIC-IC |
|
|
ADUM1400WSRWZ-RLDGTL ISO 2500VRMS 4CH GP 16SOIC |
1,000 | 1.00 |
|
Datasheet |
- | 16-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Magnetic Coupling | General Purpose | No | 4 | 4/0 | Unidirectional | 2500Vrms | 25kV/µs | 1Mbps | 100ns, 100ns | 40ns | 2.5ns, 2.5ns | 2.7V ~ 5.5V | Automotive | - | -40°C ~ 125°C | Surface Mount | 16-SOIC |
|
ADUM4152ARIZDGT ISOL 5000VRMS 7CH SPI 20SOIC |
184 | 10.49 |
|
Datasheet |
iCoupler®, SPIsolator™ | 20-SOIC (0.295", 7.50mm Width) | Tube | Active | Magnetic Coupling | SPI | No | 7 | 4/3 | Unidirectional | 5000Vrms | 25kV/µs | 2Mbps | 25ns, 25ns | 3ns | 2.5ns, 2.5ns | 3V ~ 5.5V | - | - | -40°C ~ 125°C | Surface Mount | 20-SOIC-IC |
|
|
ACML-7420-000EDGTL ISO 5600VRMS 4CH GP 16SOIC |
1,143 | 10.44 |
|
Datasheet |
- | 16-SOIC (0.295", 7.50mm Width) | Tube | Active | Magnetic Coupling | General Purpose | No | 4 | 2/2 | Unidirectional | 5600Vrms | 25kV/µs | 100MBd | 32ns, 32ns | 2ns | 3ns, 3ns | 3V ~ 3.6V, 4.5V ~ 5.5V | - | - | -40°C ~ 125°C | Surface Mount | 16-SOIC |
|
|
ACML-7410-500EDGTL ISO 5600VRMS 4CH GP 16SOIC |
3,255 | 10.50 |
|
Datasheet |
- | 16-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Magnetic Coupling | General Purpose | No | 4 | 3/1 | Unidirectional | 5600Vrms | 25kV/µs | 100MBd | 32ns, 32ns | 2ns | 3ns, 3ns | 3V ~ 3.6V, 4.5V ~ 5.5V | - | - | -40°C ~ 125°C | Surface Mount | 16-SOIC |
|
ADUM5411BRSZ-RL7DGTL ISO 2500VRMS 4CH GP 24SSOP |
1,374 | 10.80 |
|
Datasheet |
iCoupler® | 24-SSOP (0.209", 5.30mm Width) | Tape & Reel (TR) | Active | Magnetic Coupling | General Purpose | Yes | 4 | 3/1 | Unidirectional | 2500Vrms | 75kV/µs | 150Mbps | 13ns, 13ns | 3ns | 2.5ns, 2.5ns | 1.7V ~ 5.5V | - | - | -40°C ~ 105°C | Surface Mount | 24-SSOP |
|

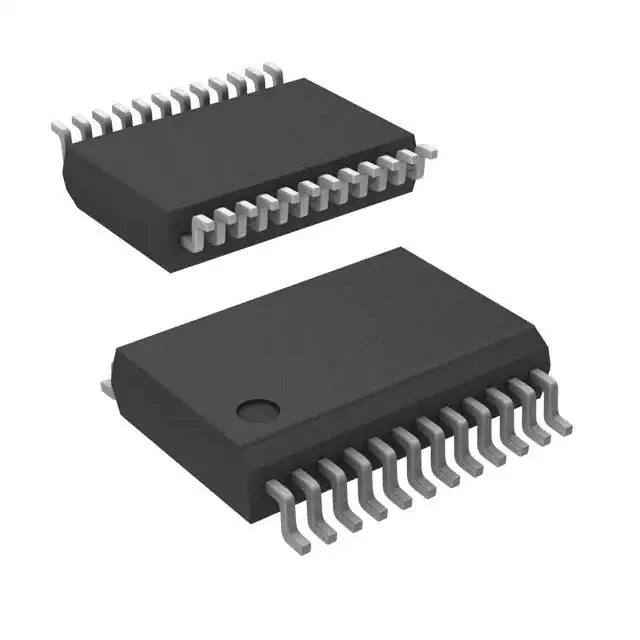

ADUM5412BRSZDGTL ISO 2500VRMS 4CH GP 24SSOP |
2,754 | 10.80 |
|
Datasheet |
iCoupler® | 24-SSOP (0.209", 5.30mm Width) | Tube | Active | Magnetic Coupling | General Purpose | Yes | 4 | 2/2 | Unidirectional | 2500Vrms | 75kV/µs | 150Mbps | 13ns, 13ns | 3ns | 2.5ns, 2.5ns | 1.7V ~ 5.5V | - | - | -40°C ~ 105°C | Surface Mount | 24-SSOP |
|
|
ADUM5410BRSZDGTL ISO 2500VRMS 4CH GP 24SSOP |
1,523 | 10.80 |
|
Datasheet |
iCoupler® | 24-SSOP (0.209", 5.30mm Width) | Tube | Active | Magnetic Coupling | General Purpose | Yes | 4 | 4/0 | Unidirectional | 2500Vrms | 75kV/µs | 150Mbps | 13ns, 13ns | 3ns | 2.5ns, 2.5ns | 1.7V ~ 5.5V | - | - | -40°C ~ 105°C | Surface Mount | 24-SSOP |
|
|
ADUM4401CRWZDGTL ISO 5000VRMS 4CH GP 16SOIC |
486 | 10.85 |
|
Datasheet |
iCoupler® | 16-SOIC (0.295", 7.50mm Width) | Tube | Active | Magnetic Coupling | General Purpose | No | 4 | 3/1 | Unidirectional | 5000Vrms | 25kV/µs | 90Mbps | 32ns, 32ns | 2ns | 2.5ns, 2.5ns | 3V ~ 5.5V | - | - | -40°C ~ 105°C | Surface Mount | 16-SOIC |
|
|
ADUM4400CRIZDGTL ISO 5000VRMS 4CH GP 16SOIC |
340 | 1.00 |
|
Datasheet |
iCoupler® | 16-SOIC (0.295", 7.50mm Width) | Tube | Active | Magnetic Coupling | General Purpose | No | 4 | 4/0 | Unidirectional | 5000Vrms | 25kV/µs | 90Mbps | 32ns, 32ns | 2ns | 2.5ns, 2.5ns | 3V ~ 5.5V | - | - | -40°C ~ 105°C | Surface Mount | 16-SOIC-IC |
|
ADUM6212CRSZDGTL ISO 3750VRMS 2CH GP 20SSOP |
7,275 | 12.91 |
|
Datasheet |
IsoPower®, iCoupler® | 20-SSOP (0.209", 5.30mm Width) | Tube | Active | Magnetic Coupling | General Purpose | Yes | 2 | 0/2 | Unidirectional | 3750Vrms | 25kV/µs | 100Mbps | 24ns, 24ns | 2ns | 2.5ns, 2.5ns | 2.7V ~ 5.5V | - | - | -40°C ~ 105°C | Surface Mount | 20-SSOP |
|
MAX14436FAWE+DGTL ISO 5000VRMS 4CH GP 16SOIC |
244 | 8.19 |
|
Datasheet |
- | 16-SOIC (0.295", 7.50mm Width) | Tube | Active | Capacitive Coupling | General Purpose | No | 4 | 2/2 | Unidirectional | 5000Vrms | 50kV/µs | 200Mbps | 9.2ns, 9.4ns | 2ns | 1.6ns, 1.4ns (Max) | 1.71V ~ 5.5V | - | - | -40°C ~ 125°C | Surface Mount | 16-SOIC |
|
ADUM1201WURZDGTL ISO 2500VRMS 2CH GP 8SOIC |
143 | 10.39 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tube | Active | Magnetic Coupling | General Purpose | No | 2 | 1/1 | Unidirectional | 2500Vrms | 25kV/µs | 25Mbps | 50ns, 50ns | 3ns | 2.5ns, 2.5ns | 3V ~ 5.5V | Automotive | - | -40°C ~ 125°C | Surface Mount | 8-SOIC |
|
|
ADUM6210BRSZDGTL ISO 3750VRMS 2CH GP 20SSOP |
3,033 | 1.00 |
|
Datasheet |
IsoPower®, iCoupler® | 20-SSOP (0.209", 5.30mm Width) | Tube | Active | Magnetic Coupling | General Purpose | Yes | 2 | 2/0 | Unidirectional | 3750Vrms | 25kV/µs | 25Mbps | 35ns, 35ns | 3ns | 2.5ns, 2.5ns | 2.7V ~ 5.5V | - | - | -40°C ~ 105°C | Surface Mount | 20-SSOP |
|
|
ADM2487EBRWZDGT ISO 2.5KV RS422/RS485 16SOIC |
235 | 1.00 |
|
Datasheet |
iCoupler® | 16-SOIC (0.295", 7.50mm Width) | Tube | Active | Magnetic Coupling | RS422, RS485 | No | 3 | 2/1 | Unidirectional | 2500Vrms | 25kV/µs | 500kbps | - | - | 1.1µs, 1.1µs (Max) | 3.3V, 5V | - | - | -40°C ~ 85°C | Surface Mount | 16-SOIC |
