EMI/RFI Filters (LC, RC Networks)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Filter Order | Technology | Number of Channels | Center / Cutoff Frequency | Attenuation Value | Resistance - Channel (Ohms) | Current | Values | ESD Protection | Operating Temperature | Applications | Voltage - Rated | Grade | Qualification | Mounting Type | Size / Dimension | Height |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IP4307CX4/LF,135FILTER RC(PI) 75 OHM/36PF SMD |
1,492 | 0.00 |
|
- |
- | 4-WFBGA, CSPBGA | Tape & Reel (TR) | Obsolete | Low Pass | 2nd | RC (Pi) | 1 | - | - | 75 | - | R = 75Ohms, C = 36pF | Yes | -30°C ~ 85°C | Data Lines for Mobile Devices | - | - | - | Surface Mount | 0.030" L x 0.030" W (0.76mm x 0.76mm) | 0.024" (0.60mm) |
|
|
IP4125CX20/LF,135FILTER RC(PI) ESD SMD |
2,203 | 0.00 |
|
- |
- | 20-CSP | Tape & Reel (TR) | Obsolete | Low Pass | 2nd | RC (Pi) | 6 | - | - | 10, 50 | - | R = 10Ohms, 50Ohms, C = 50pF, 100pF, 1000pF | Yes | -40°C ~ 85°C | Audio | - | - | - | Surface Mount | 0.100" L x 0.079" W (2.54mm x 2.00mm) | 0.026" (0.65mm) |
|
IP4353CX15/LF,135FILTER RC(PI) 100 OHM/60PF SMD |
1,540 | 0.00 |
|
- |
- | 15-WLCSP | Tape & Reel (TR) | Obsolete | Low Pass | 2nd | RC (Pi) | 6 | - | - | 100 | - | R = 100Ohms, C = 60pF | Yes | -30°C ~ 85°C | Data Lines for Mobile Devices | - | - | - | Surface Mount | 0.094" L x 0.041" W (2.38mm x 1.05mm) | 0.024" (0.60mm) |
|

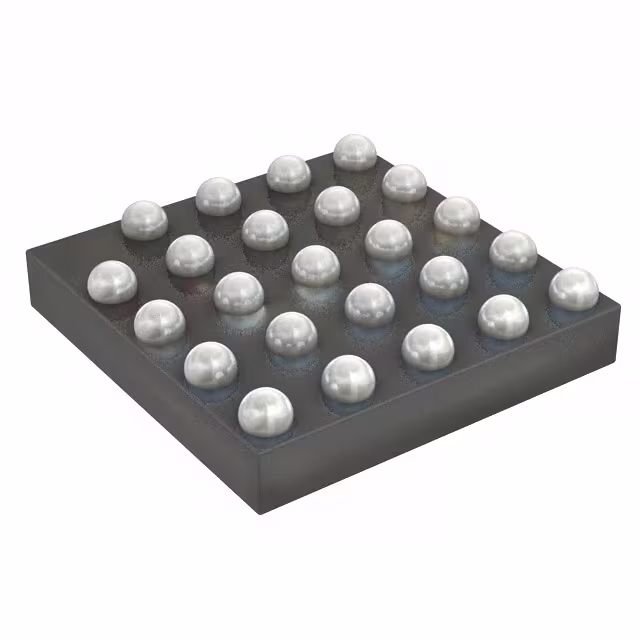

IP4035CX24/LF/P,13FILTER RC(PI) 1 KOHM/50PF SMD |
4,091 | 0.00 |
|
- |
- | 24-WFBGA, WLCSP | Tape & Reel (TR) | Obsolete | Low Pass | 2nd | RC (Pi) | 10 | - | 25dB @ 800MHz ~ 3GHz | 1k | 7 mA | R = 1kOhms (Total), C = 50pF (Total) | Yes | -45°C ~ 85°C | Data Lines for Mobile Devices | - | - | - | Surface Mount | 0.096" L x 0.095" W (2.45mm x 2.41mm) | 0.028" (0.70mm) |
|

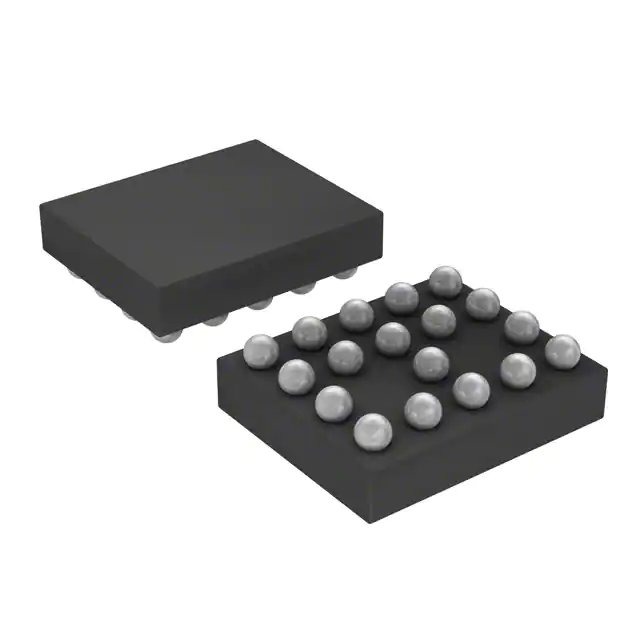

IP3337CX18/LF/P,13FILTER LC(PI) 60NH/25PF ESD SMD |
2,836 | 0.00 |
|
- |
- | 18-WFBGA, WLCSP | Tape & Reel (TR) | Obsolete | Low Pass | 3rd | LC (Pi) | 7 | 180MHz (Cutoff) | 40dB @ 800MHz ~ 3GHz | 125 | 10 mA | L = 60nH (Total), C = 25pF (Total) | Yes | -35°C ~ 85°C | GSM, LAN, PCS, WAN | - | - | - | Surface Mount | 0.081" L x 0.065" W (2.06mm x 1.66mm) | 0.026" (0.65mm) |
|
IP3338CX24/LF/P,13FILTER LC(PI) 60NH/25PF ESD SMD |
4,907 | 0.00 |
|
- |
- | 24-WFBGA, WLCSP | Tape & Reel (TR) | Obsolete | Low Pass | 3rd | LC (Pi) | 10 | 180MHz (Cutoff) | 40dB @ 800MHz ~ 3GHz | 125 | 10 mA | L = 60nH (Total), C = 25pF (Total) | Yes | -35°C ~ 85°C | GSM, LAN, PCS, WAN | - | - | - | Surface Mount | 0.083" L x 0.083" W (2.11mm x 2.11mm) | 0.026" (0.65mm) |
|
IP4256CZ3-M,315FILTER RC(PI) 100 OHM/19PF SMD |
3,027 | 0.07 |
|
- |
- | SC-101, SOT-883 | Tape & Reel (TR) | Obsolete | Low Pass | 2nd | RC (Pi) | 1 | - | 20dB @ 800MHz ~ 3GHz | 100 | - | R = 100Ohms, C = 19pF (Total) | Yes | -40°C ~ 85°C | LAN, WAN | - | - | - | Surface Mount | 0.039" L x 0.024" W (1.00mm x 0.60mm) | 0.020" (0.50mm) |
|
|
IP5306CX8,135FILTER RC(PI) ESD SMD |
3,415 | 0.00 |
|
- |
- | 8-UFBGA, WLCSP | Tape & Reel (TR) | Obsolete | Low Pass | 2nd | RC (Pi) | 2 | - | - | 2.2k | - | R = 2.2kOhms, C = 1700pF | Yes | - | Audio | - | - | - | Surface Mount | 0.047" L x 0.047" W (1.20mm x 1.20mm) | 0.024" (0.60mm) |
|

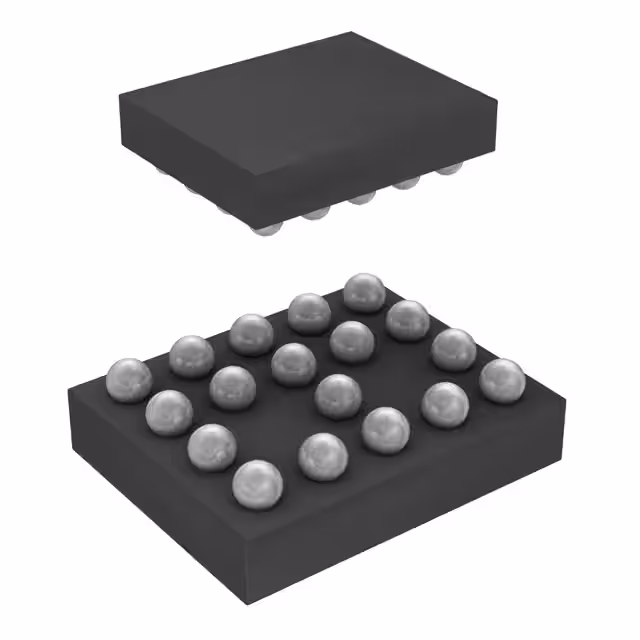

BGF108CE6328XTSA1FILTER RC 70 OHM/17PF ESD SMD |
2,995 | 0.00 |
|
- |
- | 18-UFBGA, WLCSP | Tape & Reel (TR) | Obsolete | Low Pass | 2nd | RC | 7 | - | 45dB @ 800MHz ~ 2GHz | 70 | - | R = 70Ohms, C = 17pF | Yes | -40°C ~ 85°C | Data Lines for Mobile Devices | 5V | - | - | Surface Mount | 0.079" L x 0.066" W (2.02mm x 1.68mm) | 0.026" (0.65mm) |
|

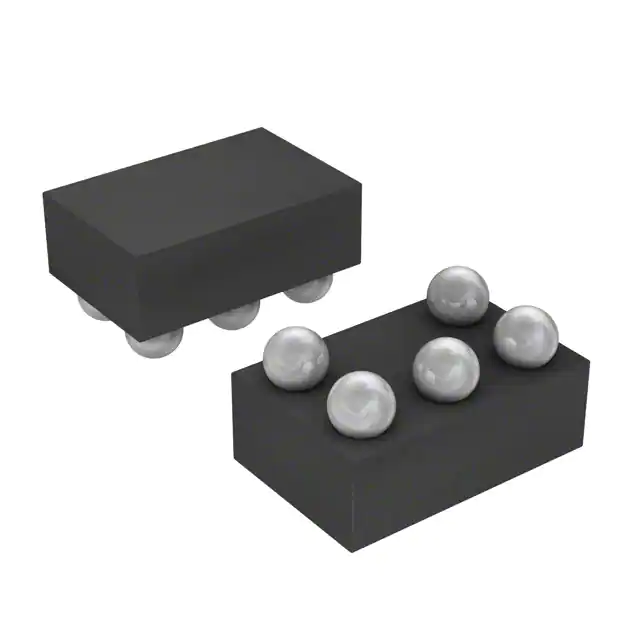

BGF112E6328XTSA1FILTER RC(PI) 15 OHM/0.005UF SMD |
3,731 | 0.00 |
|
- |
- | 5-UFBGA, WLCSP | Tape & Reel (TR) | Obsolete | Low Pass | 2nd | RC (Pi) | 2 | - | 30dB @ 30MHz ~ 1.5GHz | 15 | - | R = 15Ohms, C = 5000pF | Yes | -40°C ~ 85°C | Data Lines for Mobile Devices | - | - | - | Surface Mount | 0.046" L x 0.030" W (1.16mm x 0.76mm) | 0.026" (0.65mm) |
|
CM1402-03CPFILTER RC(PI) ESD SMD |
4,672 | 0.53 |
|
- |
- | 10-WFBGA, WLCSP | Tape & Reel (TR) | Obsolete | Low Pass | 2nd | RC (Pi) | 3 | 77MHz, 85MHz (Cutoff) | 30dB @ 1GHz | 47, 100 | - | R = 47Ohms, 100Ohms, C = 20pF | Yes | -40°C ~ 85°C | Data Lines for Mobile Devices | - | - | - | Surface Mount | 0.077" L x 0.052" W (1.96mm x 1.33mm) | 0.028" (0.72mm) |
 Exposed Pad.jpg)
|
CM1406-08DEFILTER RC(PI) 200 OHM/15PF SMD |
3,166 | 0.00 |
|
- |
- | 16-WFDFN Exposed Pad | Tape & Reel (TR) | Obsolete | Low Pass | 2nd | RC (Pi) | 8 | 105MHz (Cutoff) | 30dB @ 800MHz ~ 3GHz | 200 | - | R = 200Ohms, C = 15pF | Yes | -40°C ~ 85°C | Data Lines for Mobile Devices | - | - | - | Surface Mount | 0.157" L x 0.063" W (4.00mm x 1.60mm) | 0.031" (0.79mm) |
|
CM1409-06DEFILTER RC(PI) 100 OHM/15PF SMD |
4,814 | 0.00 |
|
- |
- | 12-WFDFN Exposed Pad | Tape & Reel (TR) | Obsolete | Low Pass | 2nd | RC (Pi) | 6 | 110MHz (Cutoff) | 30dB @ 800MHz ~ 6GHz | 100 | - | R = 100Ohms, C = 15pF | Yes | -40°C ~ 85°C | Data Lines for Mobile Devices | - | - | - | Surface Mount | 0.118" L x 0.053" W (3.00mm x 1.35mm) | 0.031" (0.79mm) |
|
CM1436-04DEFILTER RC(PI) 200 OHM/15PF SMD |
1,573 | 0.00 |
|
- |
- | 8-WFDFN Exposed Pad | Tape & Reel (TR) | Obsolete | Low Pass | 2nd | RC (Pi) | 4 | 100MHz (Cutoff) | 30dB @ 800MHz ~ 6GHz | 200 | - | R = 200Ohms, C = 15pF | Yes | -40°C ~ 85°C | Data Lines for Mobile Devices | - | - | - | Surface Mount | 0.067" L x 0.053" W (1.70mm x 1.35mm) | 0.031" (0.79mm) |
|
|
CM1481-02DEFILTER RC(PI) 10 OHM/100PF SMD |
4,421 | 0.00 |
|
- |
- | 8-WFDFN Exposed Pad | Tape & Reel (TR) | Obsolete | Low Pass | 2nd | RC (Pi) | 2 | 31MHz (Cutoff) | 40dB @ 1GHz | 10 | - | R = 10Ohms, C = 100pF | Yes | -40°C ~ 85°C | Audio | - | - | - | Surface Mount | 0.079" L x 0.079" W (2.00mm x 2.00mm) | 0.031" (0.79mm) |
|
CM1636-04DEFILTER RC(PI) 200 OHM/15PF SMD |
4,389 | 0.00 |
|
- |
- | 8-UFDFN Exposed Pad | Tape & Reel (TR) | Obsolete | Low Pass | 2nd | RC (Pi) | 4 | 100MHz (Cutoff) | 30dB @ 800MHz ~ 6GHz | 200 | - | R = 200Ohms, C = 15pF | Yes | -40°C ~ 85°C | Data Lines for Mobile Devices | - | - | - | Surface Mount | 0.067" L x 0.053" W (1.70mm x 1.35mm) | 0.022" (0.55mm) |
|

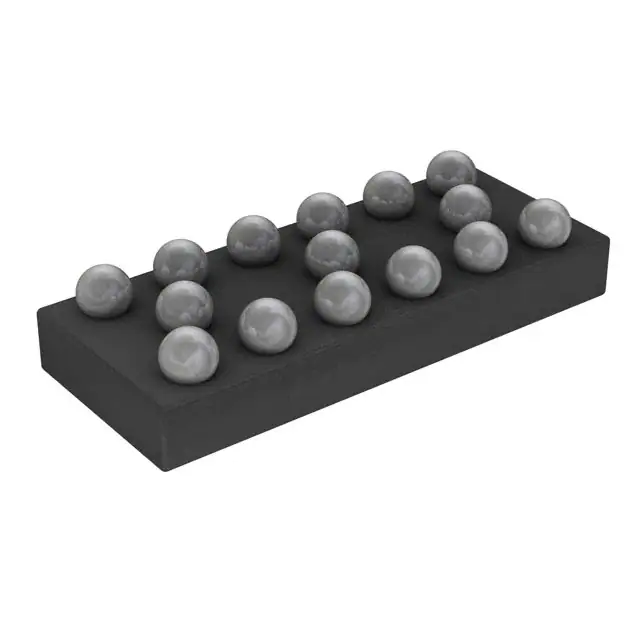

CSPEMI307AGFILTER RC(PI) 100 OHM/30PF SMD |
3,684 | 0.00 |
|
- |
- | 15-UFBGA, WLCSP | Tape & Reel (TR) | Obsolete | Low Pass | 2nd | RC (Pi) | 4 | 64MHz (Cutoff) | 30dB @ 800MHz ~ 2.7GHz | 100 | - | R = 100Ohms, C = 30pF | Yes | -40°C ~ 85°C | USB | - | - | - | Surface Mount | 0.117" L x 0.052" W (2.96mm x 1.33mm) | 0.026" (0.65mm) |
|
|
CSPEMI400GFILTER RC(PI) ESD SMD |
4,251 | 1.00 |
|
- |
- | 10-UFBGA, WLCSP | Tape & Reel (TR) | Obsolete | Low Pass | 2nd | RC (Pi) | 3 | 77MHz, 85MHz (Cutoff) | 30dB @ 1GHz | 47, 100 | - | R = 47Ohms, 100Ohms, C = 20pF | Yes | -40°C ~ 85°C | Data Lines for Mobile Devices | - | - | - | Surface Mount | 0.077" L x 0.052" W (1.96mm x 1.33mm) | 0.026" (0.65mm) |
|
PACSZ1284-02QRFILTER RC ESD SMD |
1,203 | 0.00 |
|
- |
- | 28-LSSOP (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | Low Pass | - | RC | 17 | - | - | - | - | R = 33Ohms, 2.2kOhms, C = 150pF | Yes | -40°C ~ 85°C | Data Lines for Mobile Devices | - | - | - | Surface Mount | 0.389" L x 0.154" W (9.89mm x 3.90mm) | 0.069" (1.75mm) |
|
|
PACSZ1284-04QRFILTER RC ESD SMD |
4,262 | 0.43 |
|
- |
- | 28-LSSOP (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | Low Pass | - | RC | 17 | - | - | - | - | R = 33Ohms, 4.7kOhms, C = 150pF | Yes | -40°C ~ 85°C | Data Lines for Mobile Devices | - | - | - | Surface Mount | 0.389" L x 0.154" W (9.89mm x 3.90mm) | 0.069" (1.75mm) |
