EMI/RFI Filters (LC, RC Networks)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Filter Order | Technology | Number of Channels | Center / Cutoff Frequency | Attenuation Value | Resistance - Channel (Ohms) | Current | Values | ESD Protection | Operating Temperature | Applications | Voltage - Rated | Grade | Qualification | Mounting Type | Size / Dimension | Height |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
NFL21SP207X1C3DFILTER LC(PI) 72NH/22PF SMD |
3,714 | 0.31 |
|
- |
EMIFIL®, NFL21 | 0805 (2012 Metric), 3 PC Pad | Tape & Reel (TR) | Obsolete | Low Pass | 3rd | LC (Pi) | 1 | 200MHz (Cutoff) | - | - | 250 mA | L = 72nH, C = 22pF | No | -55°C ~ 125°C | General Purpose | 16V | - | - | Surface Mount | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.037" (0.95mm) |
|
|
NFL21SP407X1C3DFILTER LC(PI) 34NH/16PF SMD |
3,604 | 0.31 |
|
- |
EMIFIL®, NFL21 | 0805 (2012 Metric), 3 PC Pad | Tape & Reel (TR) | Obsolete | Low Pass | 3rd | LC (Pi) | 1 | 400MHz (Cutoff) | - | - | 300 mA | L = 34nH, C = 16pF | No | -55°C ~ 125°C | General Purpose | 16V | - | - | Surface Mount | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.037" (0.95mm) |
|
NFW31SP107X1E4LFILTER LC(PI) 100MHZ SMD |
1,878 | 0.74 |
|
- |
EMIFIL®, NFW31 | 1206 (3216 Metric), 3 PC Pad | Tape & Reel (TR) | Obsolete | Low Pass | 3rd | LC (Pi) | 1 | 100MHz (Cutoff) | 6dB @ 100MHz | - | 200 mA | - | No | -40°C ~ 85°C | General Purpose | 25V | - | - | Surface Mount | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.079" (2.00mm) |
|
|
NFW31SP157X1E4LFILTER LC(PI) 150MHZ SMD |
1,578 | 0.74 |
|
- |
EMIFIL®, NFW31 | 1206 (3216 Metric), 3 PC Pad | Tape & Reel (TR) | Obsolete | Low Pass | 3rd | LC (Pi) | 1 | 150MHz (Cutoff) | 30dB @ 500MHz ~ 1GHz | - | 200 mA | - | No | -40°C ~ 85°C | General Purpose | 25V | - | - | Surface Mount | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.079" (2.00mm) |
|
|
NFW31SP206X1E4LFILTER LC(PI) 20MHZ SMD |
1,257 | 0.74 |
|
- |
EMIFIL®, NFW31 | 1206 (3216 Metric), 3 PC Pad | Tape & Reel (TR) | Obsolete | Low Pass | 3rd | LC (Pi) | 1 | 20MHz (Cutoff) | 25dB @ 100MHz ~ 200MHz | - | 200 mA | - | No | -40°C ~ 85°C | General Purpose | 25V | - | - | Surface Mount | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.079" (2.00mm) |
|
|
NFW31SP207X1E4LFILTER LC(PI) 200MHZ SMD |
4,551 | 0.39 |
|
- |
EMIFIL®, NFW31 | 1206 (3216 Metric), 3 PC Pad | Tape & Reel (TR) | Obsolete | Low Pass | 3rd | LC (Pi) | 1 | 200MHz (Cutoff) | 10dB @ 500MHz | - | 200 mA | - | No | -40°C ~ 85°C | General Purpose | 25V | - | - | Surface Mount | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.079" (2.00mm) |
|
|
NFW31SP307X1E4LFILTER LC(PI) 300MHZ SMD |
1,987 | 0.39 |
|
- |
EMIFIL®, NFW31 | 1206 (3216 Metric), 3 PC Pad | Tape & Reel (TR) | Obsolete | Low Pass | 3rd | LC (Pi) | 1 | 300MHz (Cutoff) | 5dB @ 500MHz | - | 200 mA | - | No | -40°C ~ 85°C | General Purpose | 25V | - | - | Surface Mount | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.079" (2.00mm) |
|
|
NFW31SP506X1E4LFILTER LC(PI) 50MHZ SMD |
3,280 | 0.74 |
|
- |
EMIFIL®, NFW31 | 1206 (3216 Metric), 3 PC Pad | Tape & Reel (TR) | Obsolete | Low Pass | 3rd | LC (Pi) | 1 | 50MHz (Cutoff) | 10dB @ 100MHz | - | 200 mA | - | No | -40°C ~ 85°C | General Purpose | 25V | - | - | Surface Mount | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.079" (2.00mm) |
|
|
NFW31SP507X1E4LFILTER LC(PI) 500MHZ SMD |
1,442 | 0.74 |
|
- |
EMIFIL®, NFW31 | 1206 (3216 Metric), 3 PC Pad | Tape & Reel (TR) | Obsolete | Low Pass | 3rd | LC (Pi) | 1 | 500MHz (Cutoff) | 6dB @ 500MHz | - | 200 mA | - | No | -40°C ~ 85°C | General Purpose | 25V | - | - | Surface Mount | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.079" (2.00mm) |
|
IP3088CX10,135FILTER LC(PI) 40NH/42PF ESD SMD |
4,368 | 0.21 |
|
- |
- | 10-WFBGA, WLCSP | Tape & Reel (TR) | Obsolete | Low Pass | 5th | LC (Pi) | 4 | 175MHz (Cutoff) | 40dB @ 800MHz ~ 1.5GHz | 18 | 30 mA | L = 40nH (Total), C = 42pF (Total) | Yes | -40°C ~ 85°C | GSM, LAN, PCS, WAN | - | - | - | Surface Mount | 0.077" L x 0.050" W (1.96mm x 1.28mm) | 0.028" (0.70mm) |
|
|
IP3088CX5,135FILTER LC(PI) 40NH/42PF ESD SMD |
4,515 | 0.10 |
|
- |
- | 5-WFBGA, WLCSP | Tape & Reel (TR) | Obsolete | Low Pass | 5th | LC (Pi) | 2 | 175MHz (Cutoff) | 40dB @ 800MHz ~ 1.5GHz | 18 | 30 mA | L = 40nH (Total), C = 42pF (Total) | Yes | -40°C ~ 85°C | GSM, LAN, PCS, WAN | - | - | - | Surface Mount | 0.050" L x 0.038" W (1.28mm x 0.96mm) | 0.028" (0.70mm) |
|

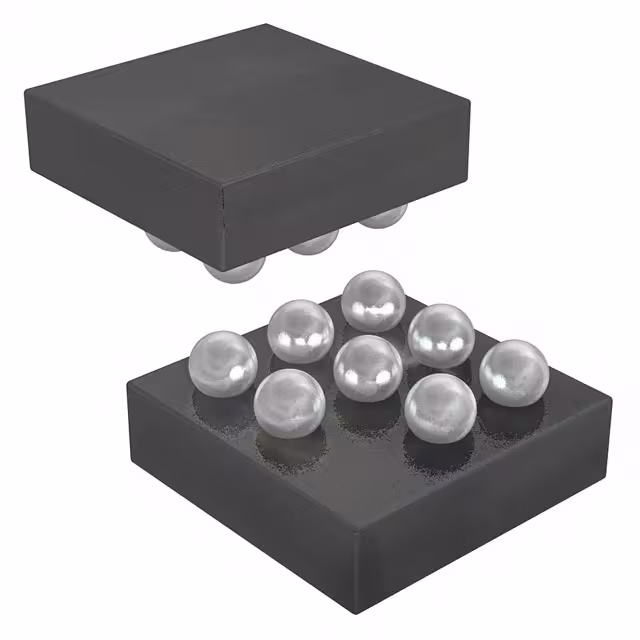

IP4366CX8/P,135FILTER RC(PI) ESD SMD |
4,471 | 1.00 |
|
- |
- | 8-WFBGA, WLCSP | Tape & Reel (TR) | Obsolete | Low Pass | 2nd | RC (Pi) | 3 | - | - | 47, 100 | - | R = 47Ohms, 100Ohms, C = 17pF (Total) | Yes | -35°C ~ 85°C | Data Lines for Mobile Devices | - | - | - | Surface Mount | 0.046" L x 0.046" W (1.16mm x 1.16mm) | 0.026" (0.65mm) |
|
|
CM6200FILTER RC(PI) ESD SMD |
3,812 | 0.00 |
|
- |
- | 8-UFBGA, CSPBGA | Tape & Reel (TR) | Obsolete | Low Pass | 2nd | RC (Pi) | 2 | - | - | 25, 2.2k | - | R = 25Ohms, 2.2kOhms, C = 830pF, 1250pF | Yes | -40°C ~ 85°C | Audio | - | - | - | Surface Mount | 0.047" L x 0.047" W (1.20mm x 1.20mm) | 0.025" (0.64mm) |
|
CM6205FILTER RC(PI) 15 OHM/0.005UF SMD |
4,645 | 0.00 |
|
- |
- | 5-UFBGA, WLCSP | Tape & Reel (TR) | Obsolete | Low Pass | 2nd | RC (Pi) | 2 | - | - | 15 | - | R = 15Ohms, C = 5000pF | Yes | -40°C ~ 85°C | Audio | - | - | - | Surface Mount | 0.047" L x 0.031" W (1.20mm x 0.80mm) | 0.025" (0.64mm) |
|
IP3253CZ12-6-TTL,1FILTER LC(PI) 18NH/25PF ESD SMD |
2,790 | 0.00 |
|
- |
- | 12-UFDFN Exposed Pad | Tape & Reel (TR) | Obsolete | Low Pass | 3rd | LC (Pi) | 6 | 175MHz (Cutoff) | 30dB @ 1GHz ~ 4GHz | 8 | 30 mA | L = 18nH (Total), C = 25pF (Total) | Yes | -40°C ~ 85°C | GSM, LAN, PCS, WAN | - | - | - | Surface Mount | 0.098" L x 0.053" W (2.50mm x 1.35mm) | 0.022" (0.55mm) |
|
IP3253CZ16-8-TTL,1FILTER LC(PI) 18NH/25PF ESD SMD |
3,014 | 0.27 |
|
- |
- | 16-UFDFN Exposed Pad | Tape & Reel (TR) | Obsolete | Low Pass | 3rd | LC (Pi) | 8 | 175MHz (Cutoff) | 30dB @ 1GHz ~ 4GHz | 8 | 30 mA | L = 18nH (Total), C = 25pF (Total) | Yes | -40°C ~ 85°C | GSM, LAN, PCS, WAN | - | - | - | Surface Mount | 0.130" L x 0.053" W (3.30mm x 1.35mm) | 0.022" (0.55mm) |
|
IP3253CZ8-4-TTL,13FILTER LC(PI) 18NH/25PF ESD SMD |
1,703 | 0.00 |
|
- |
- | 8-UFDFN Exposed Pad | Tape & Reel (TR) | Obsolete | Low Pass | 3rd | LC (Pi) | 4 | 175MHz (Cutoff) | 30dB @ 1GHz ~ 4GHz | 8 | 30 mA | L = 18nH (Total), C = 25pF (Total) | Yes | -40°C ~ 85°C | GSM, LAN, PCS, WAN | - | - | - | Surface Mount | 0.067" L x 0.053" W (1.70mm x 1.35mm) | 0.022" (0.55mm) |
|
|
IP4251CZ12-6-TTL,1FILTER RC(PI) 100 OHM/10PF SMD |
2,474 | 0.17 |
|
- |
- | 12-UFDFN Exposed Pad | Tape & Reel (TR) | Obsolete | Low Pass | 2nd | RC (Pi) | 6 | - | 16dB @ 800MHz ~ 3GHz | 100 | - | R = 100Ohms, C = 10pF (Total) | Yes | -40°C ~ 85°C | LAN, WAN | - | - | - | Surface Mount | 0.098" L x 0.053" W (2.50mm x 1.35mm) | 0.022" (0.55mm) |
|
|
IP4254CZ12-6-TTL,1FILTER RC(PI) 100 OHM/30PF SMD |
2,260 | 1.00 |
|
- |
- | 12-UFDFN Exposed Pad | Tape & Reel (TR) | Obsolete | Low Pass | 2nd | RC (Pi) | 6 | - | 28dB @ 800MHz ~ 3GHz | 100 | - | R = 100Ohms, C = 30pF (Total) | Yes | -40°C ~ 85°C | LAN, WAN | - | - | - | Surface Mount | 0.098" L x 0.053" W (2.50mm x 1.35mm) | 0.022" (0.55mm) |
|

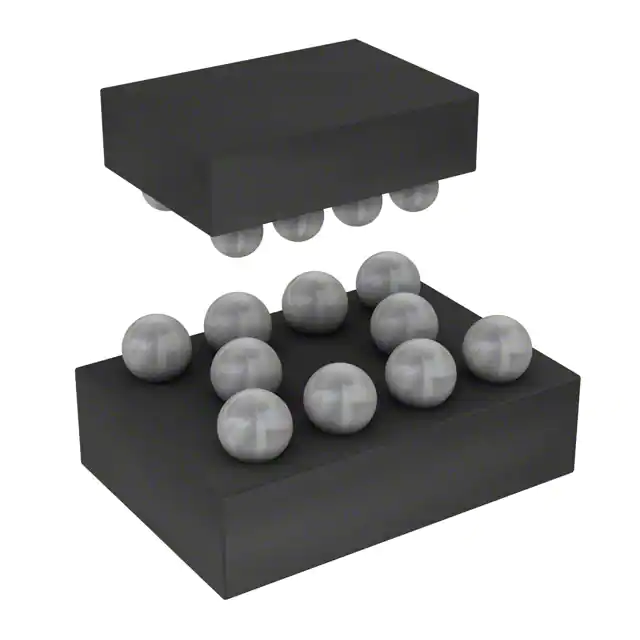

PEMI4CSP/RT,135FILTER RC(PI) 100 OHM/23PF SMD |
2,881 | 0.00 |
|
- |
PEMIxCSP | 10-UFBGA, WLCSP | Tape & Reel (TR) | Obsolete | Low Pass | 2nd | RC (Pi) | 4 | 128MHz (Cutoff) | 30dB @ 800MHz ~ 3GHz | 100 | 33 mA | R = 100Ohms, C = 23pF (Total) | Yes | -40°C ~ 85°C | LAN, PCS, WAN | - | - | - | Surface Mount | 0.061" L x 0.041" W (1.56mm x 1.05mm) | 0.026" (0.65mm) |
