DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Main Purpose | Outputs and Type | Voltage - Output | Current - Output | Voltage - Input | Regulator Topology | Frequency - Switching | Contents | Utilized IC / Part | Power - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

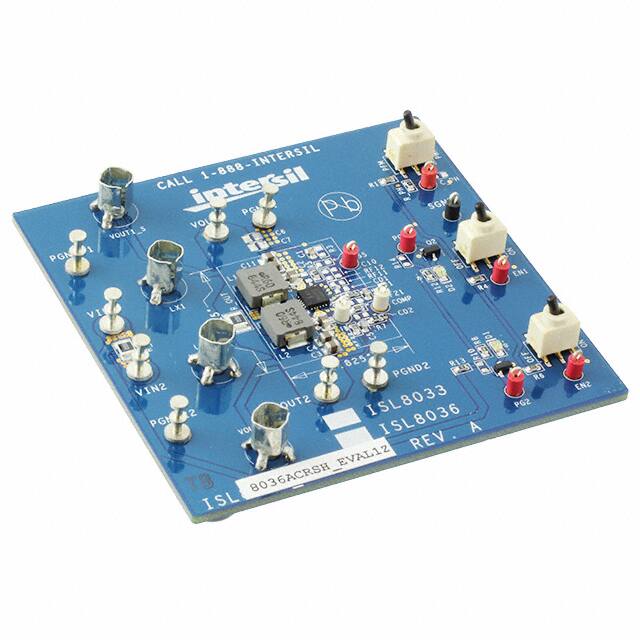

ISL8036ACRSHEVAL1ZEVAL BOARD FOR ISL8036A |
4,211 | 114.00 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 1.8V, 1.8V | 6A | 2.85V ~ 6V | Buck | - | Board(s) | ISL8036A |
|

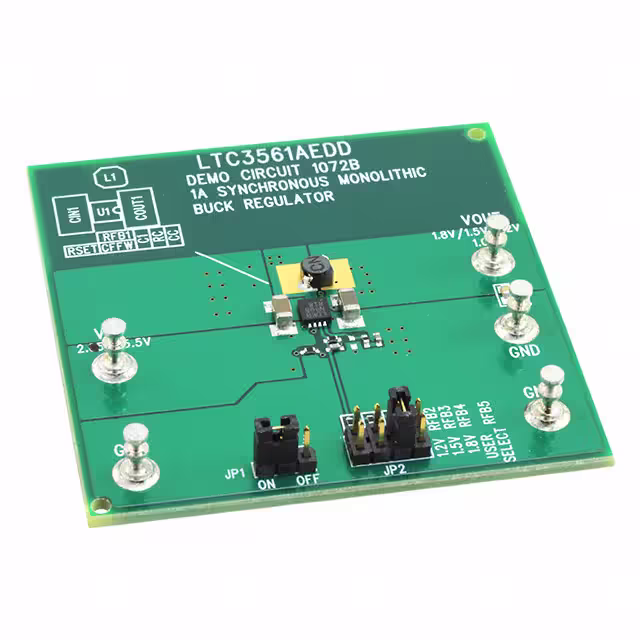

DC1072BEVAL BOARD FOR LTC3561A |
3,649 | 117.70 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.2V, 1.5V or 1.8V | 1A | 2.5V ~ 5.5V | Buck | 1MHz | Board(s) | LTC3561A |
|

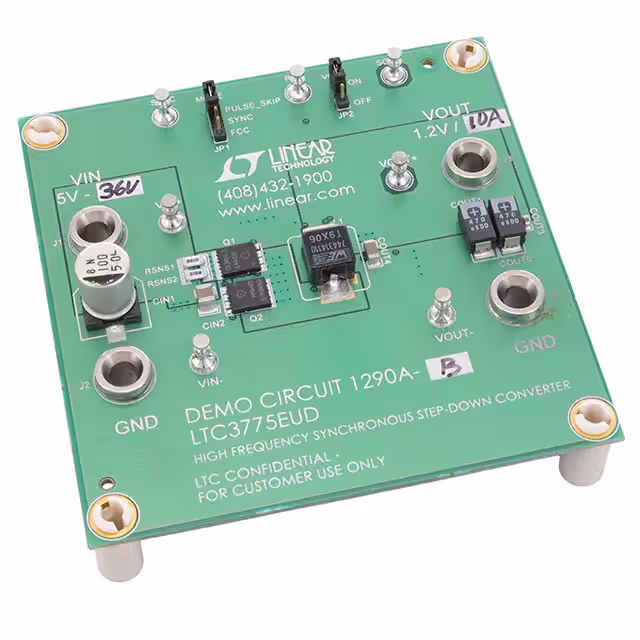

DC1290A-BEVAL BOARD FOR LTC3775 |
4,618 | 117.70 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.2V | 10A | 5V ~ 36V | Buck | 330kHz | Board(s) | LTC3775 |
|
EVAL-LT8640SA-AZEVAL BOARD FOR LT8640SA |
1,707 | 0.00 |
|
- |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | - | 6A | 5.7V ~ 42V | Buck | - | Board(s) | LT8640SA |
|

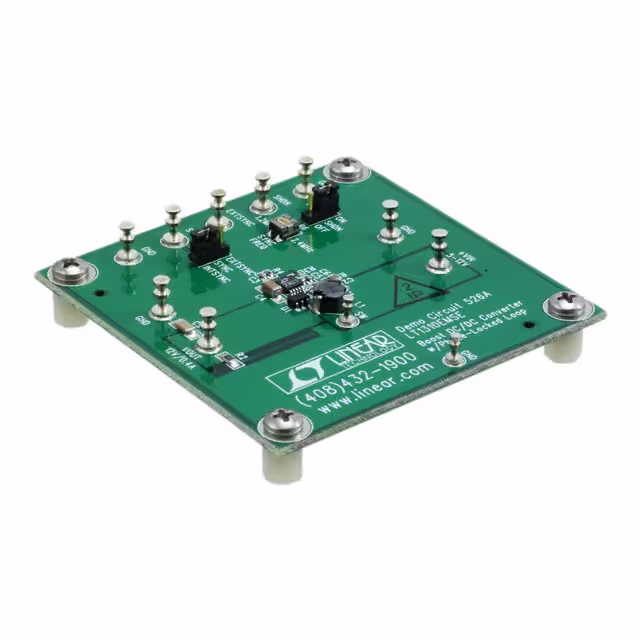

DC526AEVAL BOARD FOR LT1310 |
3,146 | 117.70 |
|
Datasheet |
- | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 12V | 400mA | 3V ~ 7V | Boost | - | Board(s) | LT1310 |
|

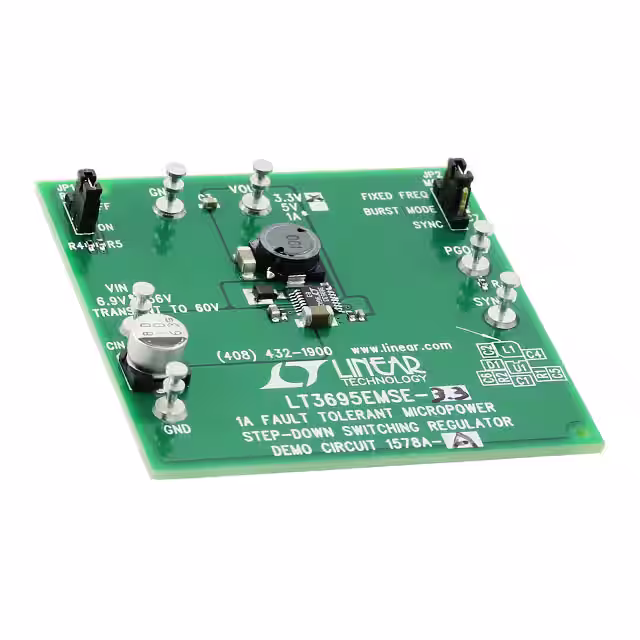

DC1578A-AEVAL BOARD FOR LT36953.3 |
4,873 | 117.70 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 1A | 4.5V ~ 36V | Buck | 800kHz | Board(s) | LT3695-3.3 |
|
DC326CEVAL BOARD FOR LT1766 |
1,930 | 117.70 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 1A | 6V ~ 60V | Buck | 200kHz | Board(s) | LT1766 |
|

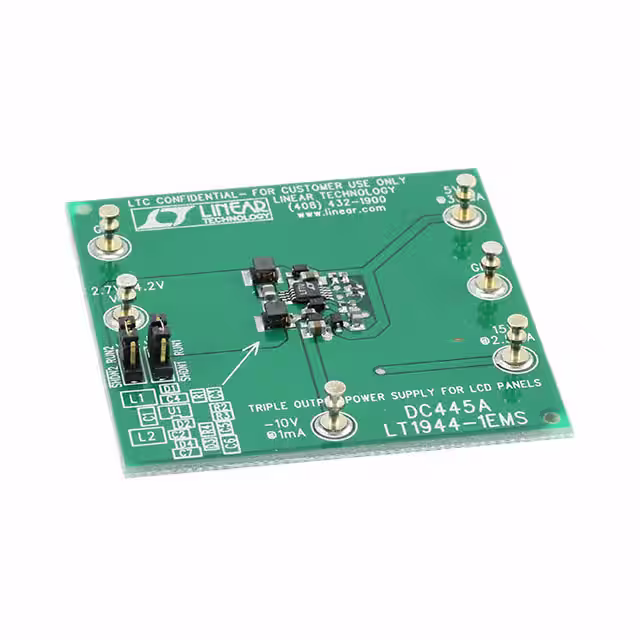

DC445AEVAL BOARD FOR LT19441 |
2,032 | 117.70 |
|
Datasheet |
- | Box | Active | DC/DC, Step Up | 3 Non-Isolated Outputs | - | 5V, 15V, -10V | 30mA, 2.5mA, 1mA | 2.7V ~ 4.2V | Boost | - | Board(s) | LT1944-1 |
|

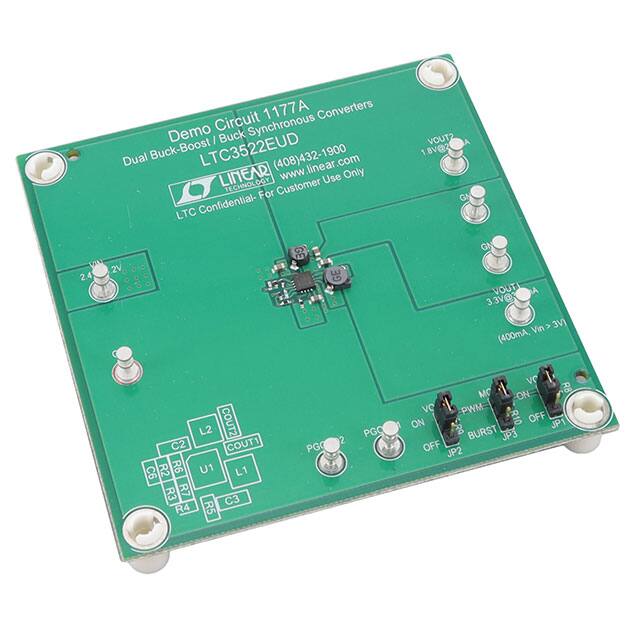

DC1177AEVAL BOARD FOR LTC3522 |
3,372 | 117.70 |
|
Datasheet |
- | Box | Active | DC/DC, Step Up or Down | 2 Non-Isolated Outputs | - | 1.8V, 3.3V | 400mA, 200mA | 2.4V ~ 4.2V | Buck-Boost | 1MHz | Board(s) | LTC3522 |
|

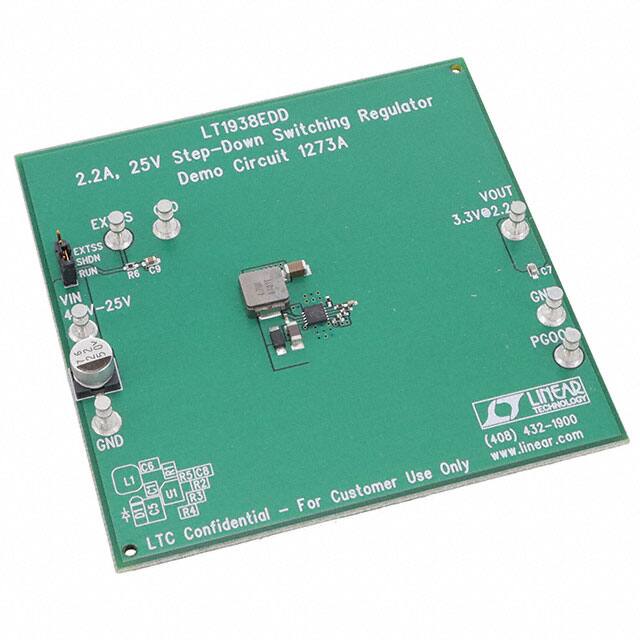

DC1273AEVAL BOARD FOR LT1938 |
1,761 | 117.70 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 2.2A | 4.5V ~ 25V | Buck | 800kHz | Board(s) | LT1938 |
|
DC1445AEVAL BOARD FOR LTC3603 |
1,692 | 117.70 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 2.5V ~ 5V | 2.5A | 4.5V ~ 15V | Buck | 1MHz | Board(s) | LTC3603 |
|

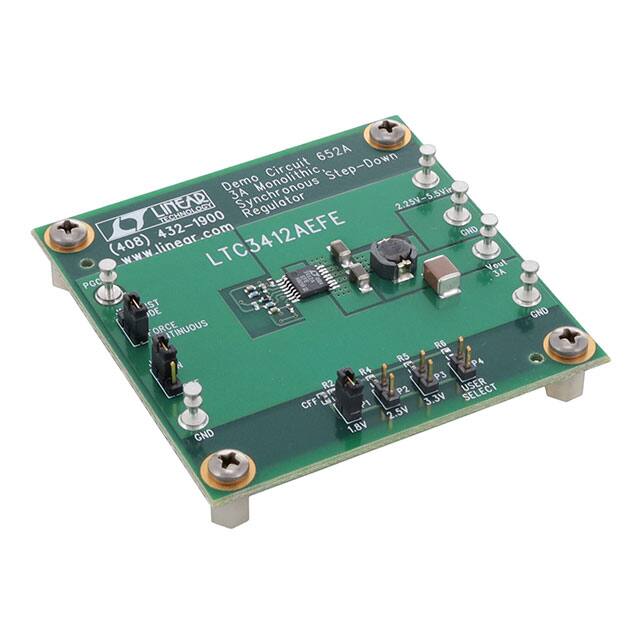

DC652AEVAL BOARD FOR LTC3412A |
2,179 | 117.70 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.8V ~ 5V | 3A | 2.25V ~ 5.5V | Buck | 1MHz | Board(s) | LTC3412A |
|
|
TPS6287B25EVM-024EVAL BOARD FOR TPS6287B25 |
4,387 | 0.00 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.4V | 25A | 2.7V ~ 6V | Buck | - | Board(s) | TPS6287B25 |
|

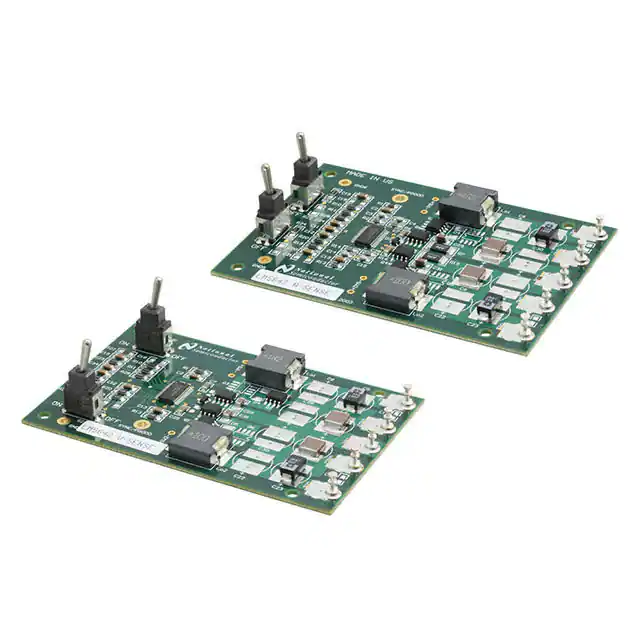

LM5642EVAL-KIT/NOPBEVAL BOARD FOR LM5642 |
2,943 | 118.80 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 1.8V, 3.3V | 7A, 4A | 4.5V ~ 36V | Buck | 200kHz | Board(s) | LM5642 |
|
|
TPSM8S6C24SEVM-1PHEVAL BOARD FOR TPSM8S6C24 |
4,167 | 0.00 |
|
Datasheet |
- | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.2V | 35A | 5V ~ 16V | Buck | 650kHz | Board(s) | TPSM8S6C24 |
|
|
TPSM8D6B24EVM-2V0EVAL BOARD FOR TPSM8D6B24 |
4,242 | 0.00 |
|
Datasheet |
- | Bulk | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 1.8V, 3.32V | 25A, 25A | 5V ~ 16V | Buck | 550kHz | Board(s), Cable(s) | TPSM8D6B24 |
|
|
TPS55287Q1EVM-085EVAL BOARD FOR TPS55287Q1 |
3,565 | 0.00 |
|
Datasheet |
- | Box | Active | DC/DC, Step Up or Down | 1 Non-Isolated Output | - | 0.8V ~ 22V | 2A | 3V ~ 36V | Buck-Boost | 400kHz | Board(s) | TPS55287-Q1 |
|
|
DC3205AEVAL BOARD FOR LTC3314A |
4,190 | 0.00 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1V | 8A | 2.25V ~ 5.5V | Buck | 2MHz | Board(s) | LTC3314A |
|
|
DC3204AEVAL BOARD FOR LTC3314A |
4,816 | 0.00 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 1.2V, 1.8V | 4A, 4A | 2.25V ~ 5.5V | Buck | 2MHz | Board(s) | LTC3314A |
|
|
I7A20A-C01-EVK-S1EVAL BOARD FOR I7A48020A033V001R |
4,970 | 0.00 |
|
Datasheet |
i7A | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | 500 W | 3.6V ~ 32V | 20A | 28V ~ 60V | Buck | - | Board(s) | i7A48020A033V-001-R |
