DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Main Purpose | Outputs and Type | Voltage - Output | Current - Output | Voltage - Input | Regulator Topology | Frequency - Switching | Contents | Utilized IC / Part | Power - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BD8303MUV-EVK-001EVAL BOARD FOR BD8303 |
1,391 | 0.00 |
|
Datasheet |
- | Bulk | Active | DC/DC, Step Up or Down | 1 Non-Isolated Output | - | 12V | 1.5A | 4V ~ 14V | Buck-Boost | 400kHz | Board(s) | BD8303 |
|
|
MAX8969EVKIT#EVAL BOARD FOR MAX8969 |
2,296 | 87.45 |
|
Datasheet |
True Shutdown™ | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | - | 1A | 2.5V ~ 5.5V | Boost | 3MHz | Board(s) | MAX8969 |
|
|
IS32PM3510-ZLA3-EBEVAL BOARD FOR IS32PM3510 |
3,746 | 0.00 |
|
Datasheet |
- | Box | Active | DC/DC, Step Up or Down | 1 Non-Isolated Output | - | 12V | 3A | 9V ~ 16V | Buck-Boost | - | Board(s) | IS32PM3510 |
|
|
LM25148B-Q1EVM2100EVAL BOARD FOR LM25148BQ1 |
4,497 | 0.00 |
|
- |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 10A | 5.5V ~ 36V | Buck | 2.1MHz | Board(s) | LM25148B-Q1 |
|

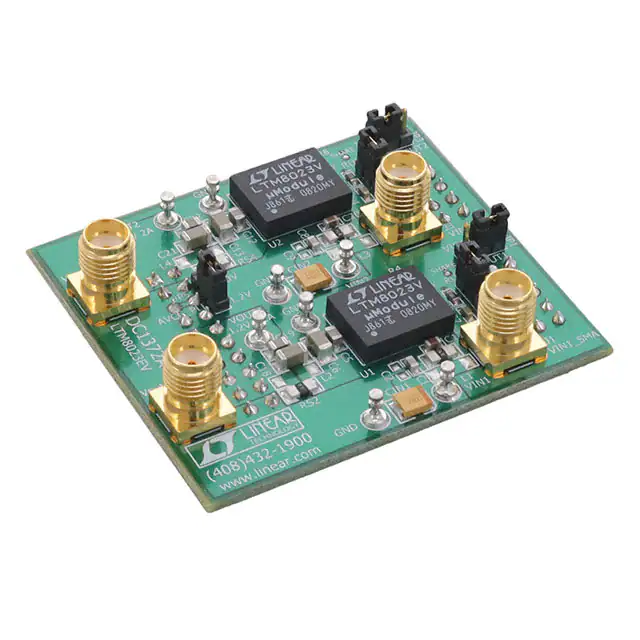

DC1372AEVAL BOARD FOR LTM8023 |
2,551 | 95.64 |
|
Datasheet |
µModule® | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1V, 1.2V | 2A, 2A | 3.6V ~ 36V | Buck | - | Board(s) | LTM8023 |
|

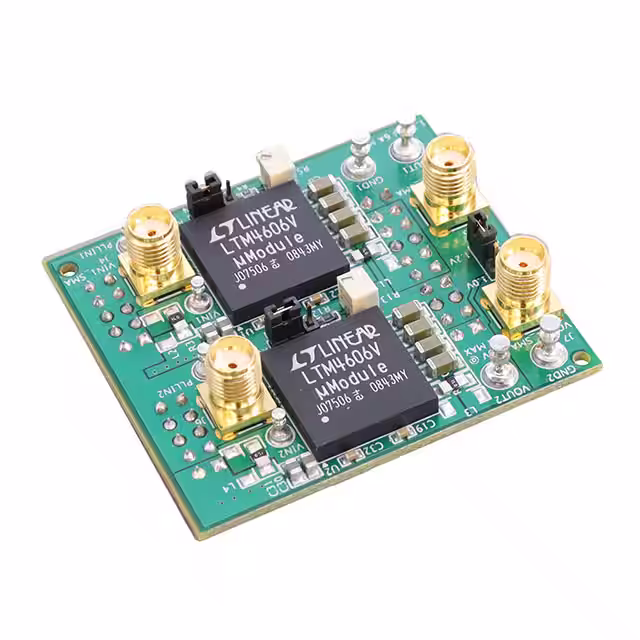

DC1374BEVAL BOARD FOR LTM4606 |
4,513 | 95.64 |
|
Datasheet |
µModule® | Box | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 1V, 1.2V | 6A, 6A | 4.5V ~ 28V | Buck | - | Board(s) | LTM4606 |
|
|
LMR36501EVMEVAL BOARD FOR LMR36501 |
4,804 | 0.00 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 100mA | 3.5V ~ 65V | Buck | 2.2MHz | Board(s) | LMR36501 |
|
|
LMR66430-2EVMEVAL BOARD FOR LMR66430Q1 |
3,290 | 0.00 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 3A | 3V ~ 36V | Buck | 2.2MHz | Board(s) | LMR66430-Q1 |
|

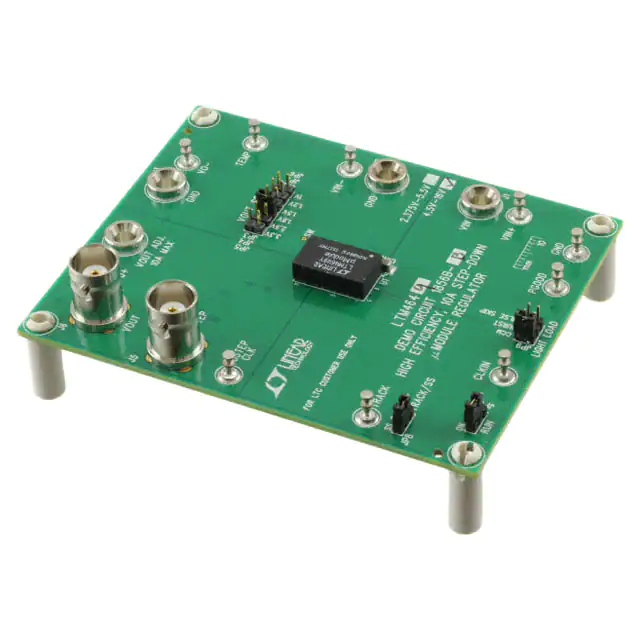

DC1856A-AEVAL BOARD FOR LTM4648 |
1,914 | 95.64 |
|
Datasheet |
µModule® | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | - | 10A | 2.375V ~ 5.5V | Buck | - | Board(s) | LTM4648 |
|

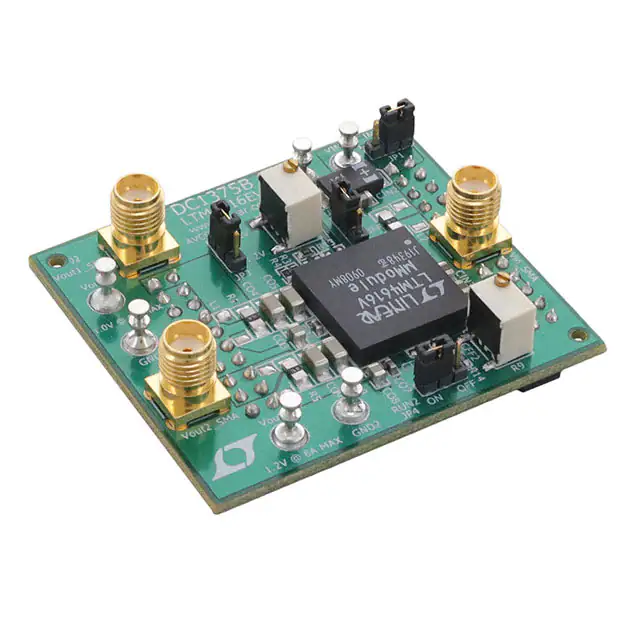

DC1375BEVAL BOARD FOR LTM4616 |
3,029 | 95.64 |
|
Datasheet |
µModule® | Box | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 1V, 1.2V | 8A, 8A | 2.375V ~ 5.5V | Buck | - | Board(s) | LTM4616 |
|

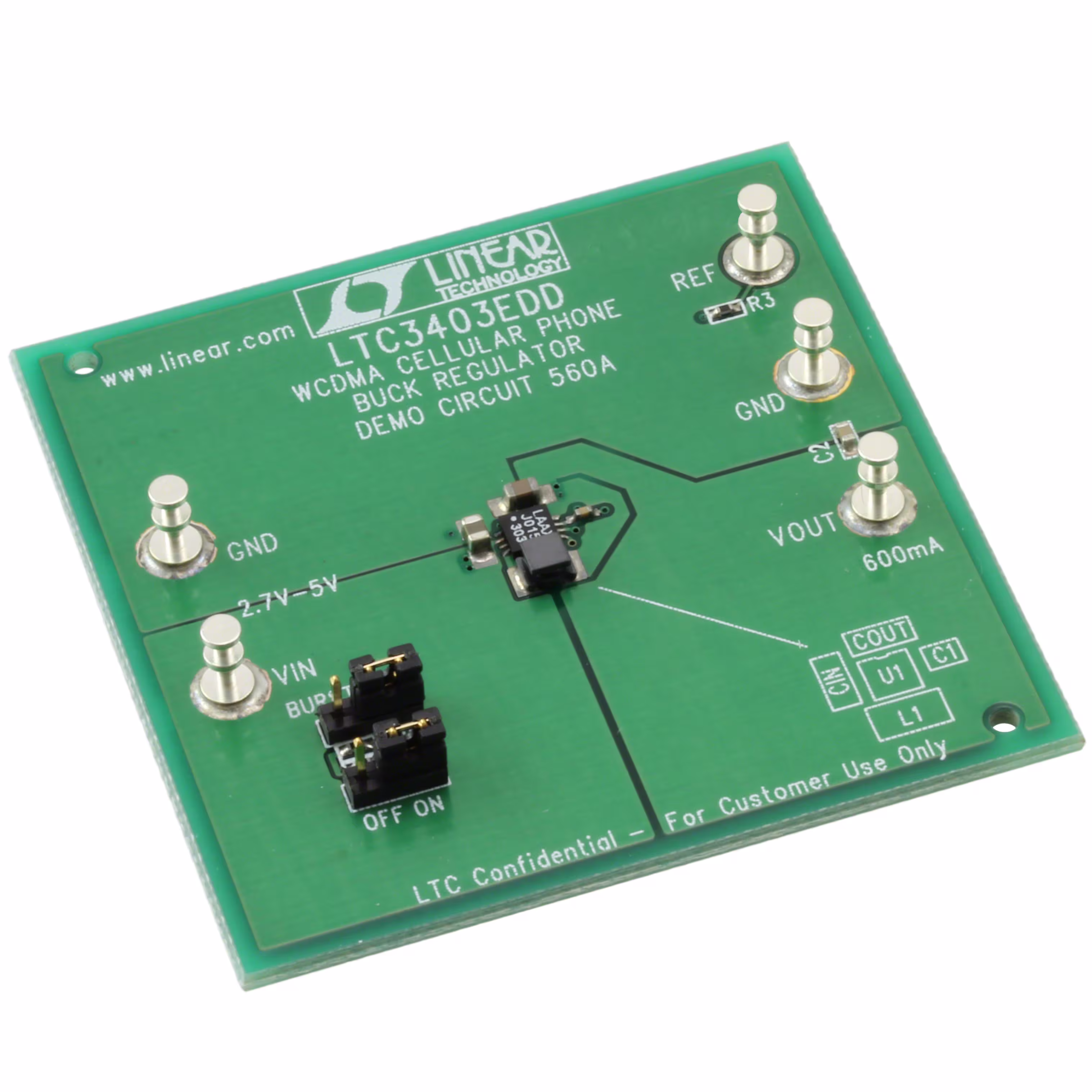

DC560AEVAL BOARD FOR LTC3403 |
4,406 | 88.28 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.3V ~ 3.5V | 600mA | 2.7V ~ 5V | Buck | 1.5MHz | Board(s) | LTC3403 |
|
DC488AEVAL BOARD FOR LTC32501.5 |
3,942 | 88.28 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.5V | 250mA | 3.1V ~ 5.5V | Buck | 1.5MHz | Board(s) | LTC3250-1.5 |
|

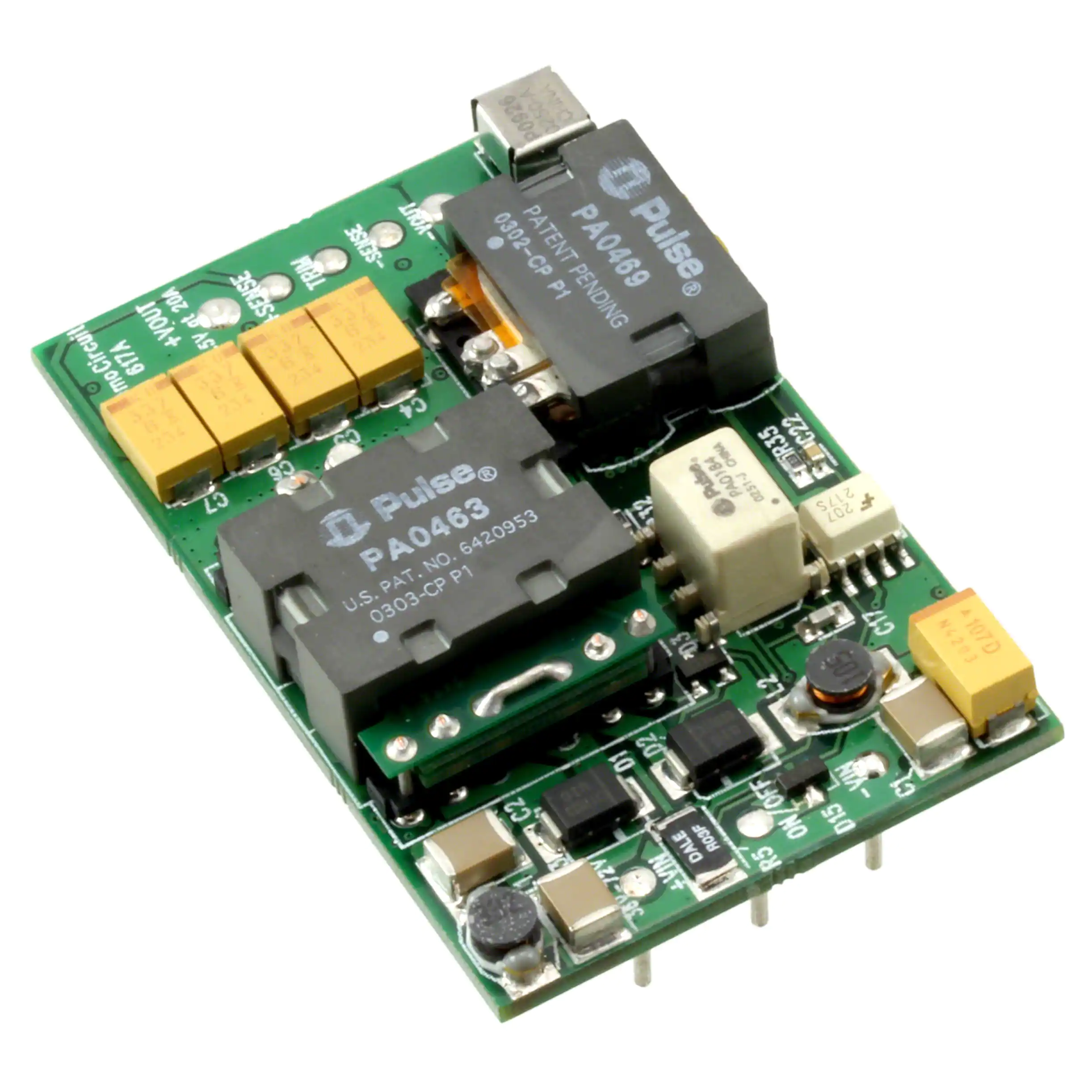

DC617AEVAL BOARD FOR LT3781 LTC1698 |
3,491 | 88.28 |
|
Datasheet |
- | Box | Active | DC/DC Converter | 1 Isolated Output | - | 2.5V | 20A | 36V ~ 72V | Forward Converter | 240Hz | Board(s) | LT3781, LTC1698 |
|
|
BM2PDB1Y-EVK-001EVAL BOARD FOR BM2PDB1Y |
4,144 | 0.00 |
|
Datasheet |
- | Bulk | Active | AC/DC Converter | 1 Non-Isolated Output | 10 W | 24V | 417mA | 90 ~ 264 VAC | Buck | - | Board(s) | BM2PDB1Y |
|
|
BM2PAB1Y-EVK-001EVAL BOARD FOR BM2PAB1Y |
3,551 | 0.00 |
|
Datasheet |
- | Bulk | Active | AC/DC Converter | 1 Non-Isolated Output | 7.2 W | 12V | 600mA | 90 ~ 264 VAC | Buck | 25kHz | Board(s) | BM2PAB1Y |
|
|
BM2PAB1Y-EVK-002EVAL BOARD FOR BM2PAB1Y |
4,321 | 0.00 |
|
Datasheet |
- | Bulk | Active | AC/DC Converter | 1 Non-Isolated Output | 3.3 W | 5V | 600mA | 90 ~ 264 VAC | Buck | 25kHz | Board(s) | BM2PAB1Y |
|
|
BM2PAA1Y-EVK-001EVAL BOARD FOR BM2PAA1Y |
1,955 | 0.00 |
|
Datasheet |
- | Bulk | Active | AC/DC Converter | 1 Non-Isolated Output | 7.2 W | 12V | 600mA | 90 ~ 264 VAC | Buck | - | Board(s) | BM2PAA1Y |
|
|
BM2PDA1Y-EVK-001EVAL BOARD FOR BM2PDA1Y |
3,811 | 0.00 |
|
Datasheet |
- | Bulk | Active | AC/DC Converter | 1 Non-Isolated Output | 8.4 W | 24V | 350mA | 90 ~ 264 VAC | Buck | 65kHz | Board(s) | BM2PDA1Y |
|
|
SI3406FB12V2-KITEVAL BOARD FOR SI3406 |
2,870 | 0.00 |
|
Datasheet |
- | Box | Active | Special Purpose DC/DC, Power Over Ethernet | 1 Isolated Output | 7 W | 12V | 450mA | 37V ~ 57V | Flyback | 123kHz | Board(s) | Si3406 |
|
|
TPS51388EVMEVAL BOARD FOR TPS51388 |
2,246 | 0.00 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.6V ~ 5.5V | 12A | 5.5V ~ 24V | Buck | - | Board(s) | TPS51388 |
